Emtek 8454US1 Arts and Crafts Style Designer Brass Single Cylinder Deadbolt
Arts and Crafts Style Designer Brass Single Cylinder Deadbolt
Emtek 8454US1 Arts and Crafts Style Designer Brass Single Cylinder Deadbolt - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Emtek 8454US1 Arts and Crafts Style Single Cylinder Deadbolt
The Emtek 8454US1 Arts and Crafts Style Single Cylinder Deadbolt is a single cylinder deadbolt for entry-door security. Uses an exterior keyed cylinder and an interior thumbturn.
Construction is listed as Brass. The listed backset is 2-3/8″ to 2-3/4″. It fits the listed 1-3/4″ to 3″ door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.
Specifications
- Model: 8454US1
- Function: Single Cylinder Deadbolt
- Material: Brass
- Collection: Arts and Crafts, Designer Brass
- Projection: 9/16″
- Width: 2-1/2″
- Height: 2-1/2″
- Backset: 2-3/8″ to 2-3/4″
- Door Thickness: 1-3/4″ to 3″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
Additional Emtek Information
Emtek 8454 Specification Sheet
Emtek 8454 Door Thickness Specification
View Emtek Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Backset2-3/4", 2-3/8"
-
Collections
-
Door Thickness1-3/4" / 1-7/8" / 2" / 2-1/2" / 2-1/4" / 2-1/8" / 2-3/4" / 2-3/8" / 2-5/8" / 2-7/8" / 3"
-
Edge Bore
-
Series
-
Cross Bore
-
Projection
-
Height
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

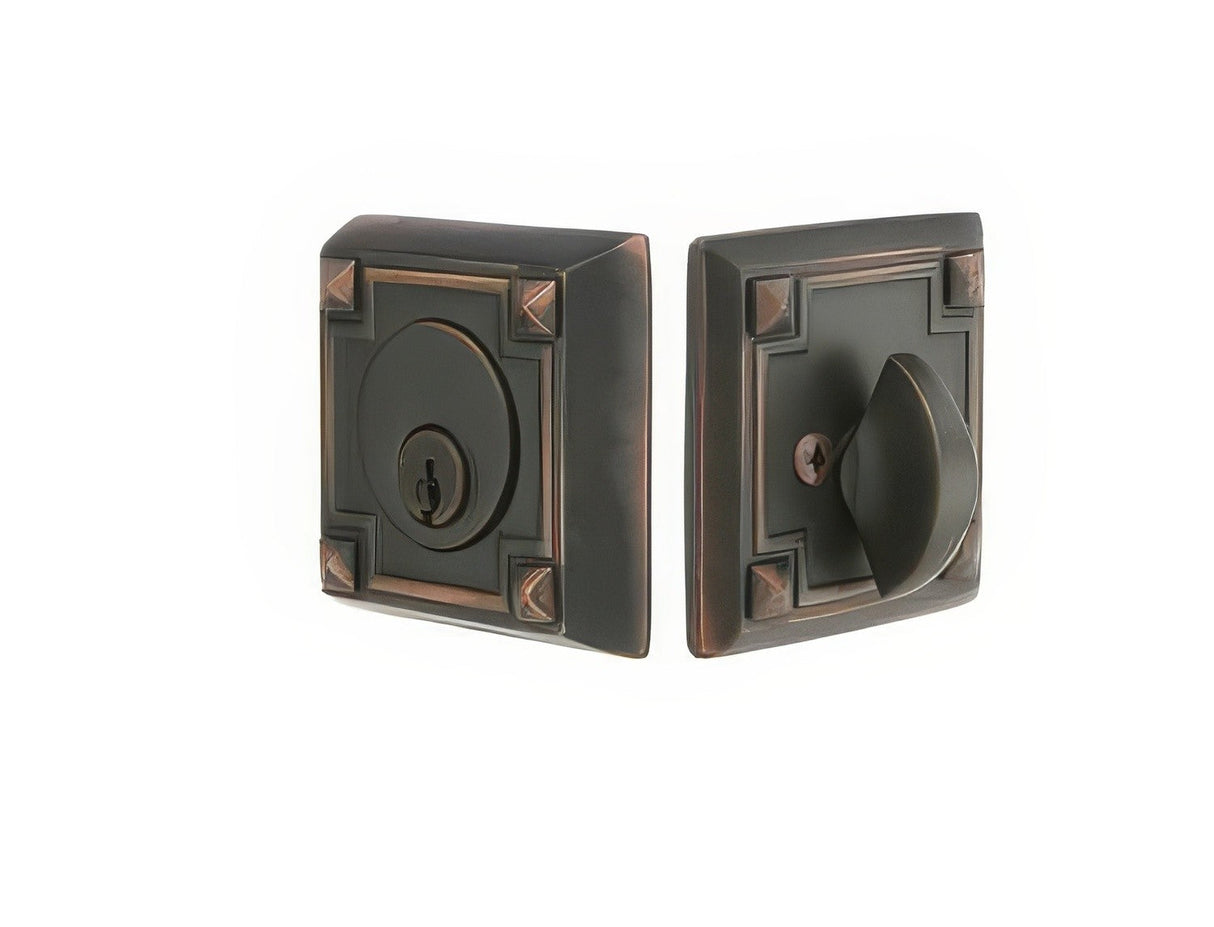

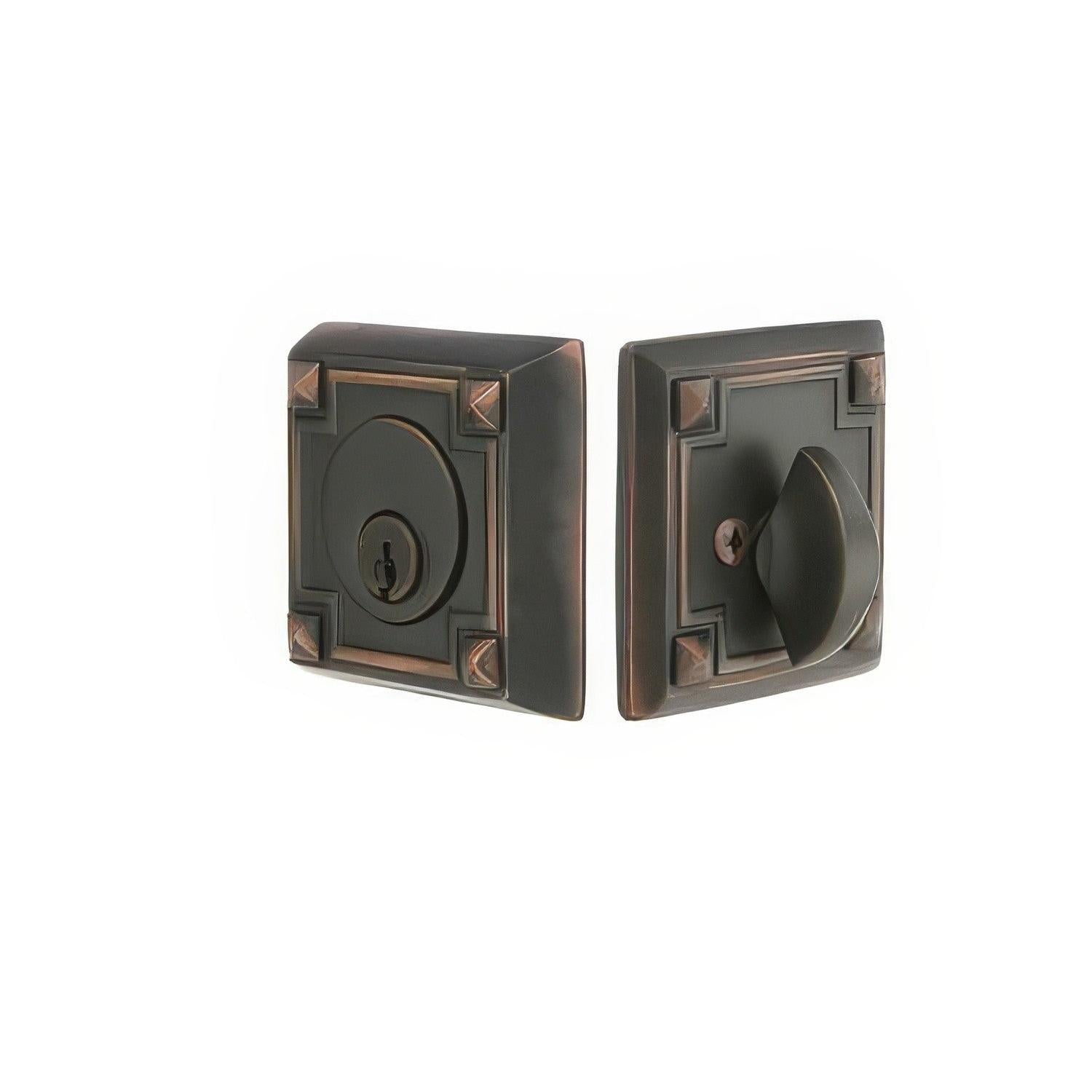

| 8454US19 | Flat Black | $105.60 USD |

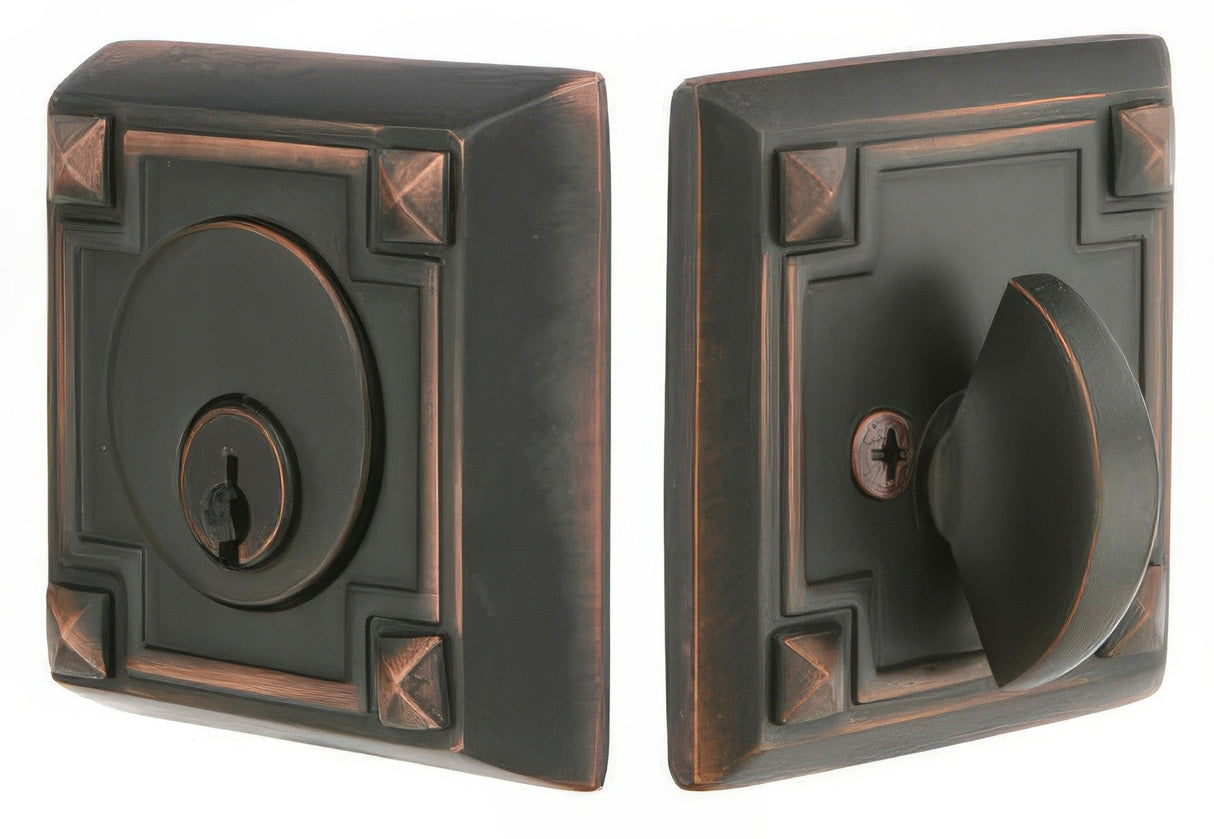

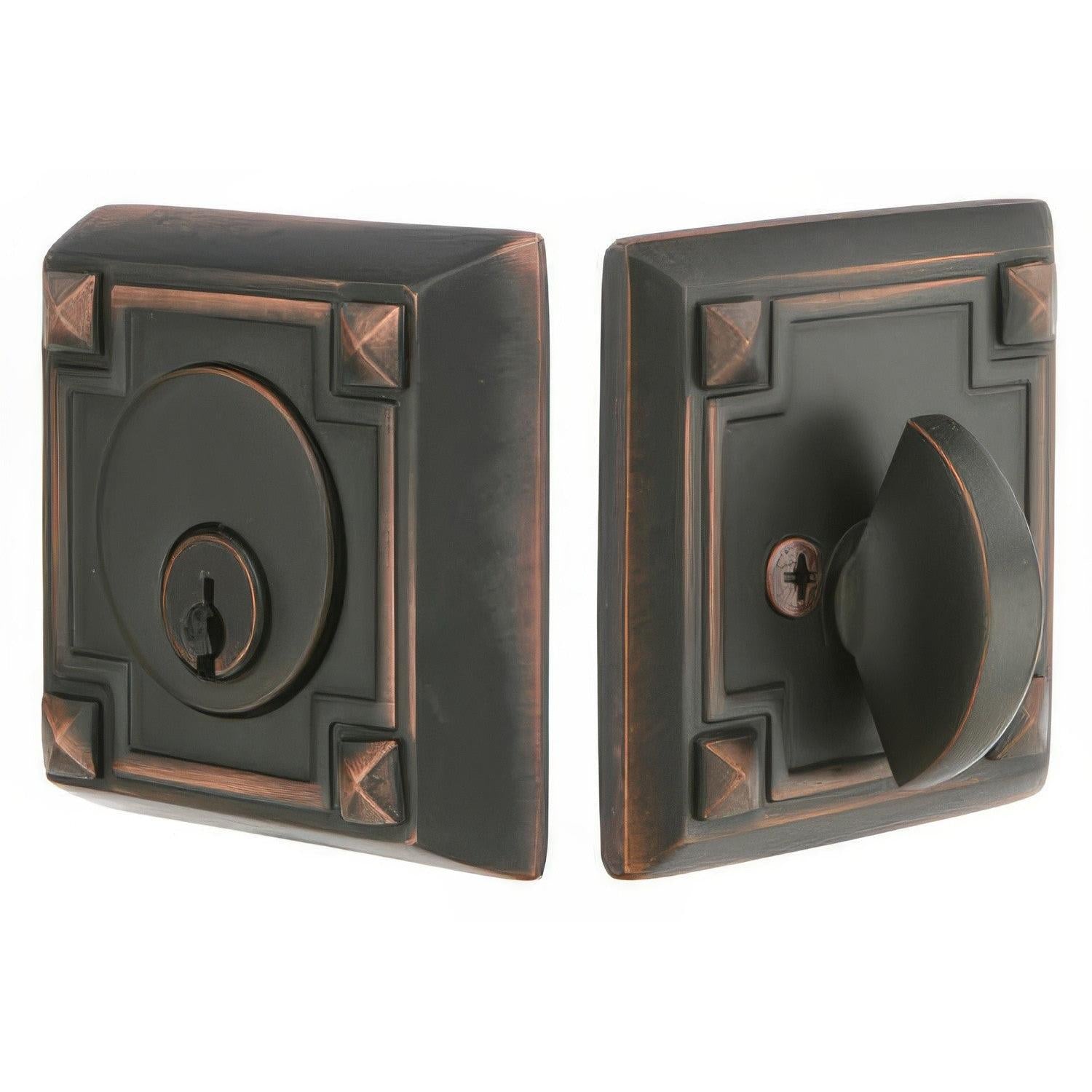

| 8454US10B | Oil Rubbed Bronze | $105.60 USD |

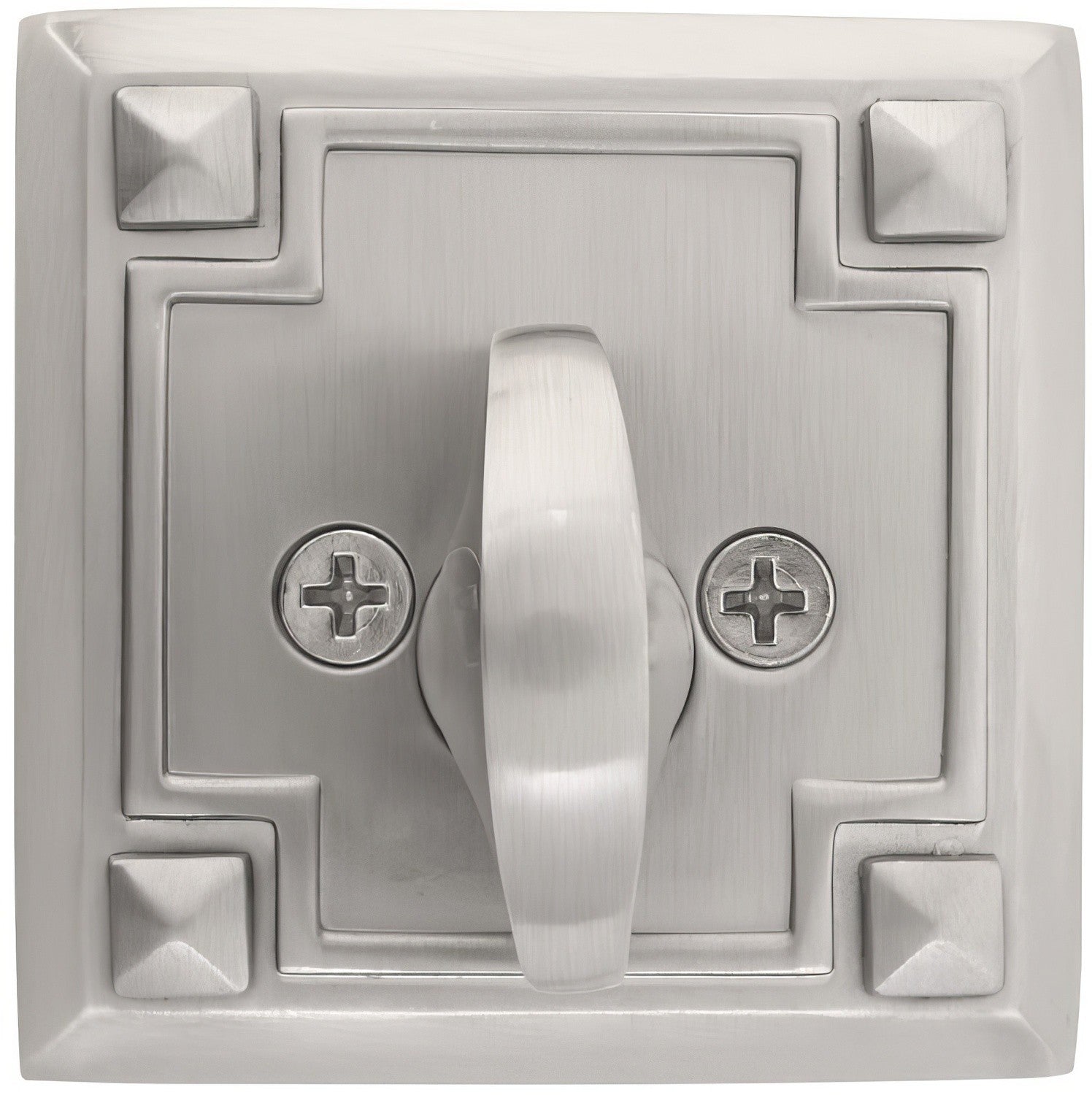

| 8454US15 | Satin Nickel | $105.60 USD |
Description
Description
Emtek 8454US1 Arts and Crafts Style Single Cylinder Deadbolt
The Emtek 8454US1 Arts and Crafts Style Single Cylinder Deadbolt is a single cylinder deadbolt for entry-door security. Uses an exterior keyed cylinder and an interior thumbturn.
Construction is listed as Brass. The listed backset is 2-3/8″ to 2-3/4″. It fits the listed 1-3/4″ to 3″ door-thickness range. Review door preparation, dimensions, keyway, handing, and included components before ordering.
Specifications
- Model: 8454US1
- Function: Single Cylinder Deadbolt
- Material: Brass
- Collection: Arts and Crafts, Designer Brass
- Projection: 9/16″
- Width: 2-1/2″
- Height: 2-1/2″
- Backset: 2-3/8″ to 2-3/4″
- Door Thickness: 1-3/4″ to 3″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
Additional Emtek Information
Emtek 8454 Specification Sheet
Emtek 8454 Door Thickness Specification
View Emtek Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
Brand
-
Function
-
Material
-
Backset2-3/4", 2-3/8"
-
Collections
-
FinishFlat Black, Oil Rubbed Bronze, Satin Nickel
-
Function
-
Material
-
Special Order
-
Door Thinkness1-3/4" / 1-7/8" / 2" / 2-1/2" / 2-1/4" / 2-1/8" / 2-3/4" / 2-3/8" / 2-5/8" / 2-7/8" / 3"
-
Edge Bore
-
Series
-
Searies
-
Cross Bore
-
Projection
-
Height
-
Width
