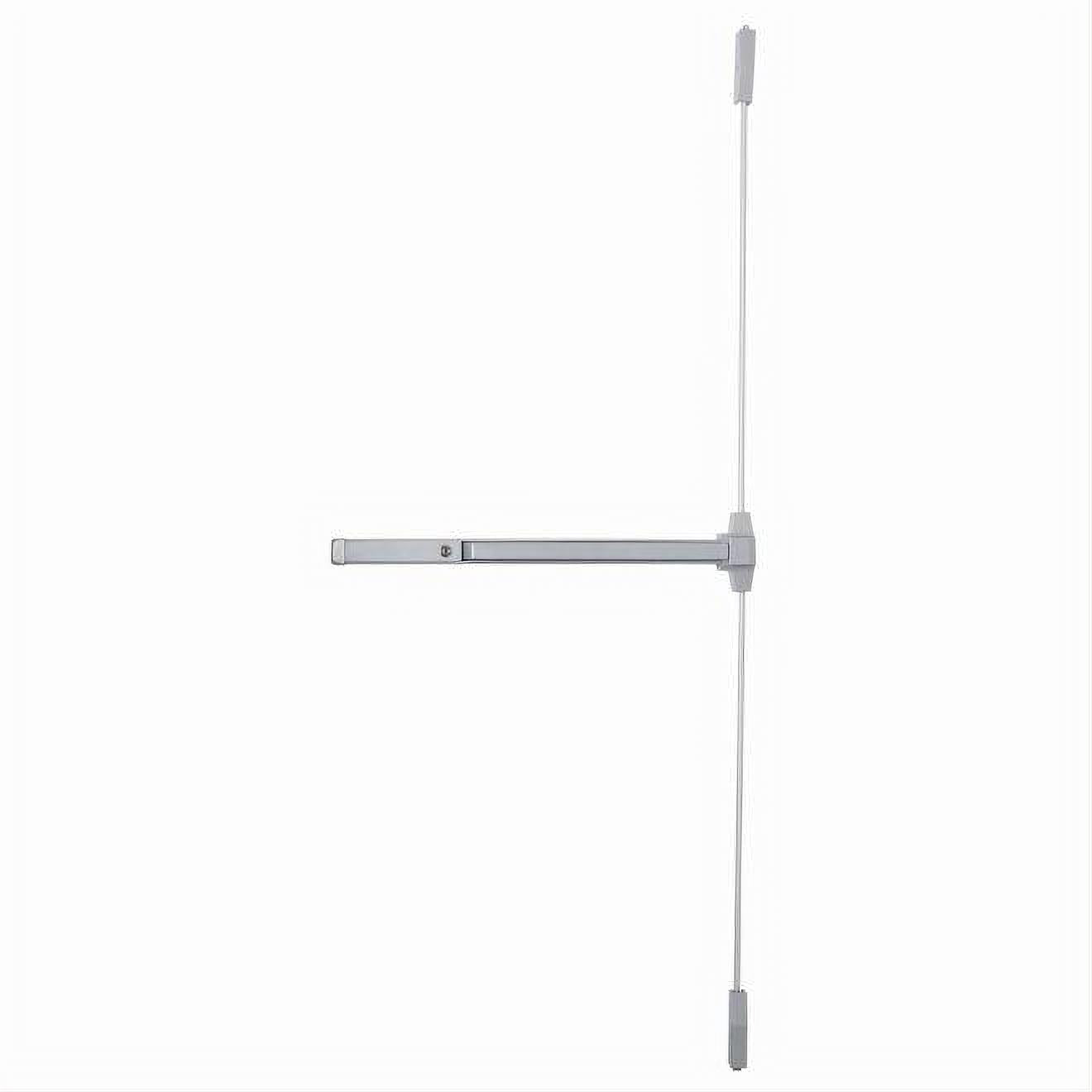

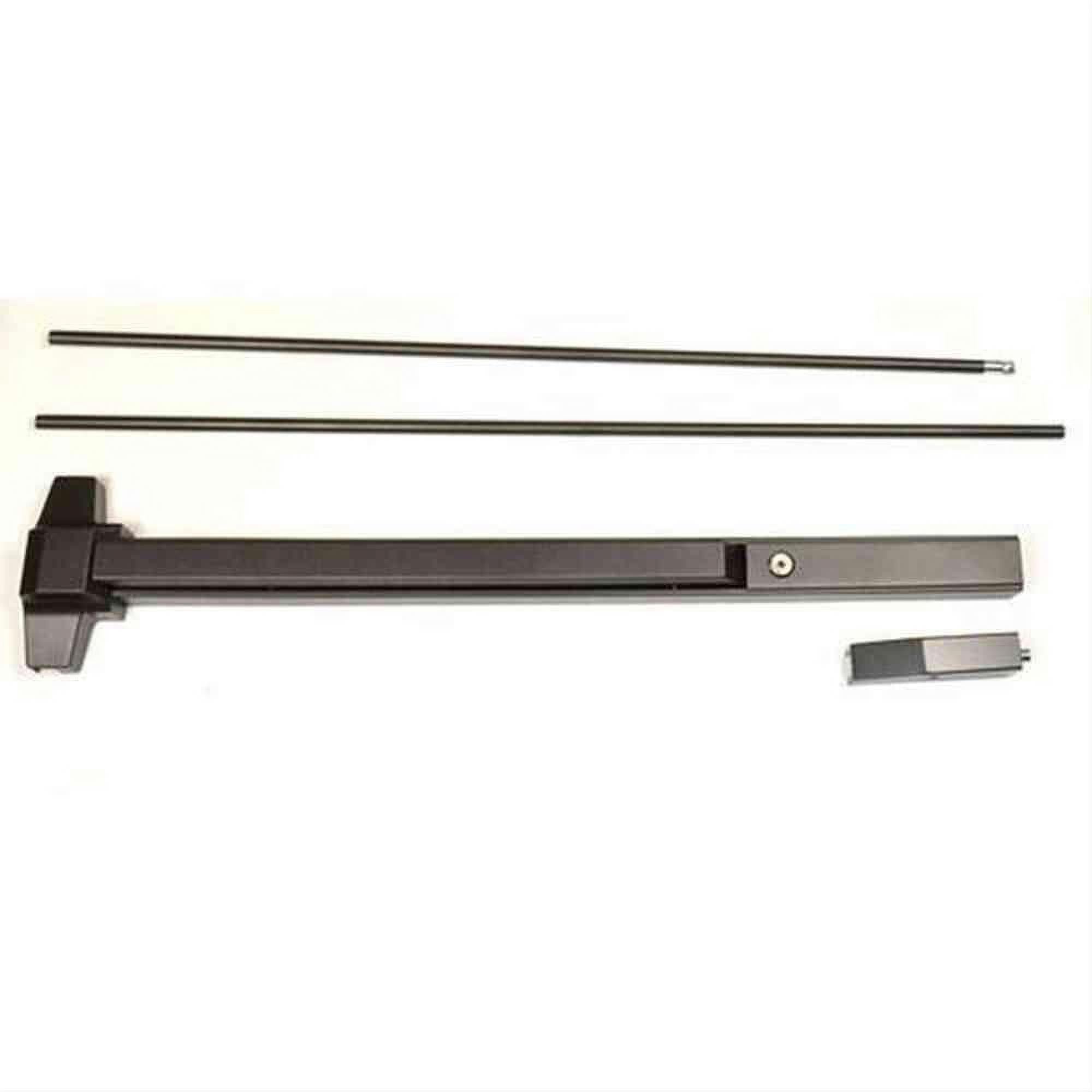

Dexter Commercial ED1500VEO3FT7FTDHSP Grade 1 3′ x 7′ Surface Vertical Rod Exit Device

The Dexter Commercial ED1500VEO3FT7FTDHSP Grade 1 3′ x 7′ Surface Vertical Rod Exit Device is a surface vertical rod exit device. It provides exit-only operation using surface-mounted vertical rods.

Verified specifications include Series: ED1500 Series; Material: Metal; Door Thickness: 1-3/4″; Device Length: 3′; Door Height: 7′.

Product Details

• Manufacturer Part Number: ED1500VEO3FT7FTDHSP
• Model: ED1500VEO3FT7FTDHSP
• Product Type: Surface Vertical Rod Exit Device
• Function: Surface Vertical Rod Exit Device
• Brand: Dexter Commercial
• Series: ED1500 Series
• Material: Metal
• Collection: Exit
• Door Thickness: 1-3/4″
• Device Length: 3′
• Door Height: 7′
• Handing: Field Reversible
• BHMA Grade: Grade 1
• Mechanism Case: Steel Mechanism Case
• Door Width: 29″ to 36″
• Minimum Stile: 3-1/2″
• Deadlatching: Standard
• Door Material: Wood or Hollow Metal
• Rod Configuration: Surface Vertical Rod
• UL Listing: UL Listed Panic Device
• Dogging: Hex Key

Before ordering: Confirm model ED1500VEO3FT7FTDHSP and the required function, dimensions, handing, latch or strike preparation, arm configuration, and cylinder preparation shown in the product details.
