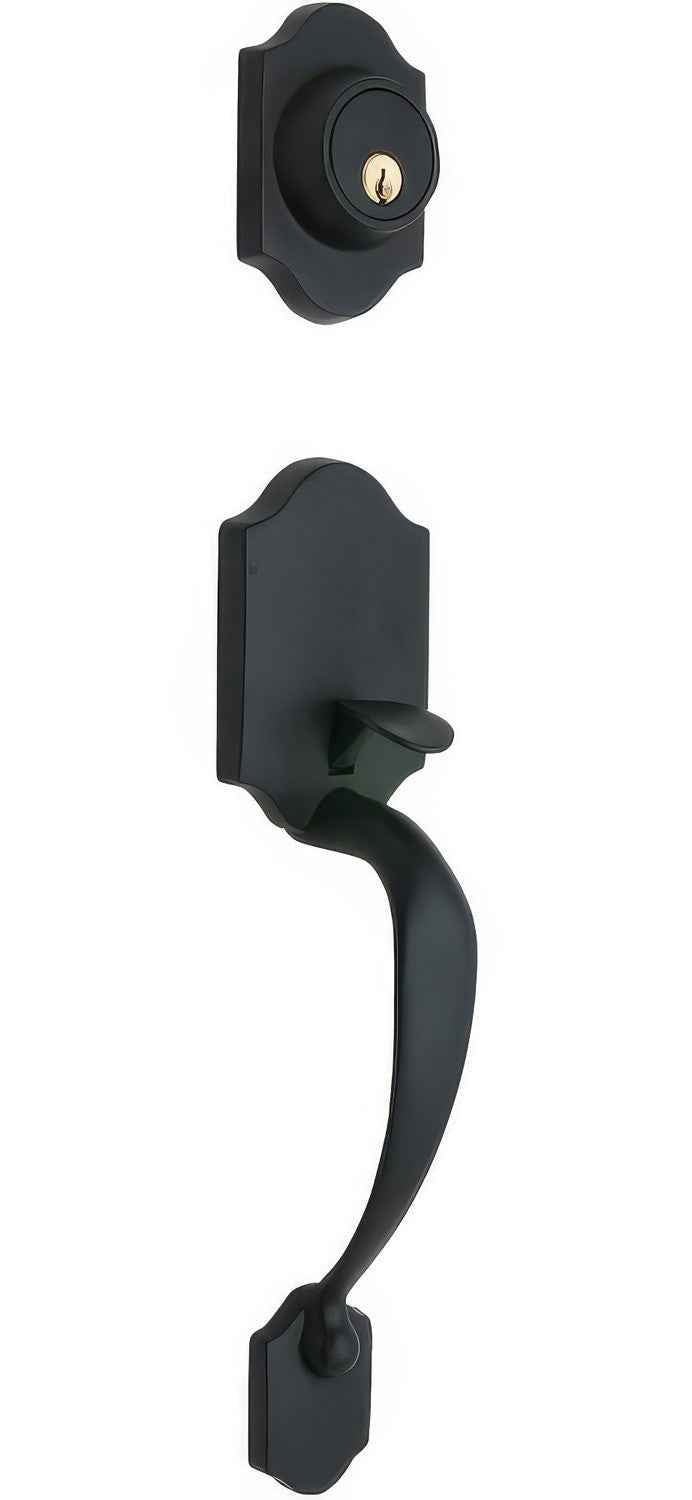

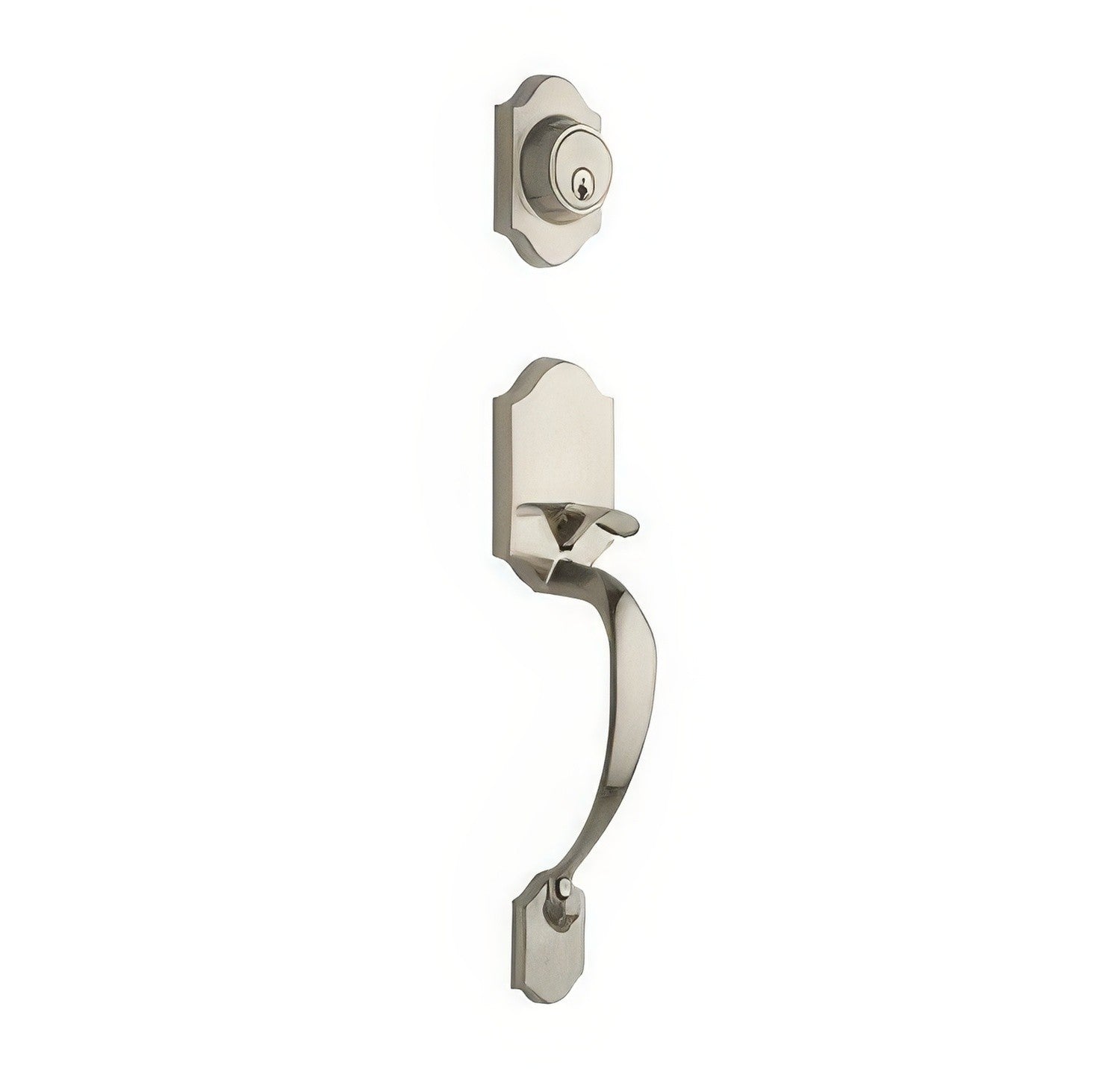

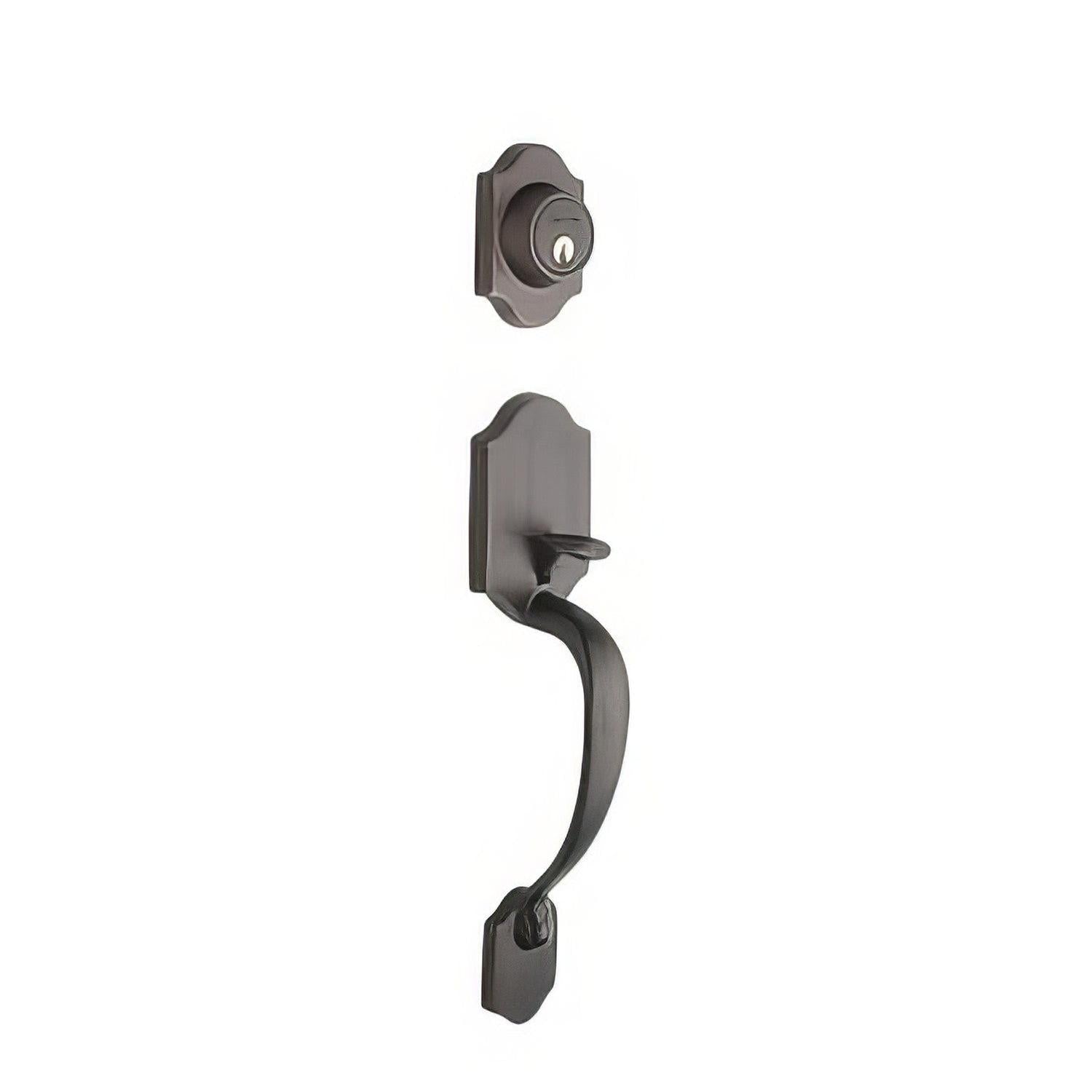

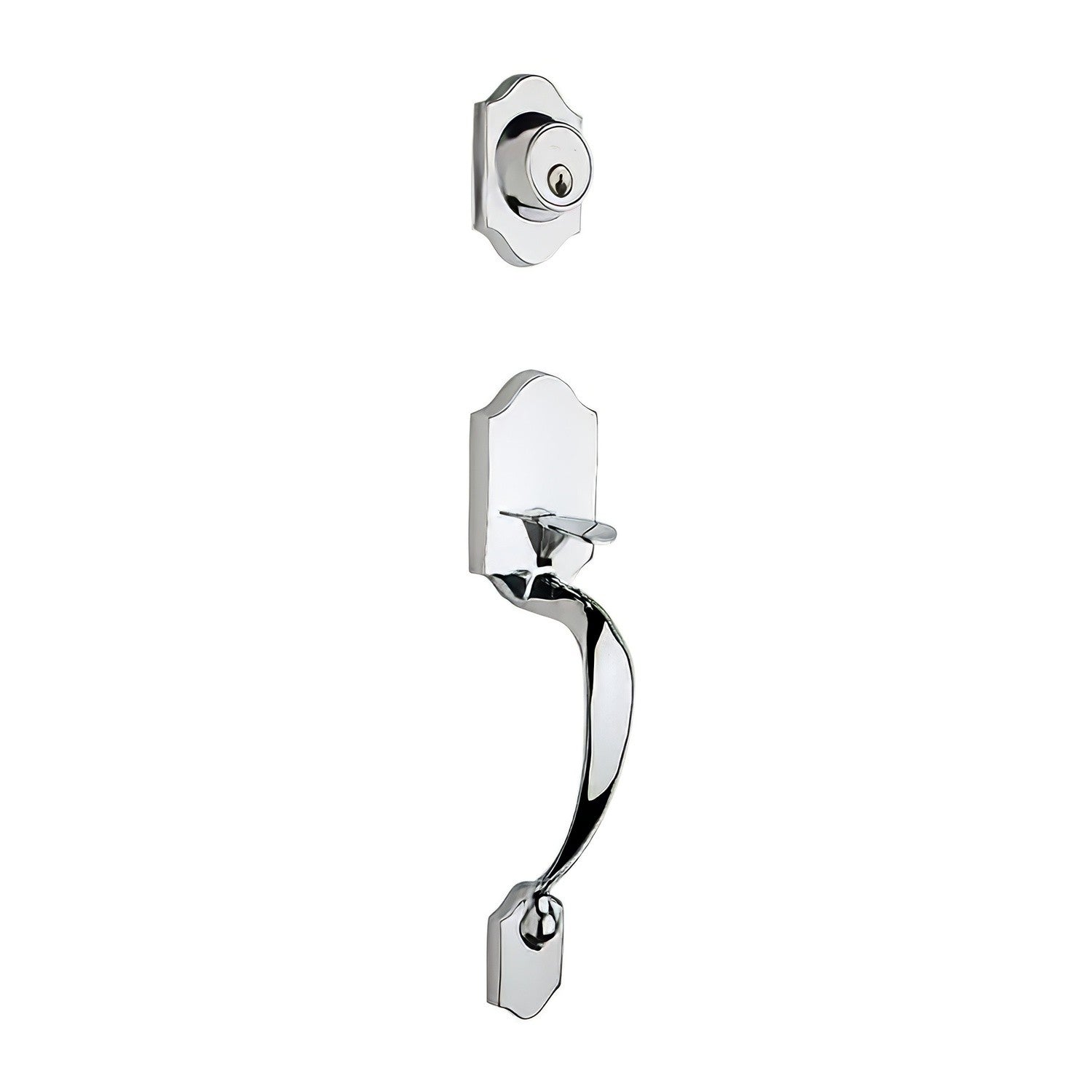

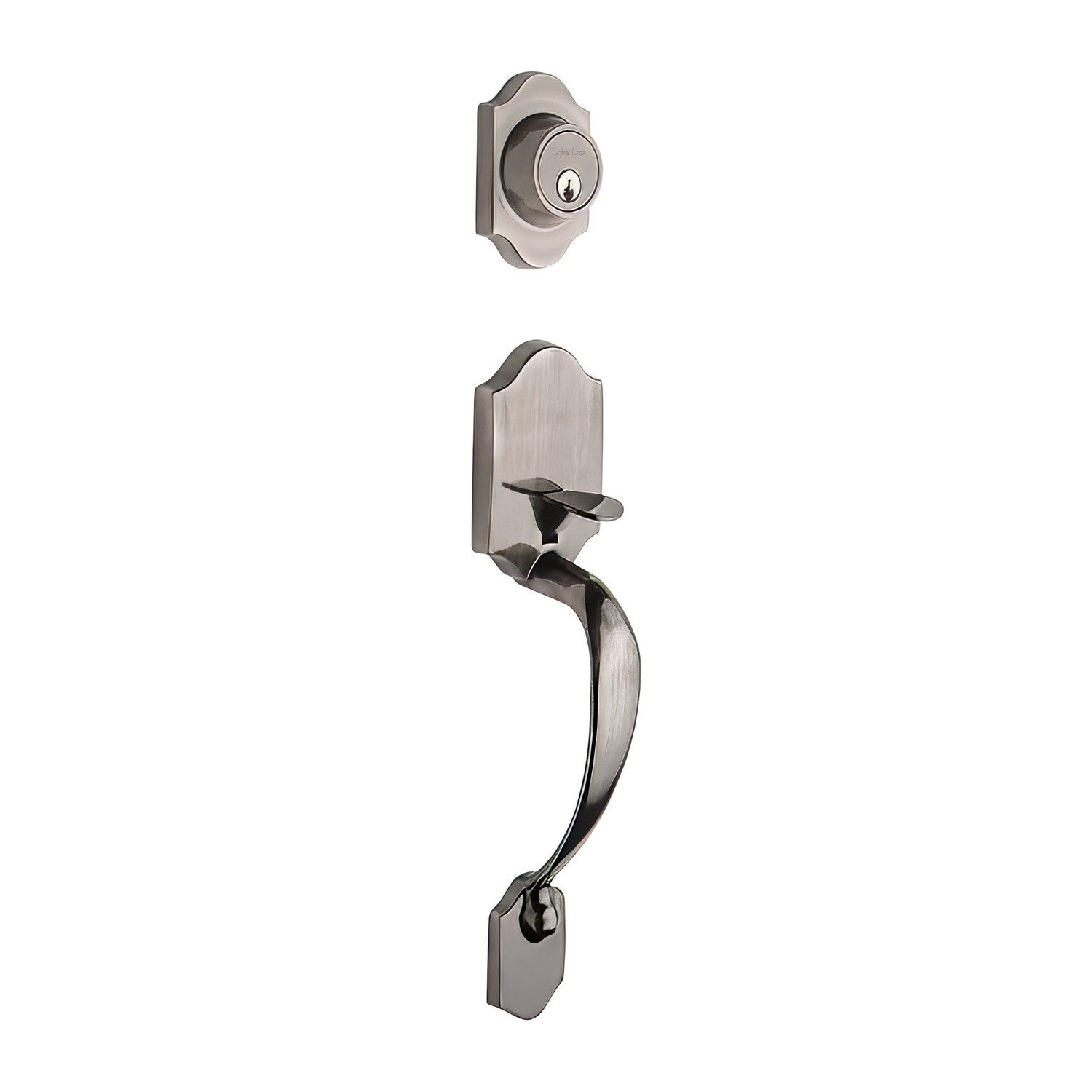

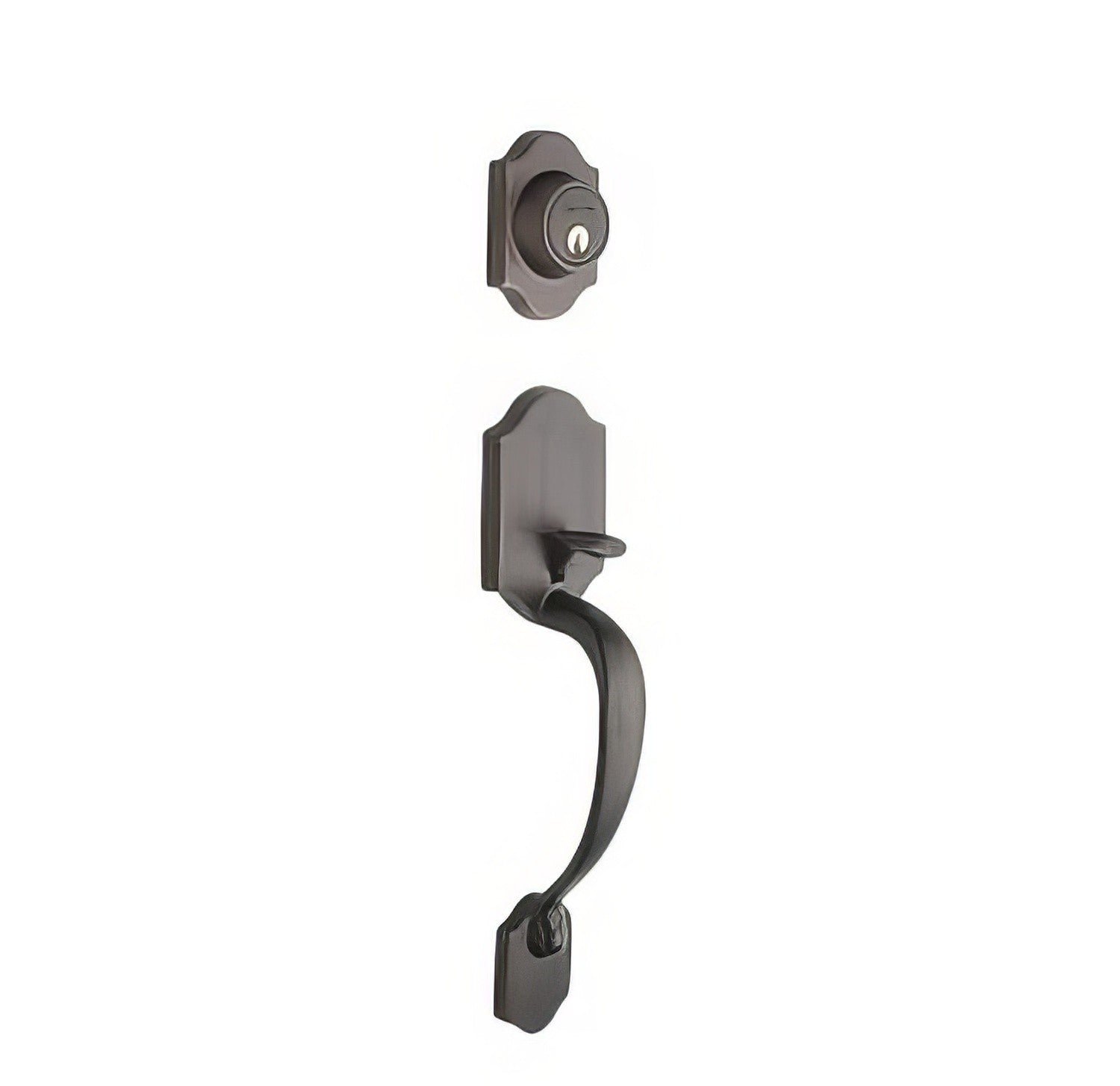

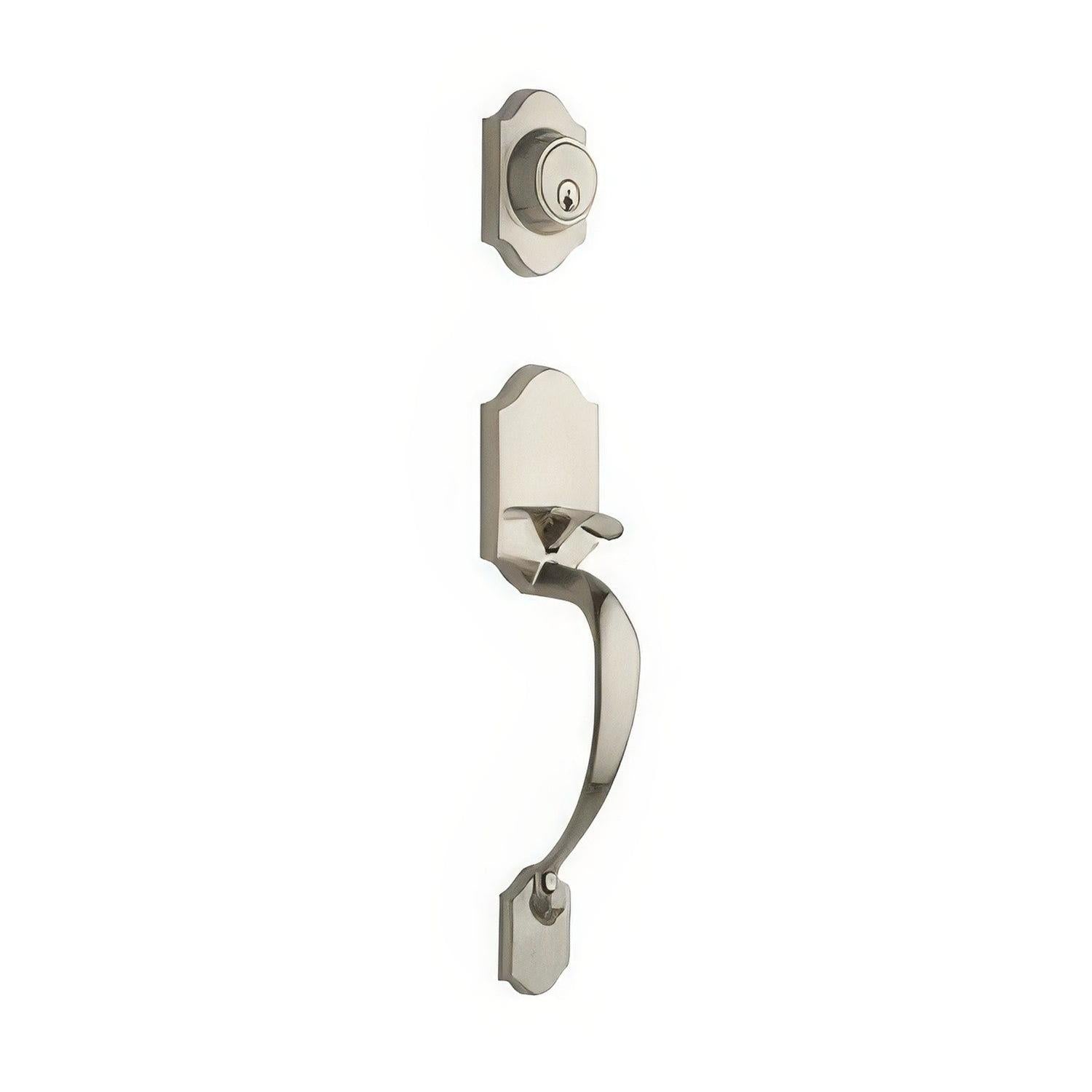

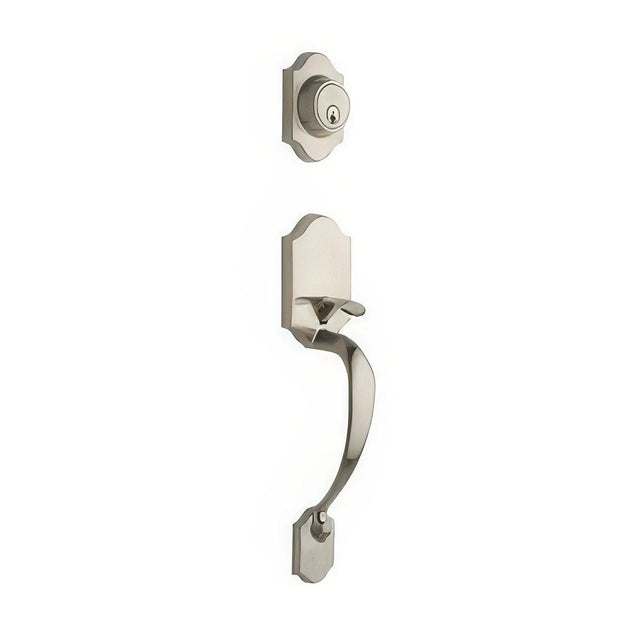

Copper Creek HZ2610 Heritage Single Cylinder Handleset

The Copper Creek HZ2610 Heritage is a single-cylinder entry handleset for an exterior residential door. An exterior key or the interior thumbturn operates the deadbolt, while the exterior thumbpiece and interior handle retract the spring latch.

The zinc handleset uses 5-1/2″ center spacing between the latch and deadbolt bores, an adjustable 2-3/8″ or 2-3/4″ backset, and standard 1-3/8″ to 1-3/4″ door thickness. The Heritage gripset measures 12″ overall. A separate thick-door kit is required when adapting the system to a 2-1/4″ door.

Product Details

• Model: HZ2610
• Design: Heritage
• Function: Single Cylinder Handleset
• Material: zinc
• Performance: ANSI/BHMA Grade 3; 200,000 cycles
• Deadbolt operation: exterior key or interior thumbturn
• Latch operation: exterior thumbpiece or interior handle
• Latch-to-deadbolt bore spacing: 5-1/2″ on center
• Backset: adjustable 2-3/8″ or 2-3/4″
• Door thickness: 1-3/8″ to 1-3/4″ standard
• Cross bore: 2-1/8″
• Edge bore: 1″
• Latch faceplate: 1″ round-corner narrow faceplate standard
• Handing: non-handed
• Overall gripset height: 12″
• Deadbolt rose: 3-1/2″ high x 2-3/8″ wide
• Main escutcheon: 4-3/8″ high x 2-3/4″ wide

Compatibility: Confirm the HZ2610 Heritage design, single-cylinder function, 5-1/2″ bore spacing, backset, door thickness, latch preparation, interior handle configuration, and keying requirements before ordering. The 2-1/4″ door application requires the appropriate thick-door kit.
