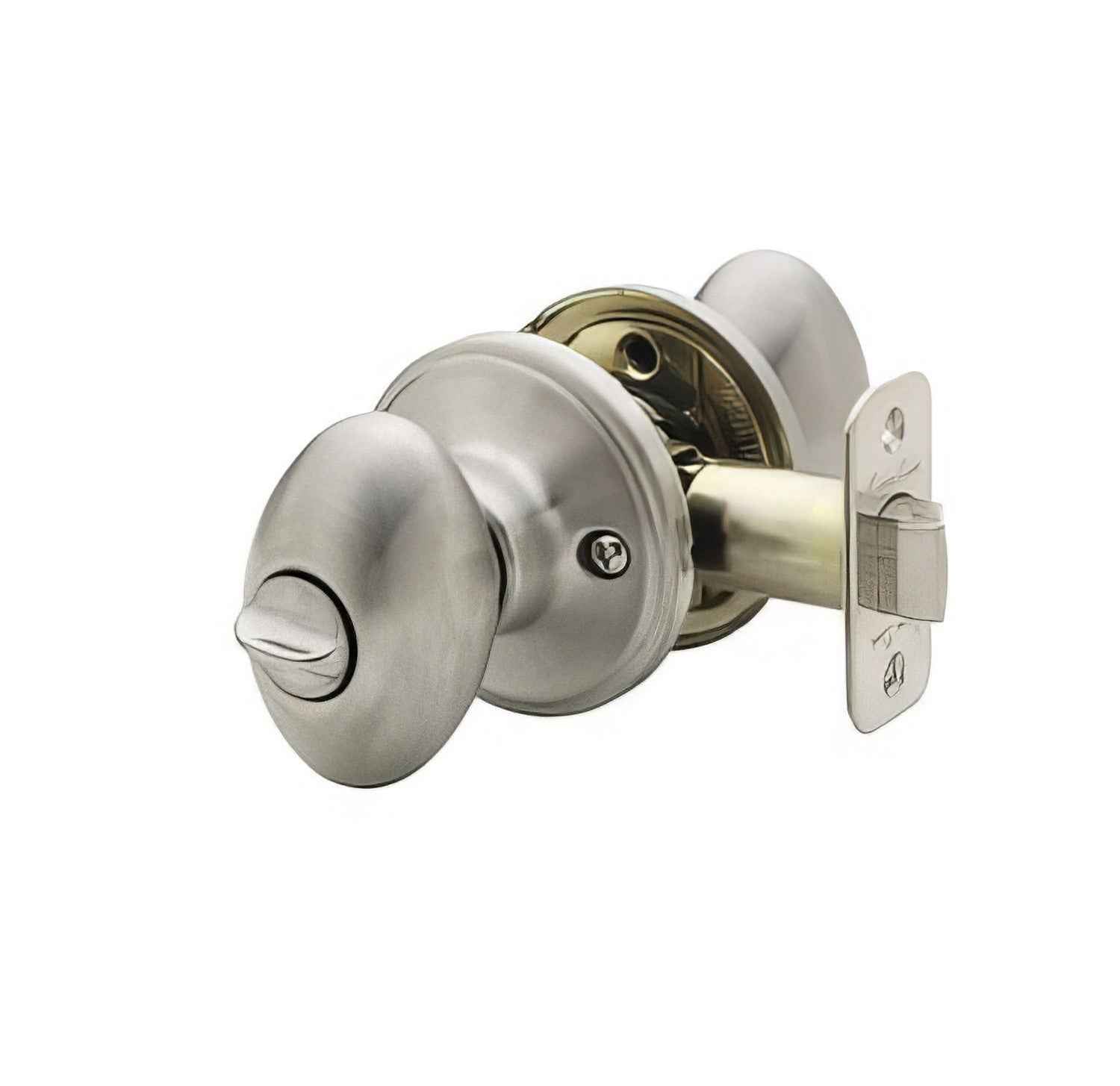

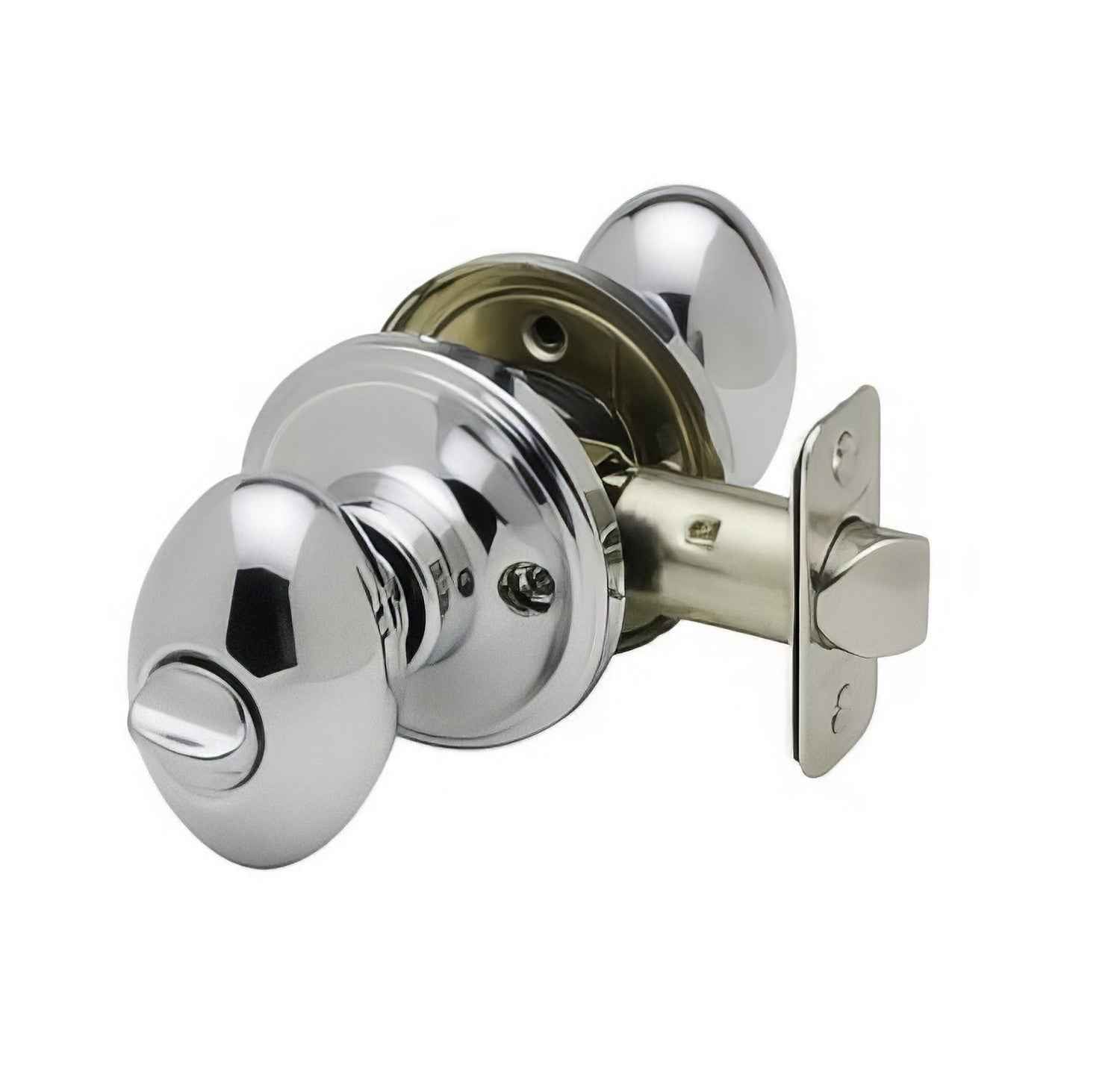

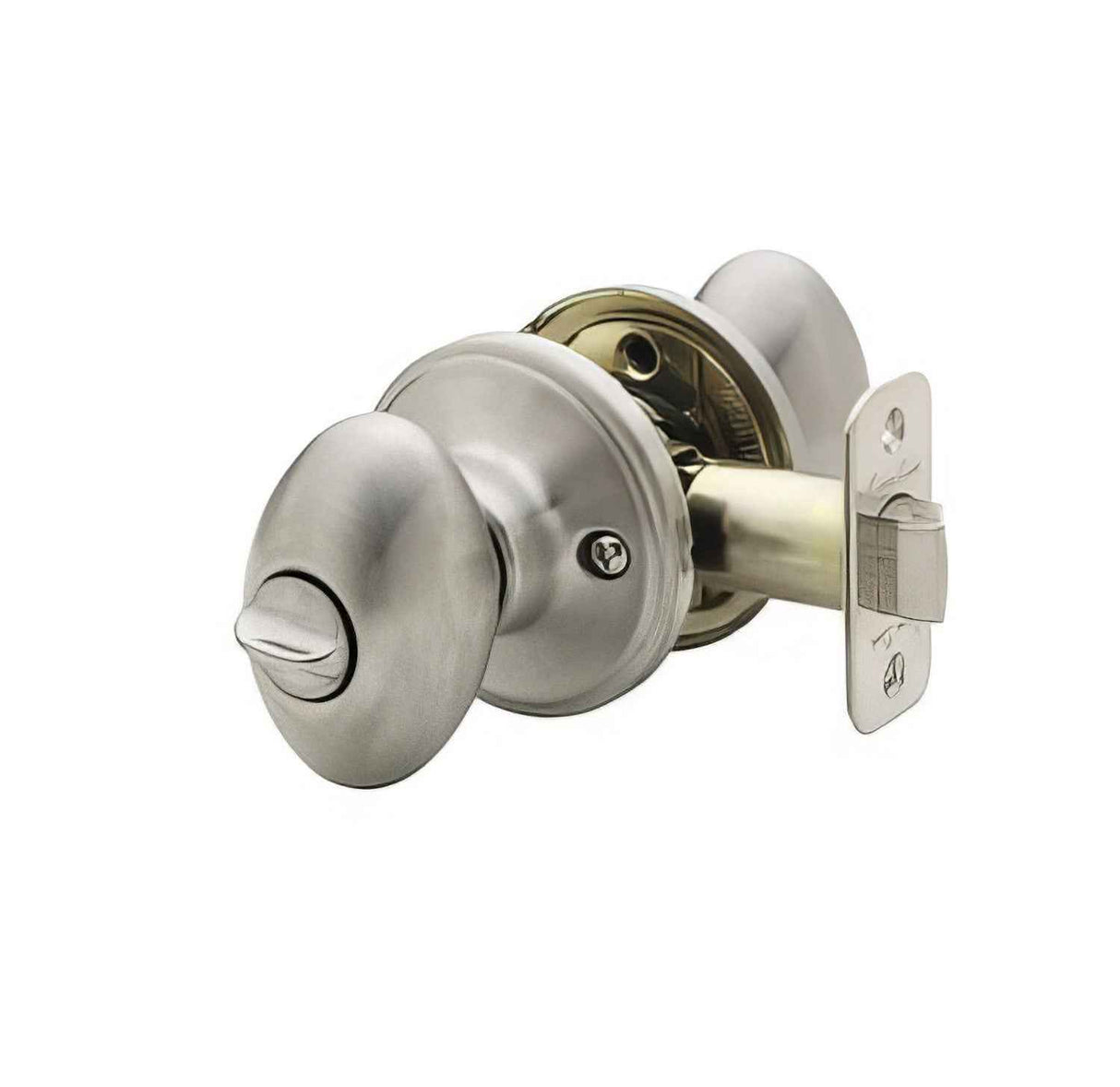

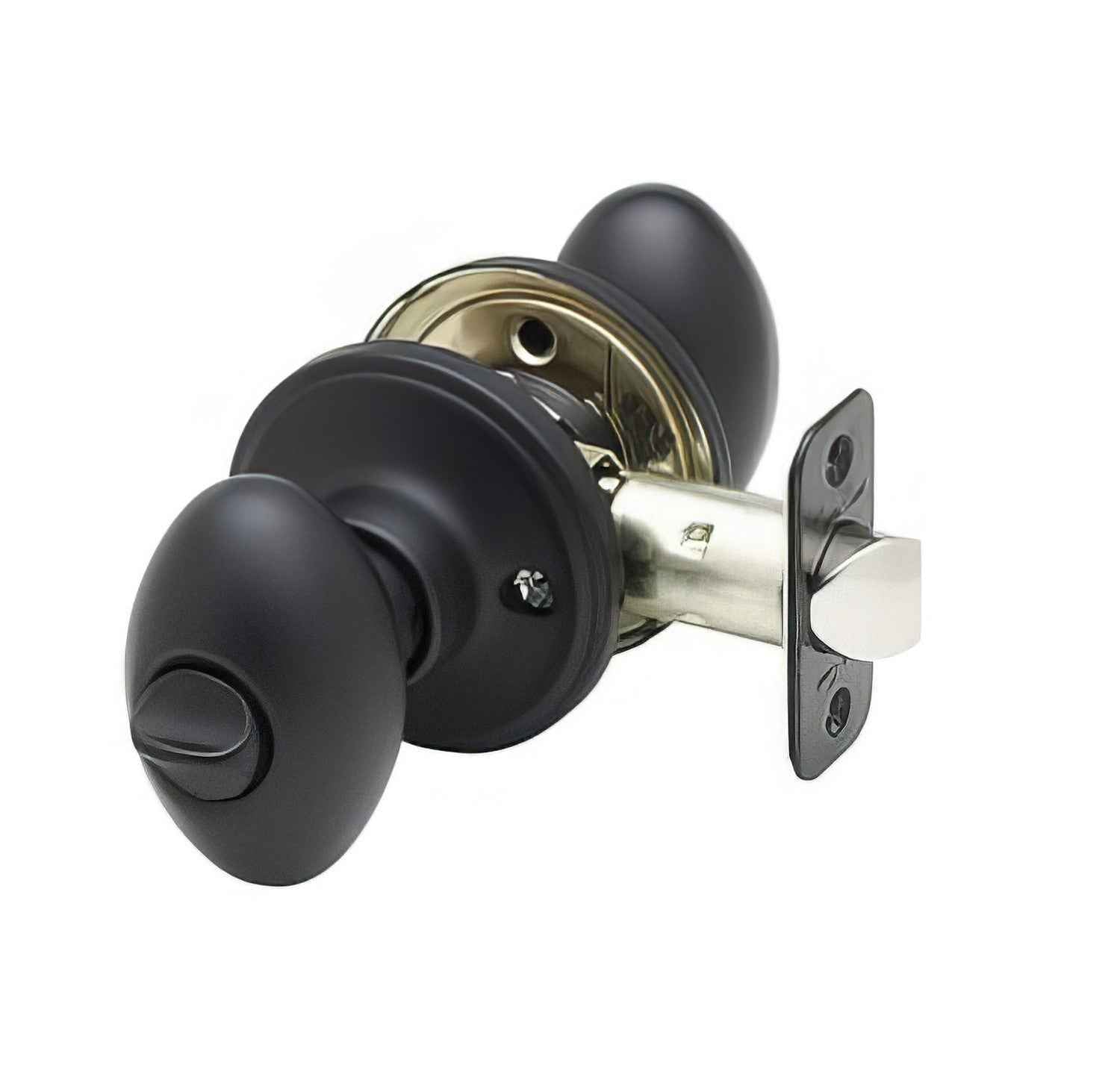

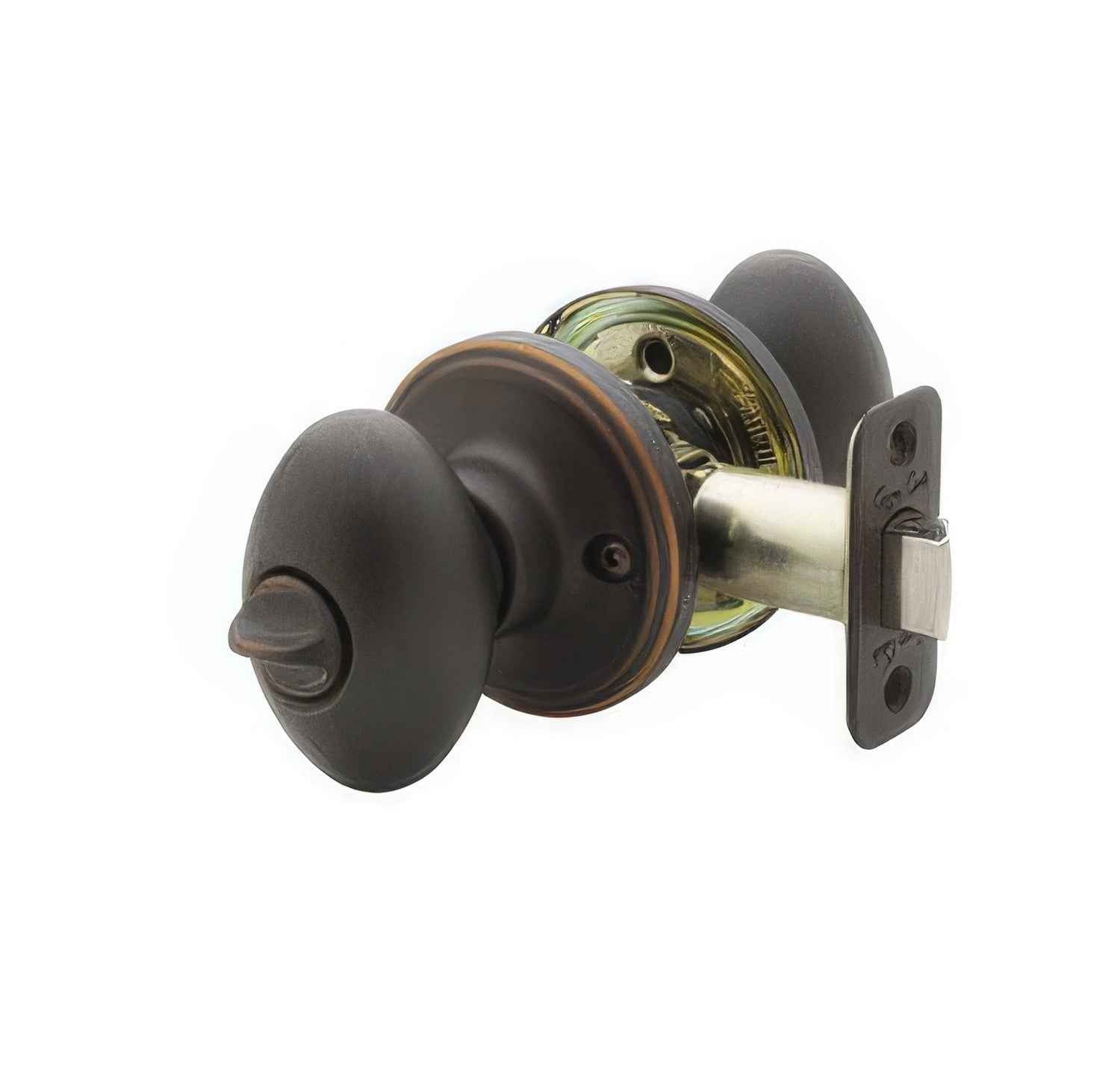

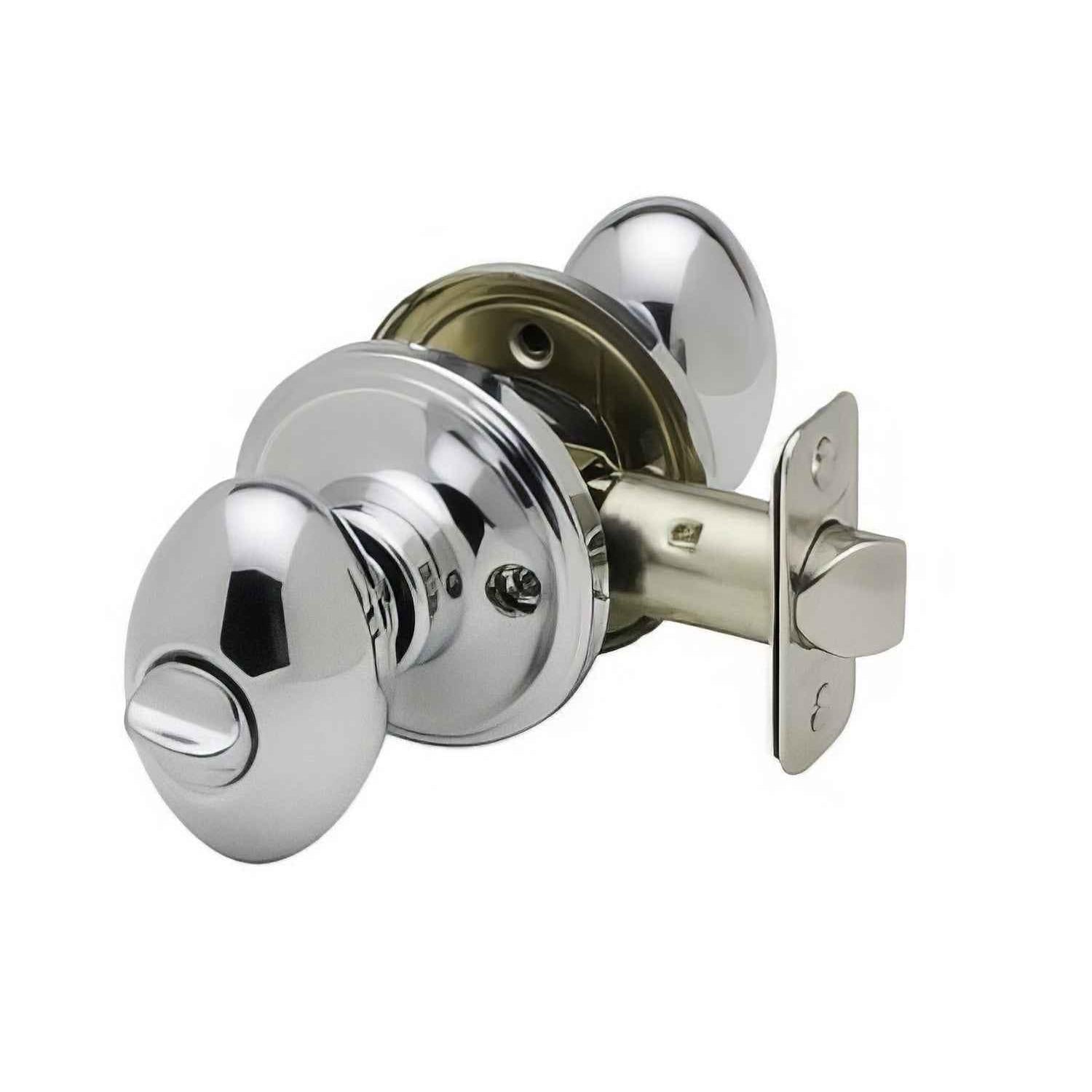

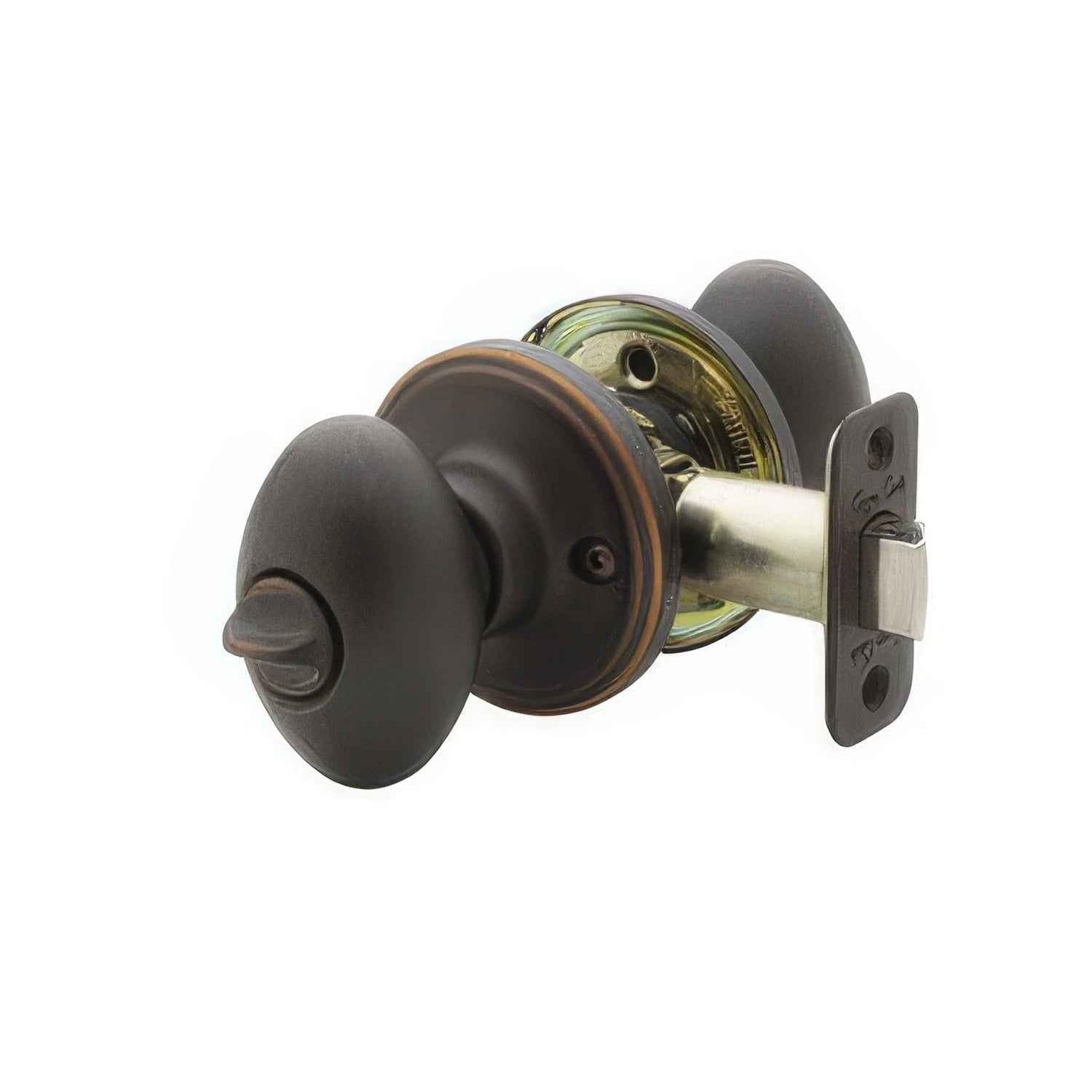

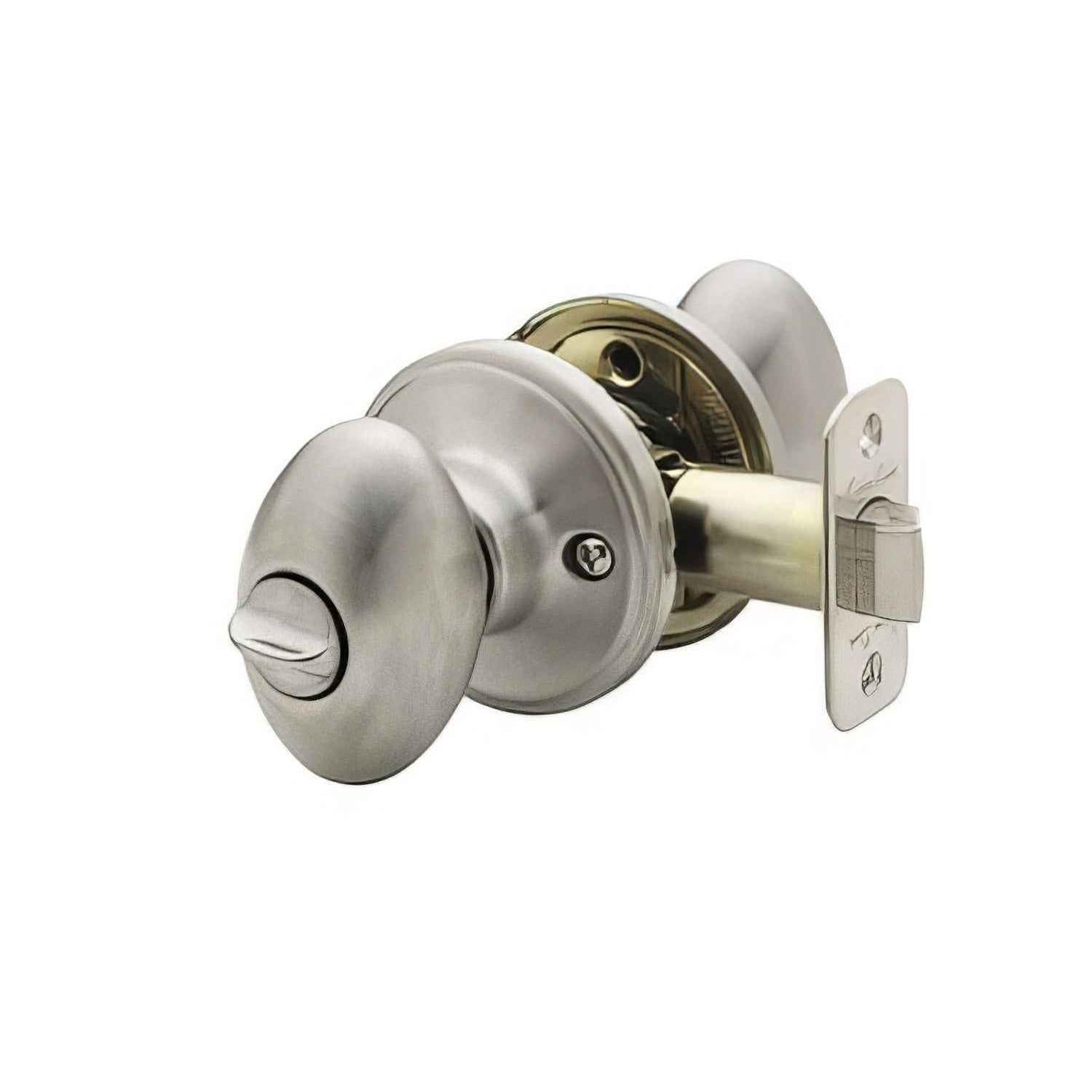

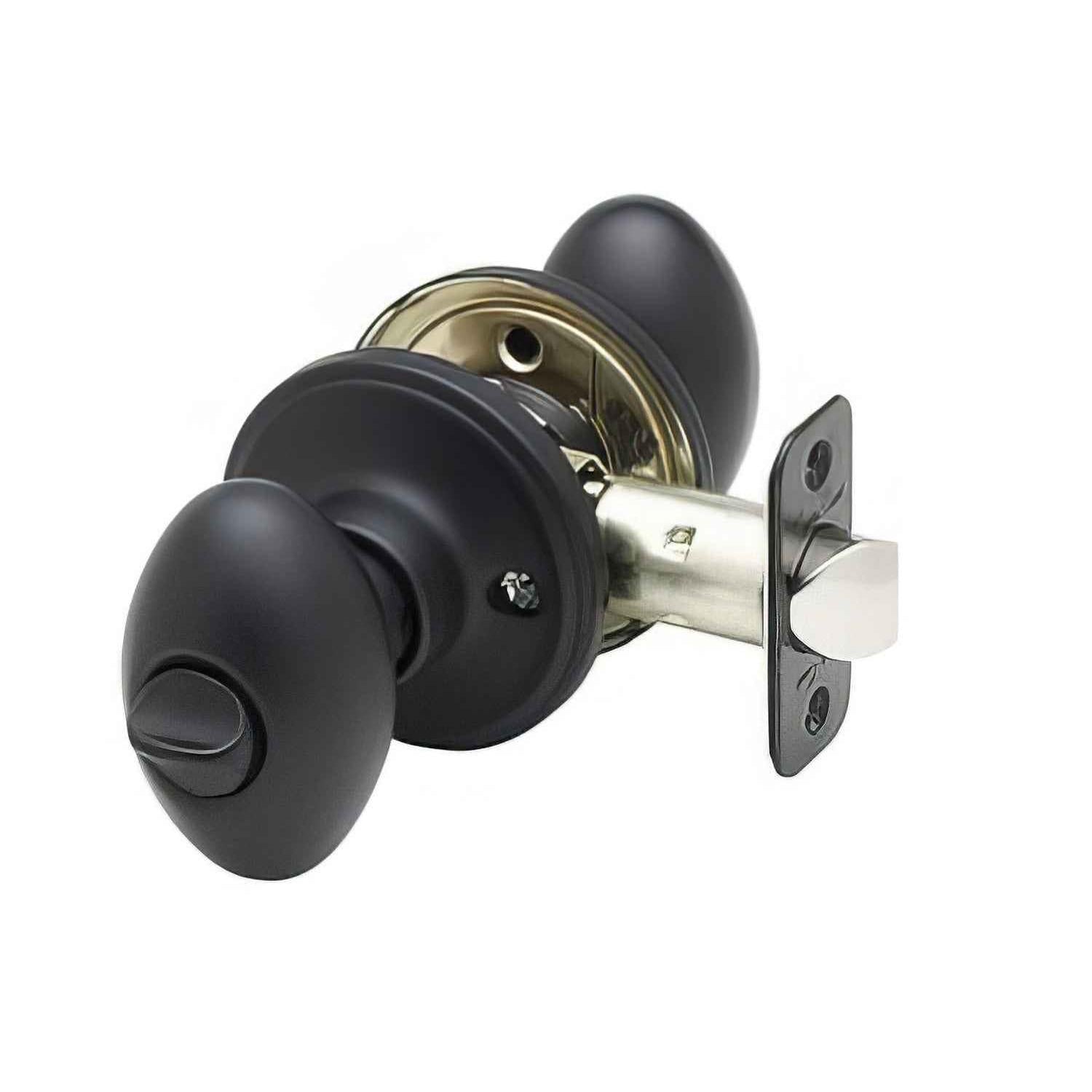

Copper Creek EK2030 Egg Style Privacy Door Knob

The Copper Creek EK2030 Egg is a Grade 3 residential privacy door knob with a oval egg knob and round rose.

The inside turn-button locks and unlocks both knobs, and the exterior privacy mechanism provides emergency release. It is intended for bedroom, bathroom, and other interior doors that need temporary privacy.

Product Details

• Model: EK2030
• Design: Egg
• Function: Residential Privacy Door Knob
• Configuration: Complete privacy lockset with interior and exterior knobs, adjustable latch, strike, emergency-release provision, and mounting hardware.
• Material: zinc
• Performance: ANSI/BHMA Grade 3
• Cycle rating: 200,000 cycles
• Rose: 2-5/8″ round rose
• Handing: Non-Handed / Reversible
• Locking control: Interior turn-button privacy control
• Door thickness: 1-3/8″ to 1-3/4″
• Adjustable backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Standard latch faceplate: 1″ round corner
• Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
