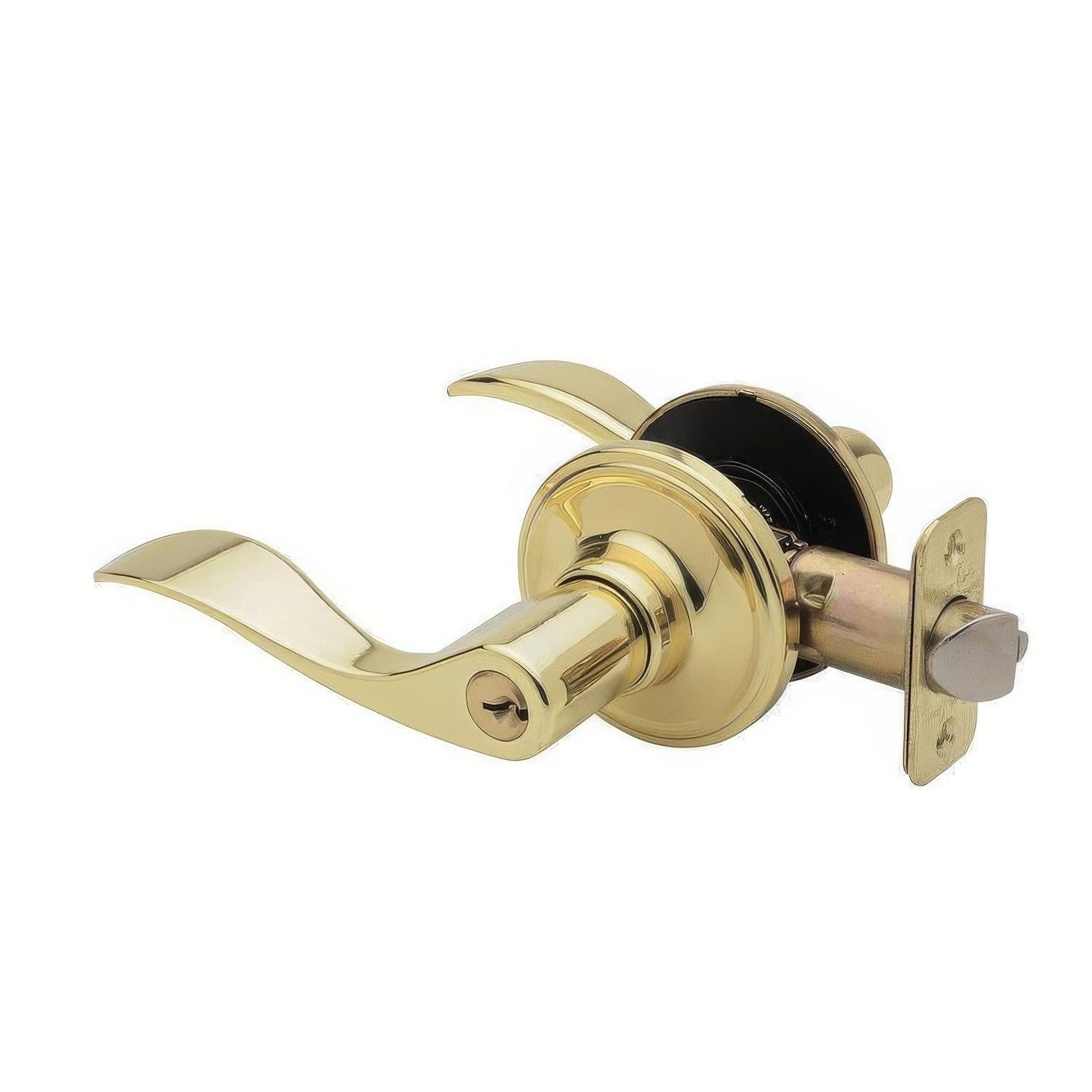

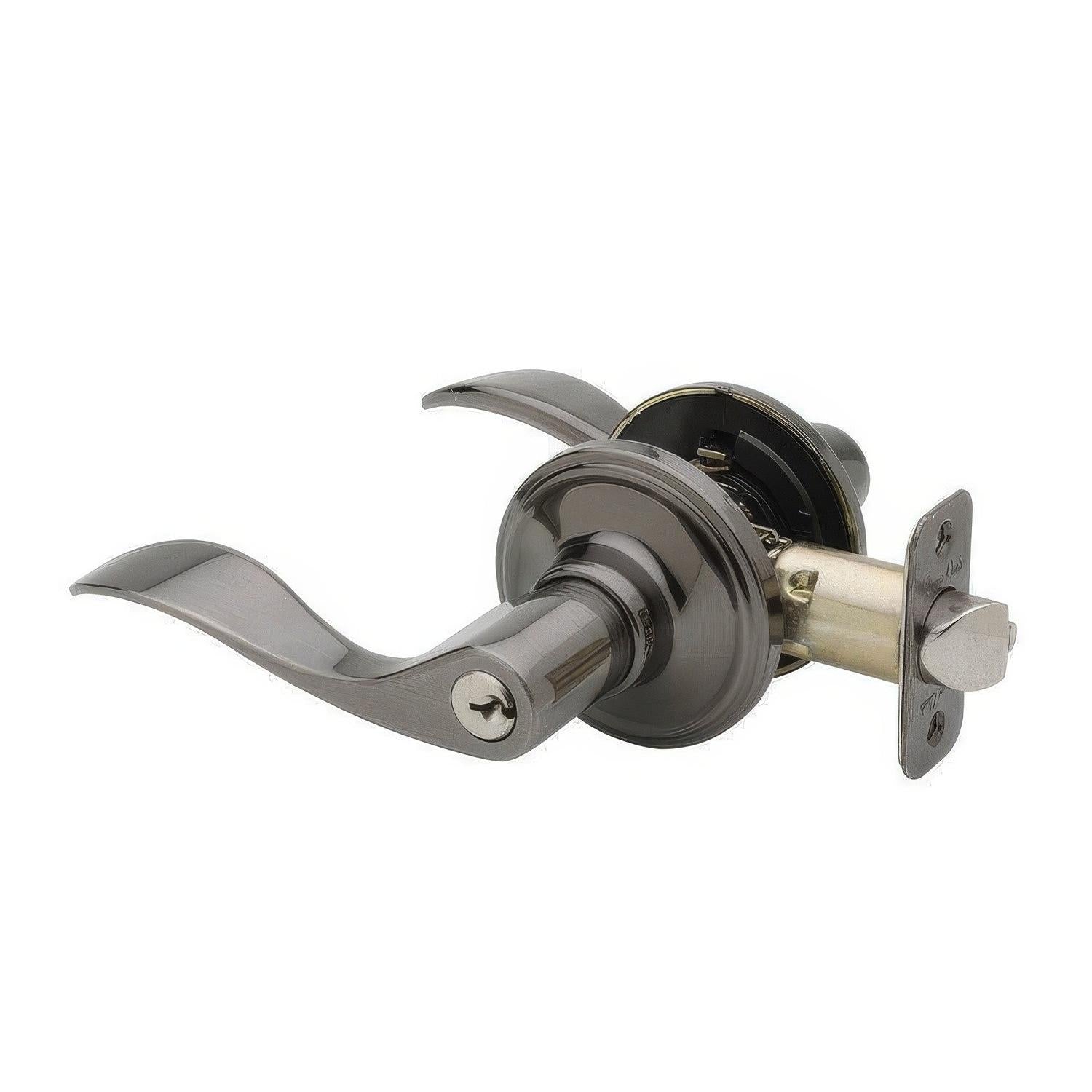

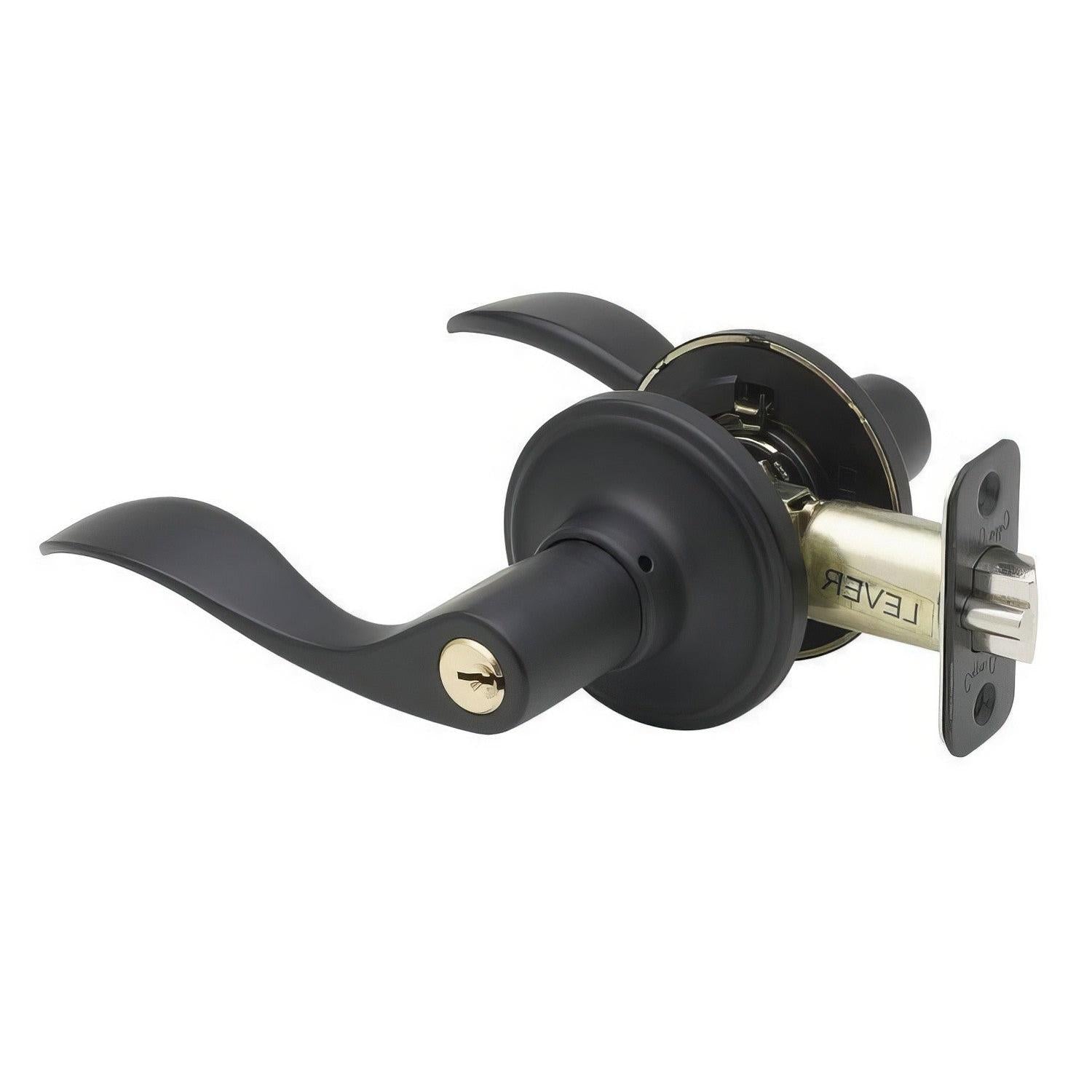

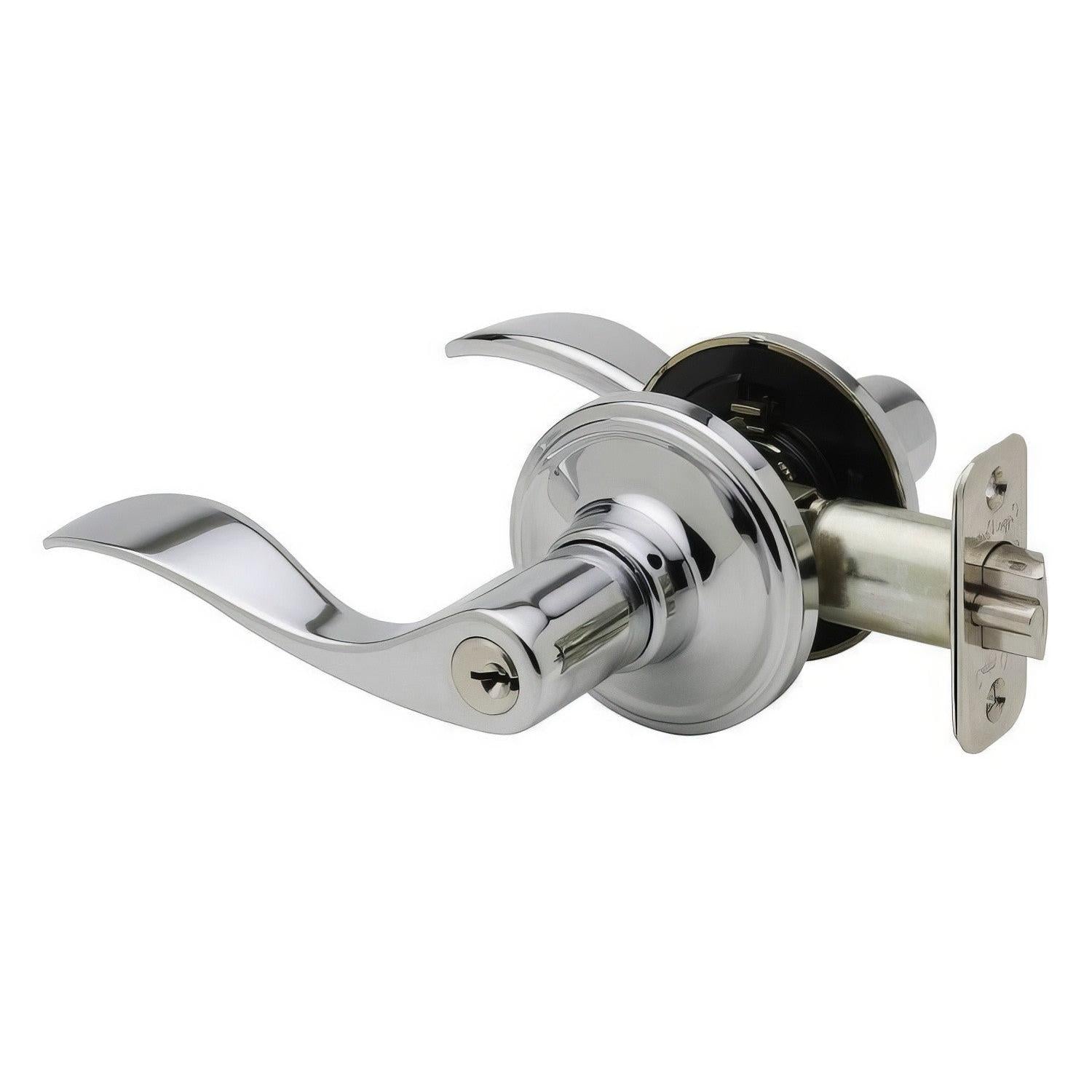

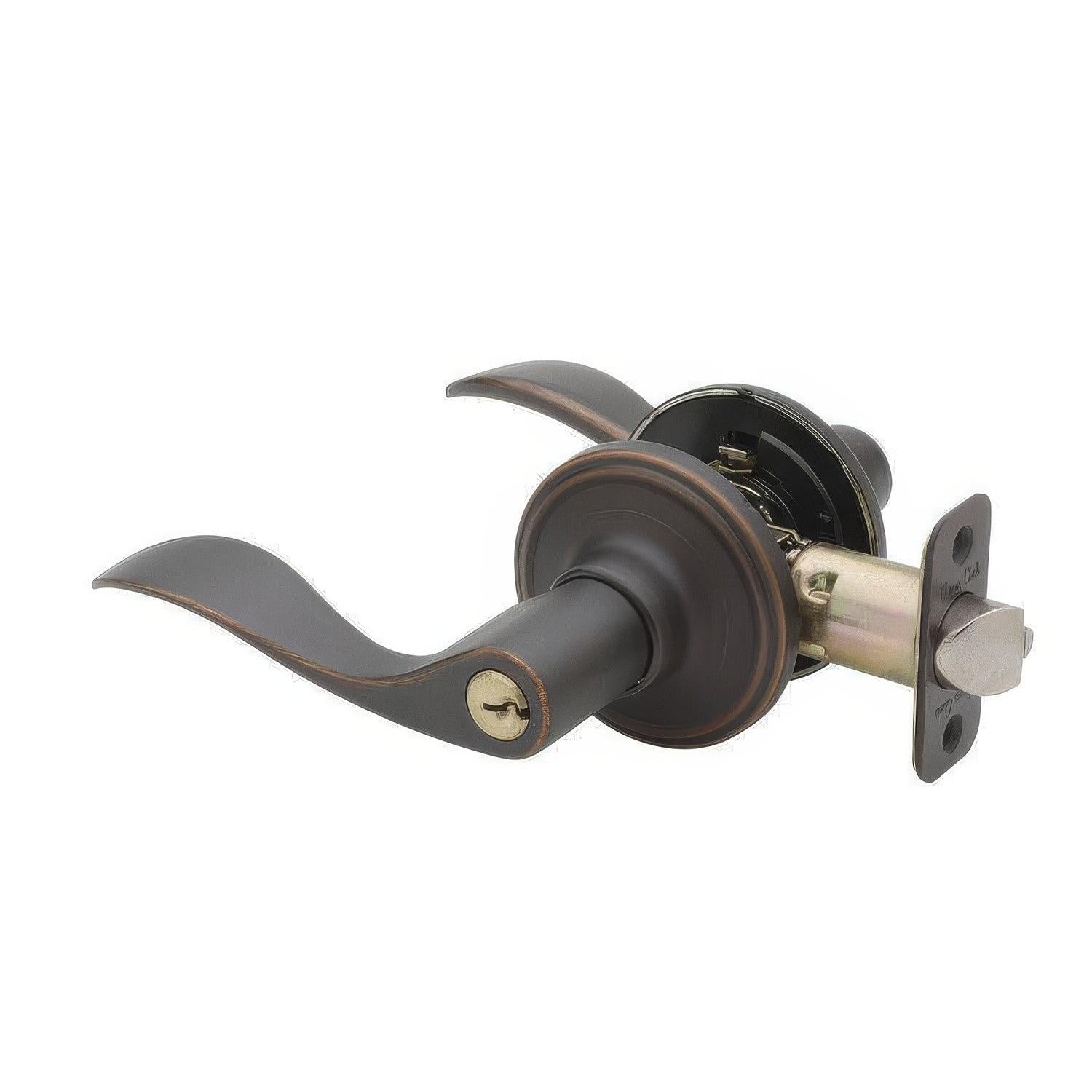

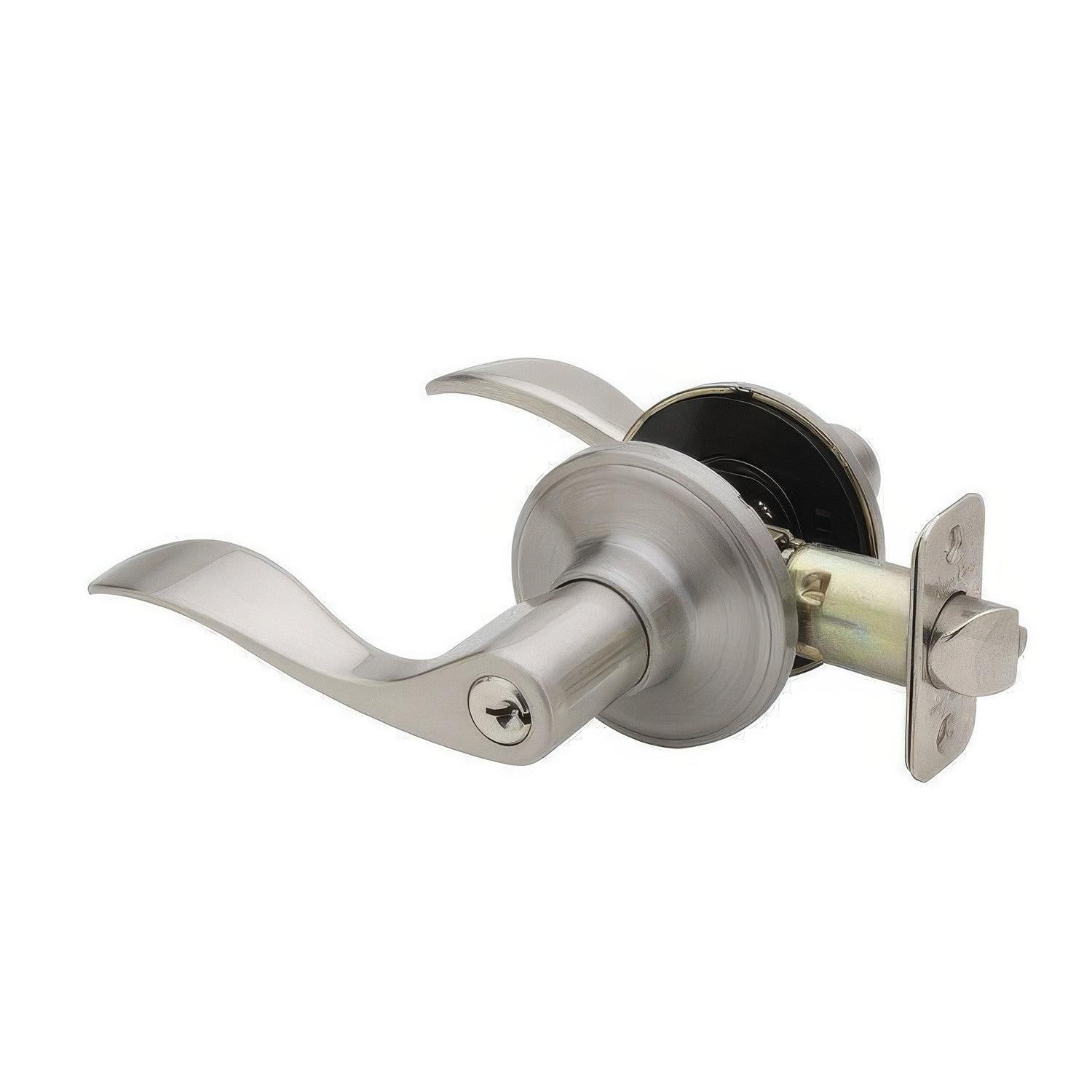

Copper Creek WL2240 Waverlie Keyed Entry Door Lever

The Copper Creek WL2240 Waverlie is a Grade 3 residential keyed entry door lever with a wave-profile lever and round rose.

The exterior side locks by key or the interior locking control, while the inside lever provides normal egress. It is intended for exterior, garage-entry, office, and other doors that require keyed access.

Product Details

• Model: WL2240
• Design: Waverlie
• Function: Residential Keyed Entry Door Lever
• Configuration: Complete keyed-entry lockset with interior and exterior levers, cylinder, adjustable latch, strike, and mounting hardware.
• Material: zinc
• Performance: ANSI/BHMA Grade 3
• Cycle rating: 200,000 cycles
• Rose: 2-5/8″ round rose
• Handing: Non-Handed / Reversible
• Door thickness: 1-3/8″ to 1-3/4″
• Adjustable backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Standard latch faceplate: 1″ round corner
• Standard strike: 2-3/4″ full-lip round-corner strike
• Standard cylinder: 5-pin KW1; C keyway optional

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.

Additional Copper Creek Information

Copper Creek WL2240 Waverlie Keyed Entry Lever Installation Guide

Copper Creek WL2240 Waverlie Keyed Entry Lever Specifications

View Copper Creek Manufacturer Warranty

Shop All Copper Creek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
