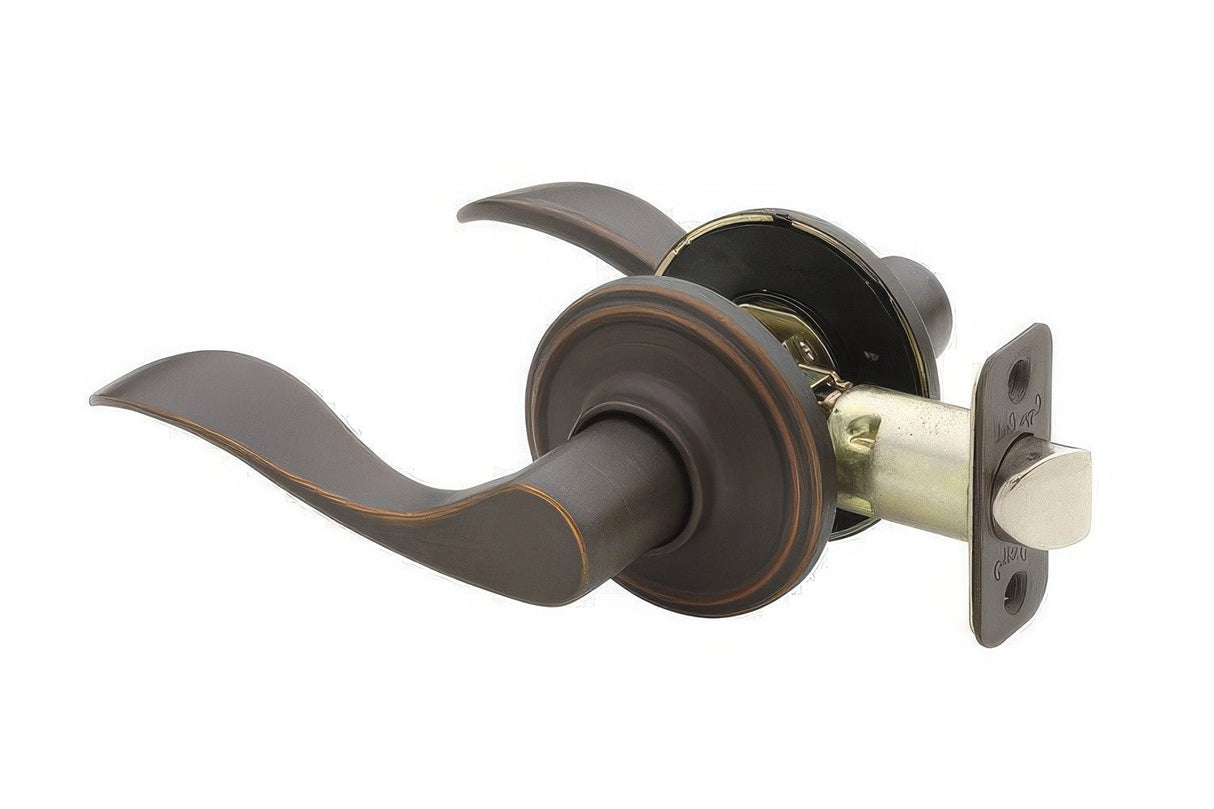

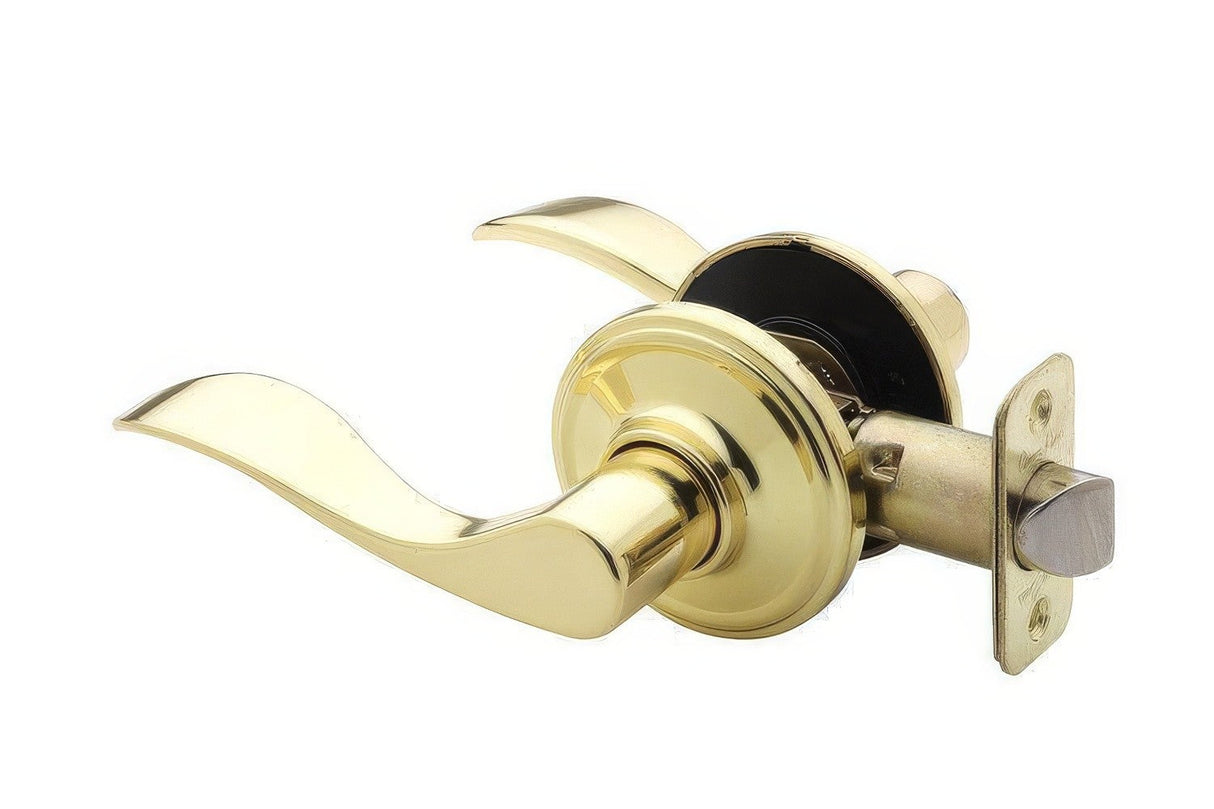

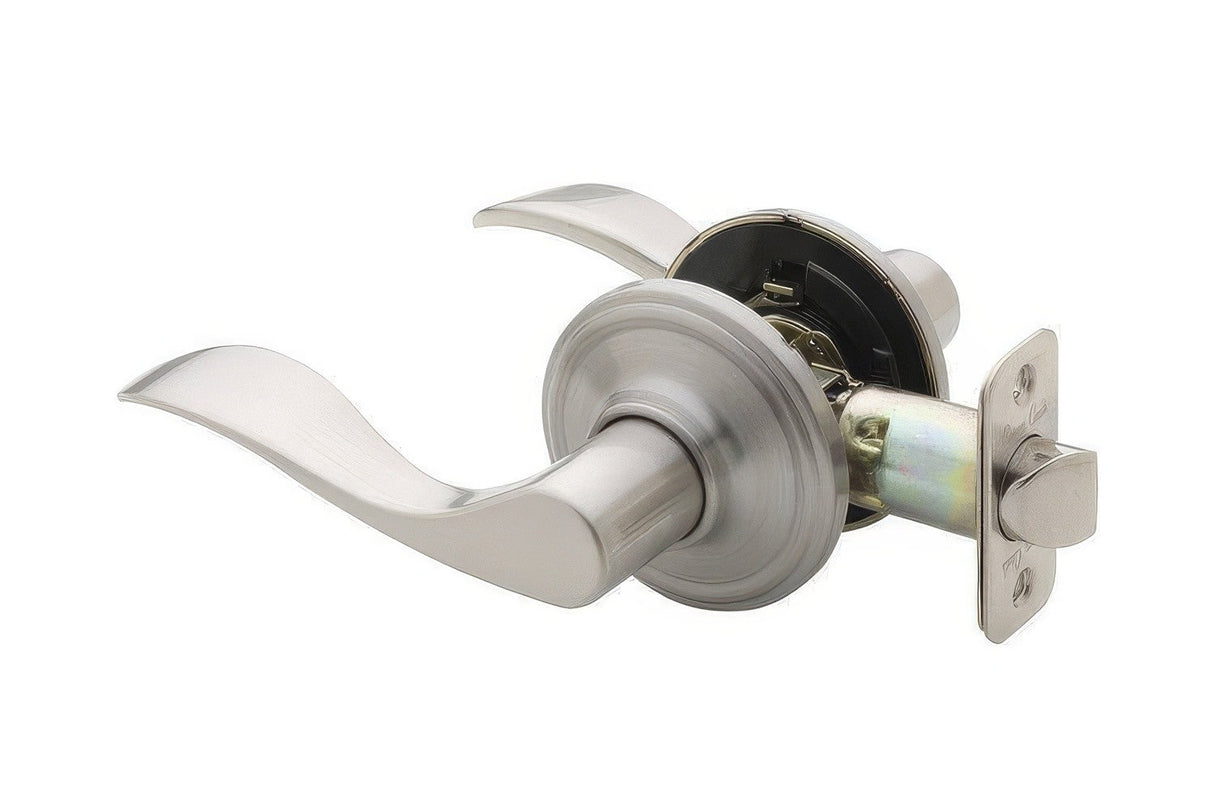

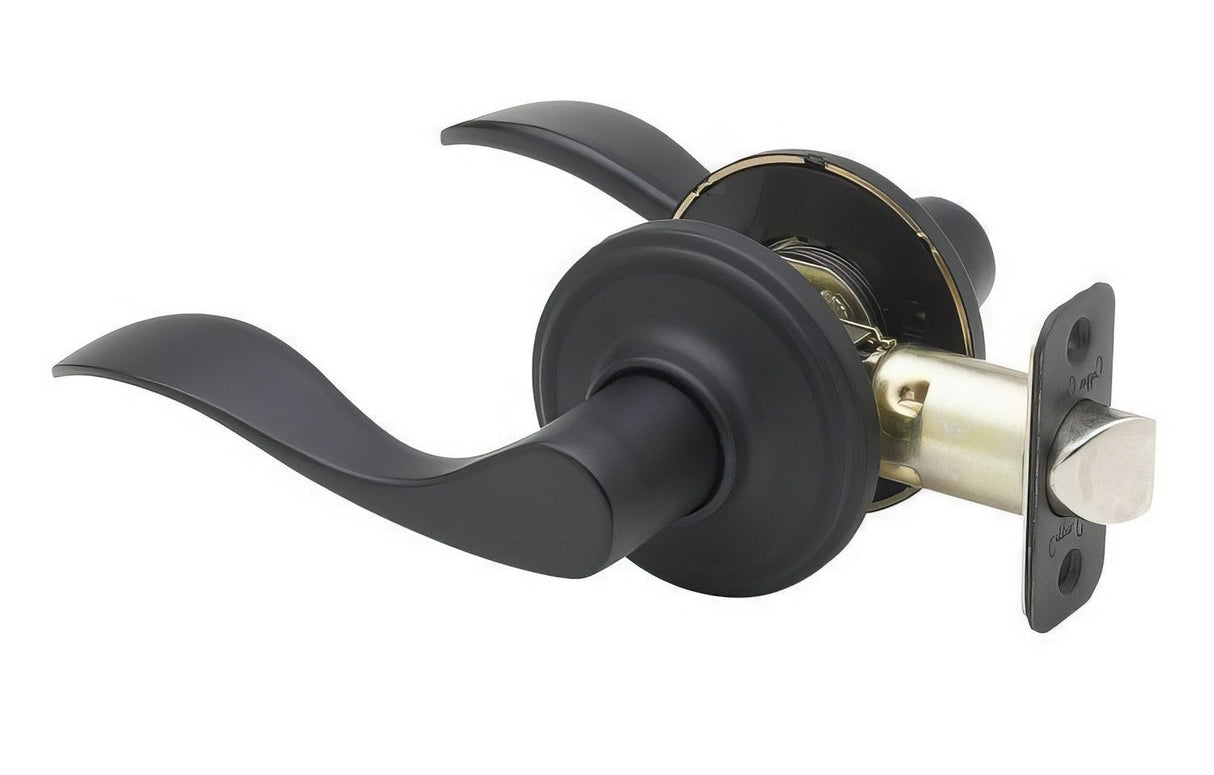

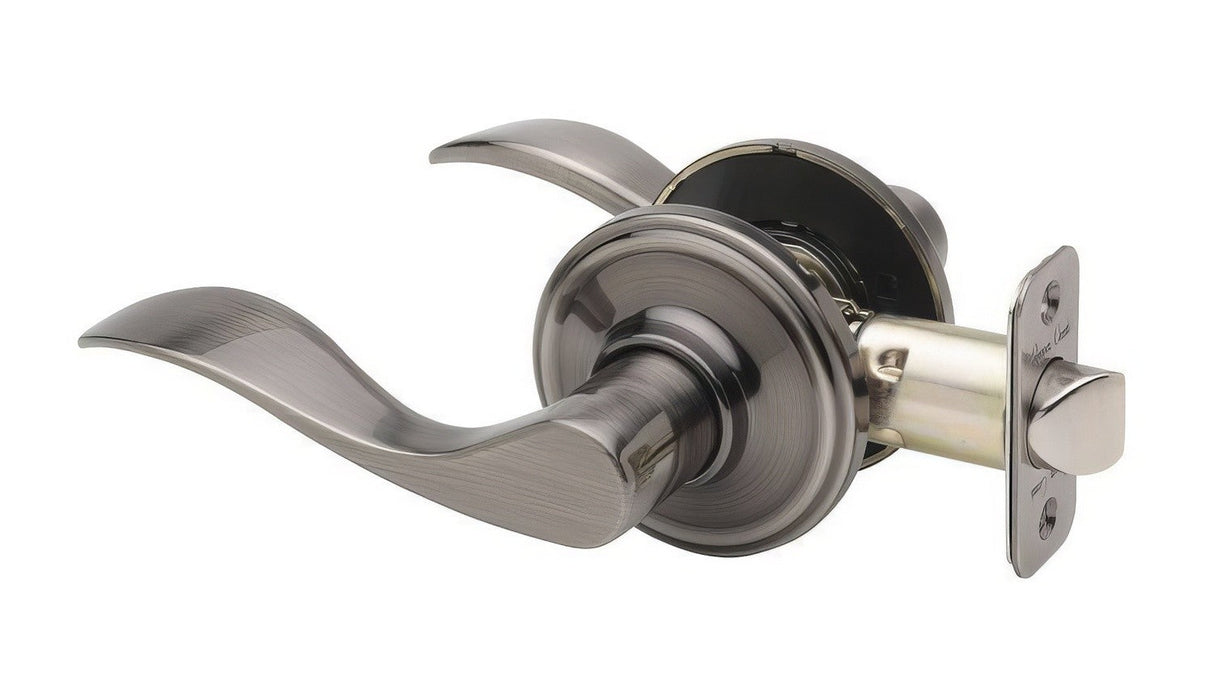

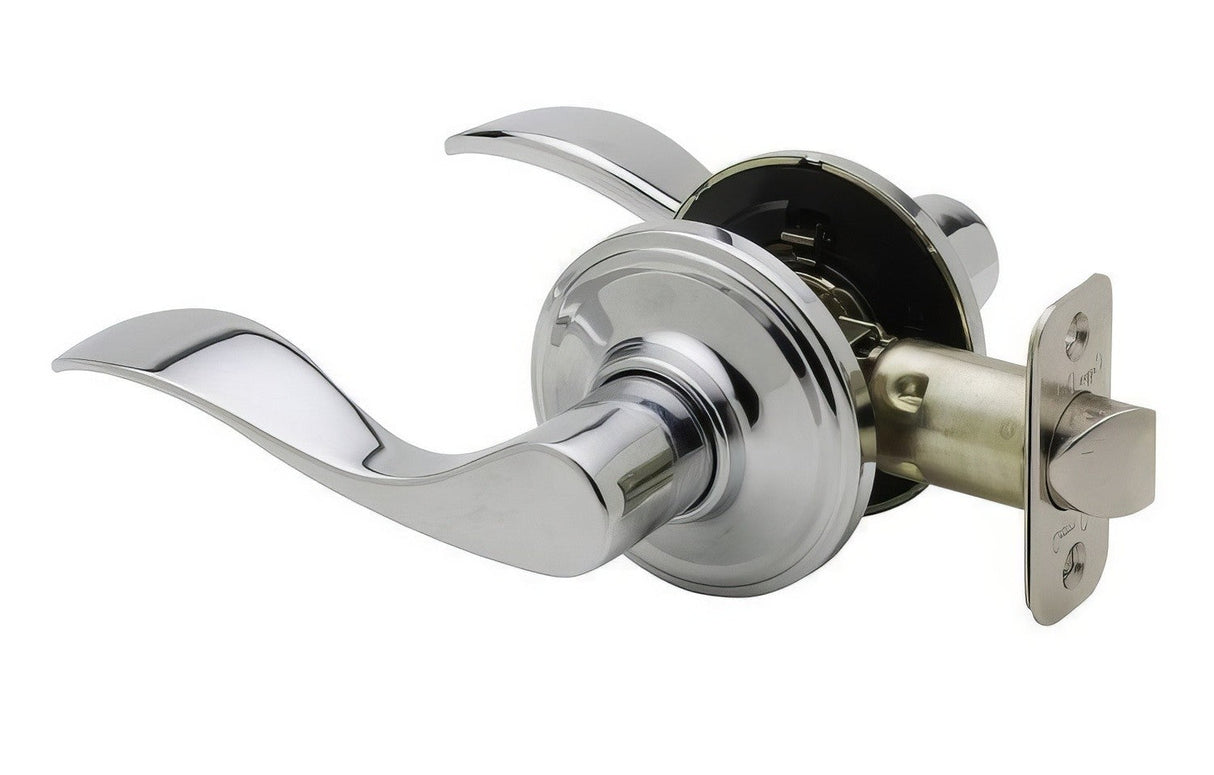

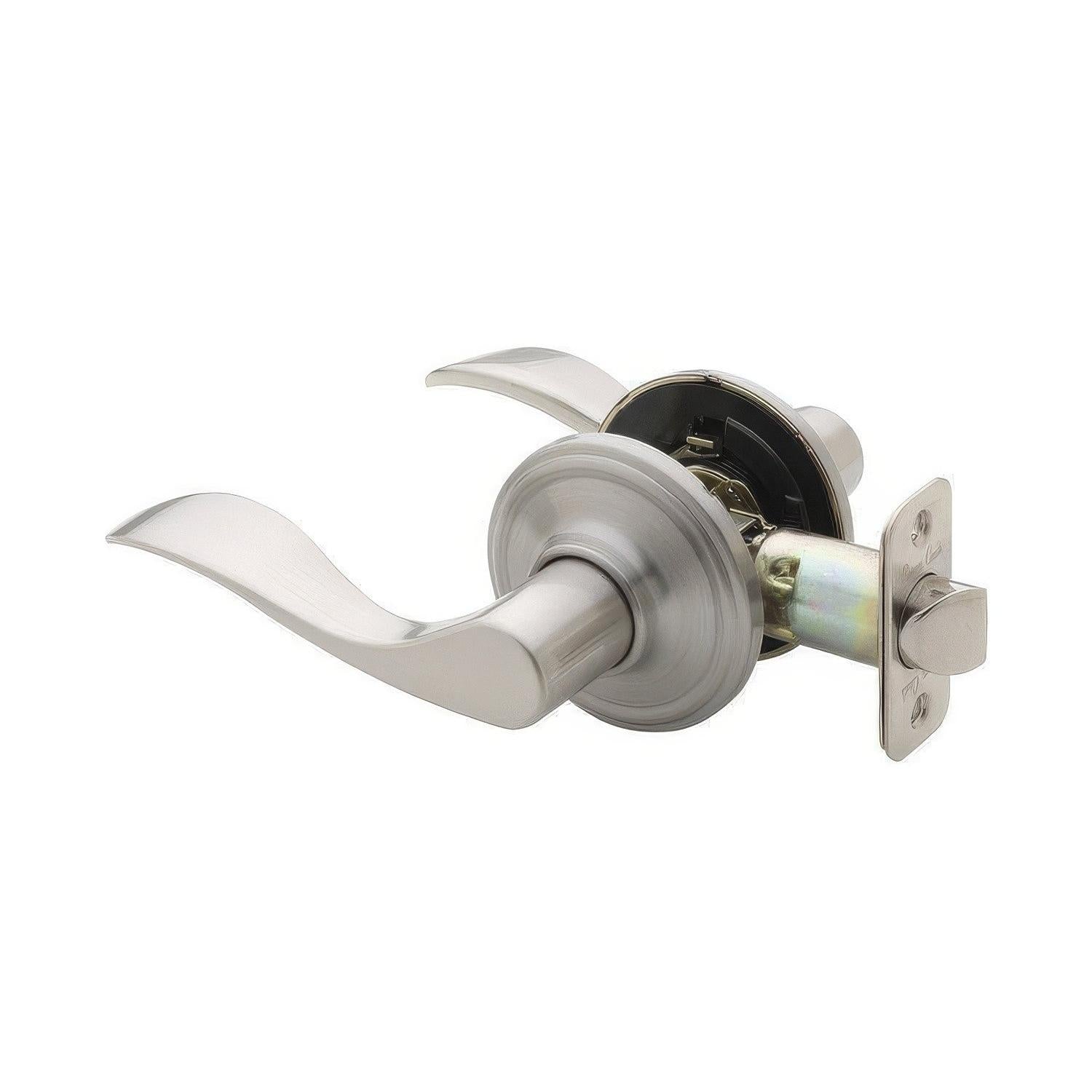

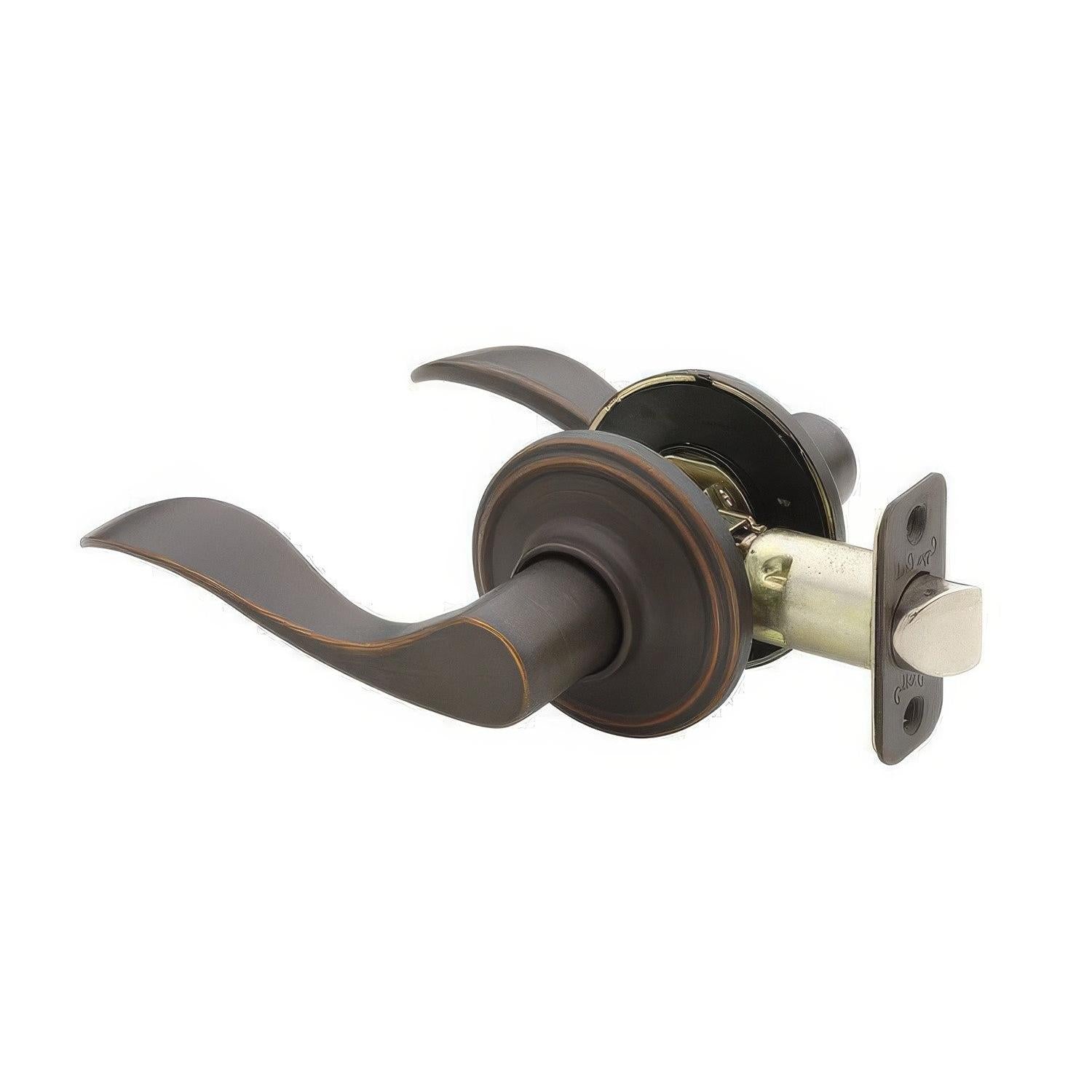

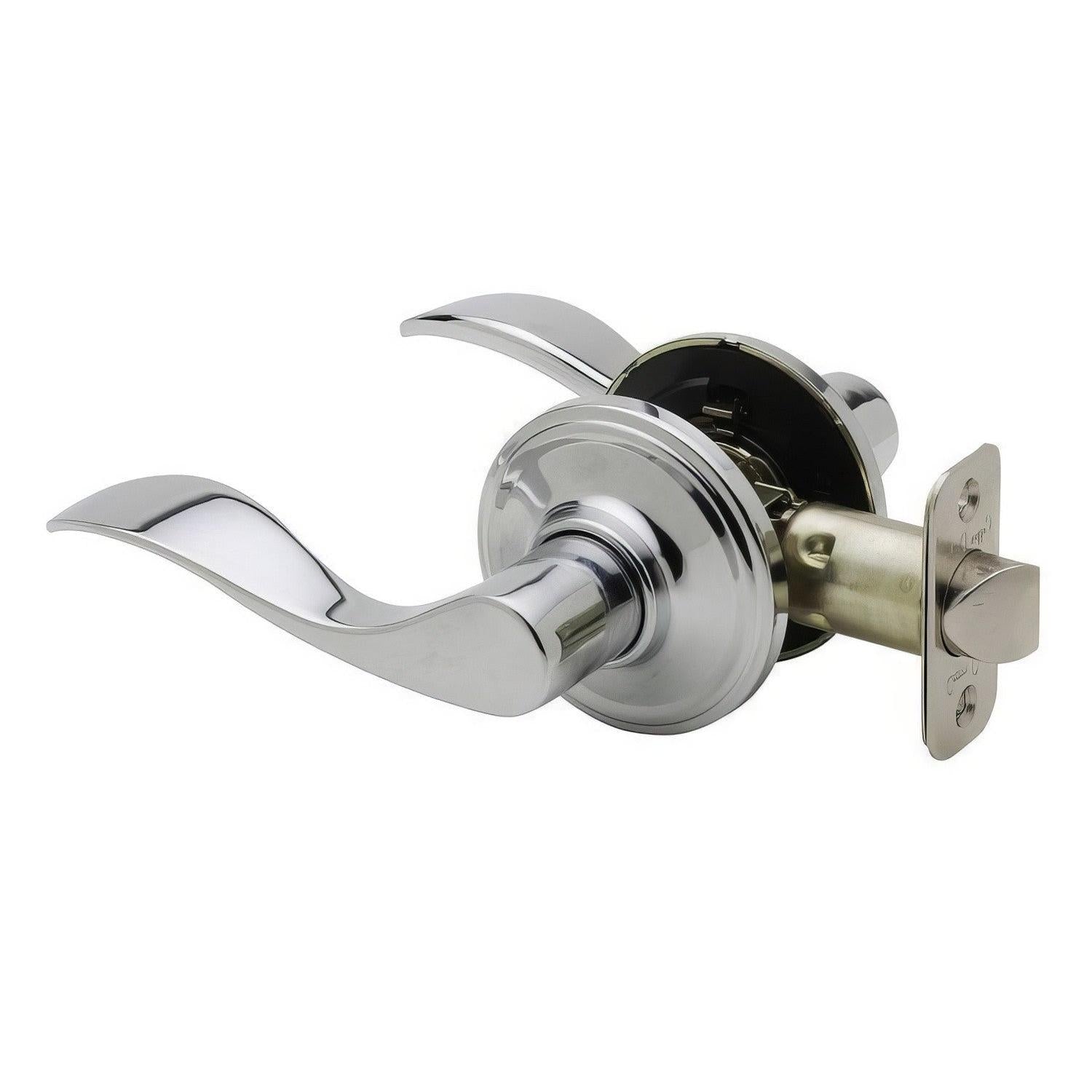

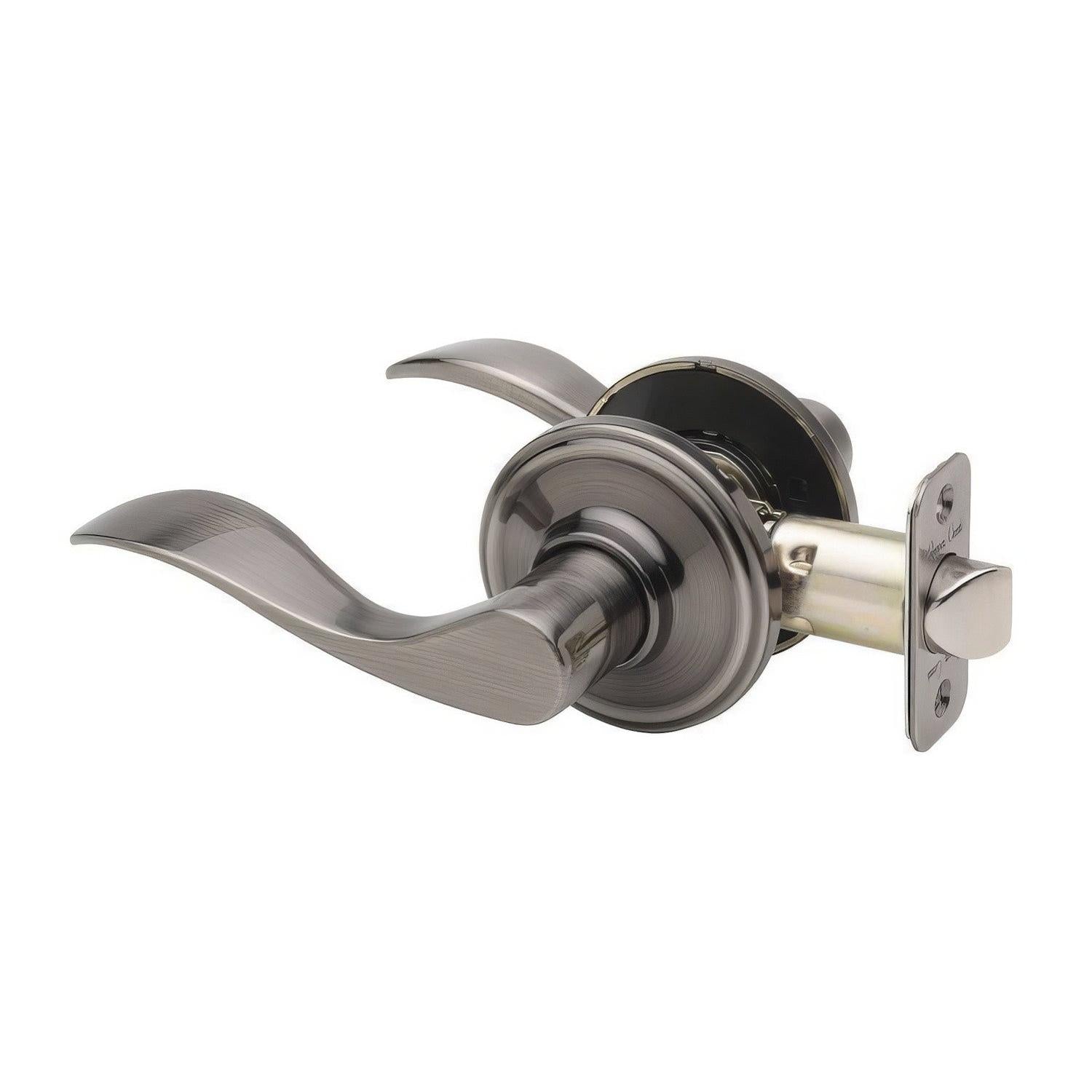

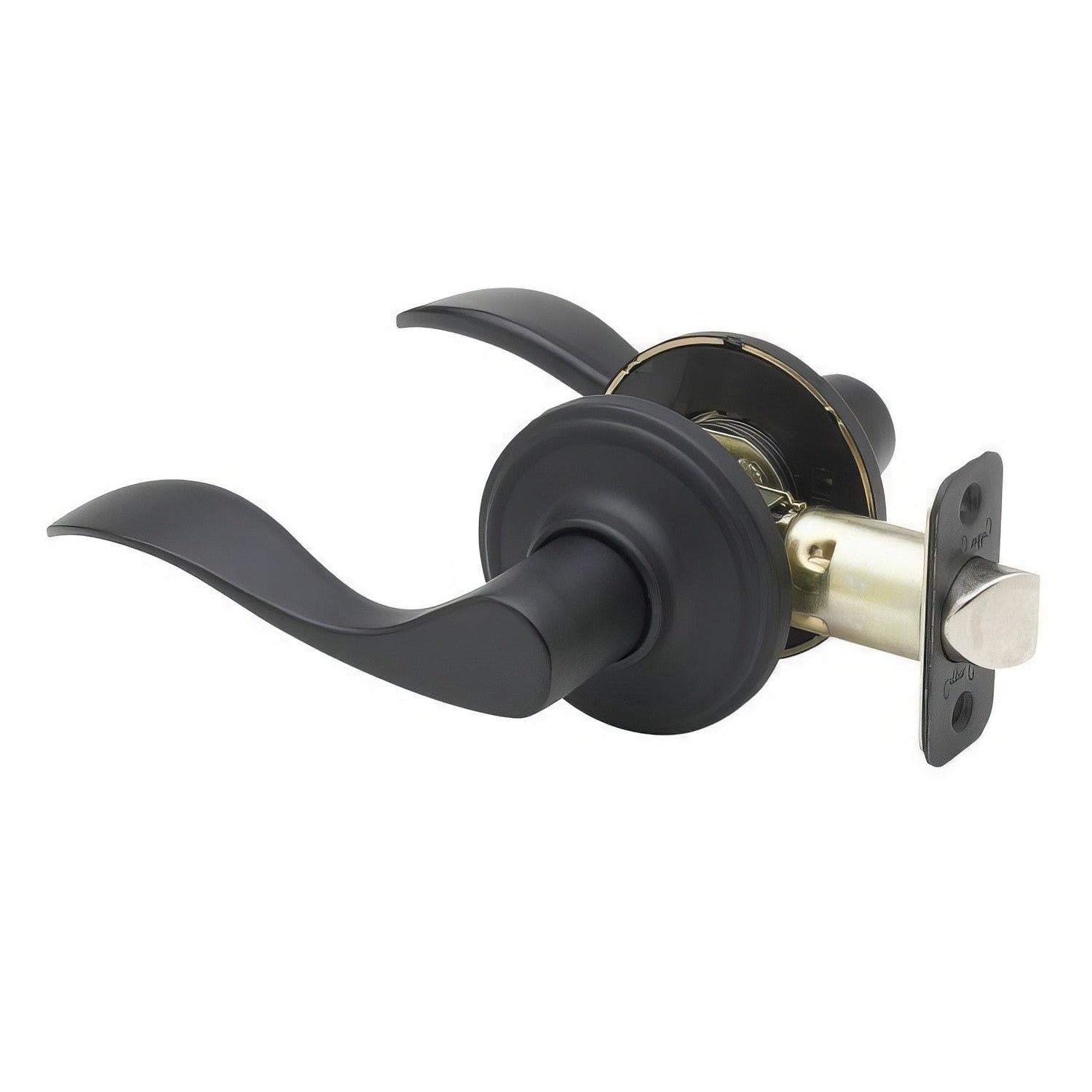

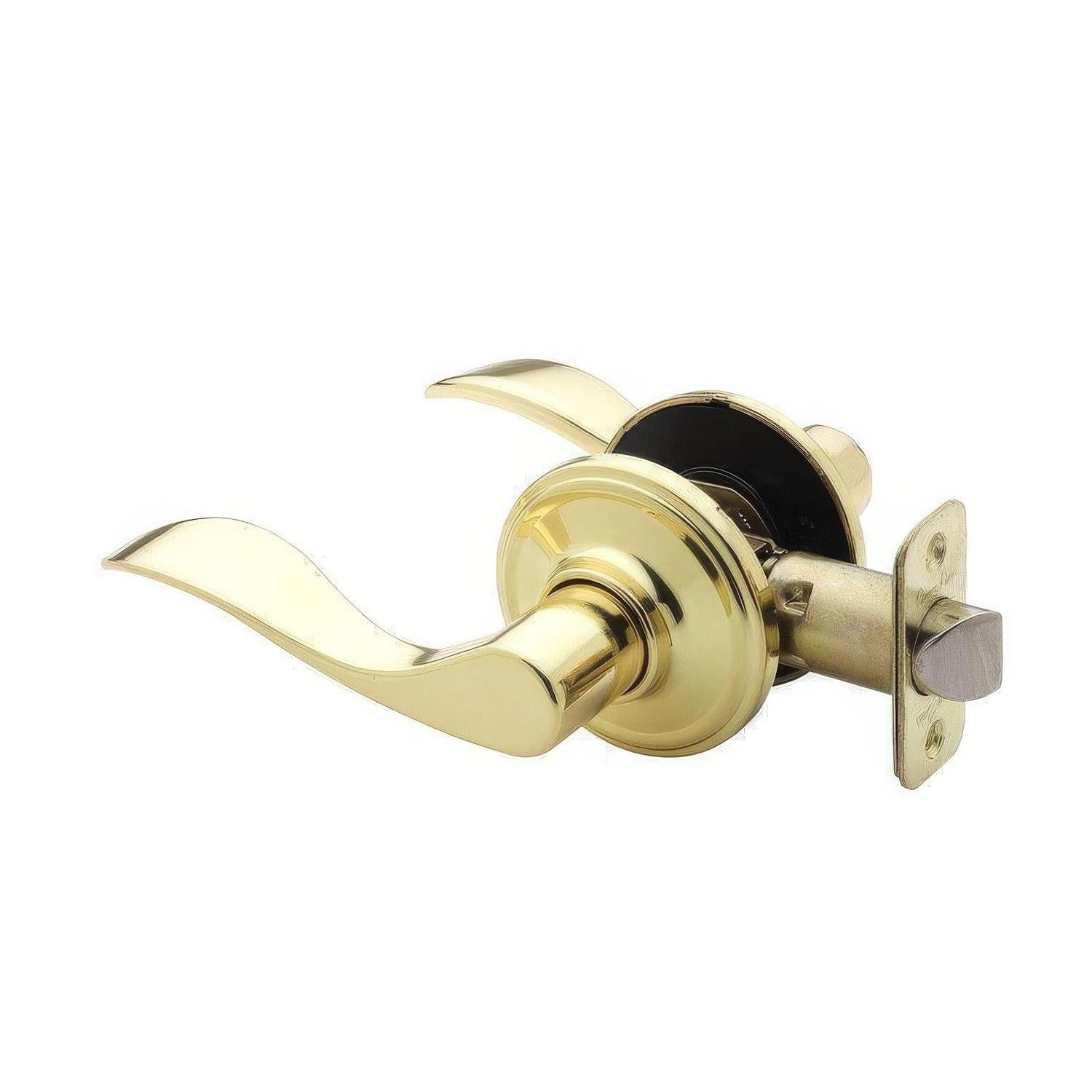

Copper Creek WL2220 Waverlie Passage Door Lever

The Copper Creek WL2220 Waverlie is a Grade 3 residential passage door lever with a wave-profile lever and round rose.

Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.

Product Details

• Model: WL2220
• Design: Waverlie
• Function: Residential Passage Door Lever
• Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
• Material: zinc
• Performance: ANSI/BHMA Grade 3
• Cycle rating: 200,000 cycles
• Rose: 2-5/8″ round rose
• Handing: Non-Handed / Reversible
• Door thickness: 1-3/8″ to 1-3/4″
• Adjustable backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Standard latch faceplate: 1″ round corner
• Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
