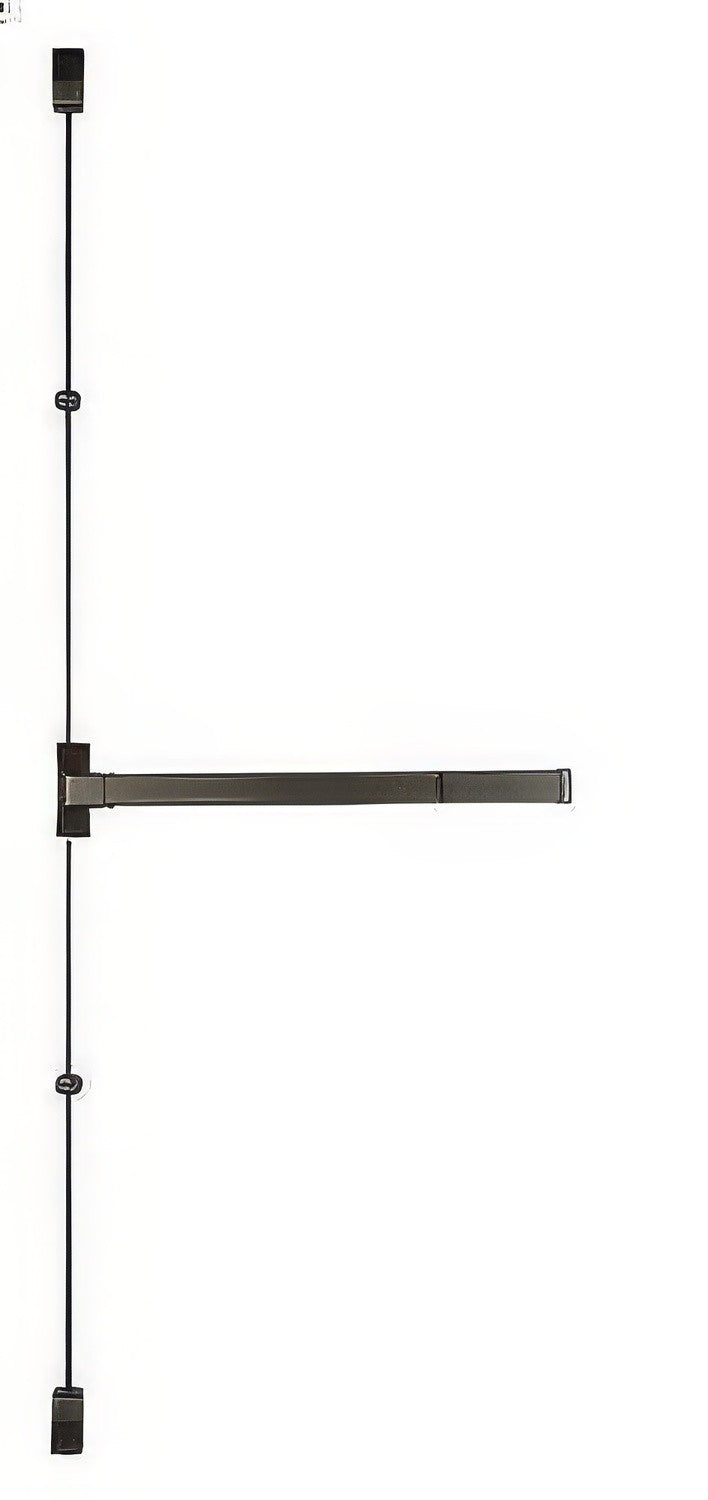

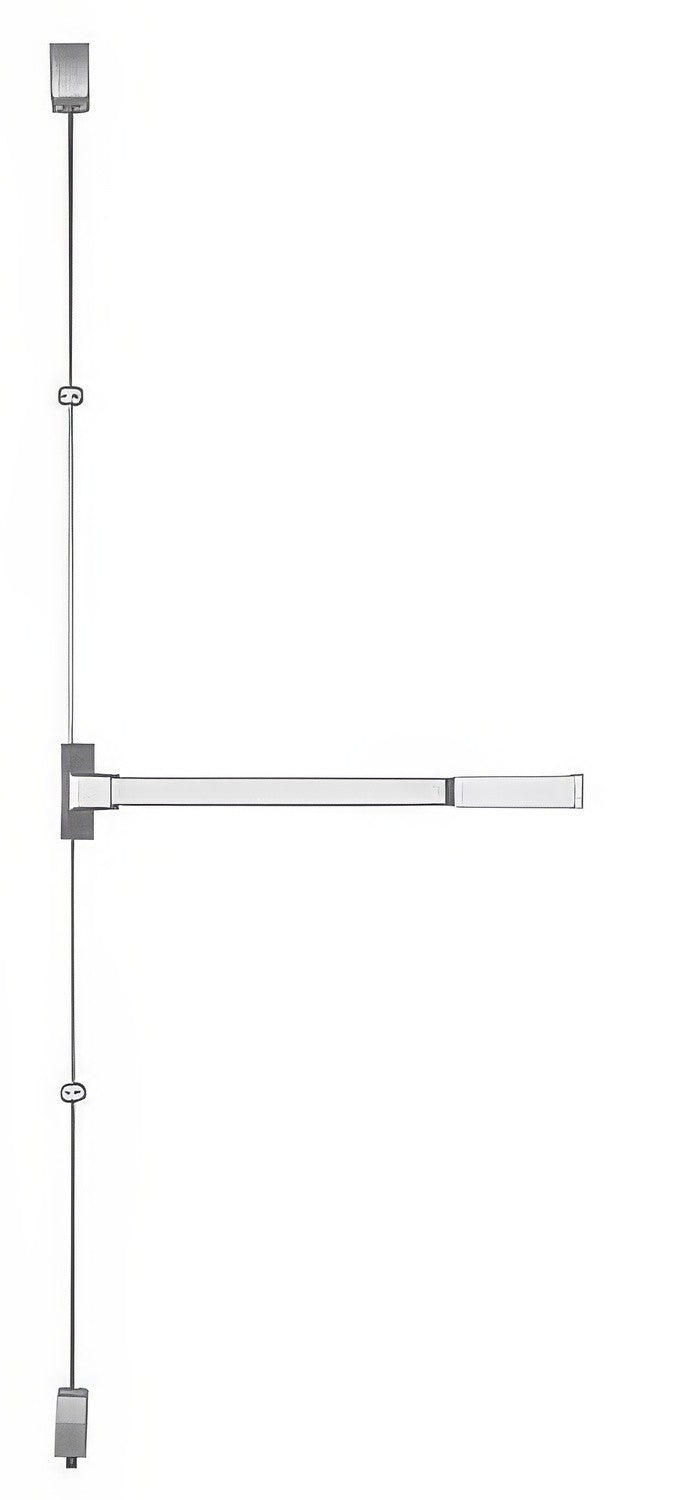

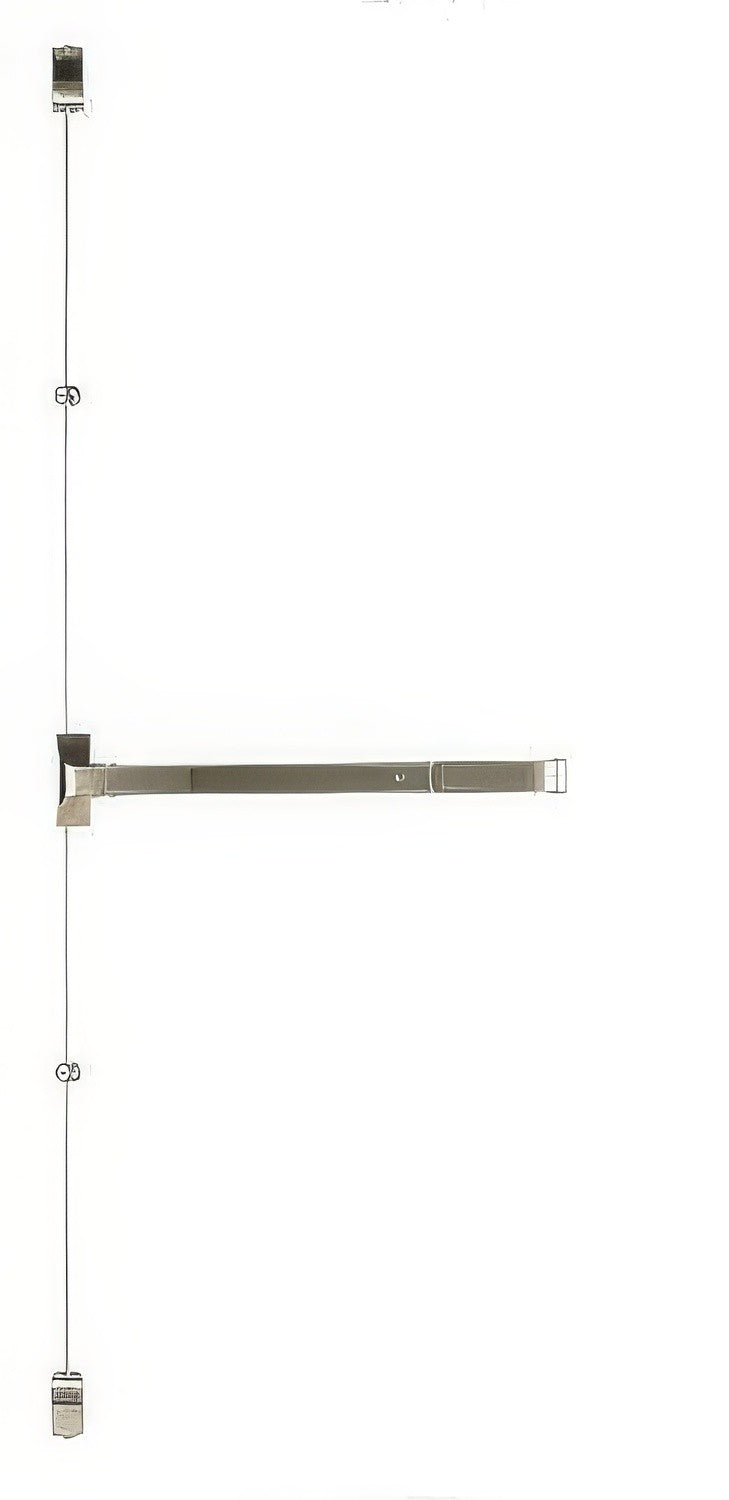

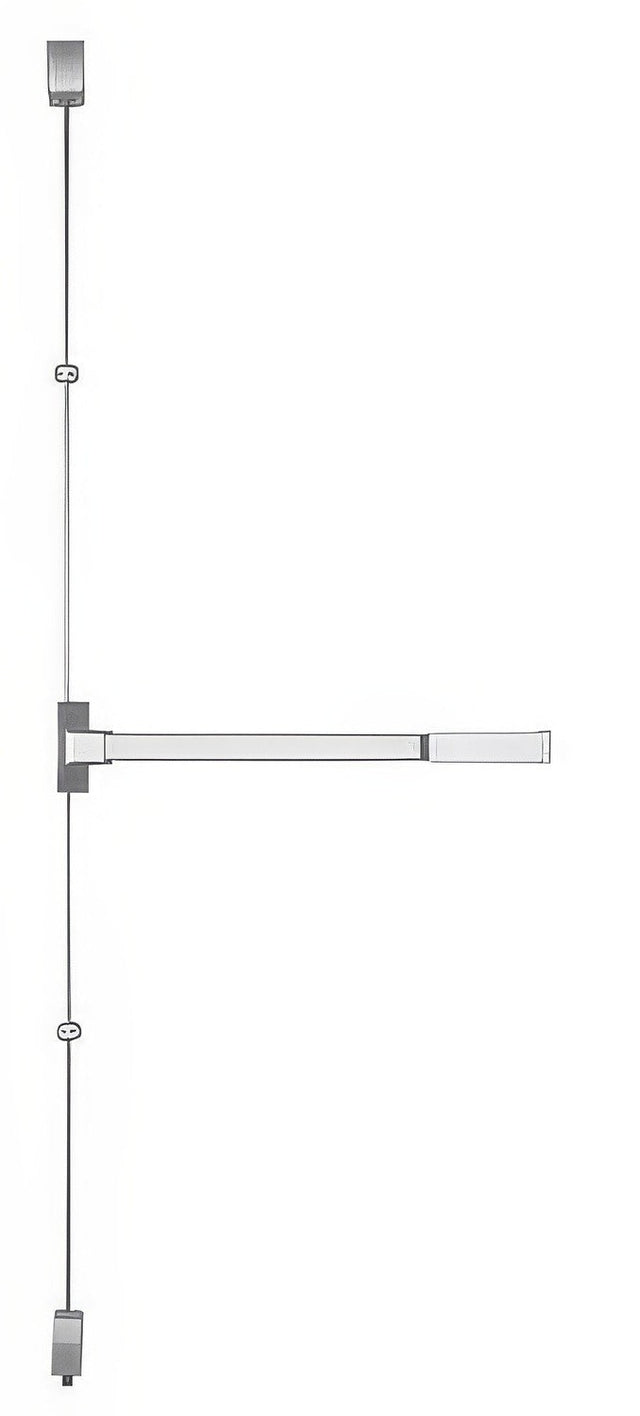

Copper Creek V9560-48 48" Grade 1 Vertical Rod Exit Device

The Copper Creek V9560-48 is a Grade 1 vertical rod exit device that provides emergency egress while securing the door at the top and bottom.

The non-handed 48″ device can be field-sized to 42″ and is intended for standard 1-3/4″ doors with a compatible 161 cutout. Steel housing components and heavy-duty nylon-coated steel strikes support institutional and commercial openings.

Product Details

• Model: V9560-48
• Function: Vertical Rod Exit Device
• Performance grade: ANSI/BHMA Grade 1
• Device width: 48″
• Field sizeable to: 42″
• Door thickness: 1-3/4″
• Latching: top and bottom vertical rods
• Handing: non-handed
• Door preparation: compatible with 161 cutout
• Construction: stainless steel or painted steel housing components
• Strikes: heavy-duty nylon-coated steel
• ADA compliant: yes
• UL listing: listed

Compatibility: Confirm the device width, field-sizing range, door thickness, door preparation, strike, exterior trim, handing, and required UL or fire-door labeling before ordering.
