Copper Creek ML2220 Modern Passage Door Lever
Modern Passage Door Lever
Copper Creek ML2220 Modern Passage Door Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Copper Creek ML2220 Modern is a Grade 3 residential passage door lever with a modern straight lever and round rose.
Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.
Product Details
- Model: ML2220
- Design: Modern
- Function: Residential Passage Door Lever
- Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
- Material: zinc
- Performance: ANSI/BHMA Grade 3
- Cycle rating: 200,000 cycles
- Rose: 2-5/8″ round rose
- Handing: Non-Handed / Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Adjustable backset: 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Standard latch faceplate: 1″ round corner
- Standard strike: 2-3/4″ full-lip round-corner strike
Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
Additional Copper Creek Information
Copper Creek ML2220 Modern Passage Door Lever Installation Guide
Copper Creek ML2220 Modern Passage Door Lever Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Collections
-
Country Of Origin
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Latch TypeRound Corner, Square Corner, Drive-In Latch
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
-
Warranty
-
Projection
-
Concealed Screws
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Standard Shipping — Lower 48 States
- Orders $0.01–$99.99: $11.95
- Orders $100.00–$199.99: $13.95
- Orders $200.00–$298.99: $15.95
- Eligible orders $299.00 and above: Free standard ground shipping (exclusions apply)
Processing and carrier transit times are separate. Standard ground transit is typically 1–5 business days after shipment; supplier, stock availability and special-order lead times vary. We ship only to physical street addresses in the contiguous 48 U.S. states (no P.O. Boxes, Alaska, Hawaii, Puerto Rico, U.S. territories or military addresses).
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns require authorization within 60 calendar days of delivery. Product-specific restrictions apply. Claims for damage, shortages, defective or incorrect merchandise must be reported within 5 days of delivery. Full refund and return policy · Full shipping policy.
Available in 3 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

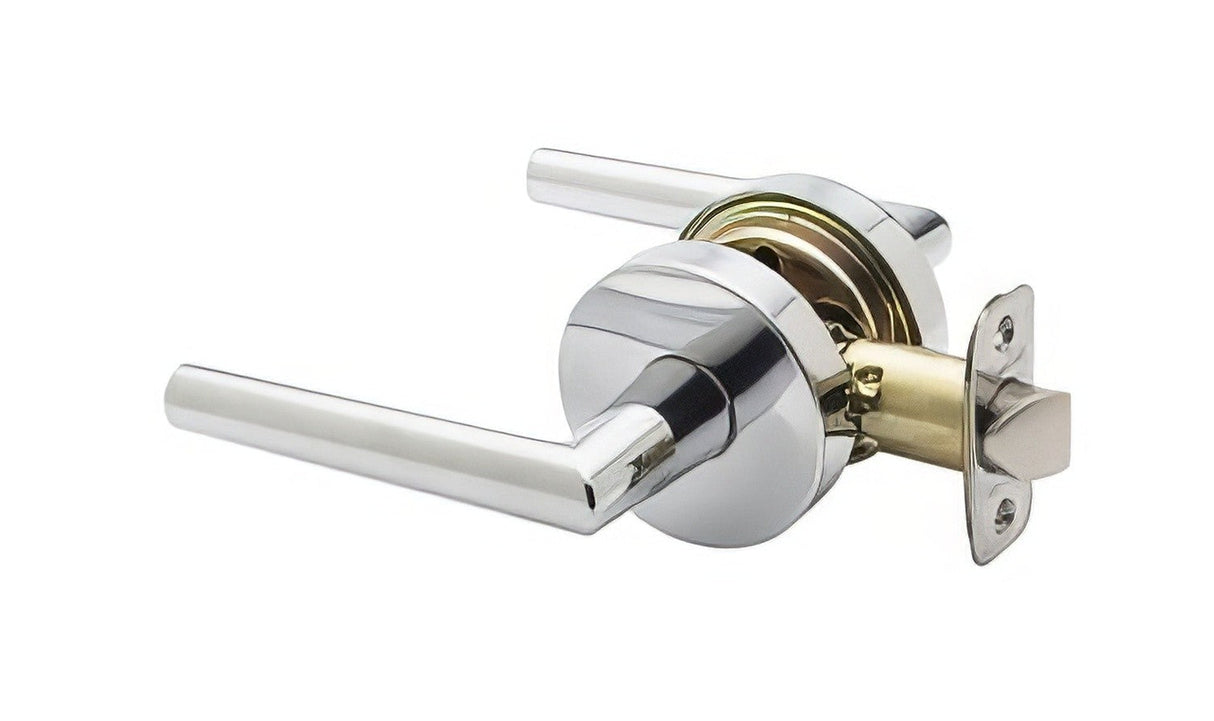

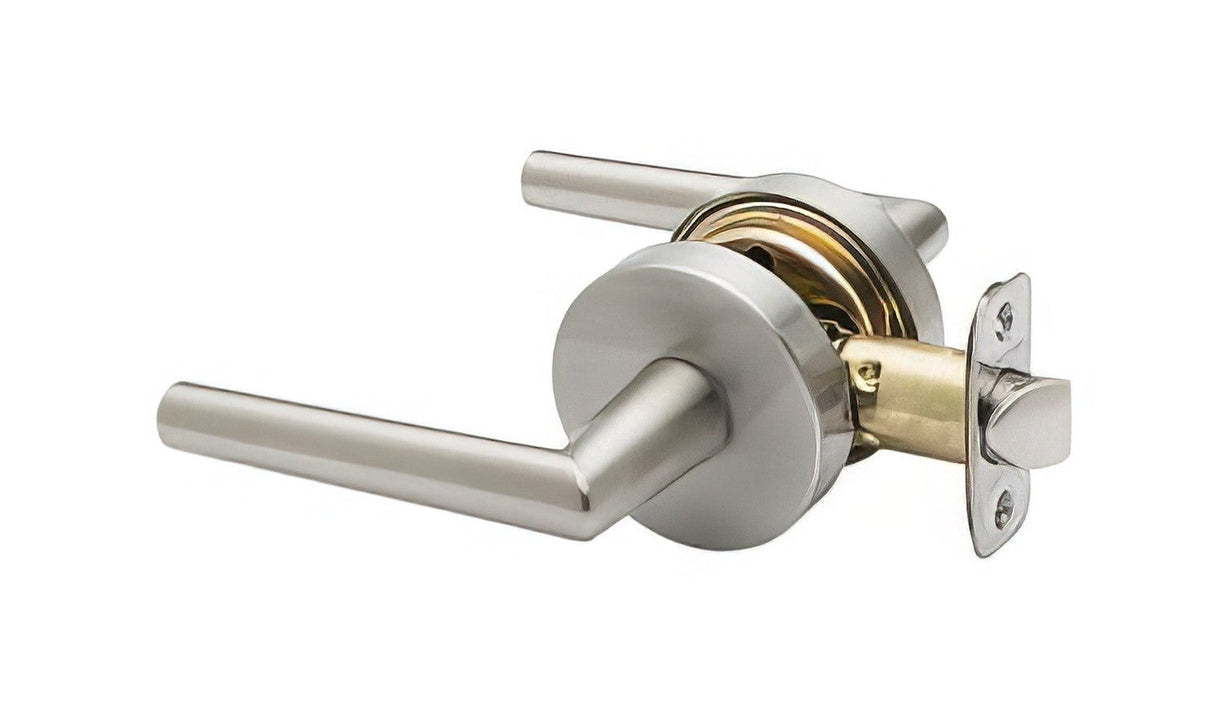

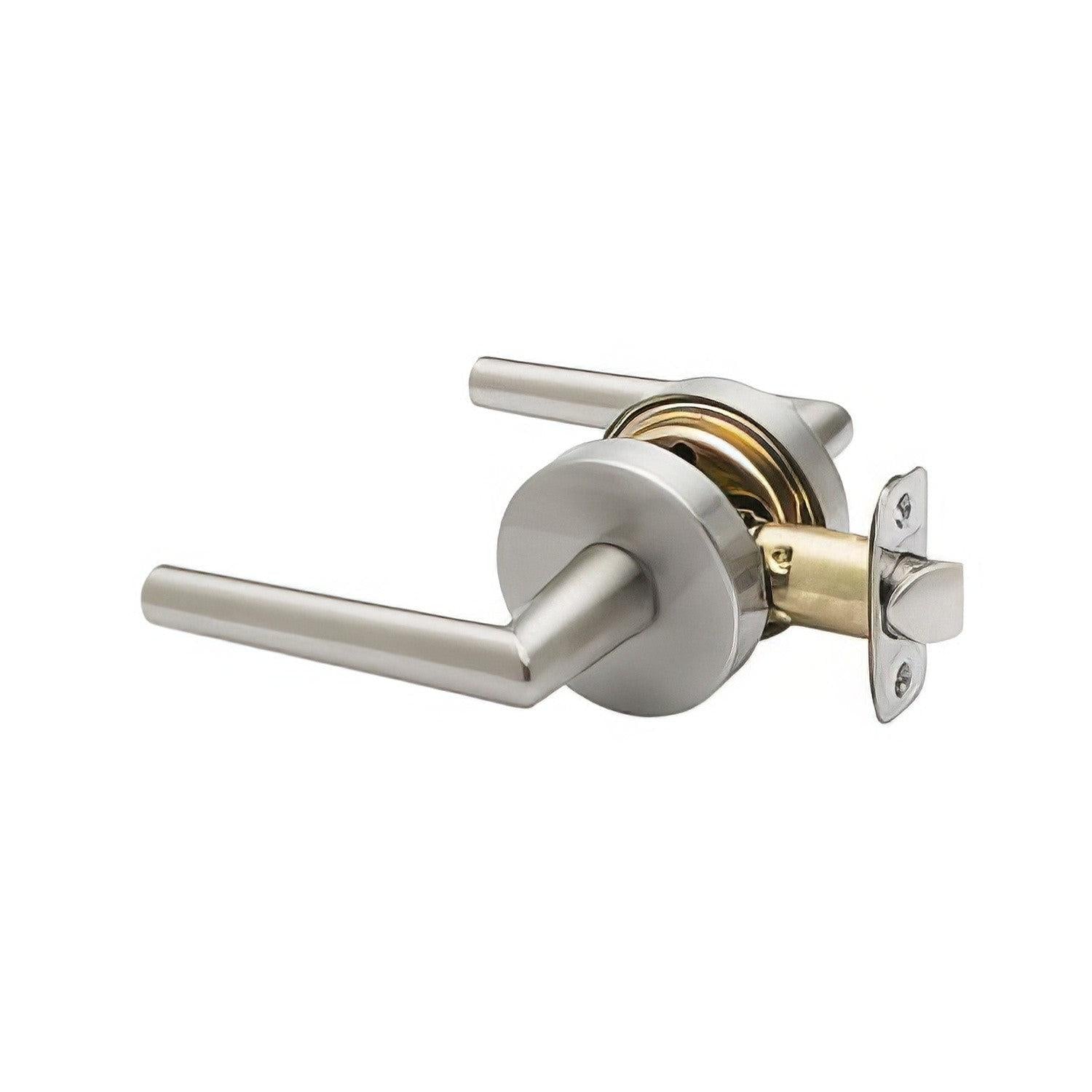

| ML2220SS | Satin Stainless | $37.05 USD |

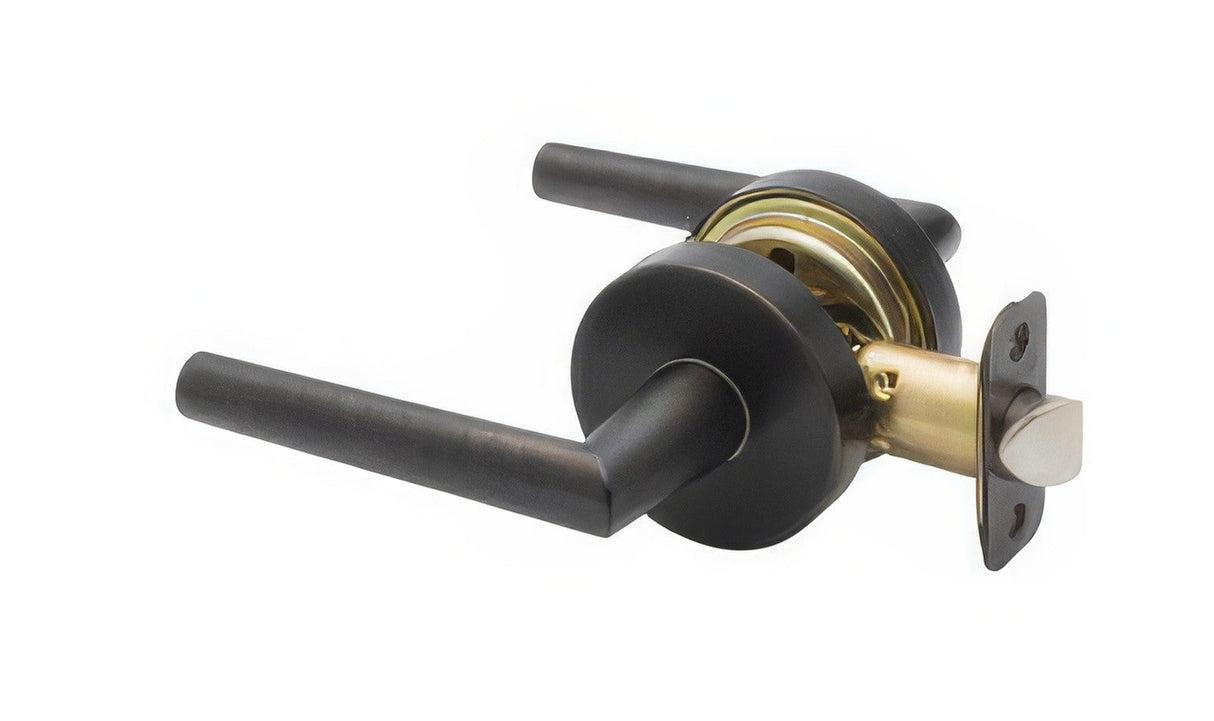

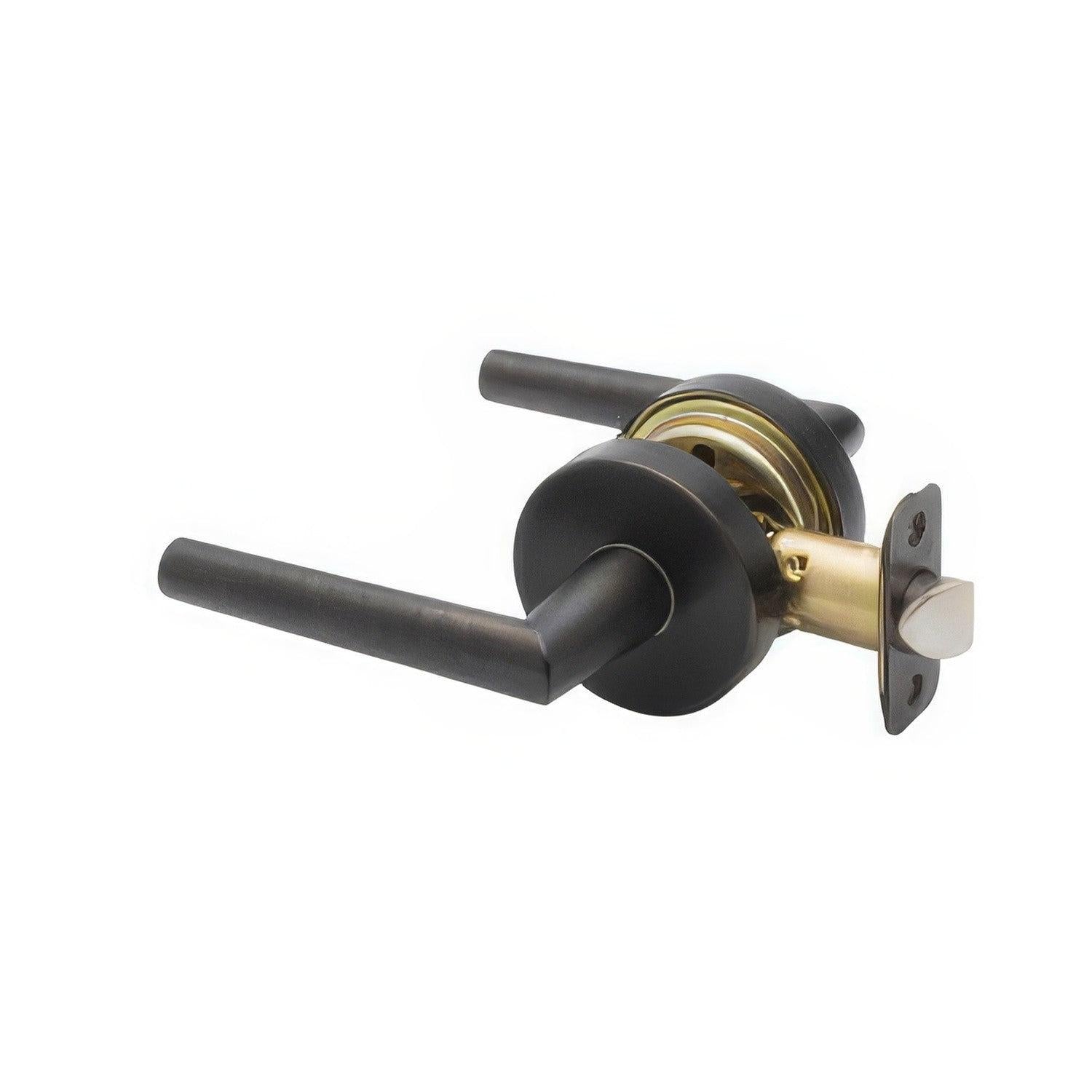

| ML2220TB | Tuscan Bronze | $42.32 USD |

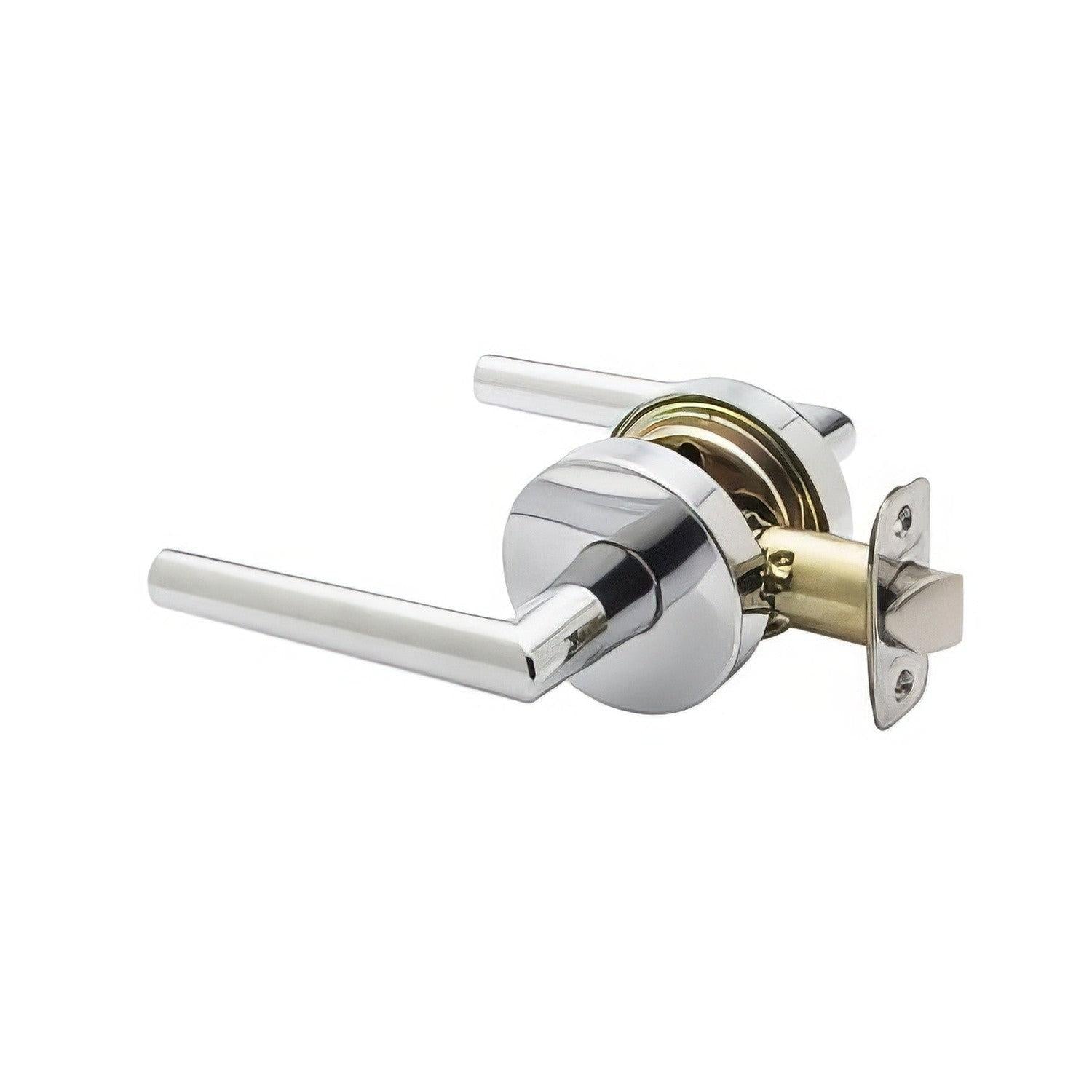

| ML2220PS | Polished Stainless | $37.05 USD |
Description
Description
The Copper Creek ML2220 Modern is a Grade 3 residential passage door lever with a modern straight lever and round rose.
Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.
Product Details
- Model: ML2220
- Design: Modern
- Function: Residential Passage Door Lever
- Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
- Material: zinc
- Performance: ANSI/BHMA Grade 3
- Cycle rating: 200,000 cycles
- Rose: 2-5/8″ round rose
- Handing: Non-Handed / Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Adjustable backset: 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Standard latch faceplate: 1″ round corner
- Standard strike: 2-3/4″ full-lip round-corner strike
Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
Additional Copper Creek Information
Copper Creek ML2220 Modern Passage Door Lever Installation Guide
Copper Creek ML2220 Modern Passage Door Lever Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Collections
-
Country Of Origin
-
FinishSatin Stainless, Tuscan Bronze, Polished Stainless
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Latch typeRound Corner, Square Corner, Drive-In Latch
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
-
Warranty
-
Projection
-
Concealed Screws
