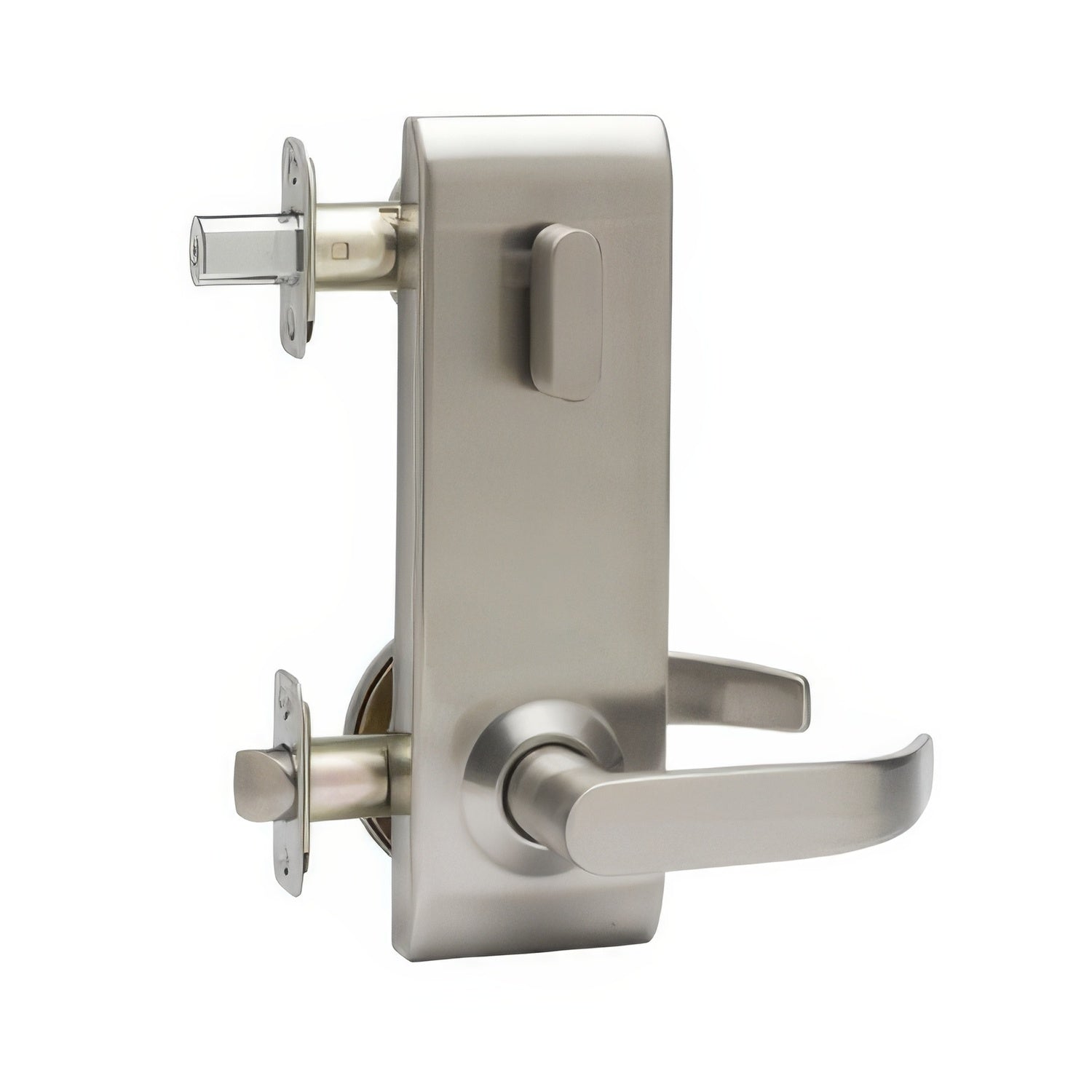

Copper Creek ELC6920 Bulldog Interconnect Passage Lockset

The Copper Creek ELC6920 Bulldog Erin is a Grade 2 commercial single-point interconnected lockset that combines lever-latch operation with a keyed deadbolt in one coordinated assembly.

The non-handed lockset fits 1-3/8″ to 1-3/4″ doors with 4″ center-to-center cross bores. It uses a 2-3/8″ standard backset with 2-3/4″ optional and is 3-hour UL listed and ADA compliant. Both levers remain free to retract the latch, and rotating the inside lever simultaneously unlocks the deadbolt. The deadbolt also unlocks with a key or interior thumbturn.

Product Details

• Model: ELC6920
• Collection: Bulldog Erin
• Function: Single-Point Interconnected Lockset
• Performance grade: ANSI/BHMA Grade 2
• Material: zinc
• Locking configuration: One-point locking
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ standard; 2-3/4″ optional
• Cross bores: 2-1/8″ at 4″ center to center
• Edge bore: 1″
• Handing: non-handed
• Fire rating: 3-hour UL listed
• ADA compliant: yes

Compatibility: Confirm the exact interconnected model, one-point or two-point locking operation, 4″ center-to-center preparation, backset, latch and strike configuration, keyway, door thickness, and fire-door requirements.
