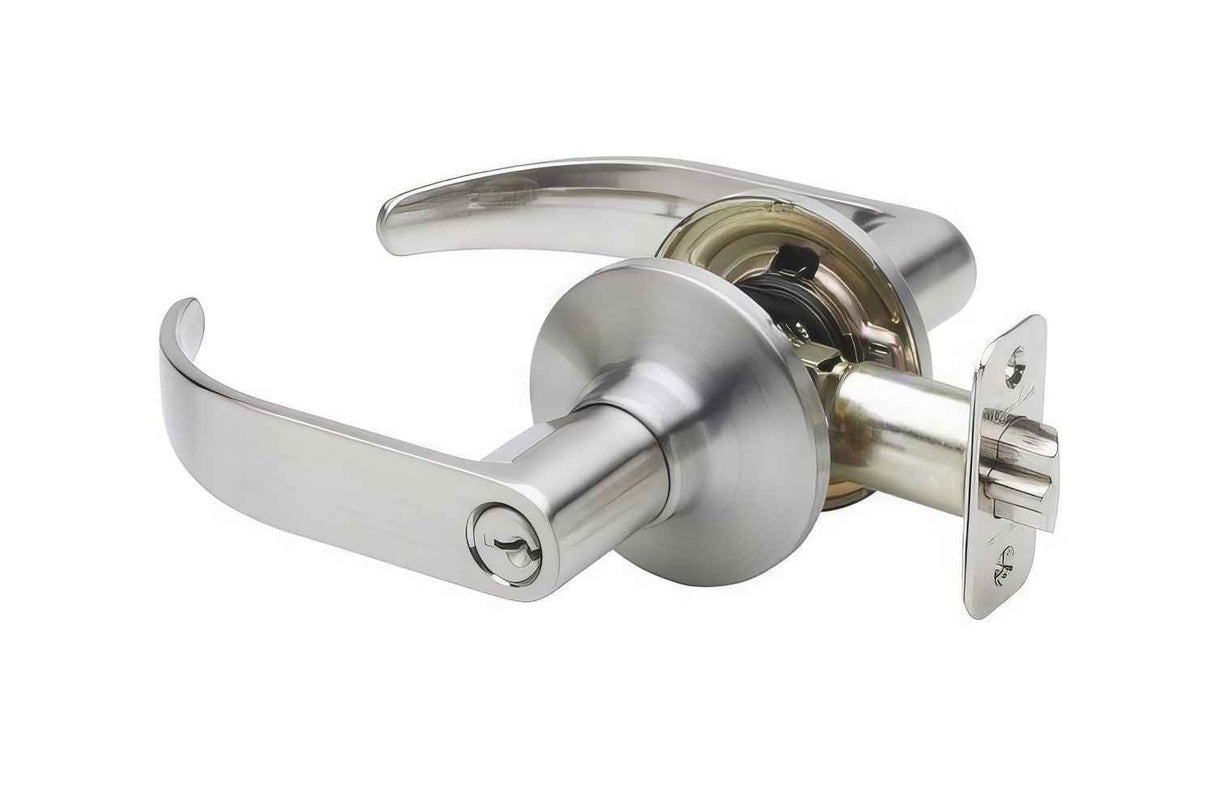

Copper Creek EL6250 Erin Heavy Duty Keyed Entry Storeroom Lever
Erin Heavy Duty Keyed Entry Storeroom Lever
Copper Creek EL6250 Erin Heavy Duty Keyed Entry Storeroom Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Copper Creek EL6250 Erin is a Grade 2 heavy-duty commercial storeroom door lever. The inside lever is always free for egress.
The non-handed 6200 Series lockset fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional. Its 3-3/8″ rose, 1″ square-corner narrow faceplate, clutch mechanism, ADA compliance, and 3-hour UL listing support commercial installations. The inside lever is always free for egress. The outside lever remains locked and operates only while the key is inserted and turned.
Product Details
- Model: EL6250
- Collection: Erin
- Series: 6200
- Function: Commercial Storeroom Door Lever
- Performance grade: ANSI/BHMA Grade 2
- Material: zinc
- Cycle rating: 400,000 cycles
- Rose diameter: 3-3/8″
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: 2-3/4″ standard; 2-3/8″ optional
- Latch faceplate: 1″ square-corner narrow faceplate
- Strike: 2-3/4″ T-strike standard
- Cross bore: 2-1/8″
- Edge bore: 1″
- Handing: non-handed
- Clutch: standard
- Fire rating: 3-hour UL listed
- ADA compliant: yes
Compatibility: Confirm the 6200 Series, storeroom function, door thickness, backset, faceplate, strike, keyway or keying requirements, and any fire-door labeling before ordering. Optional configurations must be specified correctly.
Additional Copper Creek Information
Bulldog 6200 Series Installation Guide
Bulldog 6200 Series Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Cylinder6 Pin C Keyway
-
Collections
-
Country Of Origin
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
-
Approved for Commercial UseYes
-
UL Listed
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Standard Shipping — Lower 48 States
- Orders $0.01–$99.99: $11.95
- Orders $100.00–$199.99: $13.95
- Orders $200.00–$298.99: $15.95
- Eligible orders $299.00 and above: Free standard ground shipping (exclusions apply)
Processing and carrier transit times are separate. Standard ground transit is typically 1–5 business days after shipment; supplier, stock availability and special-order lead times vary. We ship only to physical street addresses in the contiguous 48 U.S. states (no P.O. Boxes, Alaska, Hawaii, Puerto Rico, U.S. territories or military addresses).
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns require authorization within 60 calendar days of delivery. Product-specific restrictions apply. Claims for damage, shortages, defective or incorrect merchandise must be reported within 5 days of delivery. Full refund and return policy · Full shipping policy.
Available in 2 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

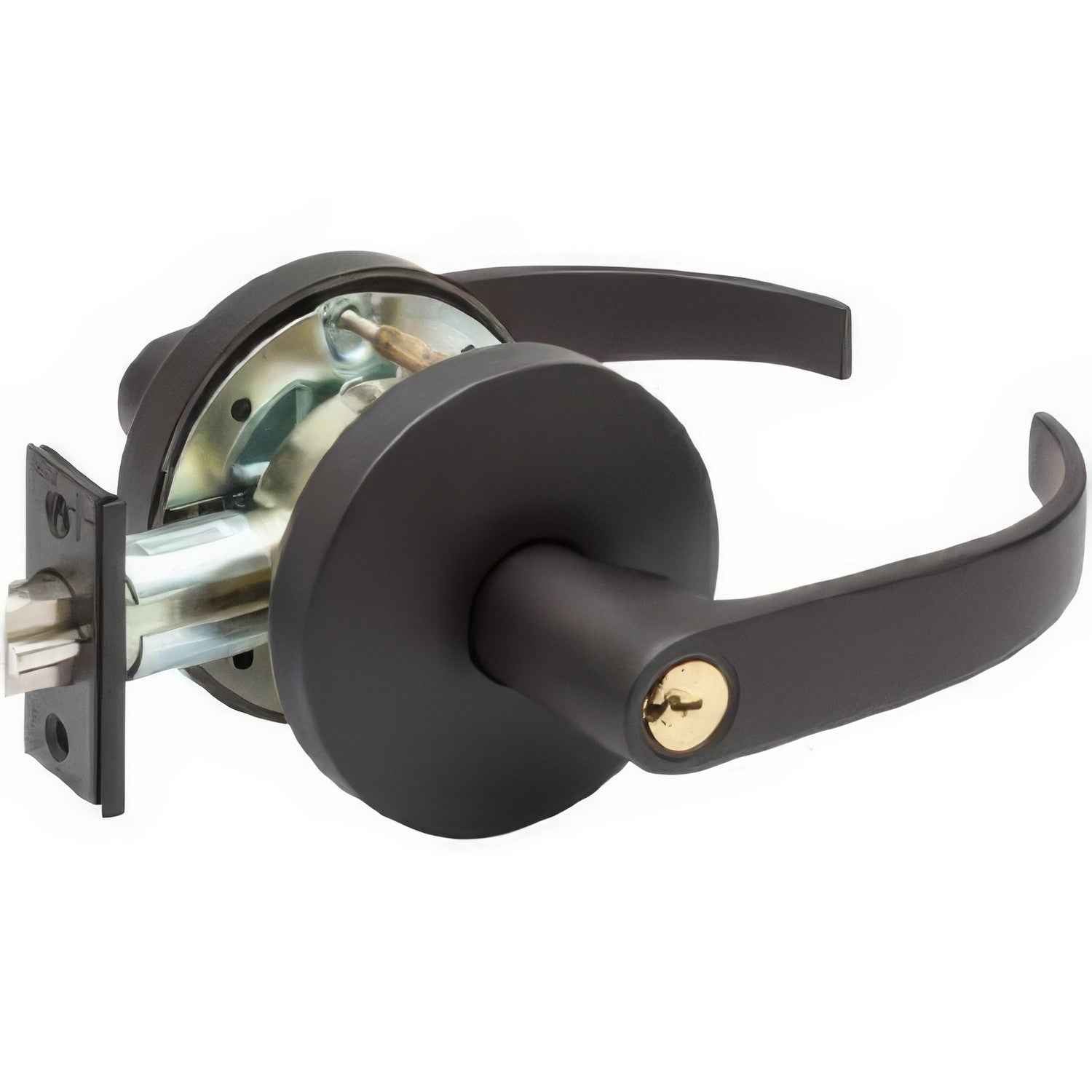

| EL6250 10B | Oil Rubbed Bronze | $95.75 USD |

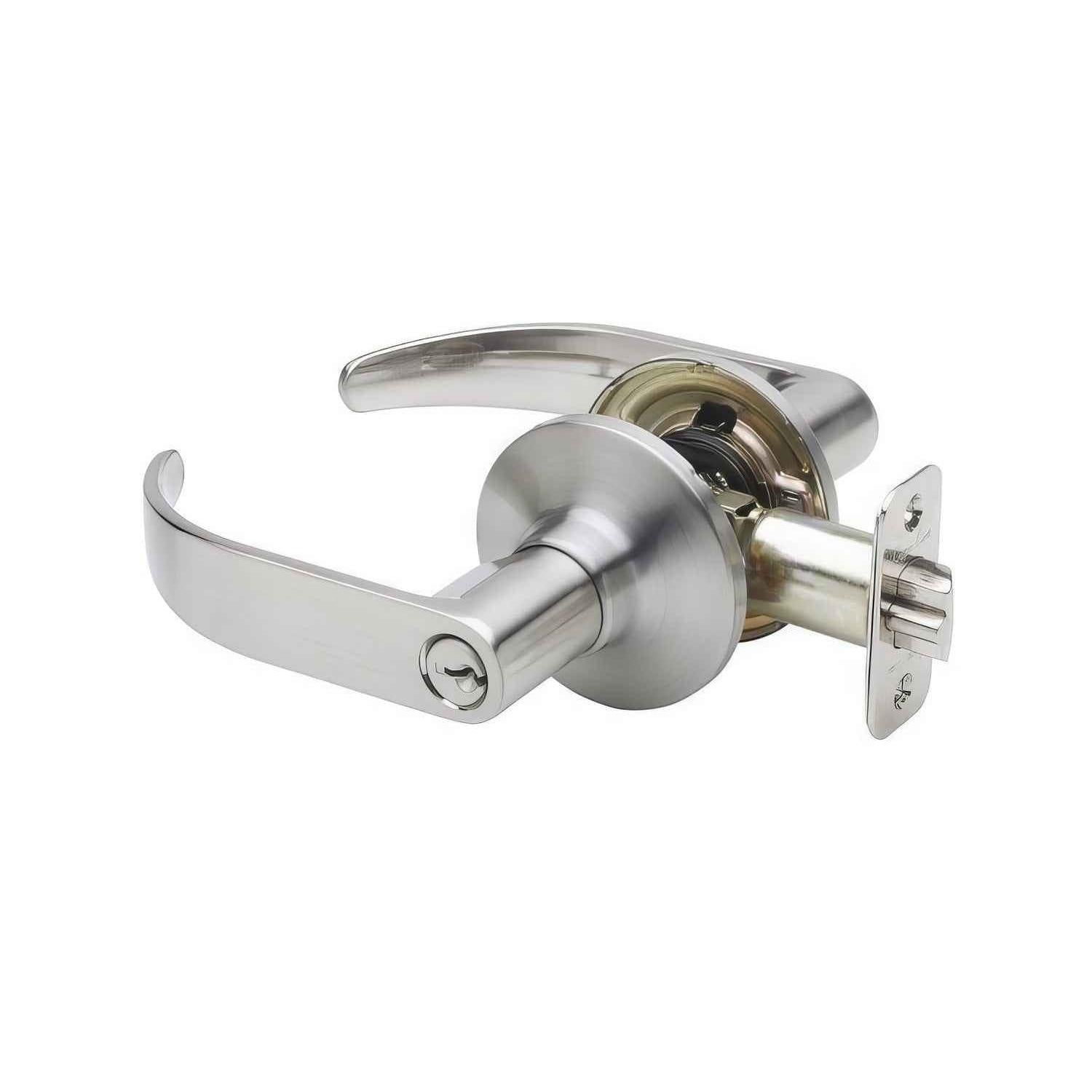

| EL6250SS | Satin Stainless | $88.34 USD |
Description
Description
The Copper Creek EL6250 Erin is a Grade 2 heavy-duty commercial storeroom door lever. The inside lever is always free for egress.
The non-handed 6200 Series lockset fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional. Its 3-3/8″ rose, 1″ square-corner narrow faceplate, clutch mechanism, ADA compliance, and 3-hour UL listing support commercial installations. The inside lever is always free for egress. The outside lever remains locked and operates only while the key is inserted and turned.
Product Details
- Model: EL6250
- Collection: Erin
- Series: 6200
- Function: Commercial Storeroom Door Lever
- Performance grade: ANSI/BHMA Grade 2
- Material: zinc
- Cycle rating: 400,000 cycles
- Rose diameter: 3-3/8″
- Door thickness: 1-3/8″ to 1-3/4″
- Backset: 2-3/4″ standard; 2-3/8″ optional
- Latch faceplate: 1″ square-corner narrow faceplate
- Strike: 2-3/4″ T-strike standard
- Cross bore: 2-1/8″
- Edge bore: 1″
- Handing: non-handed
- Clutch: standard
- Fire rating: 3-hour UL listed
- ADA compliant: yes
Compatibility: Confirm the 6200 Series, storeroom function, door thickness, backset, faceplate, strike, keyway or keying requirements, and any fire-door labeling before ordering. Optional configurations must be specified correctly.
Additional Copper Creek Information
Bulldog 6200 Series Installation Guide
Bulldog 6200 Series Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
Product Class
-
ANSI Rating
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Cylinder6 Pin C Keyway
-
Collections
-
Country Of Origin
-
FinishOil Rubbed Bronze, Satin Stainless
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Material
-
Door Thinkness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
-
Approved for Commercial UseYes
-
UL Listed
