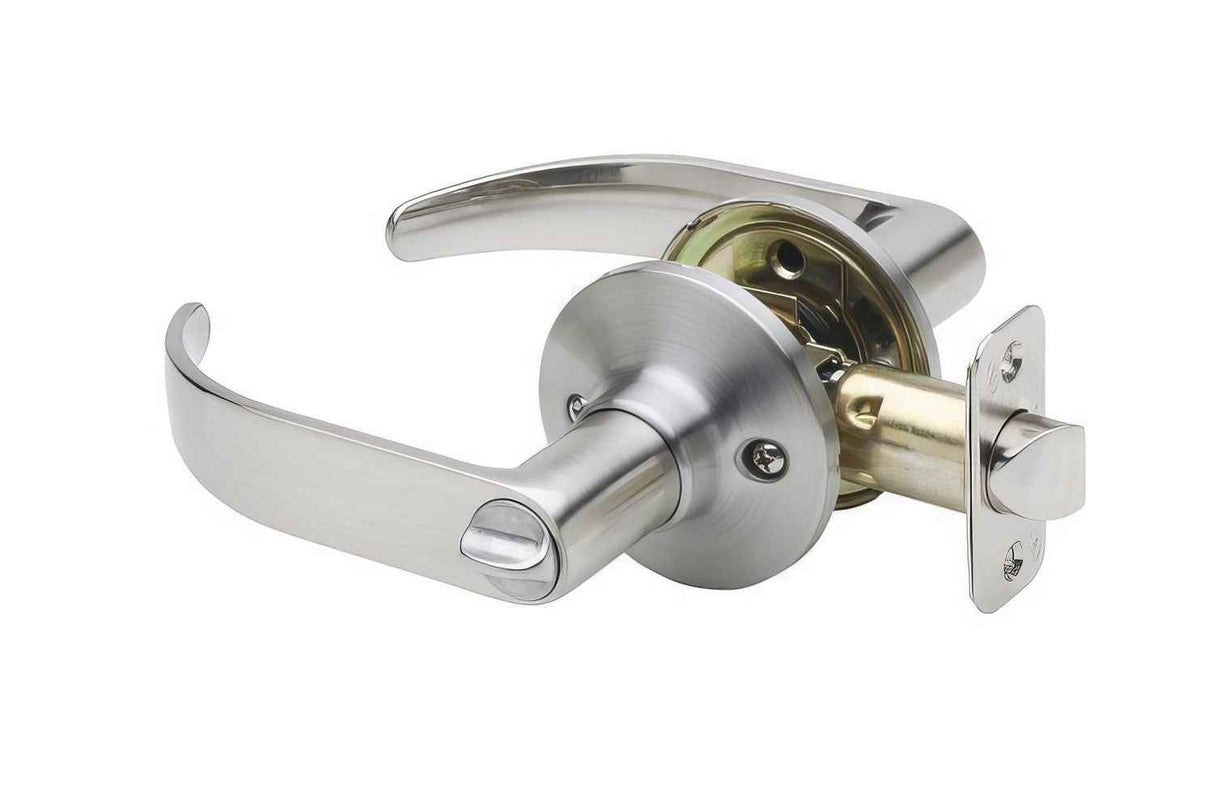

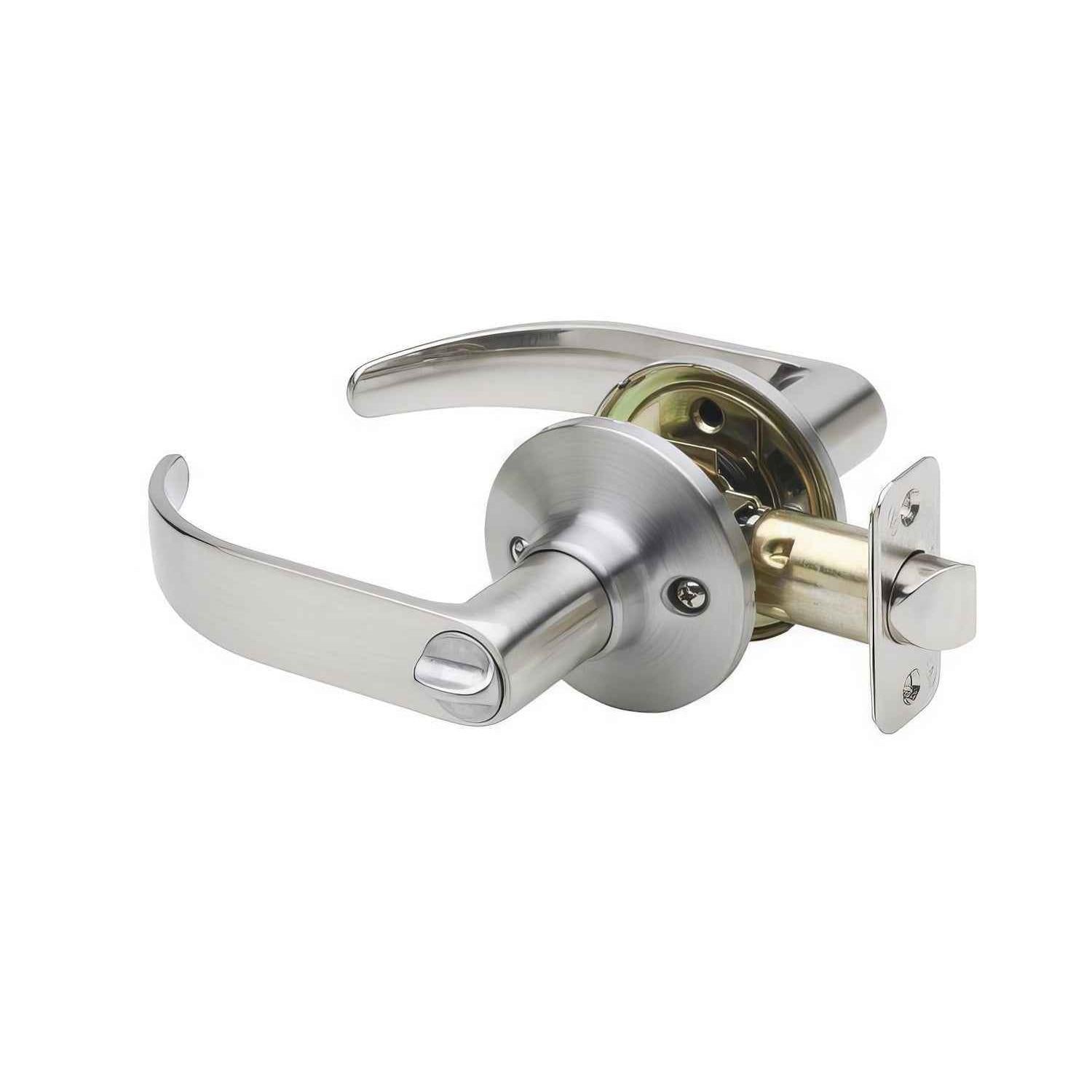

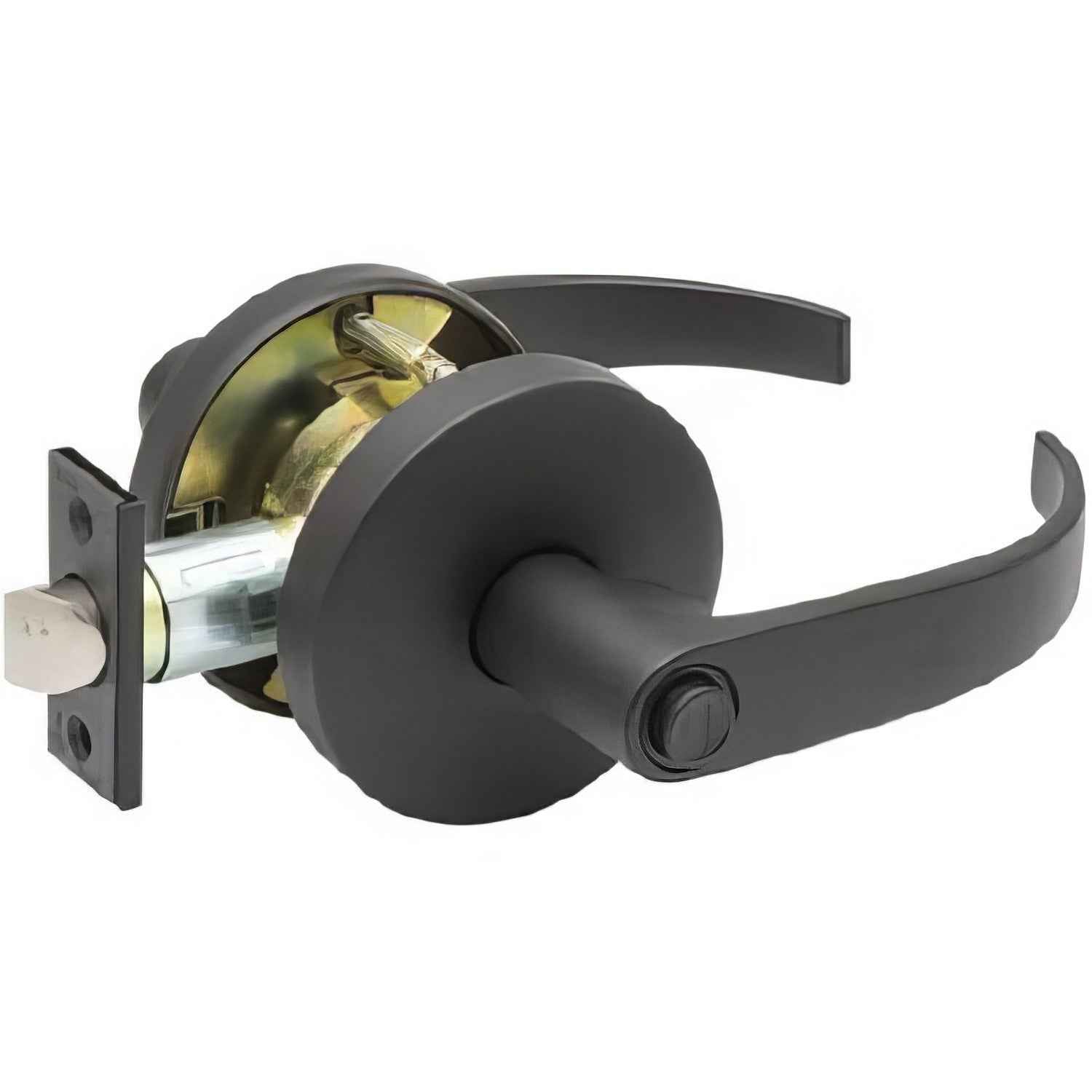

Copper Creek EL6231 Erin Heavy Duty Restroom Privacy Door Lever

The Copper Creek EL6231 Erin is a Grade 2 heavy-duty commercial commercial restroom privacy door lever built for the the inside push button locks both levers.

The non-handed 6200 Series lockset fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional. Its 3-3/8″ rose, 1″ square-corner narrow faceplate, clutch mechanism, ADA compliance, and 3-hour UL listing support commercial installations. The inside push button locks both levers. The inside lever or outside emergency-release mechanism unlocks the set, supporting emergency egress.

Product Details

• Model: EL6231
• Collection: Erin
• Series: 6200
• Function: Commercial Restroom Privacy Door Lever
• Performance grade: ANSI/BHMA Grade 2
• Material: zinc
• Cycle rating: 400,000 cycles
• Rose diameter: 3-3/8″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/4″ standard; 2-3/8″ optional
• Latch faceplate: 1″ square-corner narrow faceplate
• Strike: 2-3/4″ T-strike standard
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Clutch: standard
• Fire rating: 3-hour UL listed
• ADA compliant: yes

Compatibility: Confirm the 6200 Series, restroom function, door thickness, backset, faceplate, strike, keyway or keying requirements, and any fire-door labeling before ordering. Optional configurations must be specified correctly.
