Copper Creek EL1240SS Erin Style Keyed Entry Door Lever
Erin Style Keyed Entry Door Lever in Satin Stainless
Copper Creek EL1240SS Erin Style Keyed Entry Door Lever is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

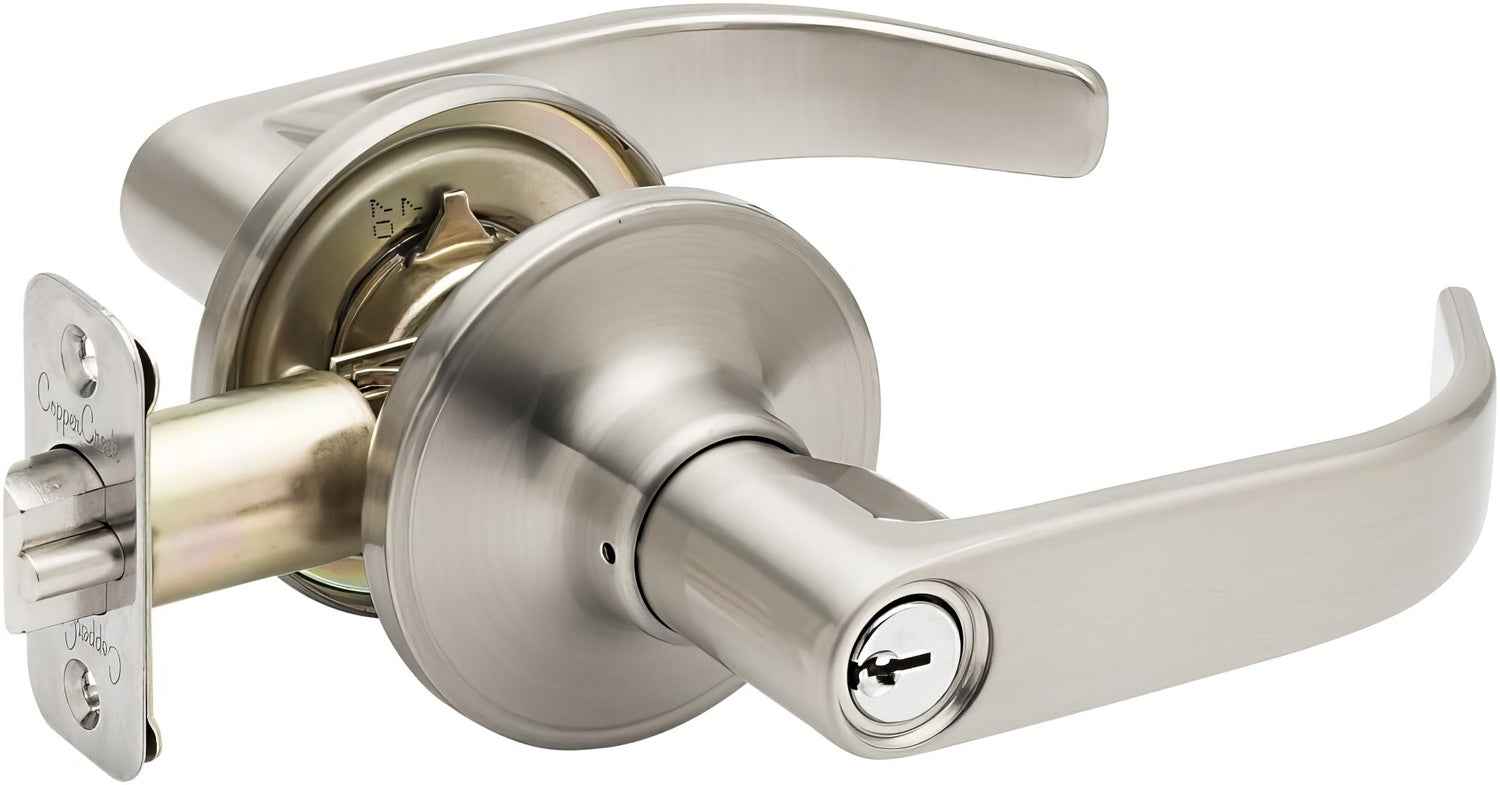

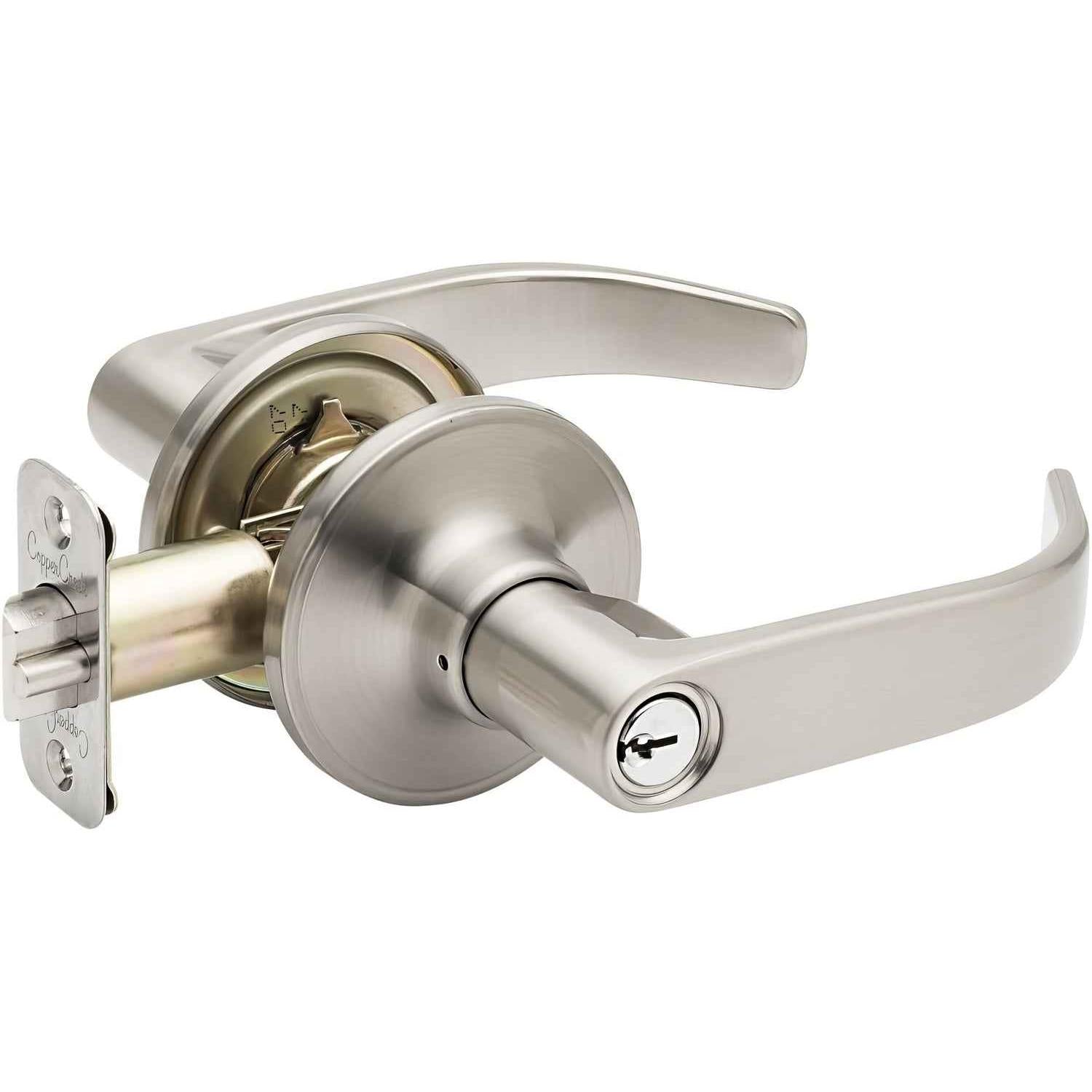

The Copper Creek EL1240SS Erin is a Grade 3 residential keyed entry door lever with a curved contemporary lever and standard round rose.
The exterior side locks by key or the interior locking control, while the inside lever provides normal egress. It is intended for exterior, garage-entry, office, and other doors that require keyed access.
Product Details
- Model: EL1240SS
- Design: Erin
- Function: Residential Keyed Entry Door Lever
- Configuration: Complete keyed-entry lockset with interior and exterior levers, cylinder, adjustable latch, strike, and mounting hardware.
- Material: zinc
- Performance: ANSI/BHMA Grade 3
- Cycle rating: 200,000 cycles
- Rose: 2-9/16″ standard round rose
- Handing: Non-Handed / Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Adjustable backset: 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Standard latch faceplate: 1″ round corner
- Standard strike: 2-3/4″ full-lip round-corner strike
- Standard cylinder: 5-pin KW1; C keyway optional
Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
Additional Copper Creek Information
Copper Creek EL1240 Erin Keyed Entry Lever Installation Guide
Copper Creek EL1240 Erin Keyed Entry Lever Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
ANSI Rating
-
UPC/ISBN
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Cylinder5 Pin KW1 (standard)
-
Collections
-
Country Of Origin
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionKeyed Alike, Keyed Different
-
Latch TypeRound Corner, Drive-In Latch
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
