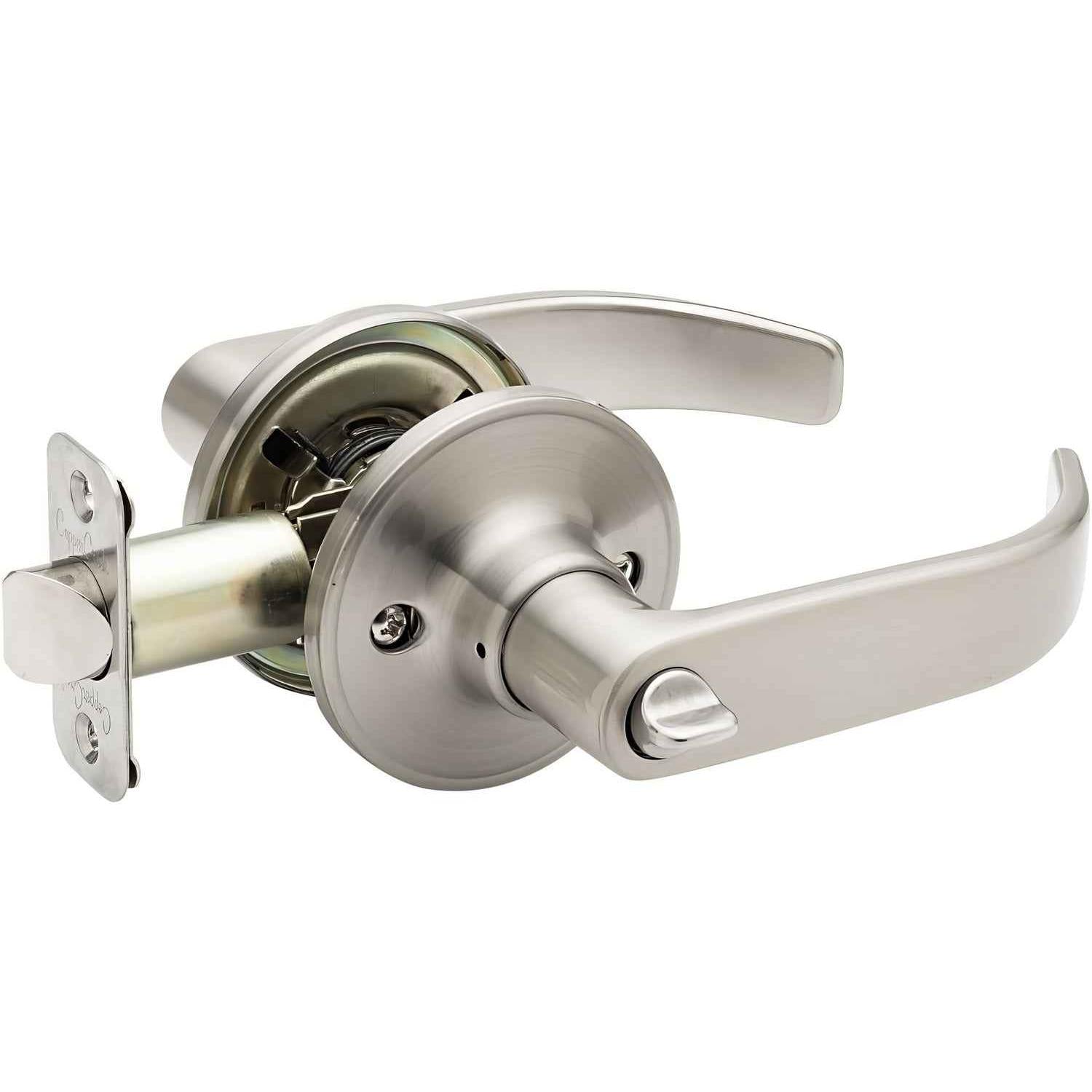

Copper Creek EL1230SS Erin Privacy Door Lever

The Copper Creek EL1230SS Erin is a Grade 3 residential privacy door lever with a curved contemporary lever and standard round rose.

The inside control locks the levers for privacy; the inside lever releases the lock for egress, and the exterior side provides emergency release. It is intended for bedroom, bathroom, and other interior doors that need temporary privacy.

Product Details

• Model: EL1230SS
• Design: Erin
• Function: Residential Privacy Door Lever
• Configuration: Complete privacy lockset with interior and exterior levers, adjustable latch, strike, emergency-release provision, and mounting hardware.
• Material: zinc
• Performance: ANSI/BHMA Grade 3
• Cycle rating: 200,000 cycles
• Rose: 2-9/16″ standard round rose
• Handing: Non-Handed / Reversible
• Locking control: Interior turn-button privacy control
• Door thickness: 1-3/8″ to 1-3/4″
• Adjustable backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Standard latch faceplate: 1″ round corner
• Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
