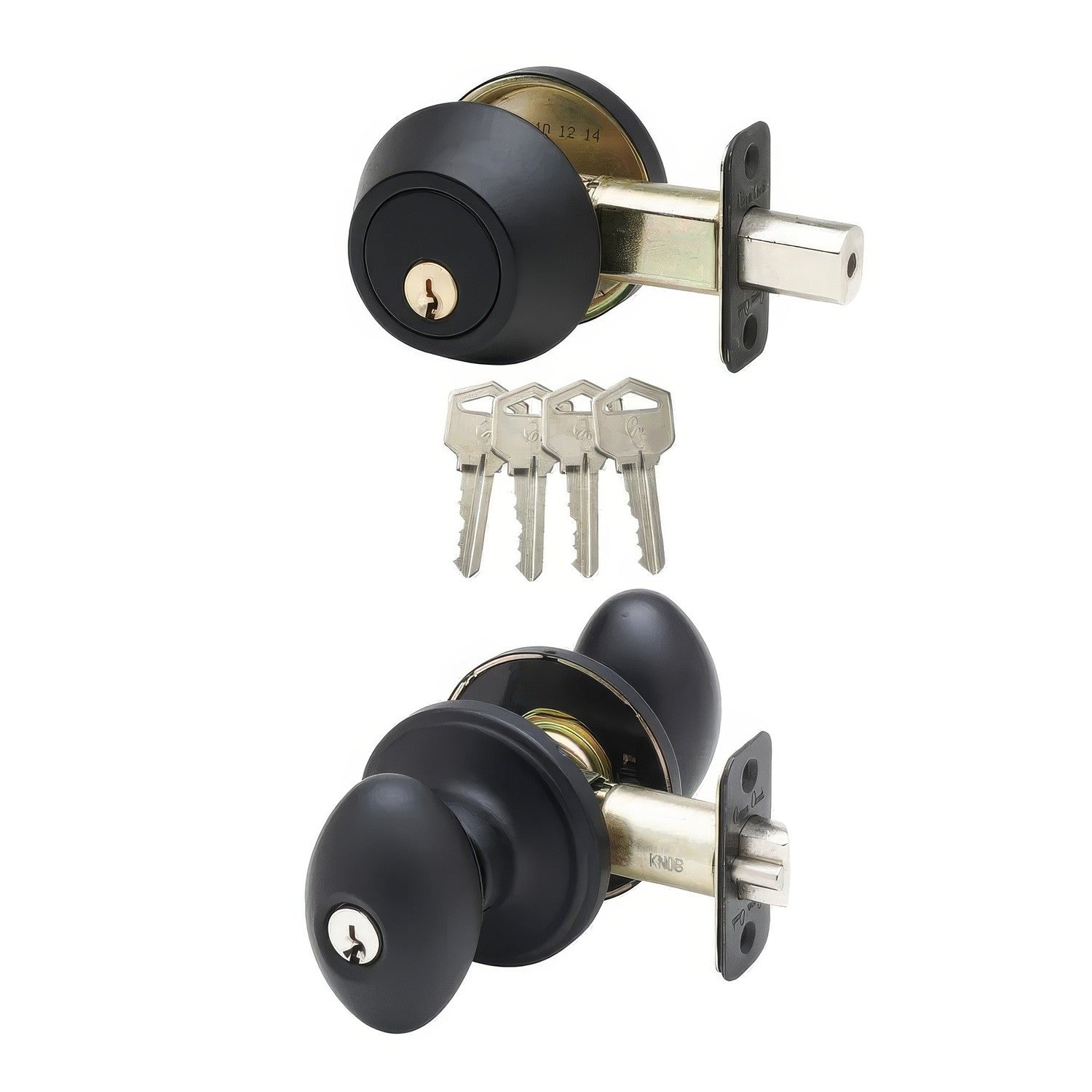

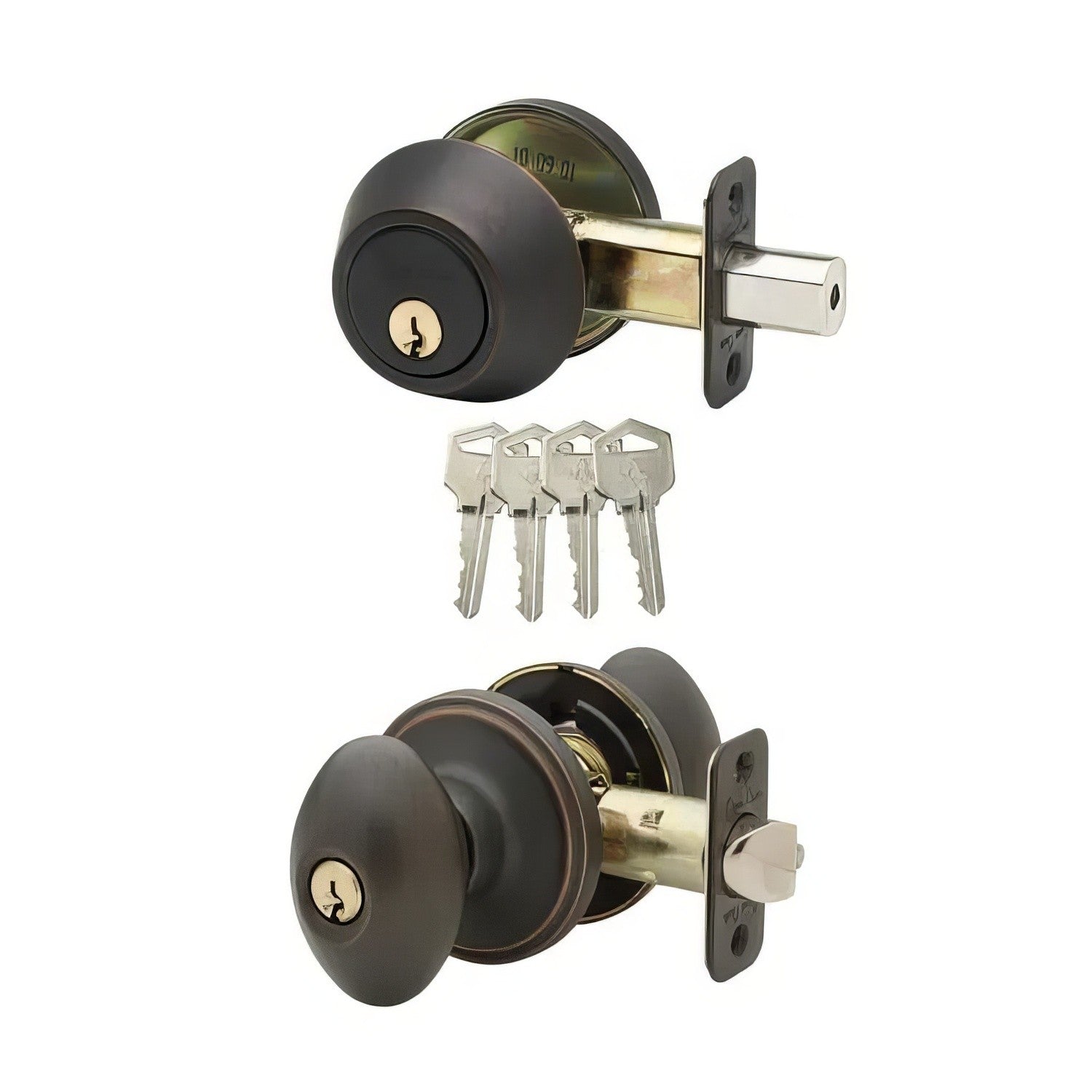

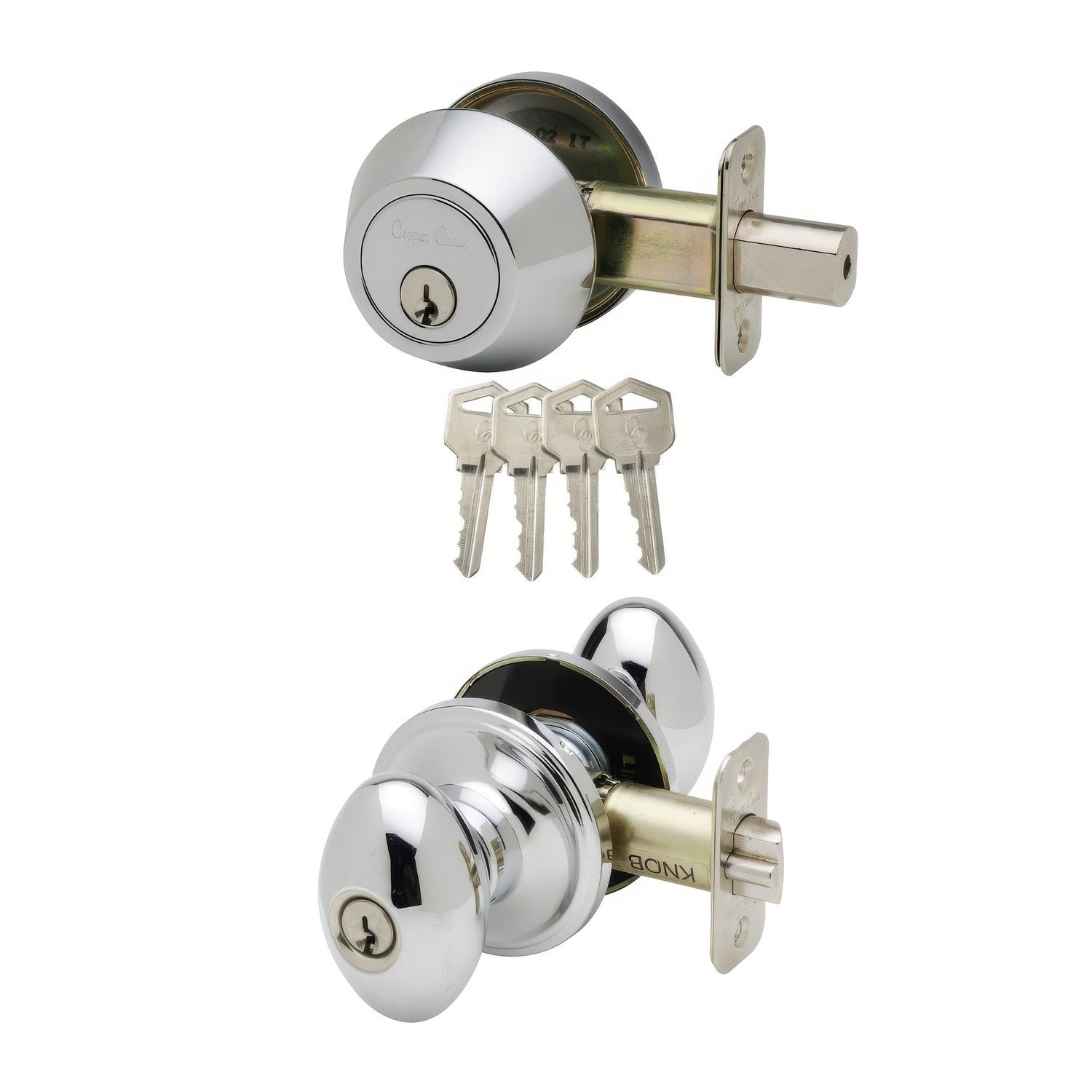

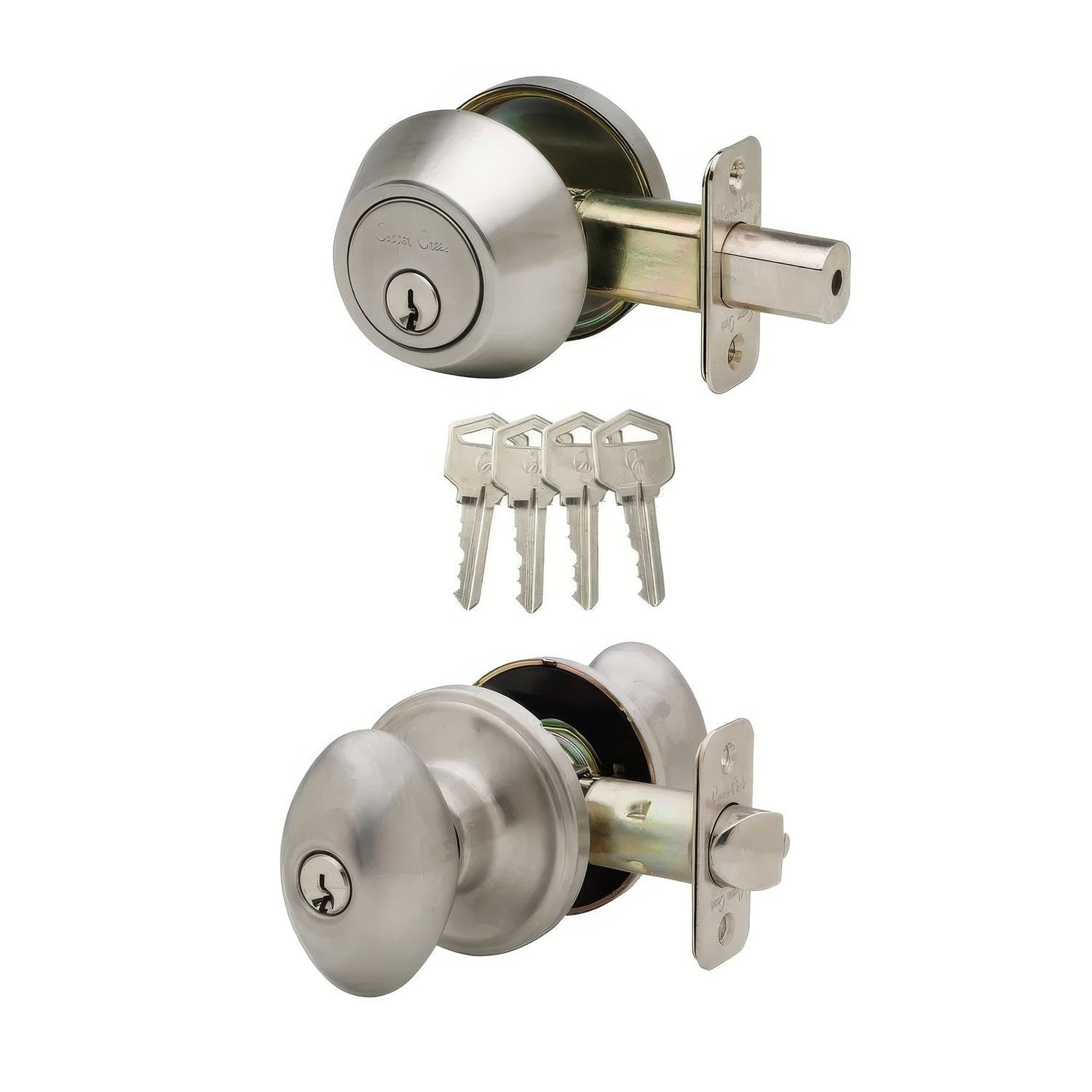

Copper Creek EKDB141Egg Single Cylinder Keyed Entry Knob Set Combo Pack with Deadbolt

The Copper Creek EKDB141 Egg is a coordinated residential entry combo containing a keyed entry door knob and a single-cylinder deadbolt.

The oval egg knob operates the spring latch and provides keyed access at the lower bore. The upper single-cylinder deadbolt locks with an exterior key and an interior thumbturn.

Product Details

• Model: EKDB141
• Design: Egg
• Function: Keyed Entry Door Knob and Single Cylinder Deadbolt Set
• Configuration: keyed entry knob lockset plus single-cylinder deadbolt
• Knob style: oval egg knob
• Material: zinc
• Performance: ANSI/BHMA Grade 3; 200,000 cycles
• Knob rose: 2-5/8″ round rose
• Knob diameter: 2-9/16″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″ for each lock
• Edge bore: 1″
• Handing: non-handed / reversible
• Cylinder: 5-pin KW1 standard
• Latch formats: round-corner, square-corner or drive-in configuration

Compatibility: Confirm a standard two-bore entry-door layout, door thickness, backset, latch and strike preparation, keyway, and desired keying before ordering. The current listing does not establish that the knob and deadbolt will be keyed alike unless that keying option is selected.
