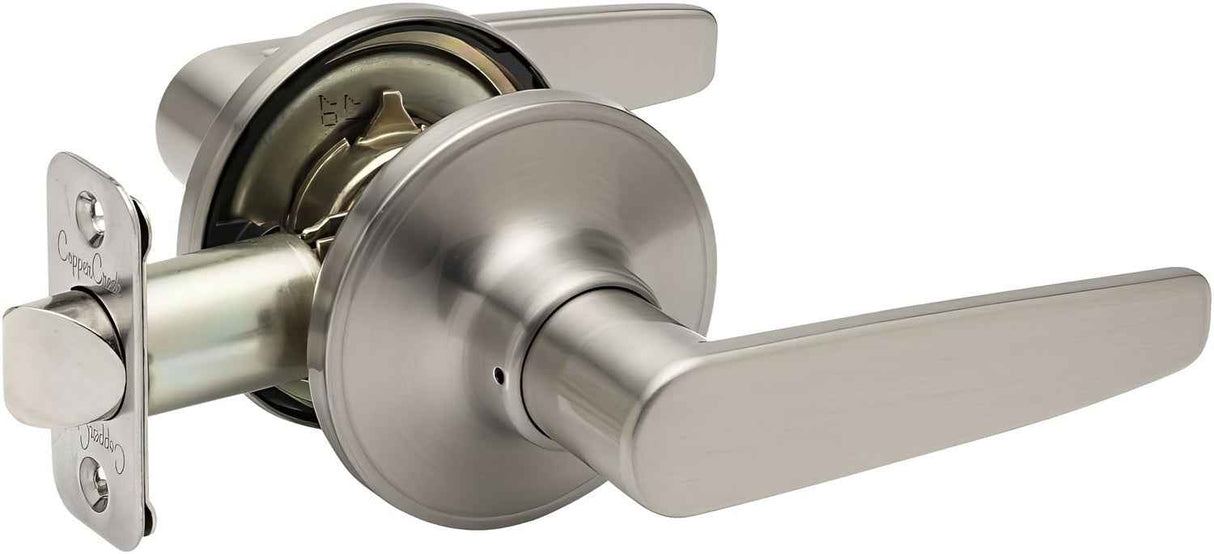

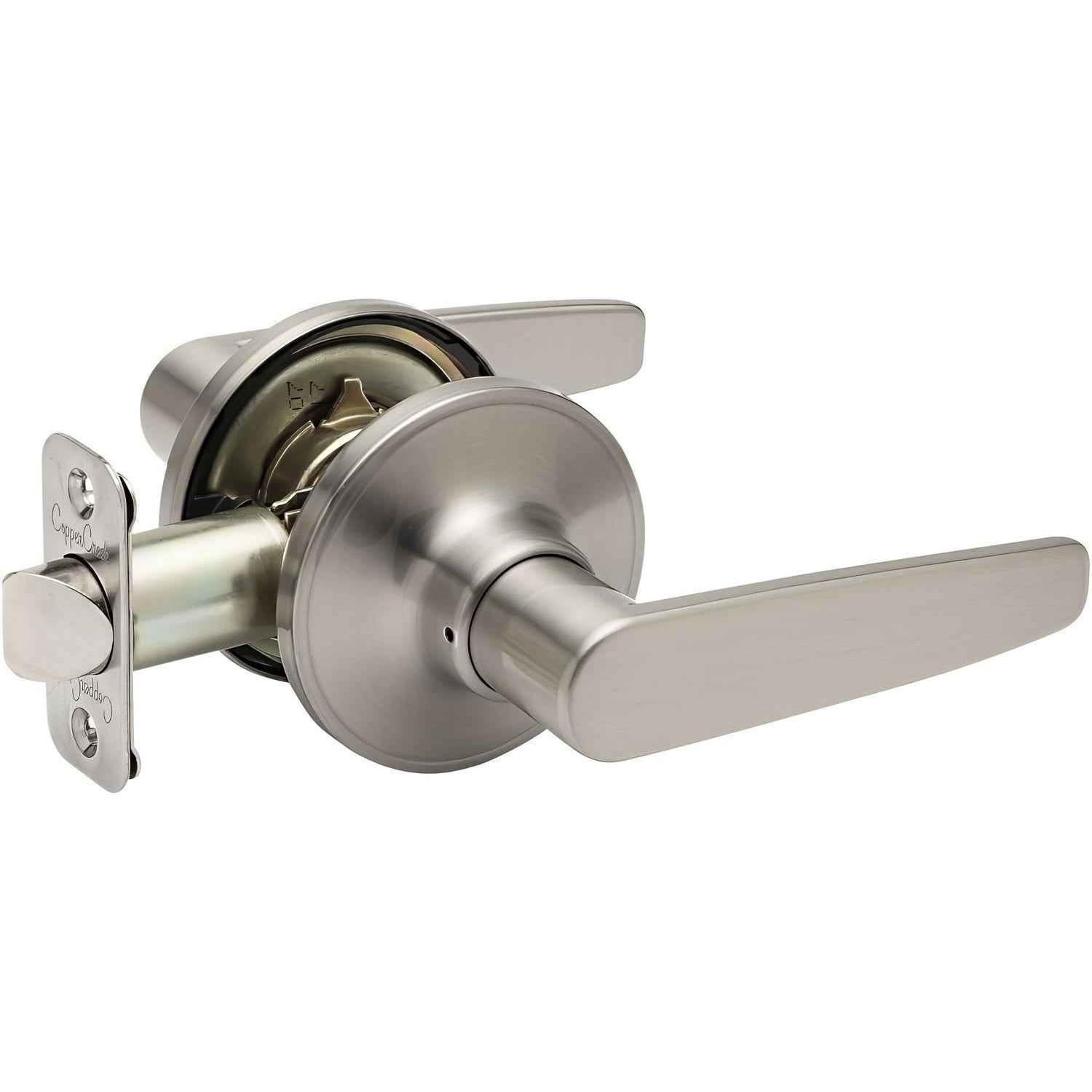

Copper Creek DL1220SS Daley Passage Door Lever

Daley Passage Door Lever in Satin Stainless

$19.50 USD $50.00
Shipping calculated at checkout.
Select Latch Type
Select Backset

The Copper Creek DL1220SS Daley is a Grade 3 residential passage door lever with a clean-lined lever and standard round rose.

Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.

Product Details

  • Model: DL1220SS
  • Design: Daley
  • Function: Residential Passage Door Lever
  • Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
  • Material: zinc
  • Performance: ANSI/BHMA Grade 3
  • Cycle rating: 200,000 cycles
  • Rose: 2-9/16″ standard round rose
  • Handing: Non-Handed / Reversible
  • Door thickness: 1-3/8″ to 1-3/4″
  • Adjustable backset: 2-3/8″ or 2-3/4″
  • Cross bore: 2-1/8″
  • Edge bore: 1″
  • Standard latch faceplate: 1″ round corner
  • Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.

Additional Copper Creek Information

Copper Creek DL1220 Daley Passage Door Lever Installation Guide PDF iconCopper Creek DL1220 Daley Passage Door Lever Installation Guide

Copper Creek DL1220 Daley Passage Door Lever Specifications PDF iconCopper Creek DL1220 Daley Passage Door Lever Specifications

View Copper Creek Manufacturer Warranty

Shop All Copper Creek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Description

The Copper Creek DL1220SS Daley is a Grade 3 residential passage door lever with a clean-lined lever and standard round rose.

Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.

Product Details

  • Model: DL1220SS
  • Design: Daley
  • Function: Residential Passage Door Lever
  • Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
  • Material: zinc
  • Performance: ANSI/BHMA Grade 3
  • Cycle rating: 200,000 cycles
  • Rose: 2-9/16″ standard round rose
  • Handing: Non-Handed / Reversible
  • Door thickness: 1-3/8″ to 1-3/4″
  • Adjustable backset: 2-3/8″ or 2-3/4″
  • Cross bore: 2-1/8″
  • Edge bore: 1″
  • Standard latch faceplate: 1″ round corner
  • Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.

Additional Copper Creek Information

Copper Creek DL1220 Daley Passage Door Lever Installation Guide PDF iconCopper Creek DL1220 Daley Passage Door Lever Installation Guide

Copper Creek DL1220 Daley Passage Door Lever Specifications PDF iconCopper Creek DL1220 Daley Passage Door Lever Specifications

View Copper Creek Manufacturer Warranty

Shop All Copper Creek Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Specifications
  • Weight
    1.5 lb
  • SKU
    DL1220SS
  • ADA Compliant
    Yes
  • Brand
    Copper Creek
  • Function
    Passage
  • Material
    Zinc
  • ANSI Rating
    A156.2
  • Available at Walmart.com
    Yes
  • UPC/ISBN
    878898005762
  • Backset
    2-3/8" or 2-3/4"
  • BHMA Certification
    Grade 3
  • Bore Hole
    2-1/8"
  • Collections
    Daley
  • Country Of Origin
    China
  • Function
    Passage
  • Handing
    Left Hand, Right Hand, Reversible
  • Handle Style
    Metal Lever
  • Latch type
    Round Corner, Drive-In Latch
  • Material
    Zinc
  • Door Thinkness
    1-3/8" to 1-3/4"
  • Edge Bore
    1"
  • GPC Code
    10002573
  • Lock Function
    Passage
  • Shape
    Flat - Straight
  • Style
    Contemporary/Modern
  • Latch Faceplate
    Round Corner, Drive-In
