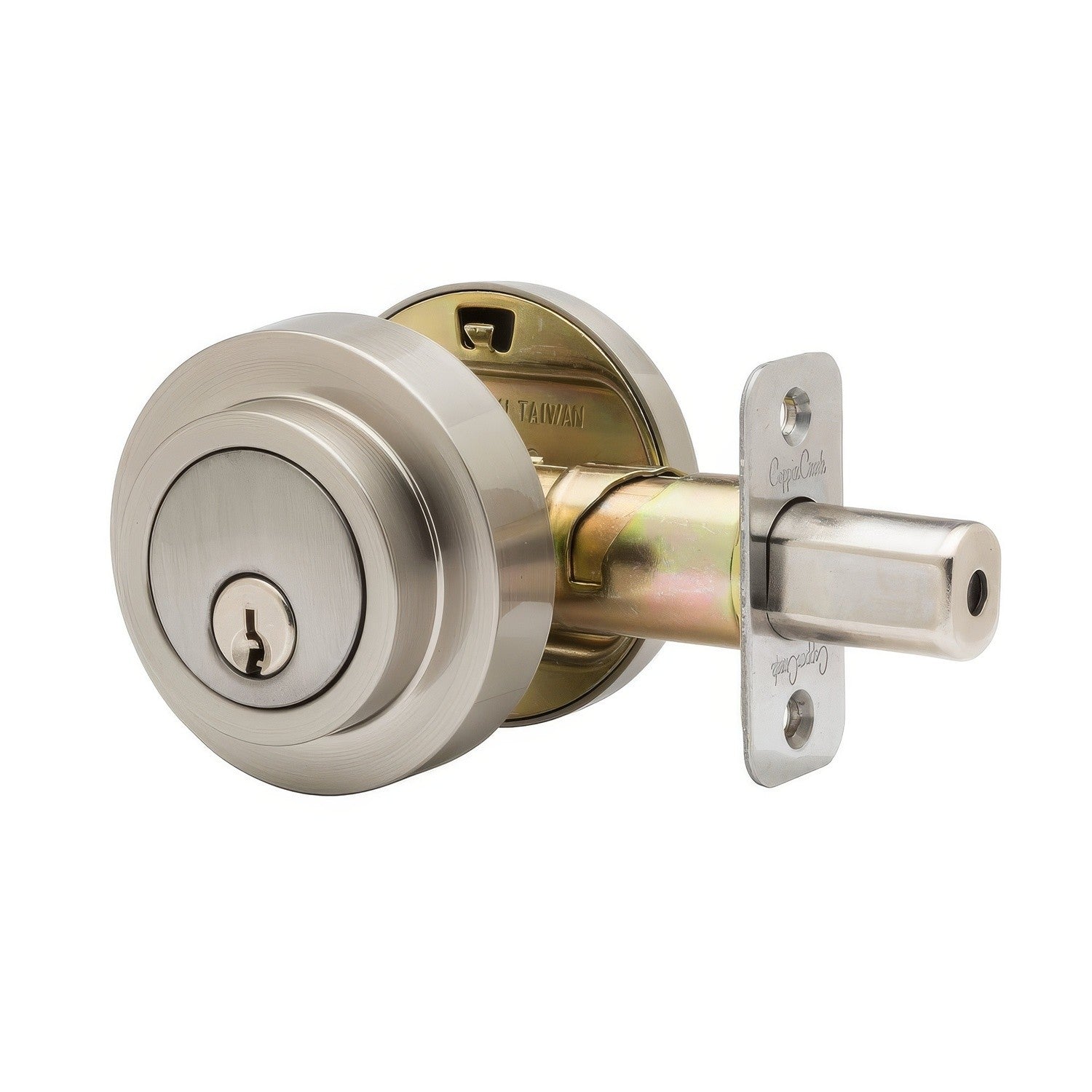

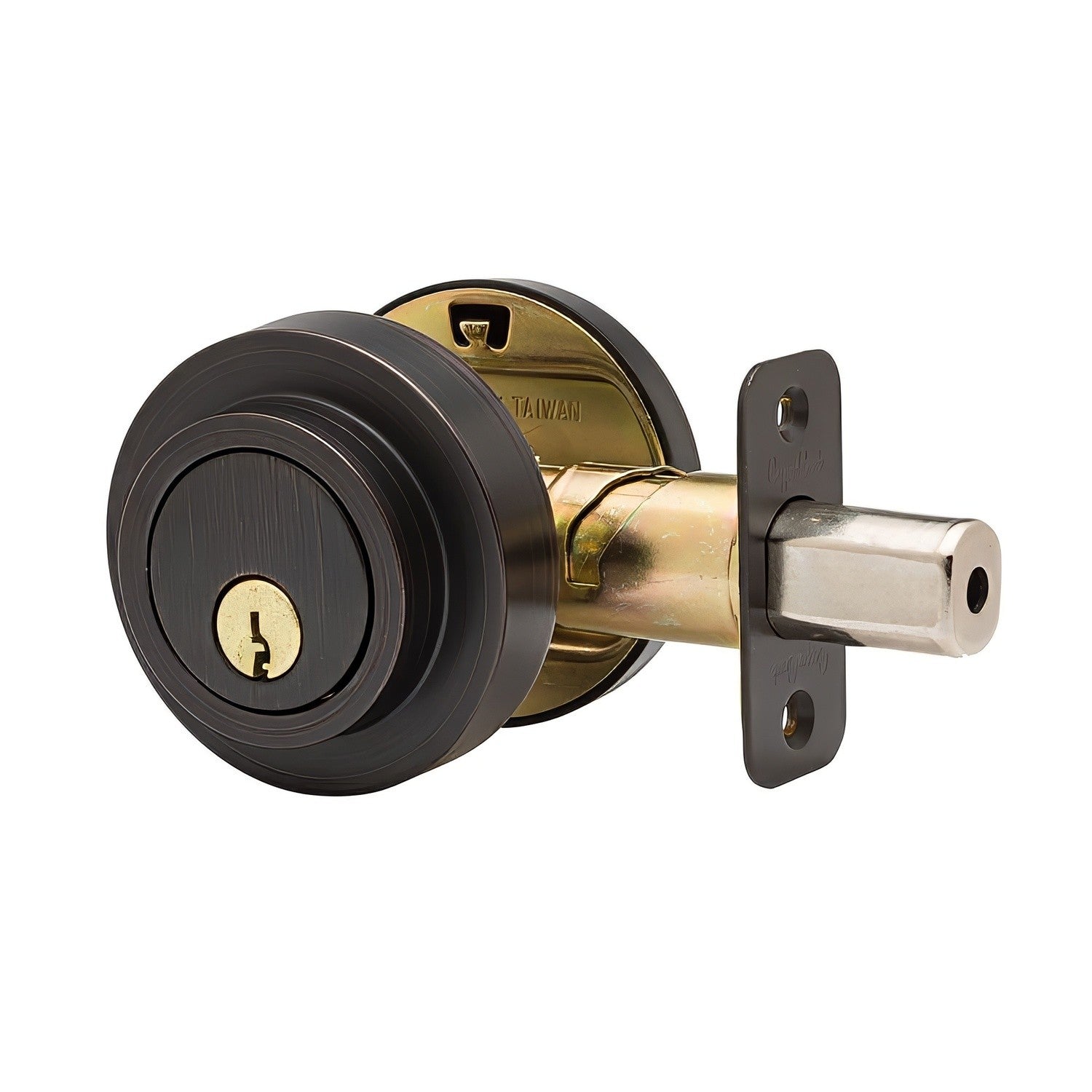

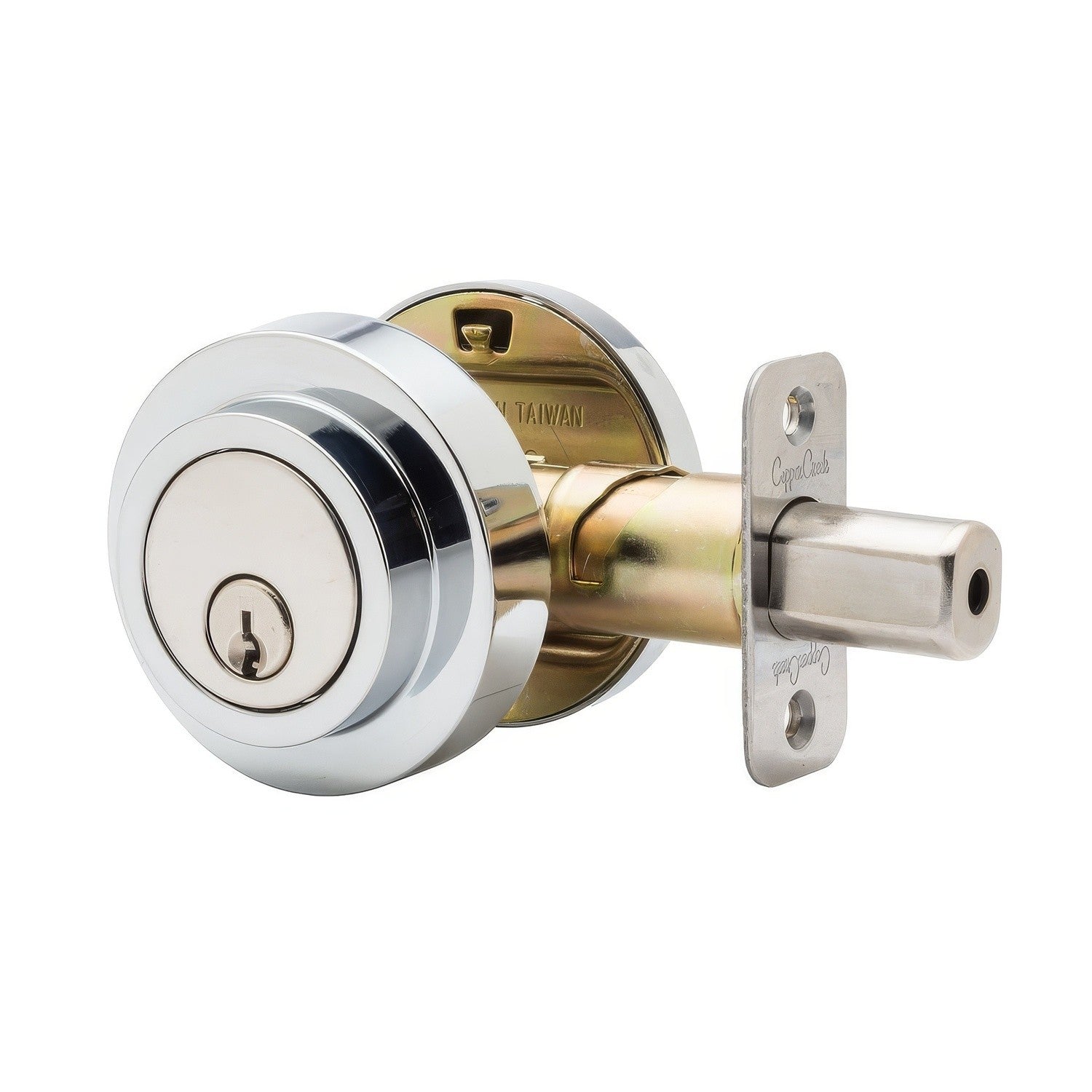

Copper Creek DBR2410 Mid Century Modern Keyed Entry Single Cylinder Deadbolt

The Copper Creek DBR2410 is a Grade 3 mid-century modern single-cylinder deadbolt with a round exterior and interior trim profile.

An exterior key or the interior thumbturn operates the full 1″ deadbolt. A cast cylinder guard protects the solid-brass keyed cylinder.

Product Details

• Model: DBR2410
• Design: mid-century modern round trim
• Function: Single Cylinder Deadbolt
• Operation: exterior key or interior thumbturn
• Material: zinc trim with solid-brass cylinder
• Performance: ANSI/BHMA Grade 3
• Deadbolt throw: 1″ with hardened steel roll pin
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: adjustable 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Cylinder: 5-pin KW1 standard
• Cylinder protection: cast cylinder guard

Compatibility: Confirm the DBR2410 round-trim design, single-cylinder function, door thickness, backset, latch and strike preparation, keyway, and keying requirements. Do not substitute the square DBS2410 when matching existing trim.
