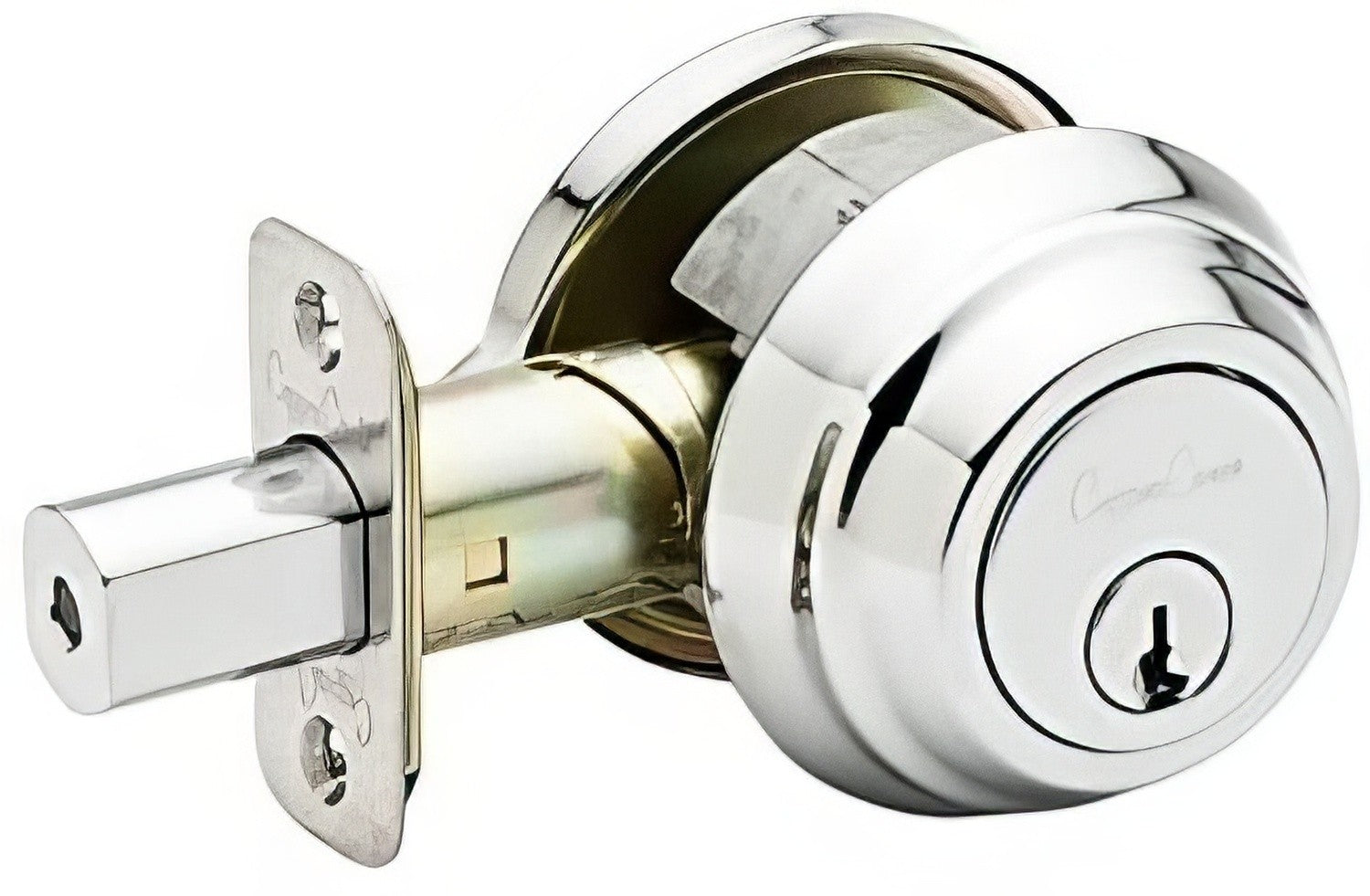

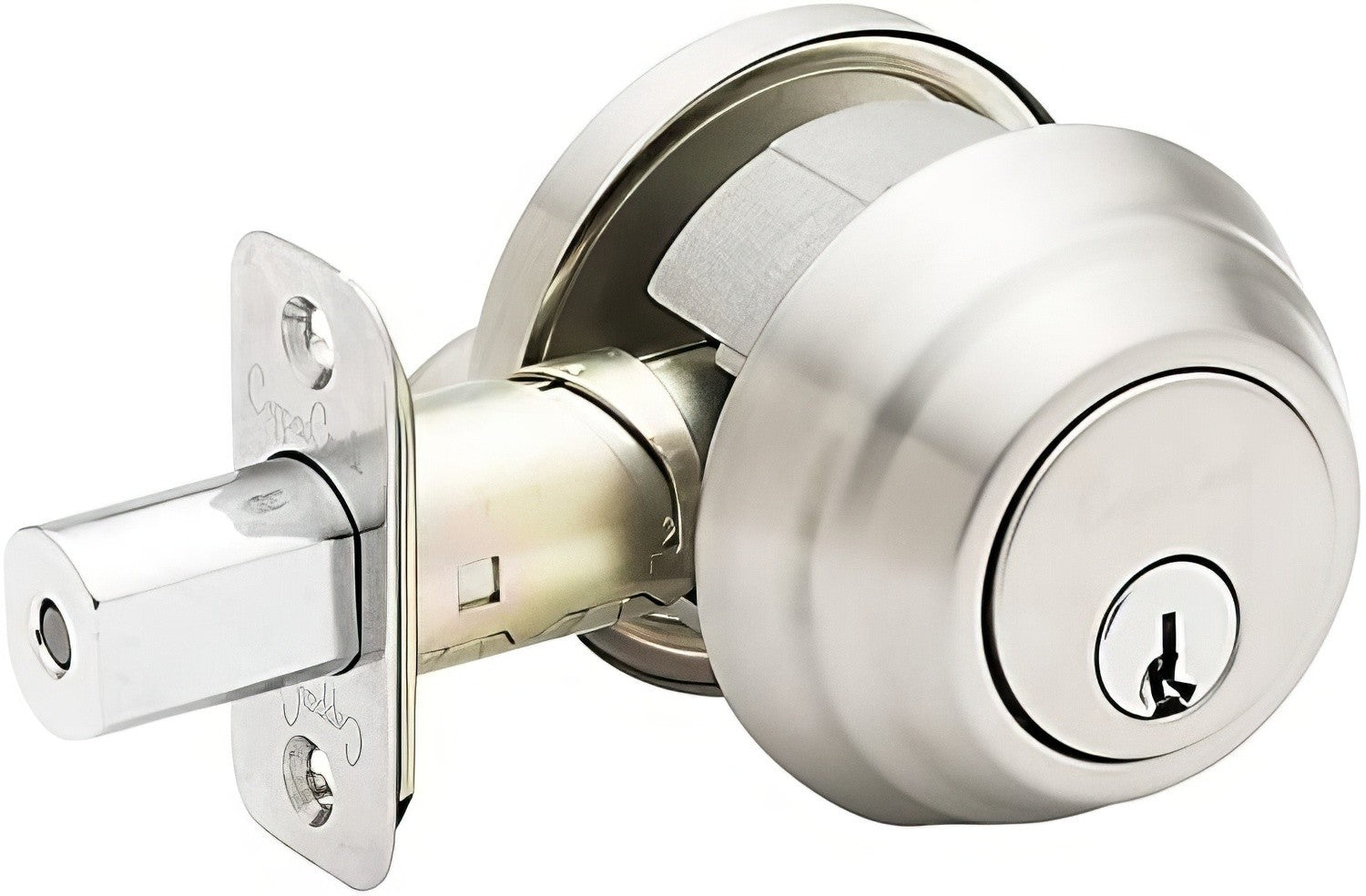

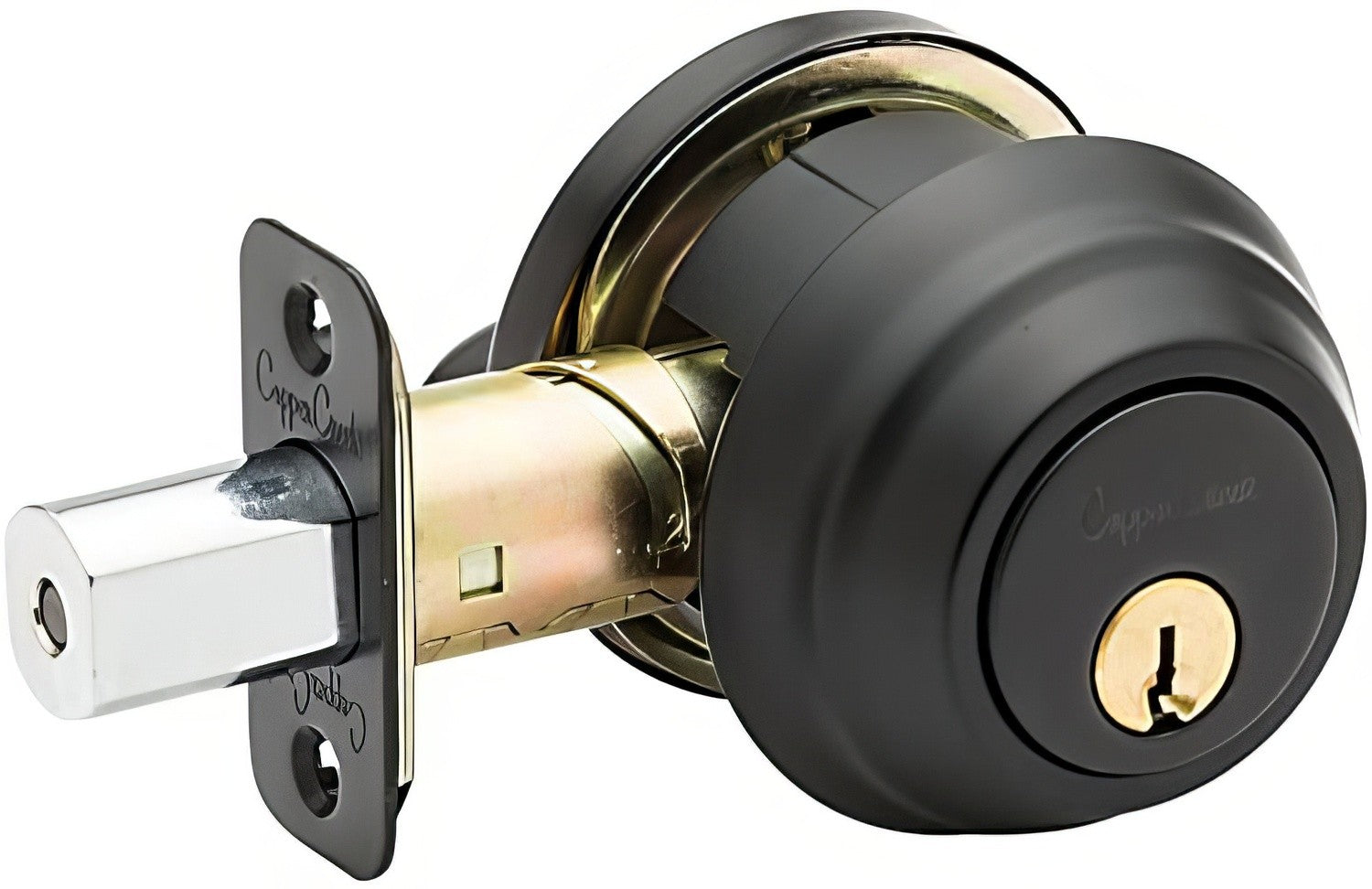

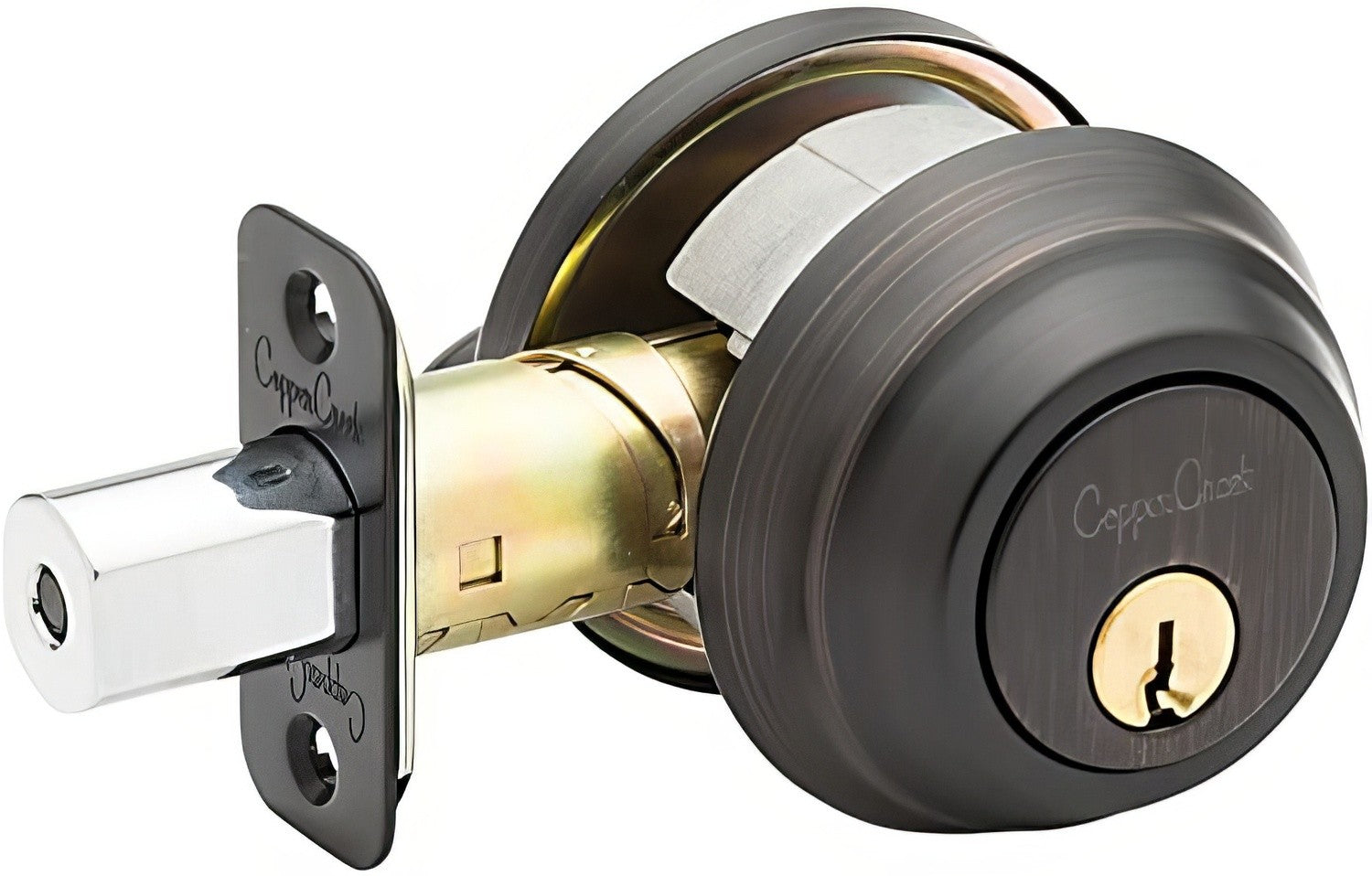

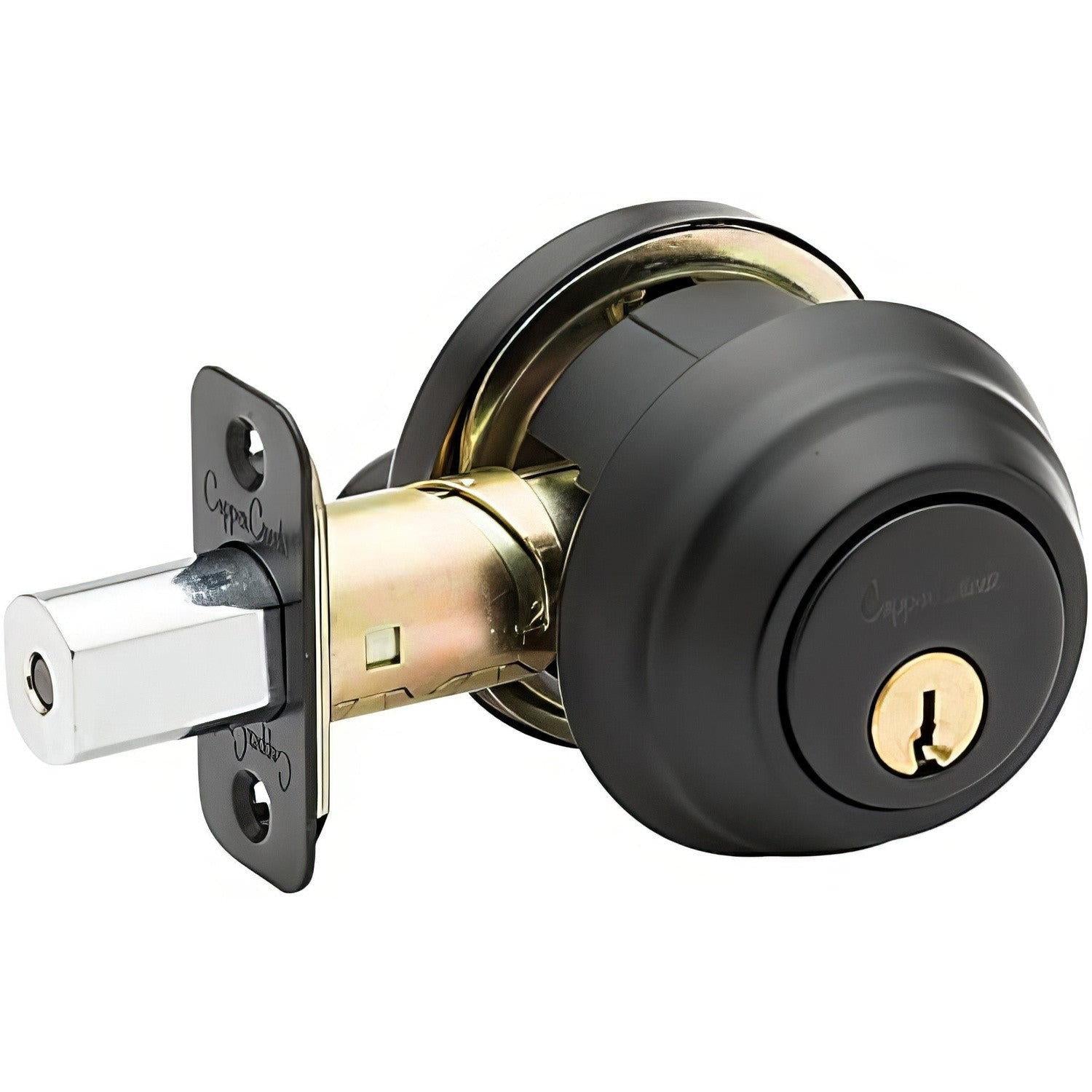

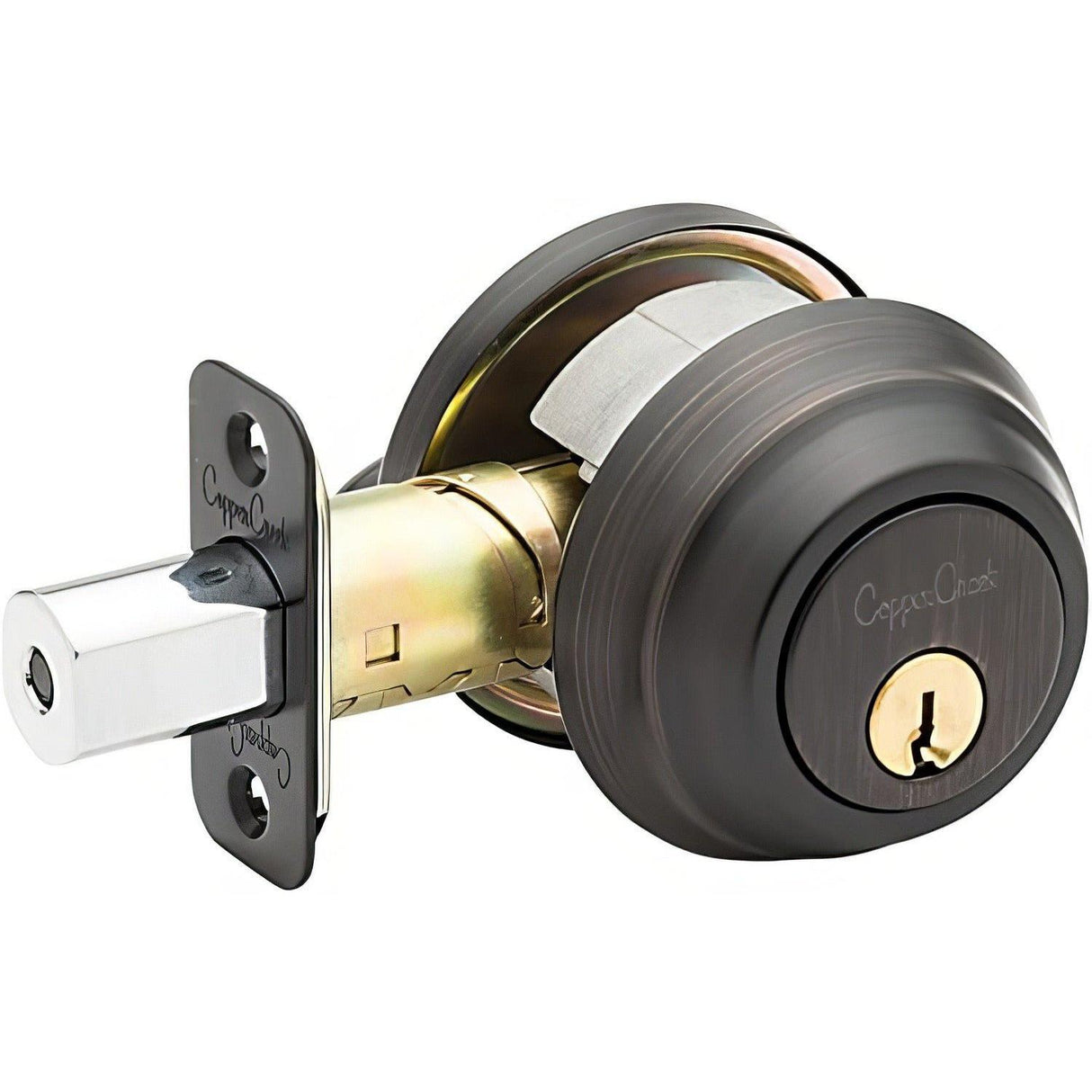

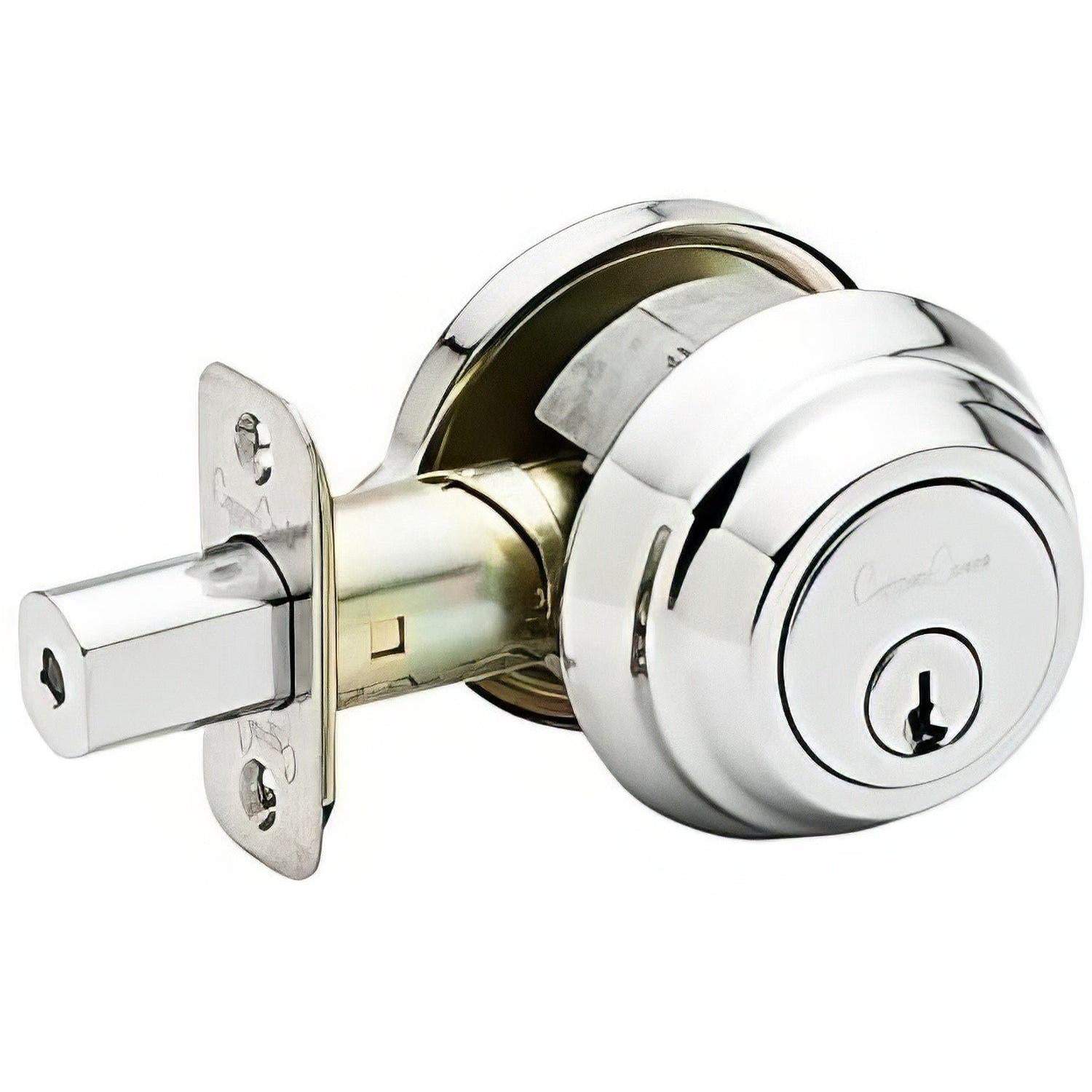

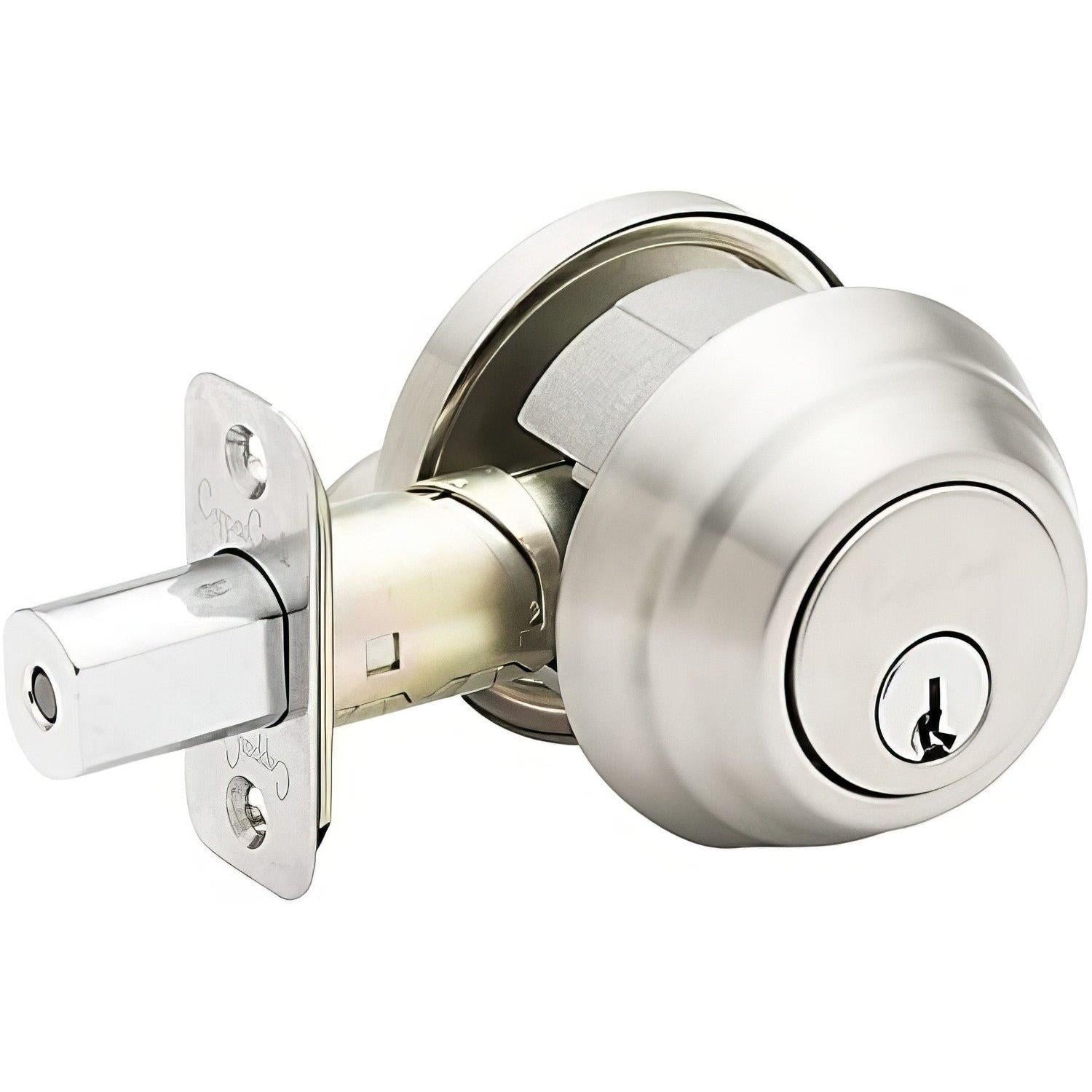

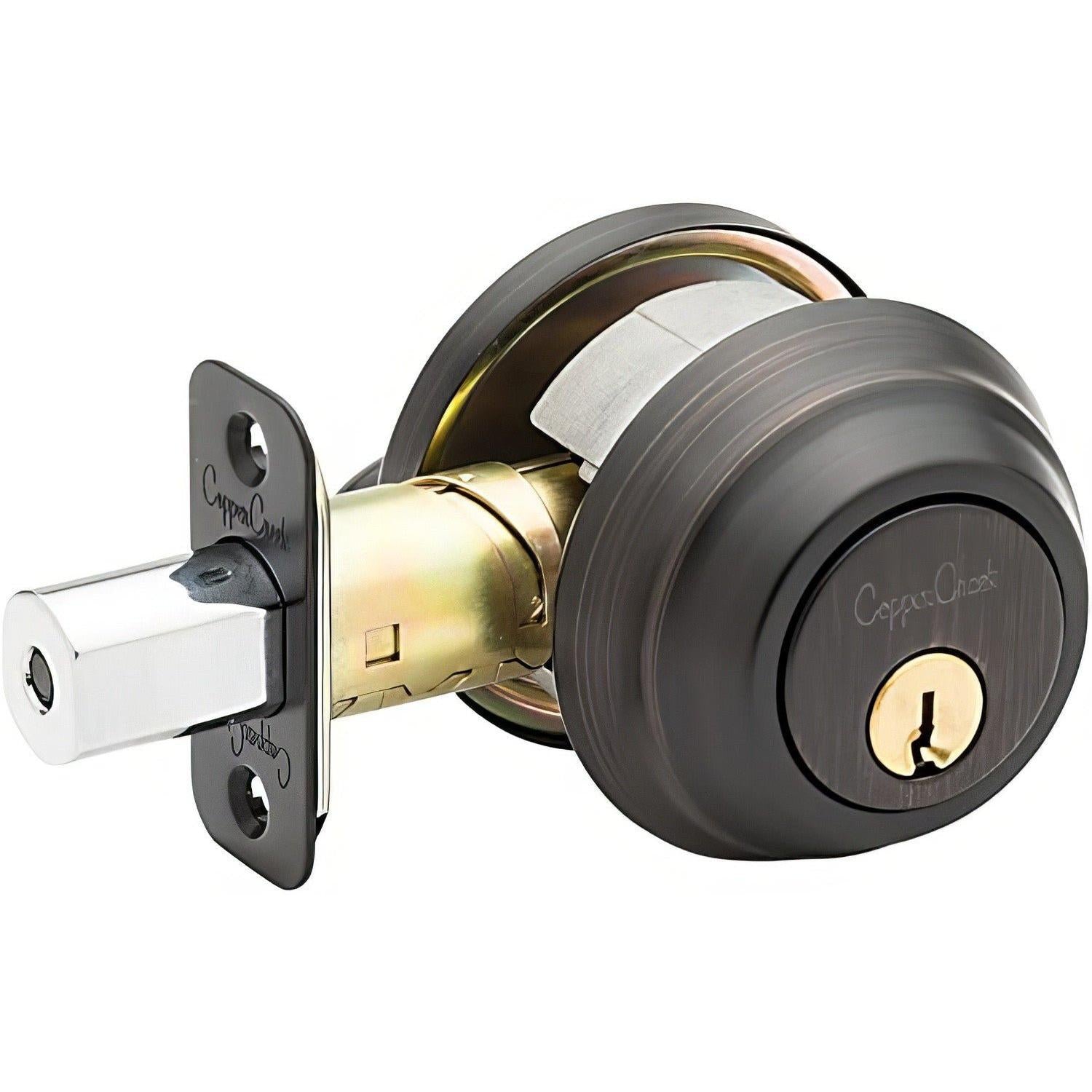

Copper Creek DBFR5410 Keyed Entry Single Cylinder Deadbolt with Interior Thumbturn

The Copper Creek DBFR5410 is a heavy-duty Grade 2 single-cylinder deadbolt with a serviceable front-removable cylinder.

An exterior key or the interior thumbturn throws and retracts the deadbolt. The front-removable cylinder design supports cylinder service from the exterior trim side when properly installed.

Product Details

• Model: DBFR5410
• Function: Grade 2 Single Cylinder Deadbolt
• Operation: exterior key or interior thumbturn
• Material: zinc trim with solid-brass cylinder
• Performance: exceeds BHMA Grade 2 criteria
• Cylinder: front-removable solid-brass 5-pin KW1 standard; C keyway optional
• Door thickness: 1-3/8″ to 1-3/4″ standard
• Thick-door option: up to 2-1/4″ with PC-THICK-DBFR
• Backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Latch faceplate options: round corner, square corner or drive-in
• ADA compliant: yes

Compatibility: Confirm the DBFR5410 Grade 2 model, cylinder and keyway, backset, latch and strike preparation, door thickness, and keying before ordering. The PC-THICK-DB kit in this batch is for DB2410; DBFR5410 uses the separate PC-THICK-DBFR kit for thick doors.
