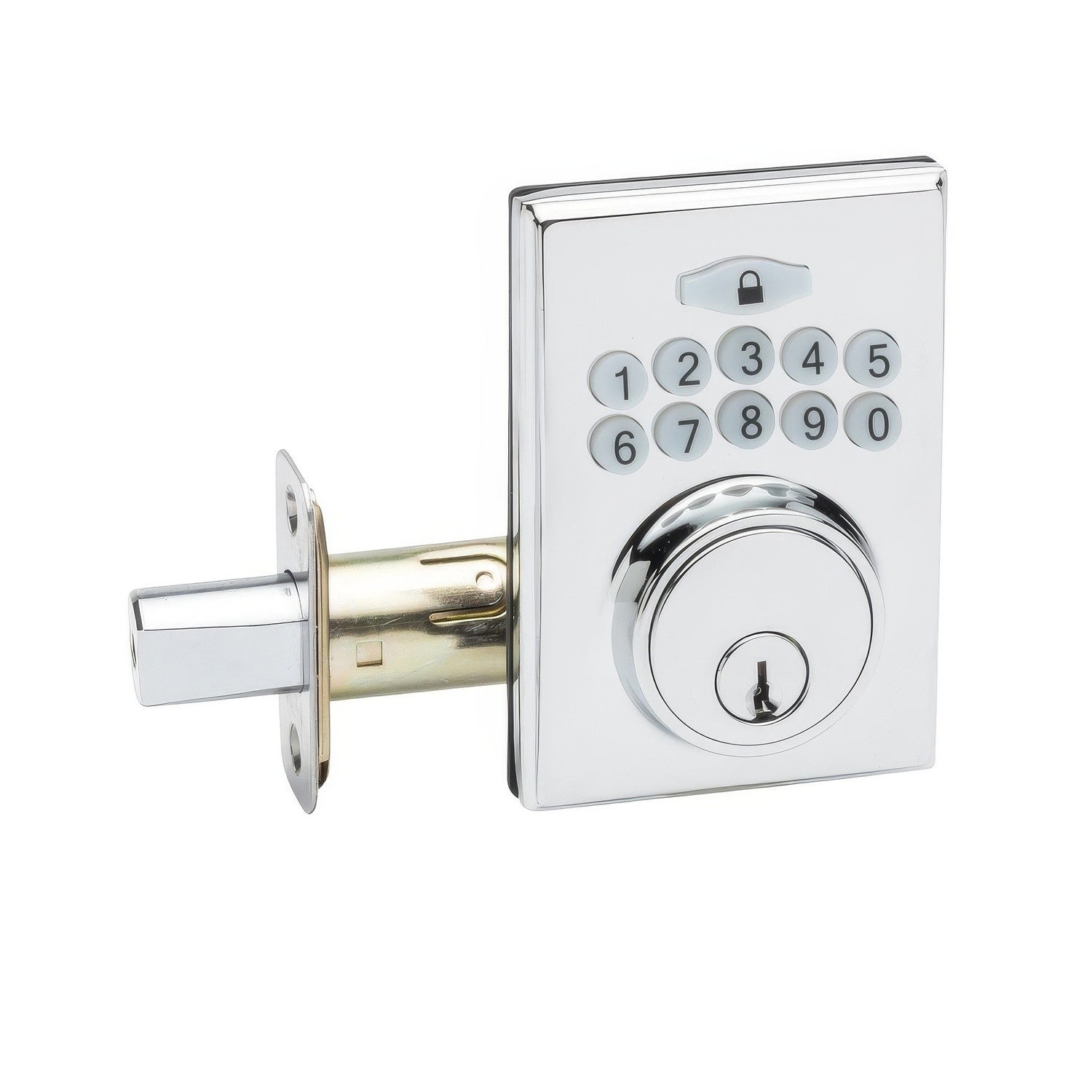

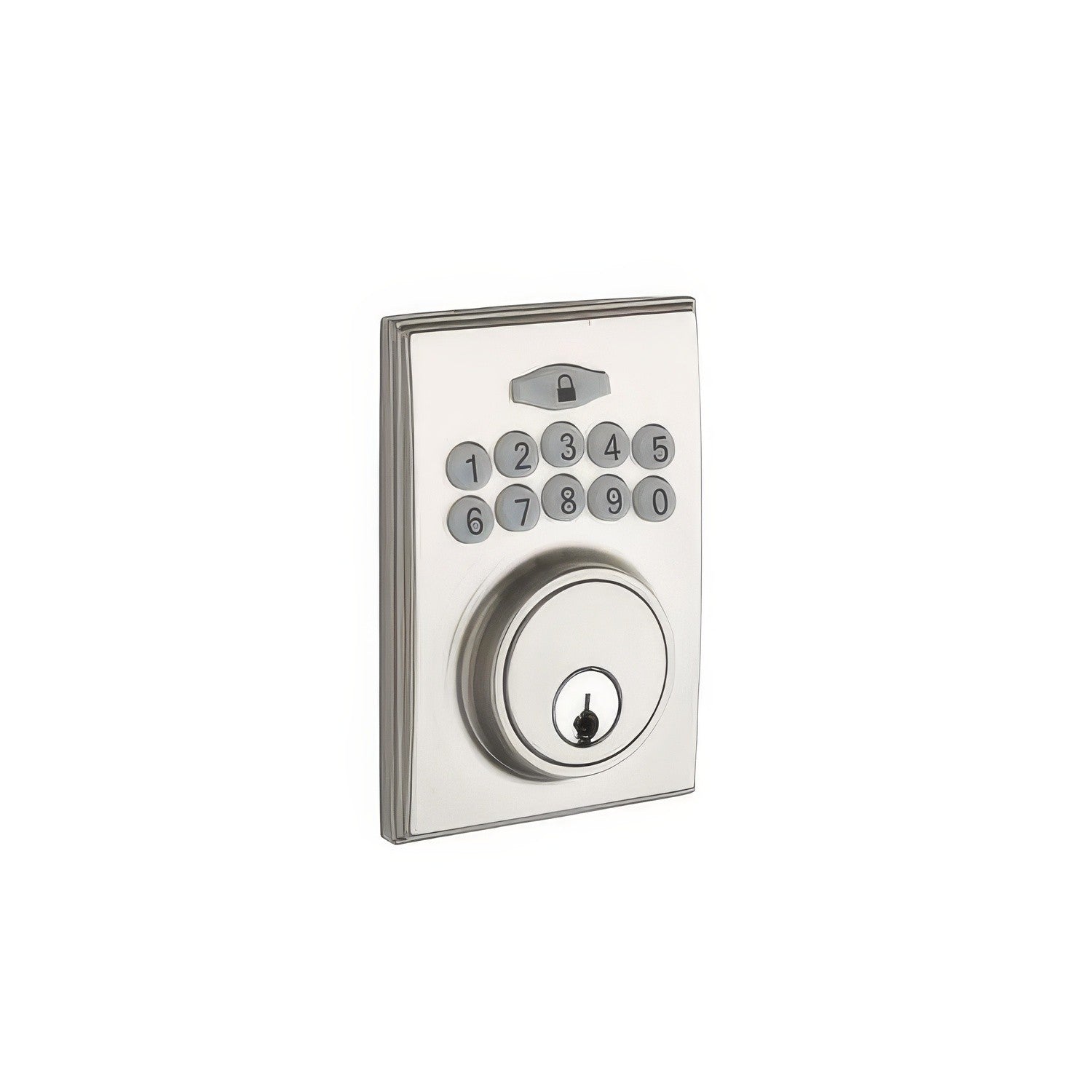

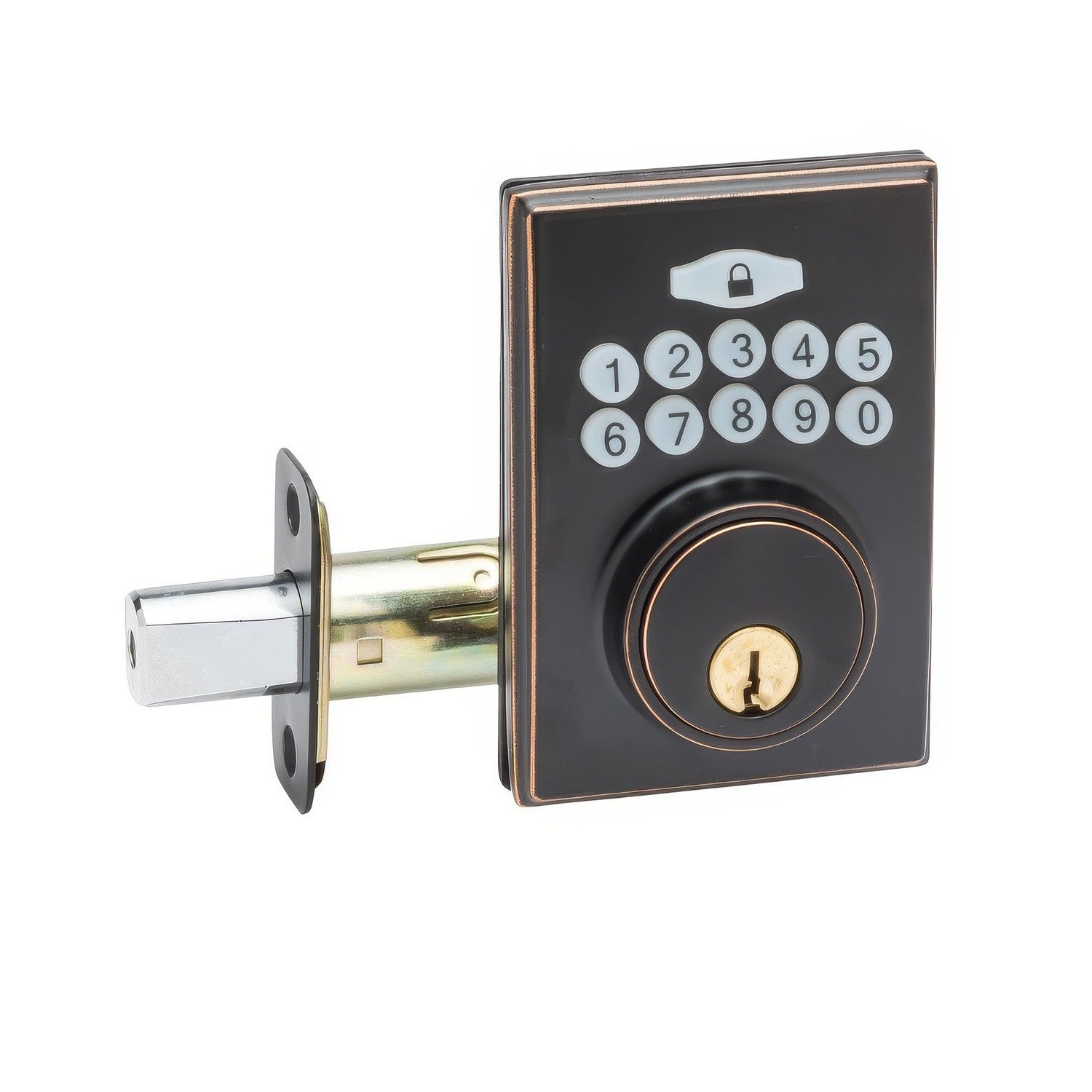

Copper Creek DBF3410 Fashion Keyless Entry Single Cylinder Electronic Deadbolt

The Copper Creek DBF3410 Fashion is a motorized single-cylinder electronic keypad deadbolt with illuminated push buttons and a mechanical key override.

From outside, the deadbolt can be unlocked with a programmed code or the key. The interior turnpiece provides manual operation. Vacation mode and a 10-to-99-second auto-lock setting support configurable access control.

Product Details

• Model: DBF3410
• Design: Fashion
• Function: Electronic Keypad Deadbolt
• Operation: programmed code or exterior key; interior thumbturn
• Material: zinc
• Performance: exceeds ANSI Grade 3
• User programming: up to 10 individual codes plus one master / programming code
• Keypad: illuminated push buttons
• Auto-lock: adjustable from 10 to 99 seconds
• Vacation mode: yes
• Power: four AA batteries; batteries not included
• Manufacturer-listed door thickness: 1-3/4″
• Backset: 2-3/8″ standard; 2-3/4″ optional
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Cylinder: 5-pin KW1 standard

Compatibility: Confirm the electronic keypad function, 1-3/4″ door thickness, door preparation, backset, latch faceplate, strike, keyway, and programming requirements. Batteries and optional configurations are not included unless expressly listed.
