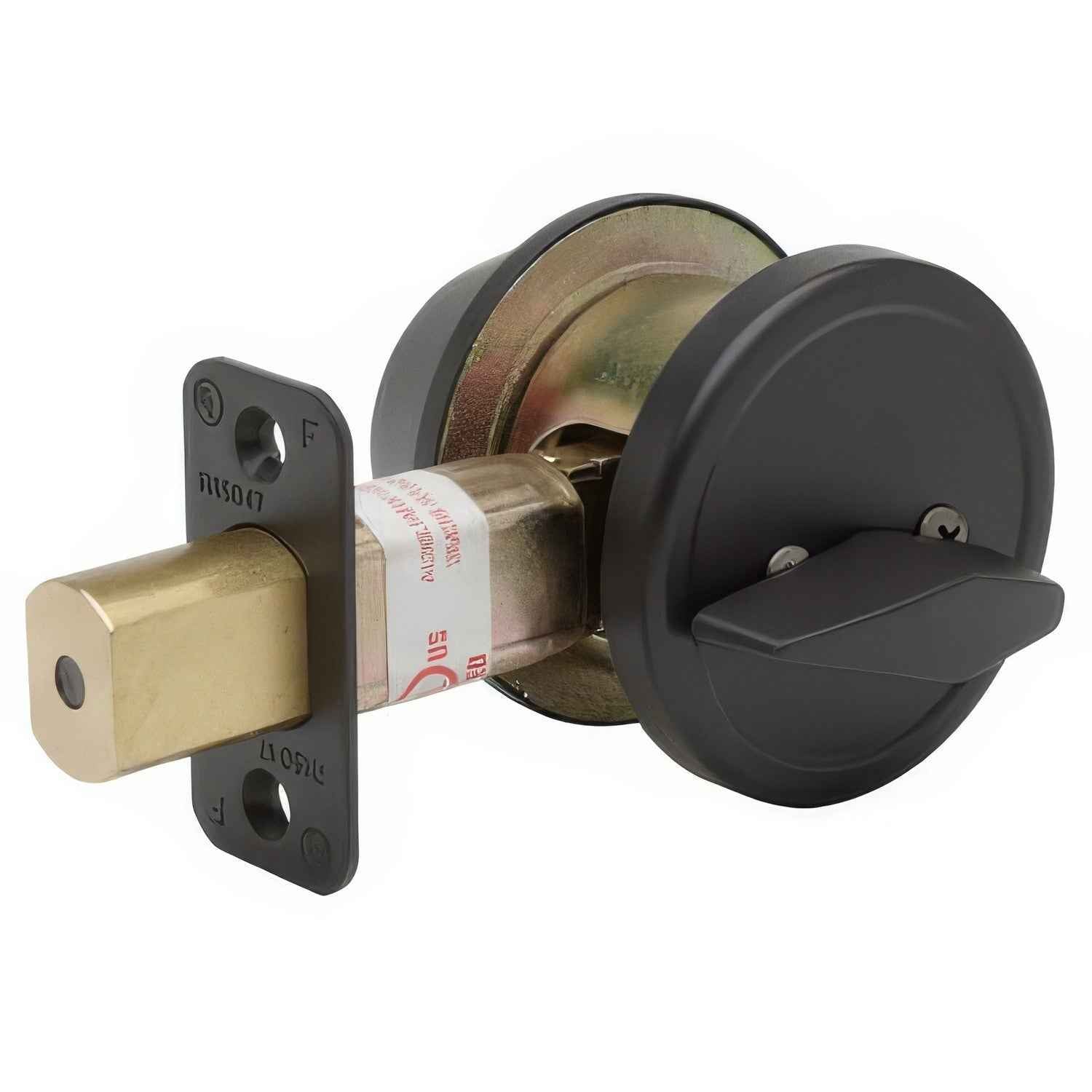

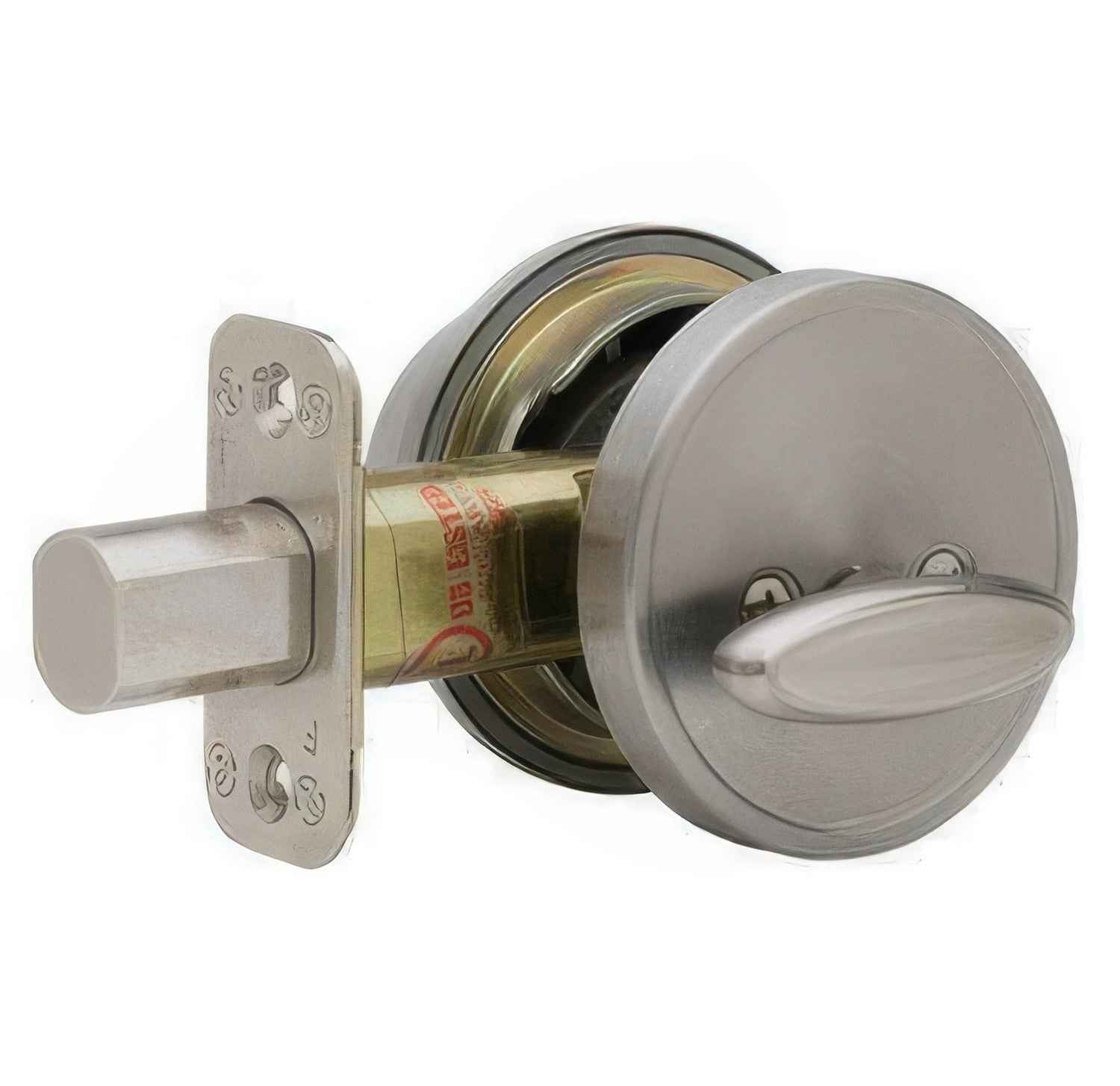

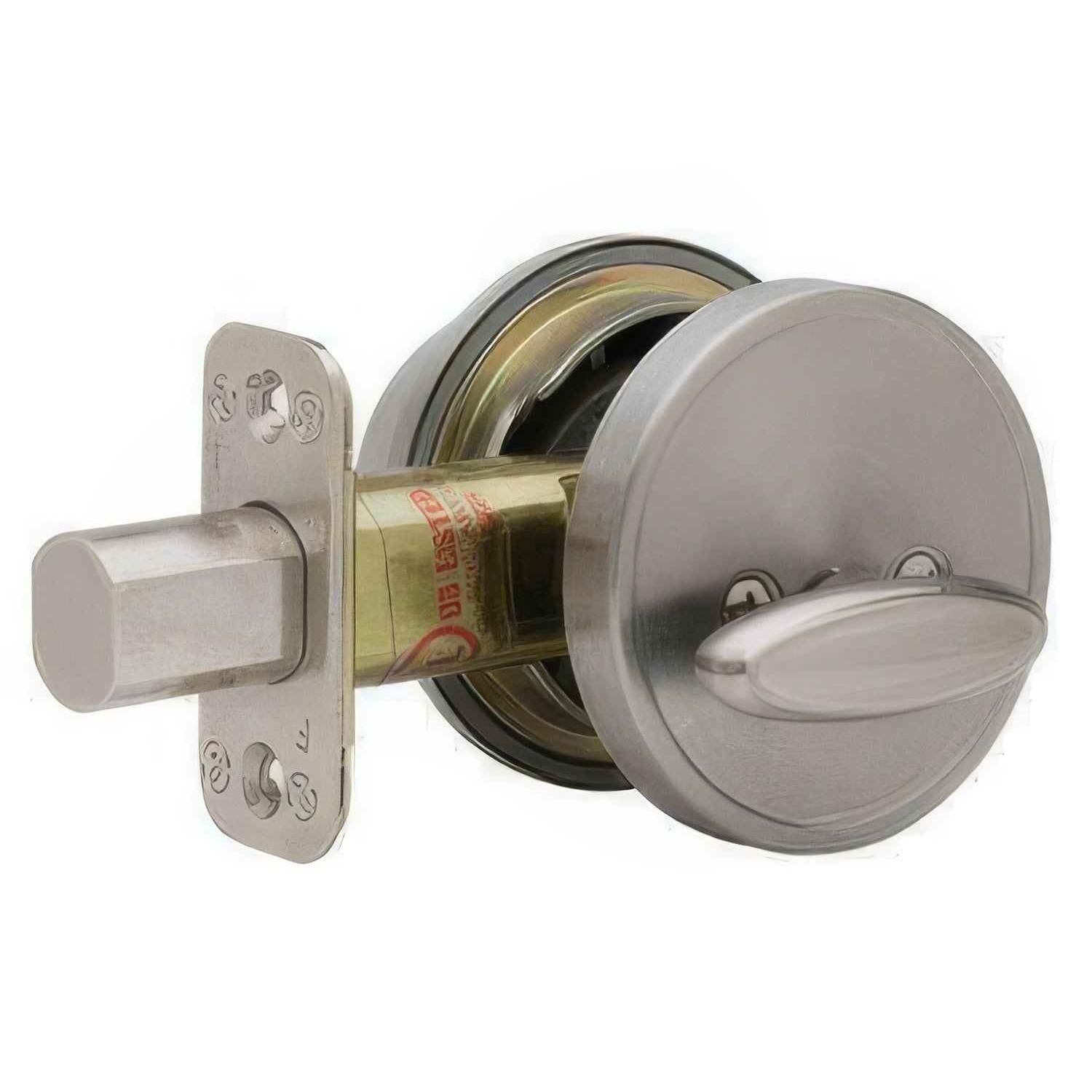

Copper Creek DB6410 Heavy Duty Keyed Entry Single Cylinder Deadbolt

The Copper Creek DB6410 is a Grade 2 heavy-duty commercial single-cylinder deadbolt with keyed exterior access and an interior thumbturn for controlled entry and convenient egress.

Its free-spinning guard cover, anti-pry shield, reinforced strike, and 3-hour UL listing support commercial openings. The non-handed deadbolt fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional.

Product Details

• Model: DB6410
• Series: 6400 commercial deadbolt
• Function: commercial single-cylinder deadbolt
• Performance grade: ANSI/BHMA Grade 2
• Material: zinc
• Cylinder: 6-pin C standard; 6-pin KW1 optional
• Turnpiece diameter: 2-1/2″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/4″ standard; 2-3/8″ optional
• Latch faceplate: 1-1/8″ square-corner wide faceplate
• Cross bore: 2-1/8″
• Edge bore: 1″
• Free-spinning guard cover: standard
• Anti-pry shield: standard
• Reinforced strike: standard
• Handing: non-handed
• Fire rating: 3-hour UL listed

Compatibility: Confirm the 6400 Series model, single-cylinder function, backset, door thickness, faceplate, reinforced strike preparation, keyway or keying requirements, and fire-door labeling before ordering.
