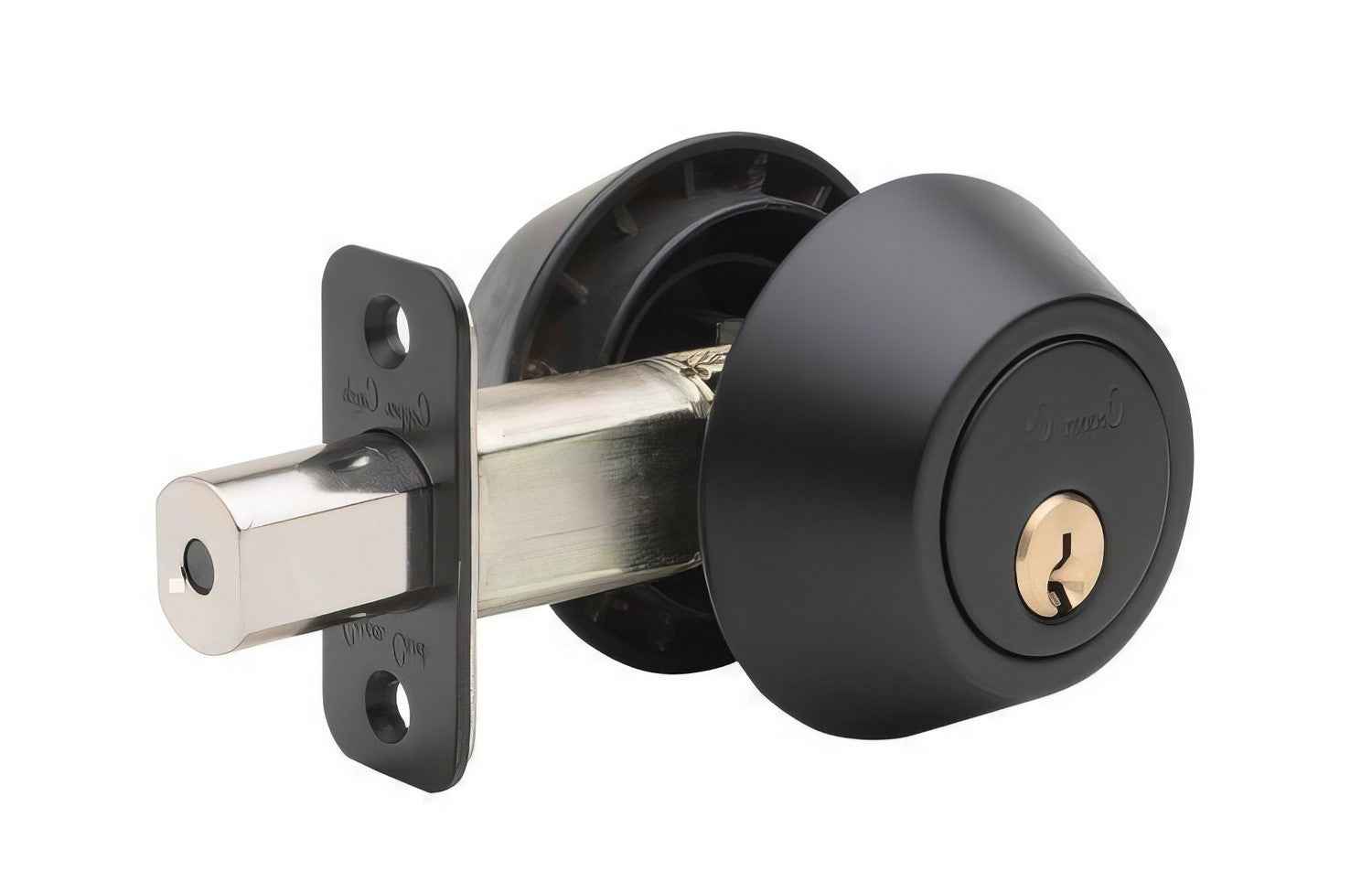

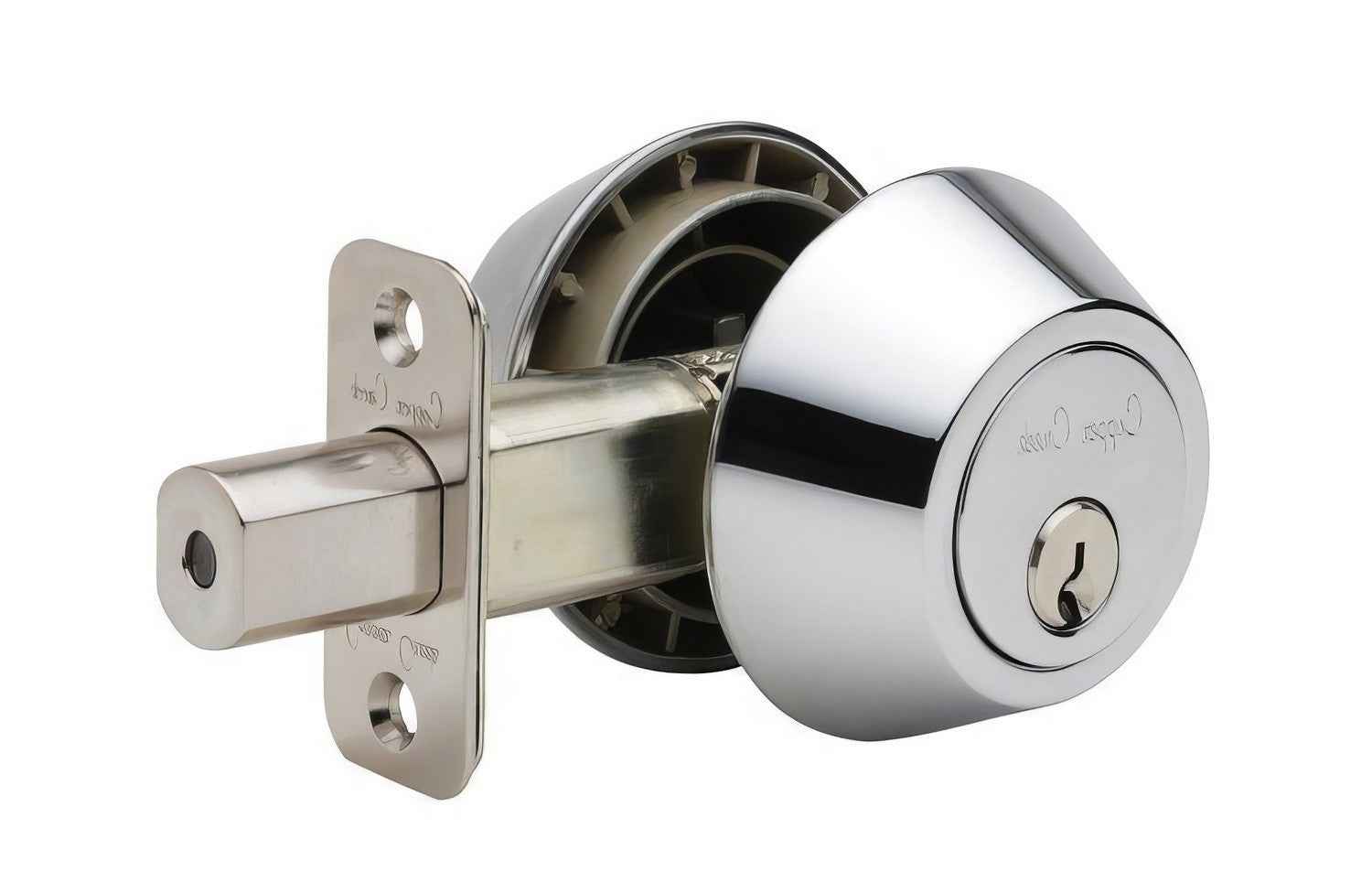

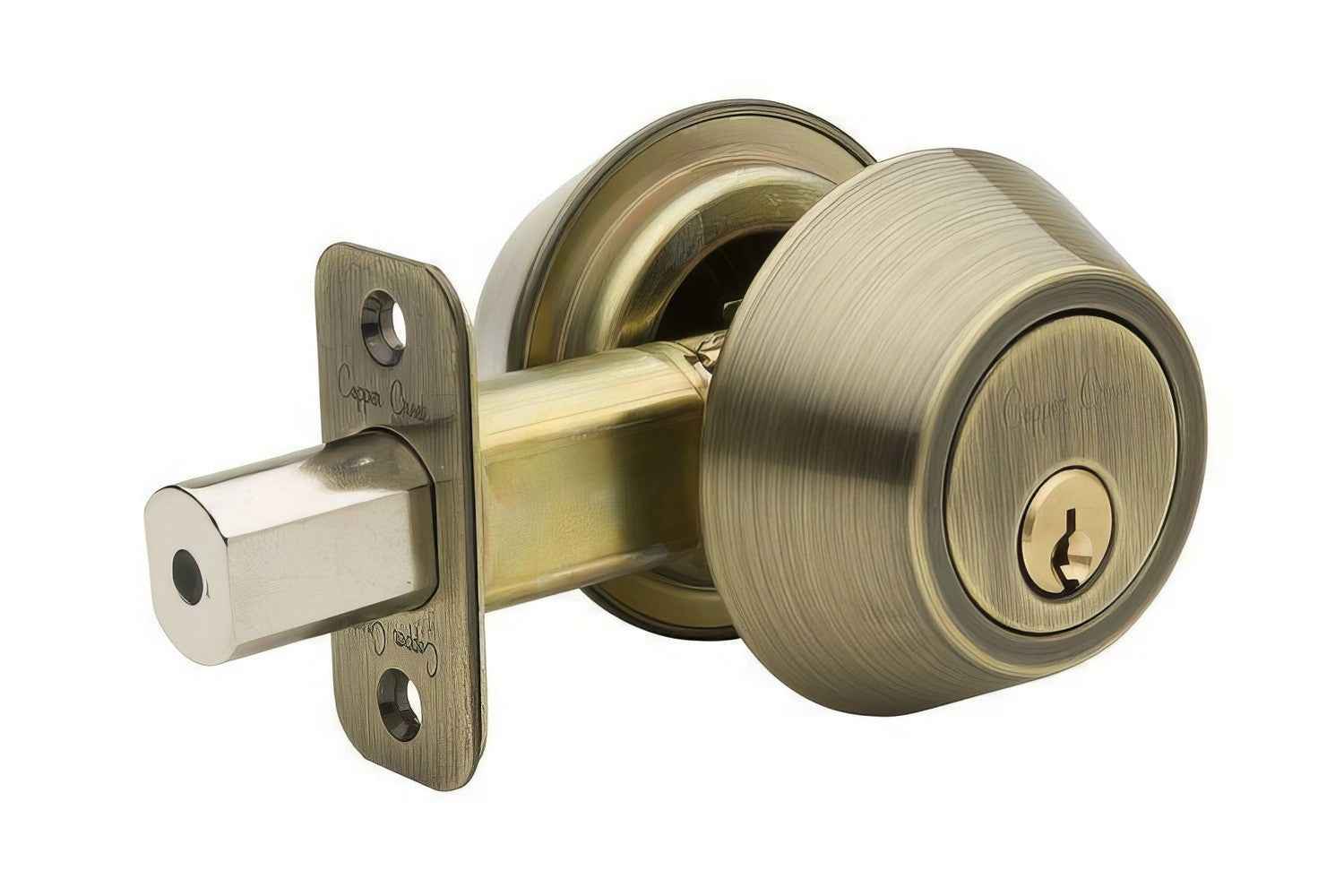

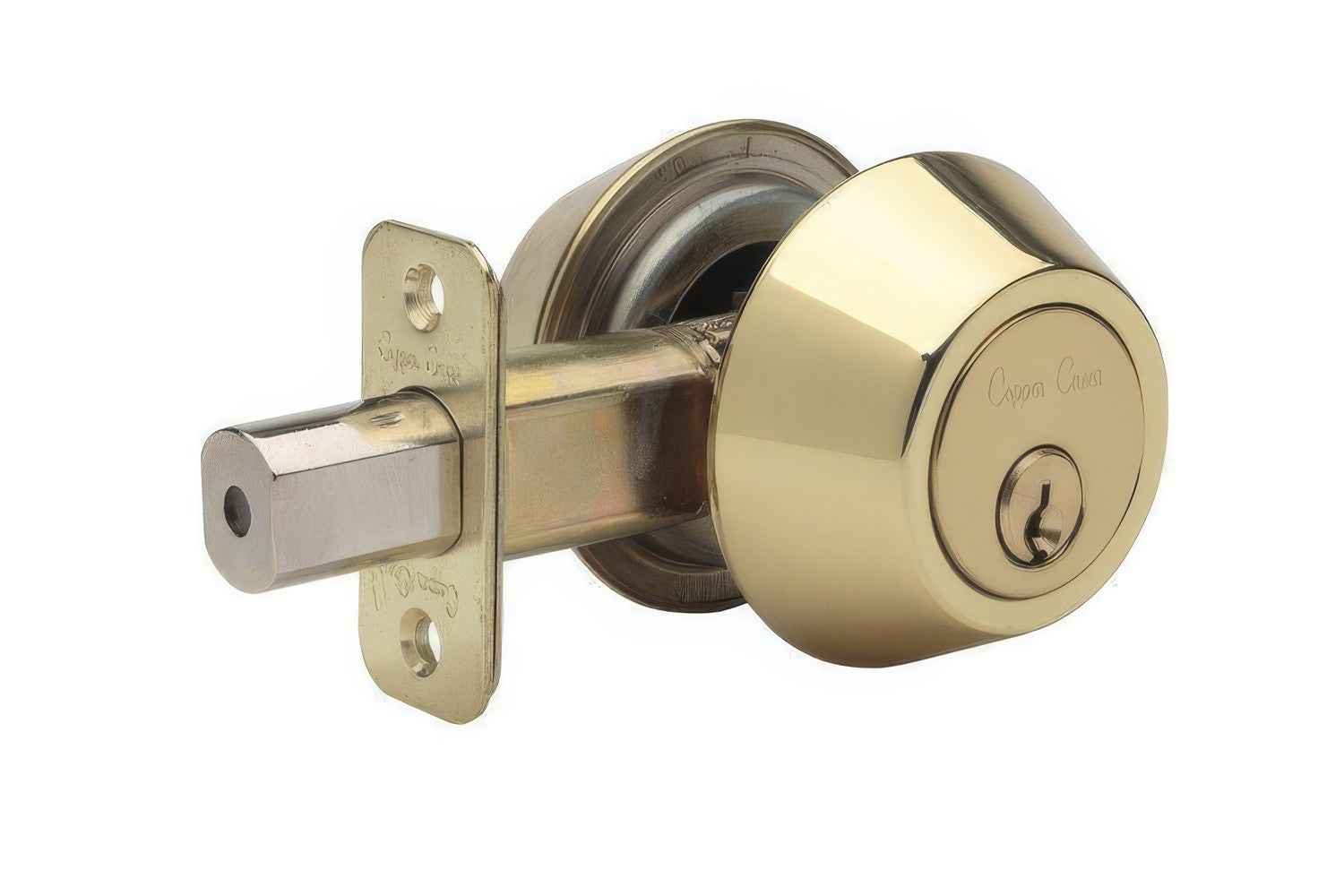

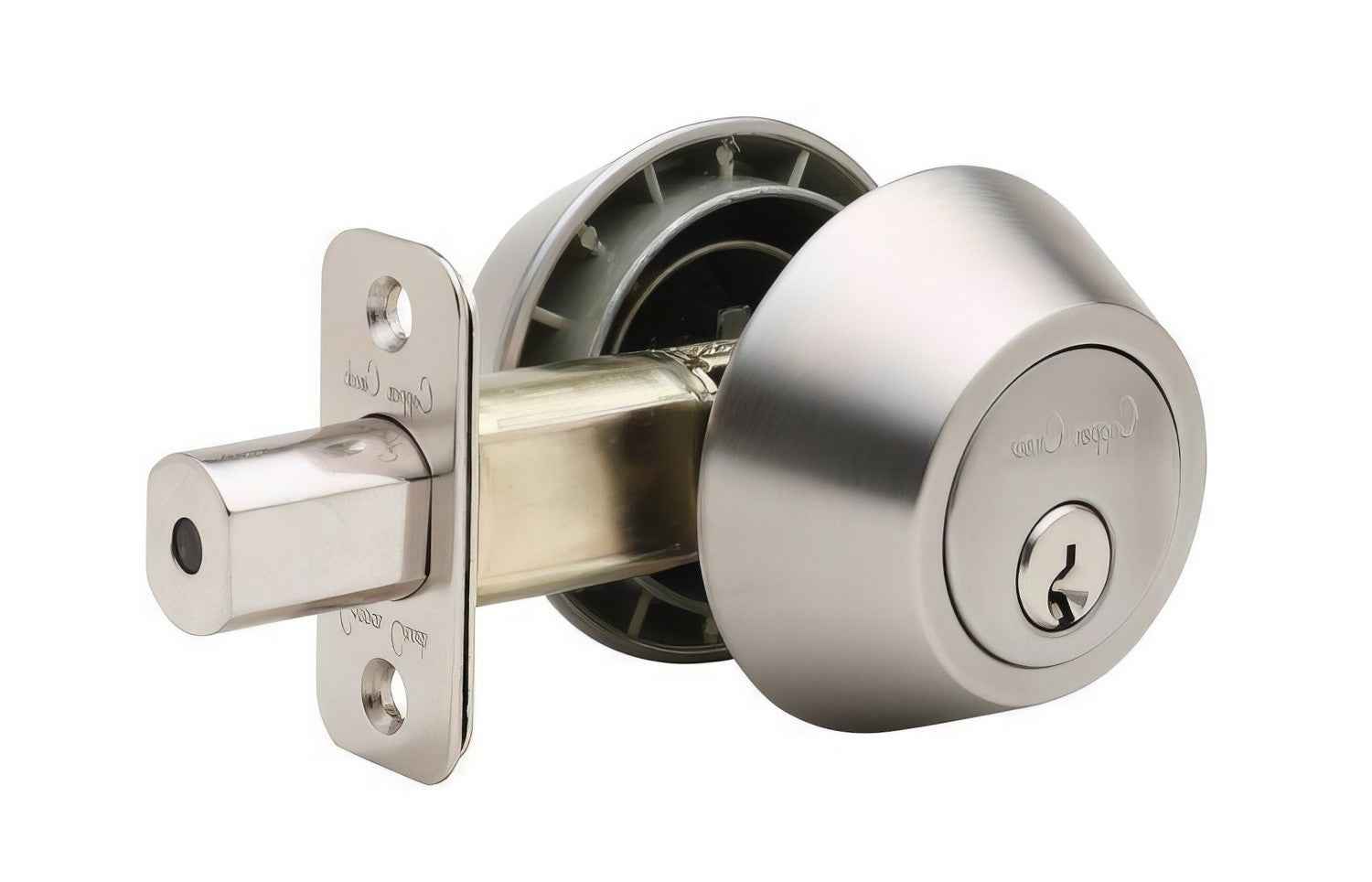

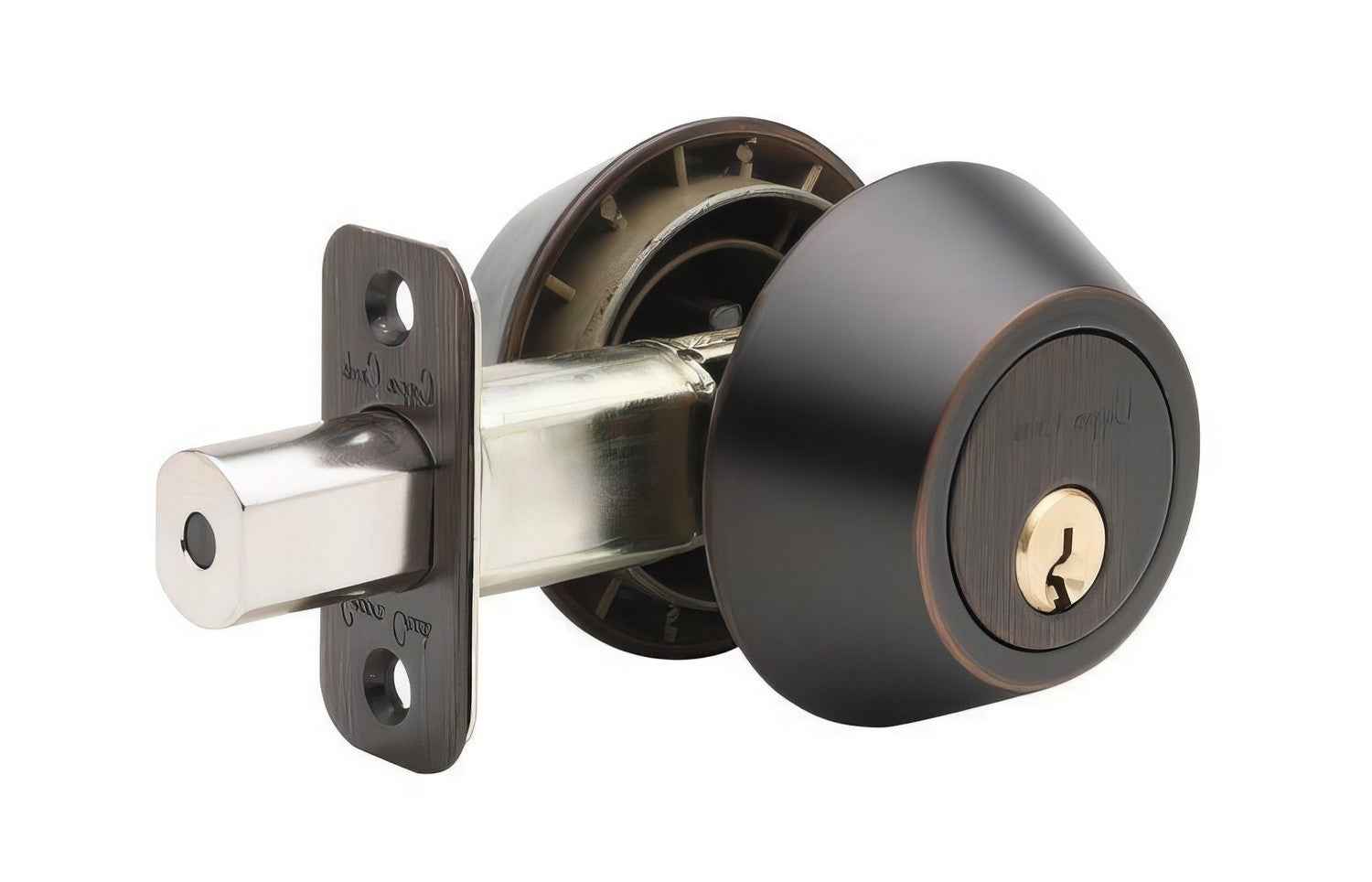

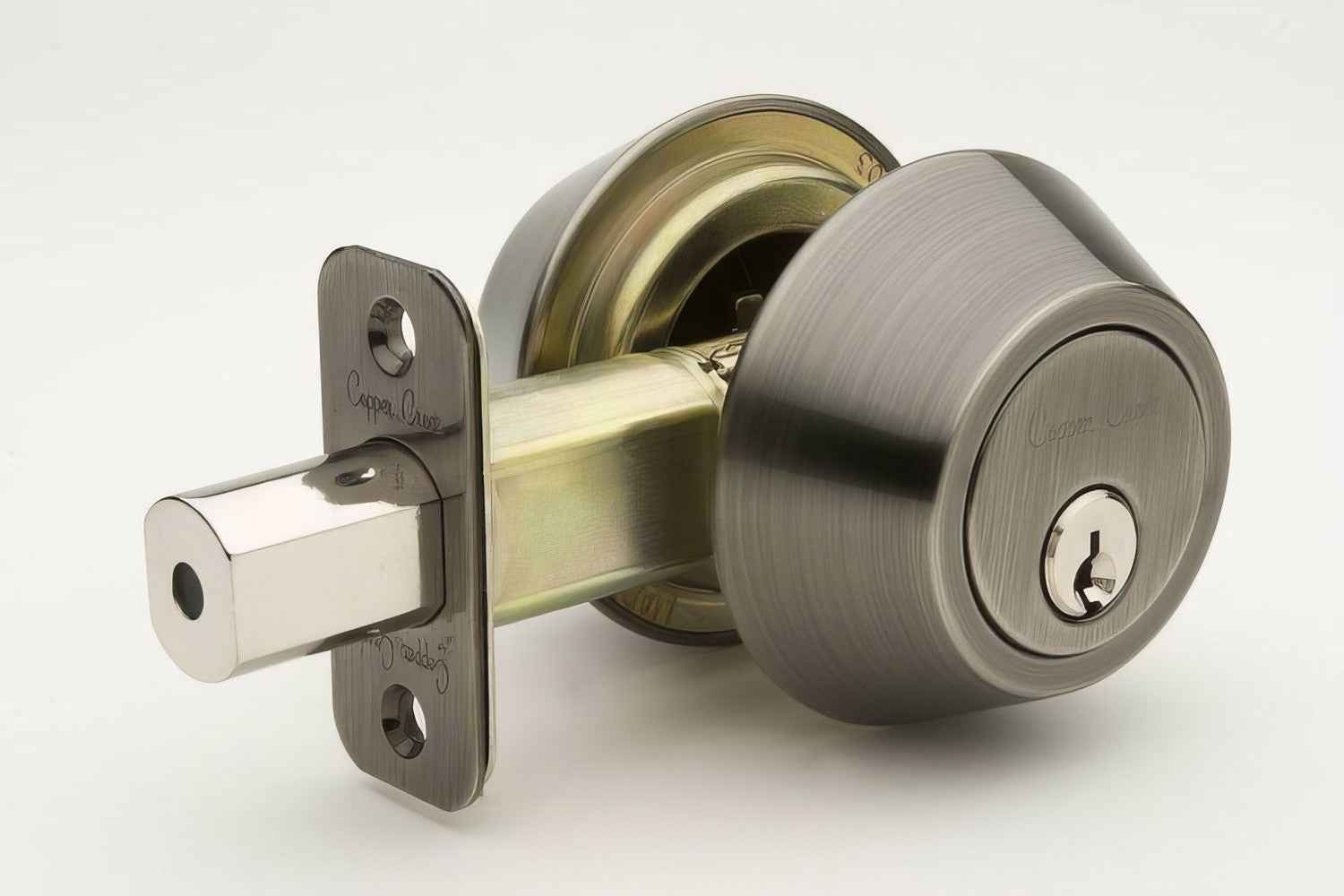

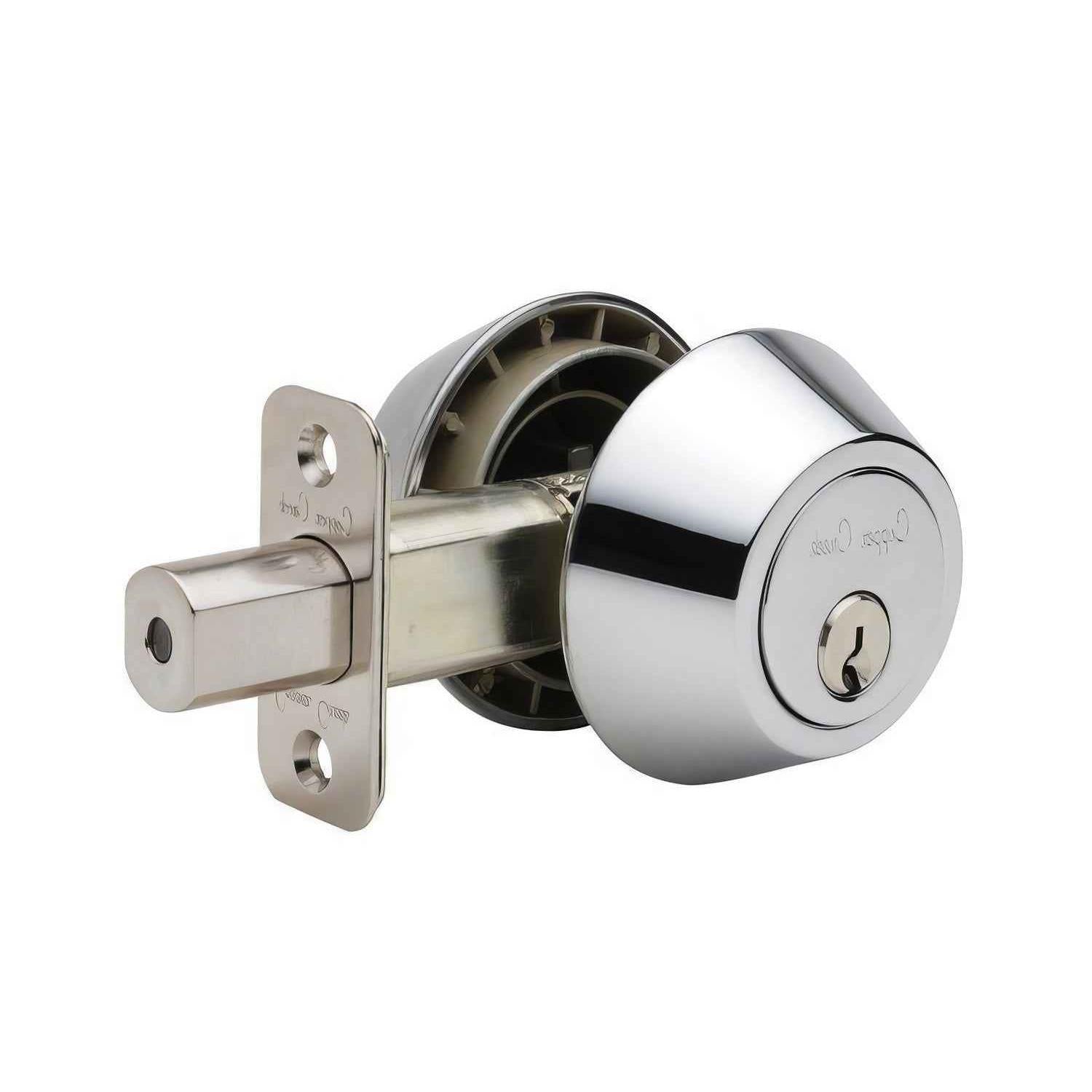

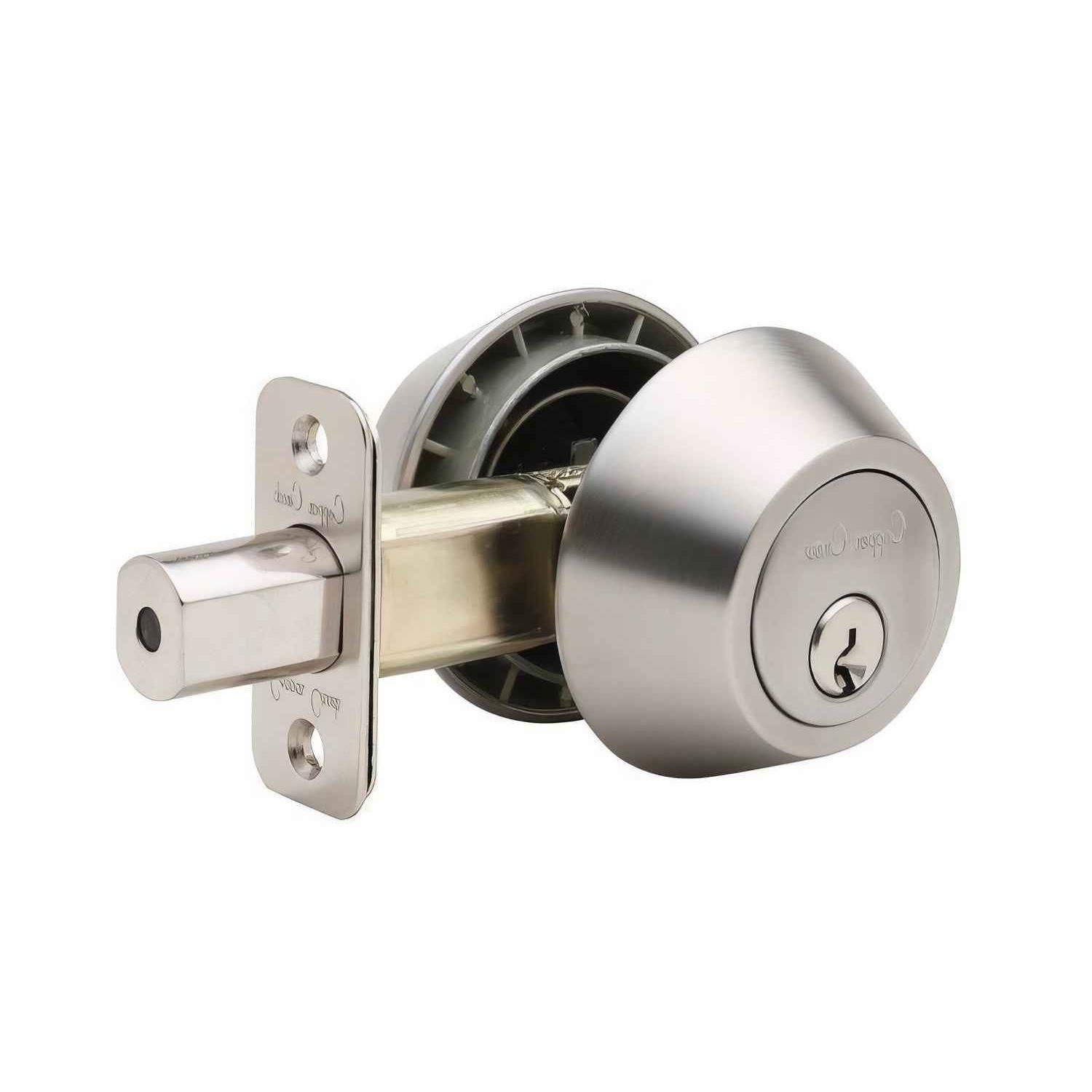

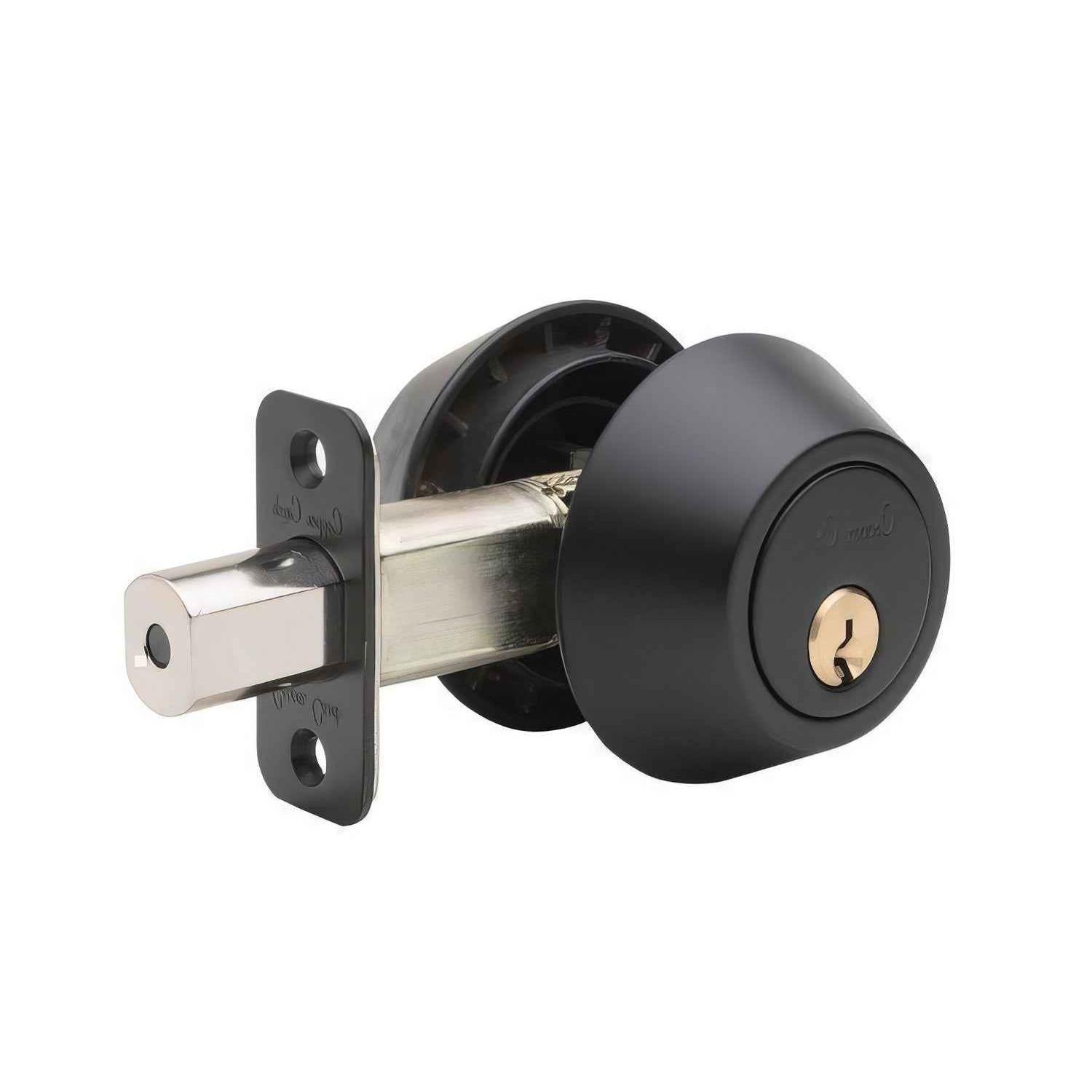

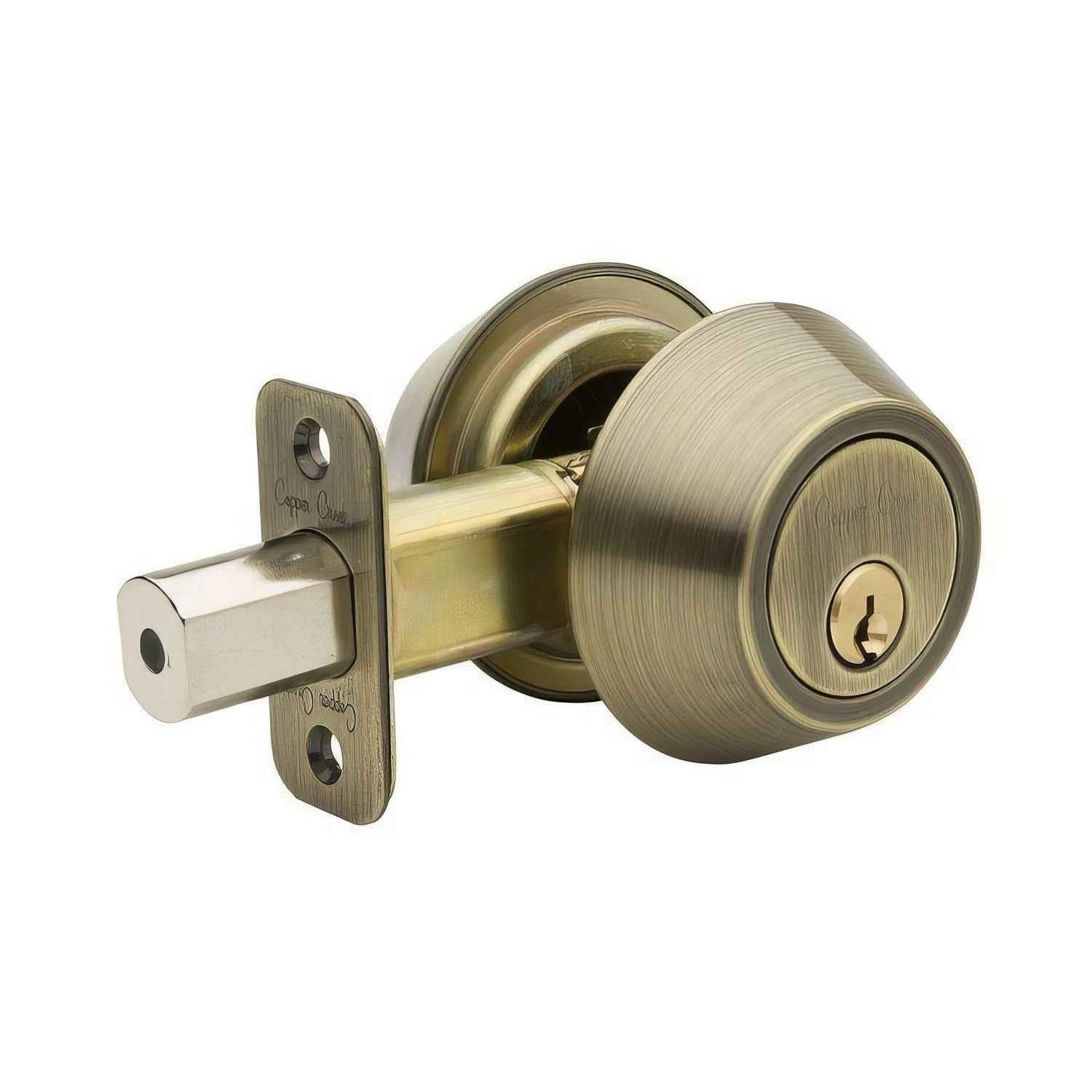

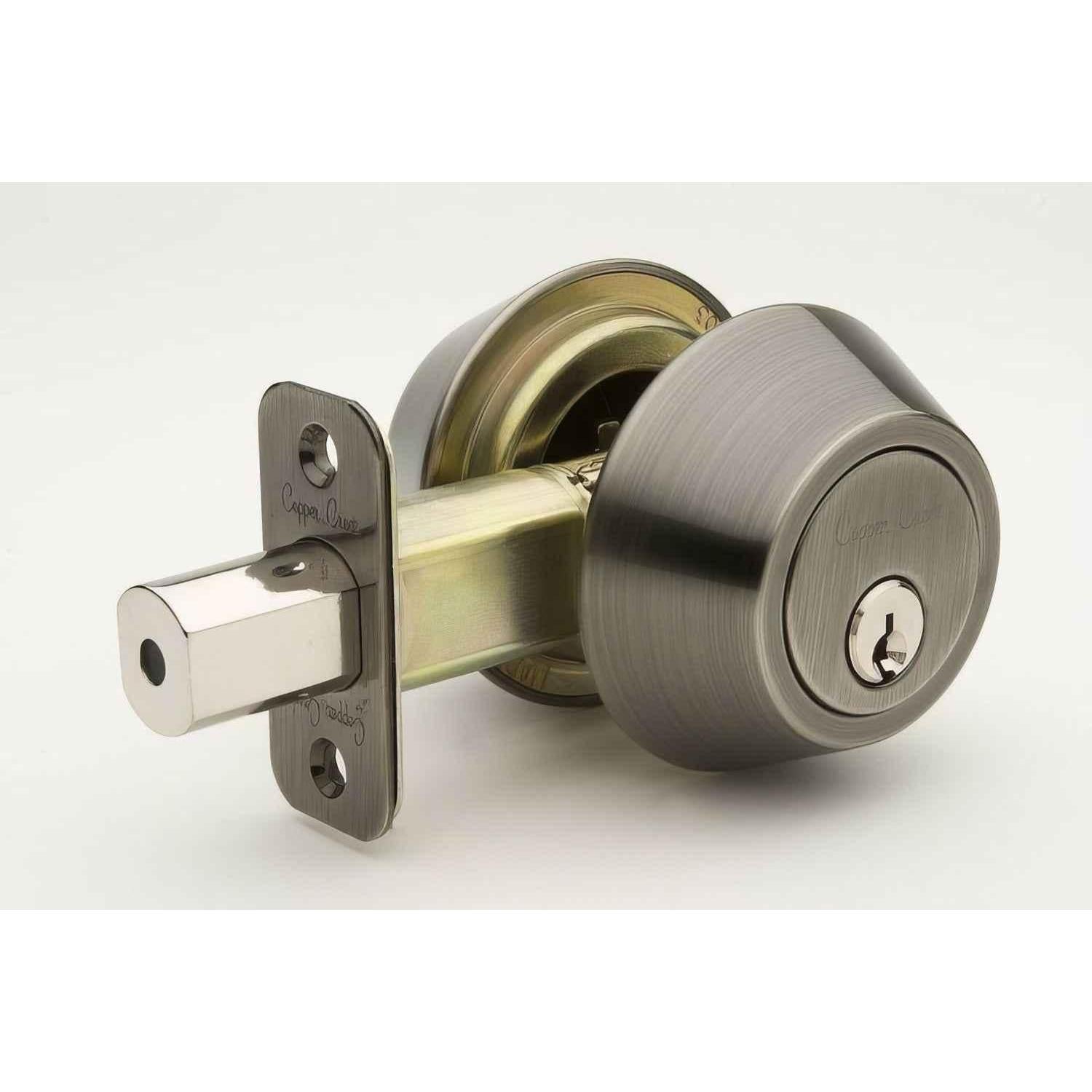

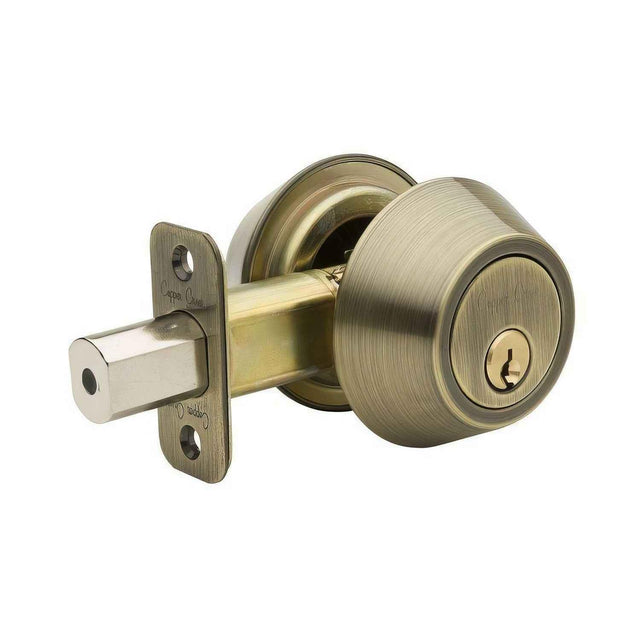

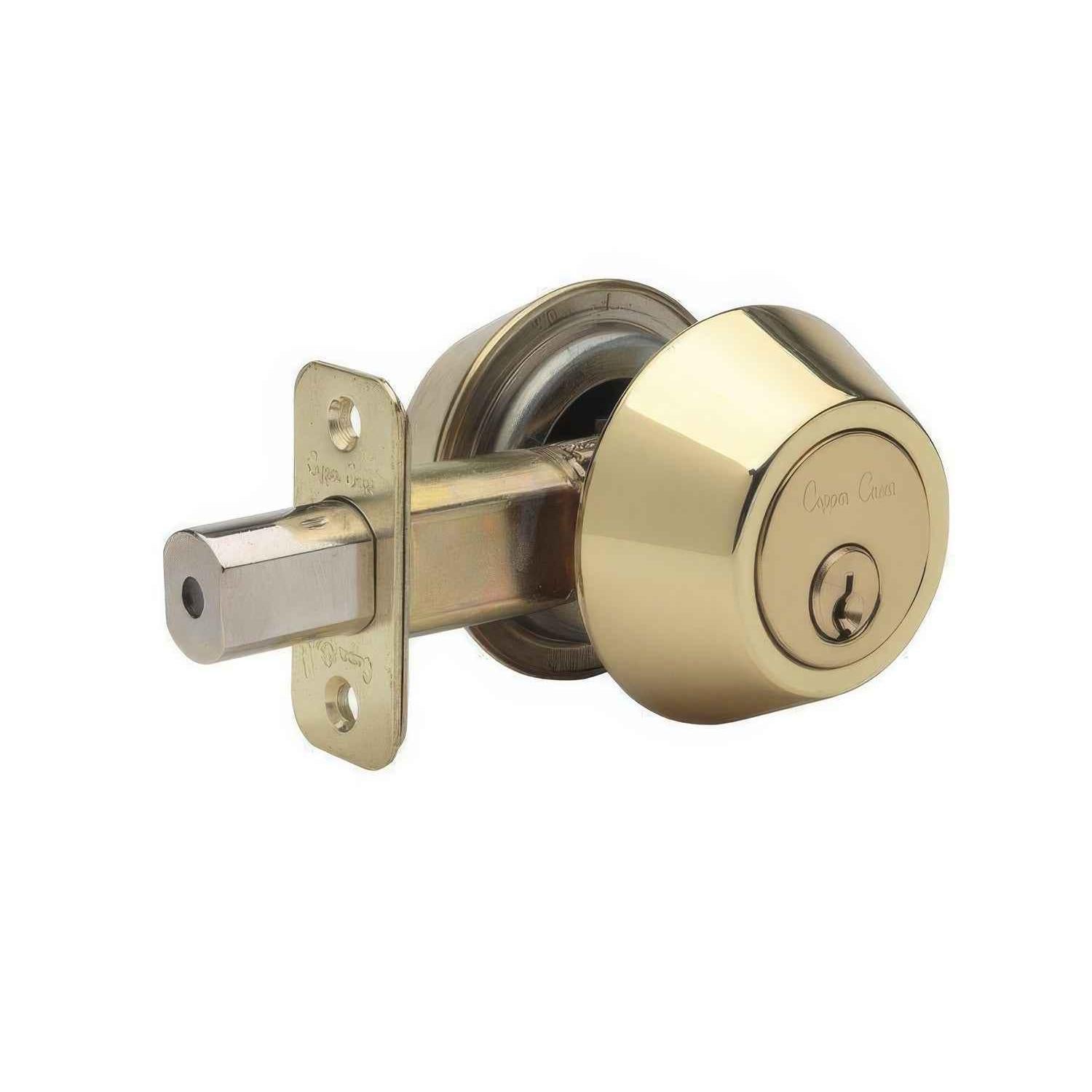

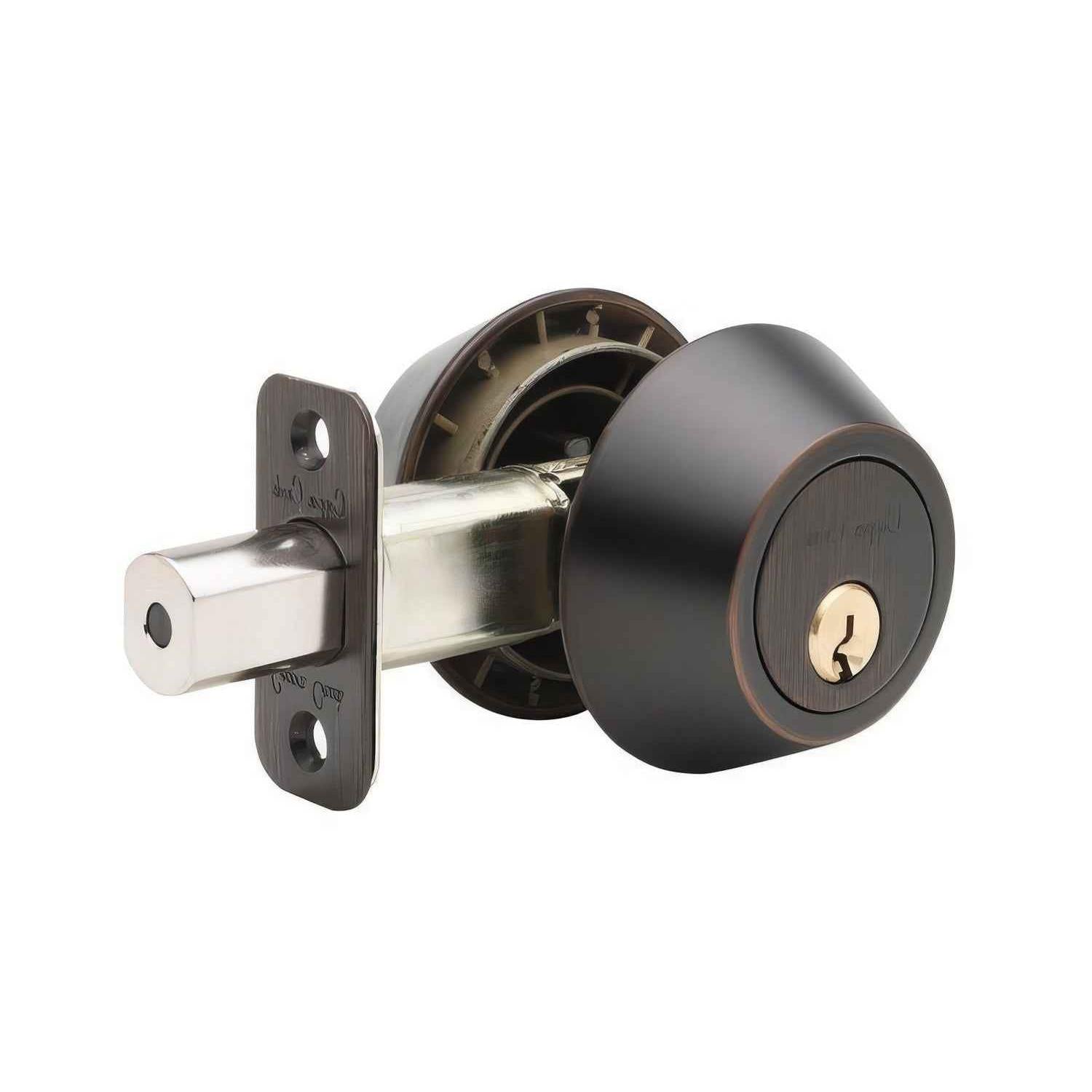

Copper Creek DB2420 Double Cylinder Deadbolt

The Copper Creek DB2420 is a standard-duty Grade 3 double-cylinder deadbolt with keyed cylinders on the exterior and interior sides.

A key on either side throws or retracts the full 1″ deadbolt. This configuration is used when keyed control is required from both sides of the door.

Product Details

• Model: DB2420
• Function: Double Cylinder Deadbolt
• Operation: keyed cylinder on exterior and interior
• Material: zinc lock trim with solid-brass cylinders
• Performance: ANSI/BHMA Grade 3; 200,000 cycles
• Deadbolt throw: 1″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ standard; 2-3/4″ optional
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Standard latch faceplate: 1″ round corner
• Optional latch preparation: square corner or drive-in
• Cylinder: solid-brass 5-pin KW1 standard; C keyway optional

Compatibility: Confirm double-cylinder operation, local egress and fire-code requirements, door thickness, backset, latch and strike preparation, keyway, and keying. Both sides require a key; there is no interior thumbturn.
