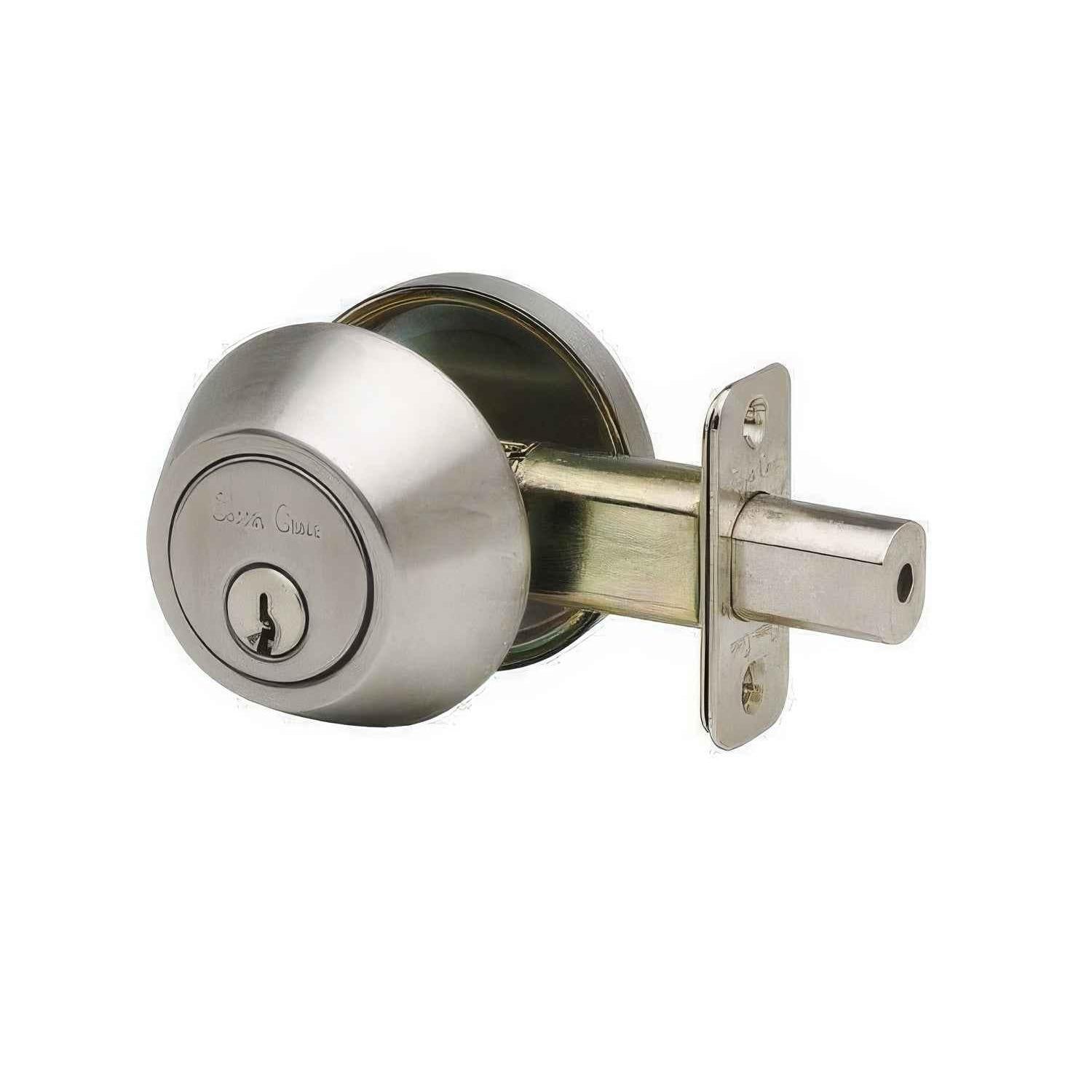

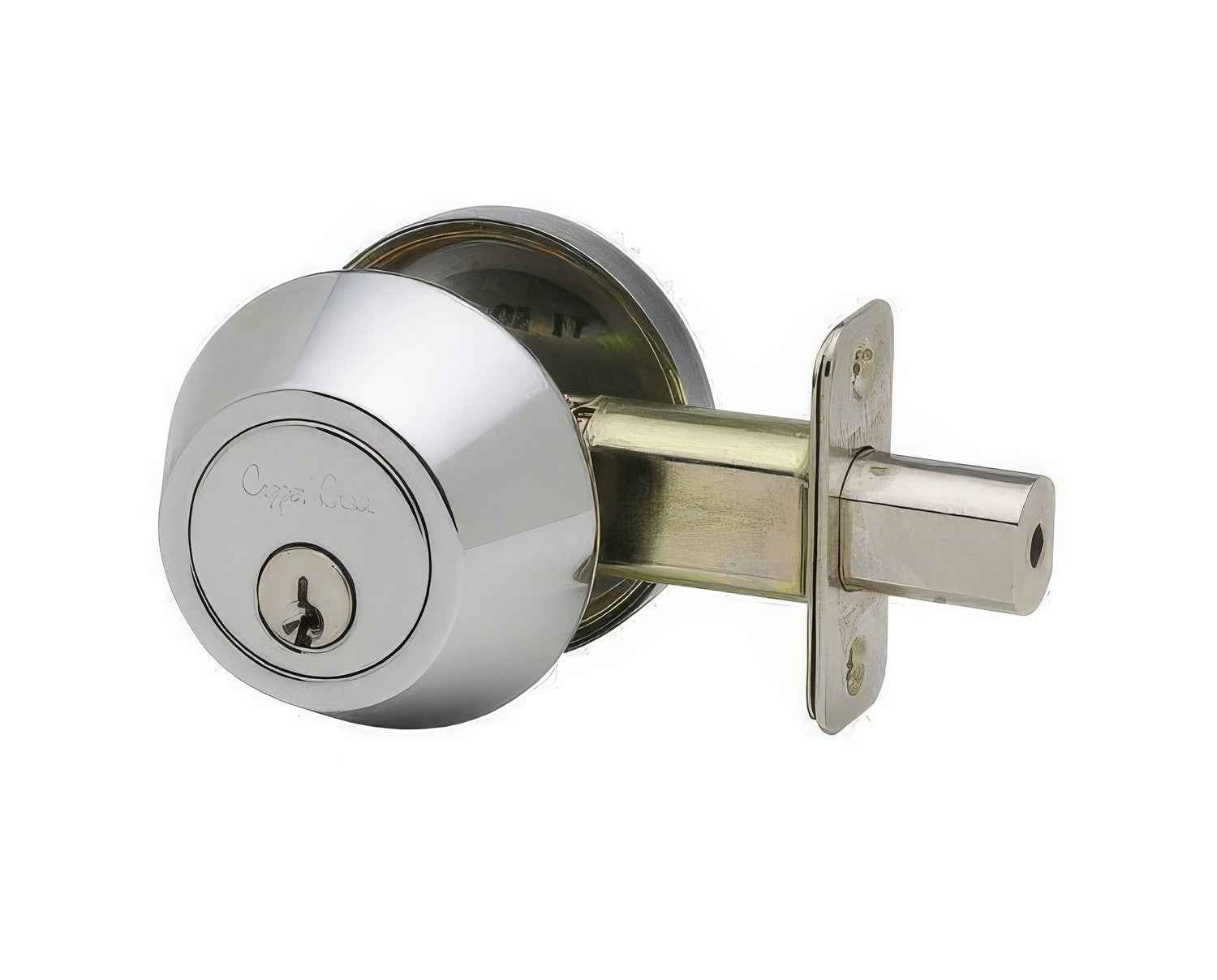

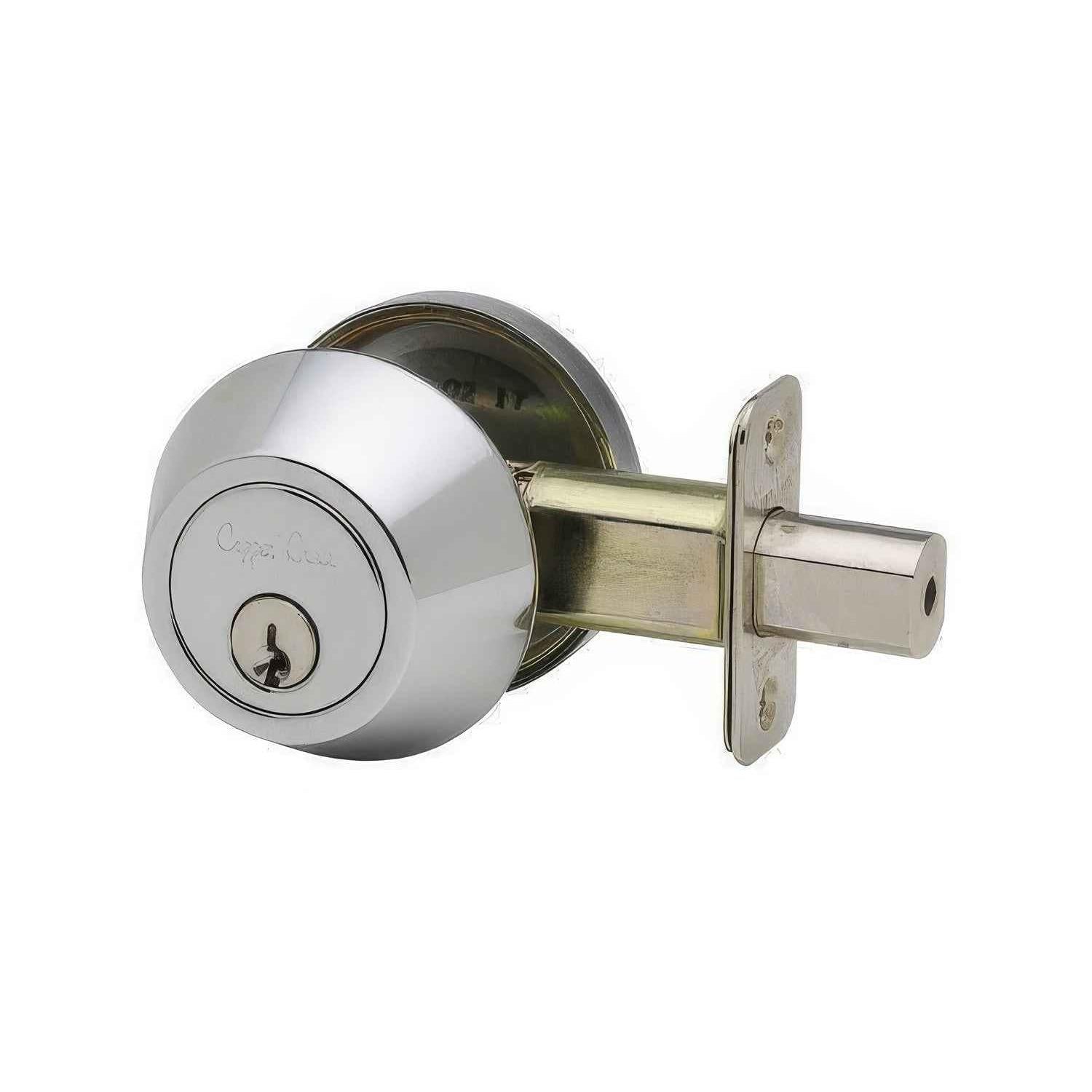

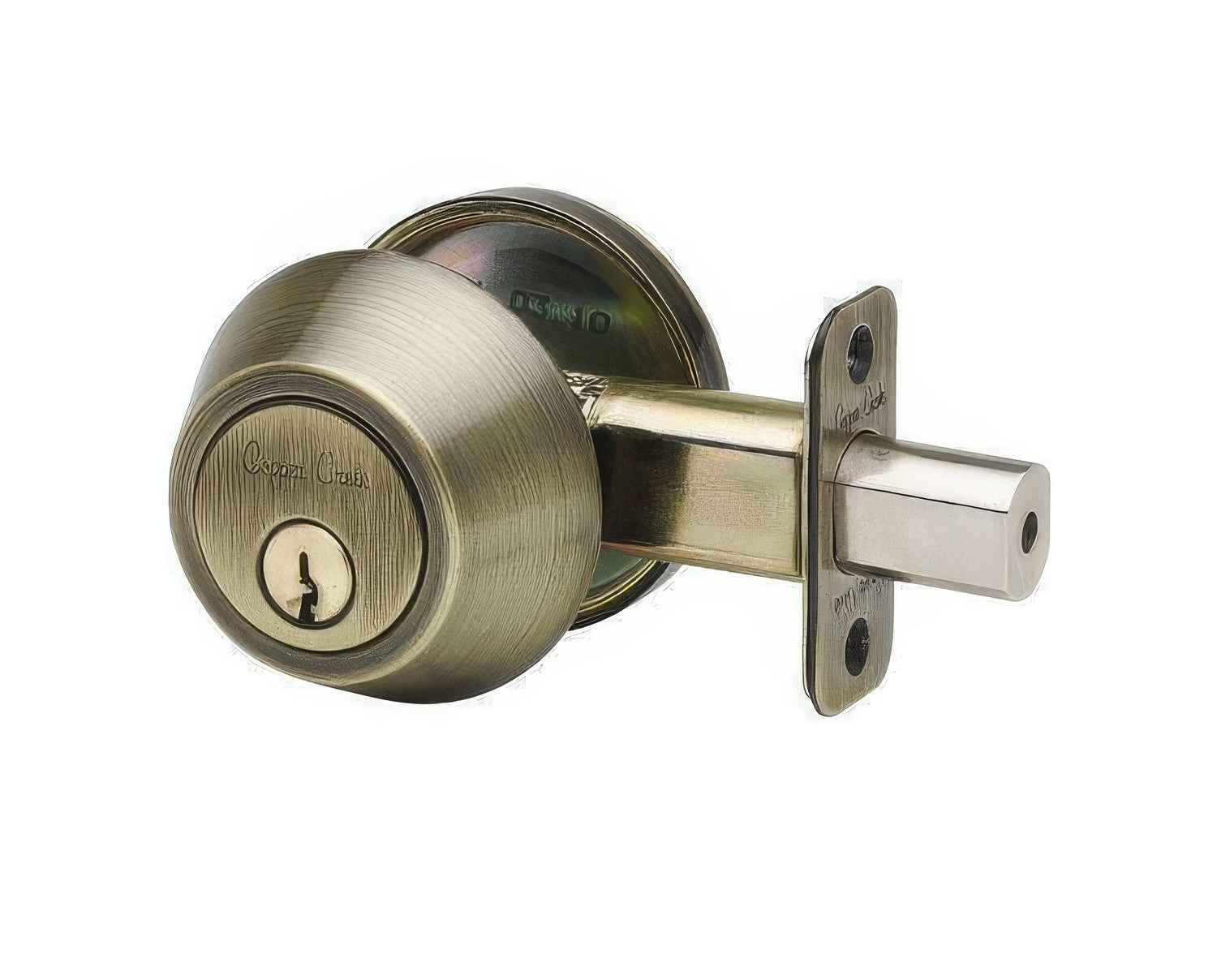

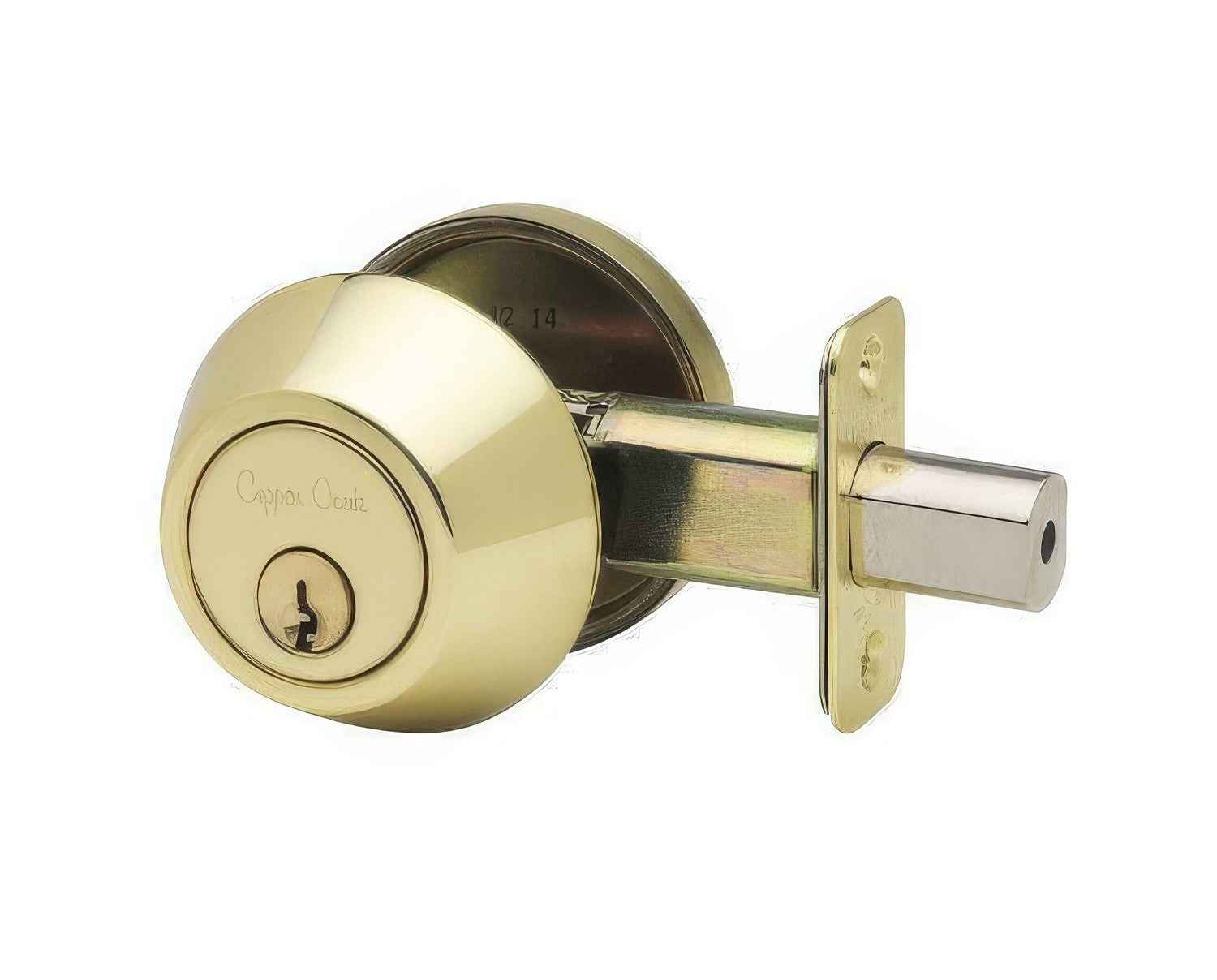

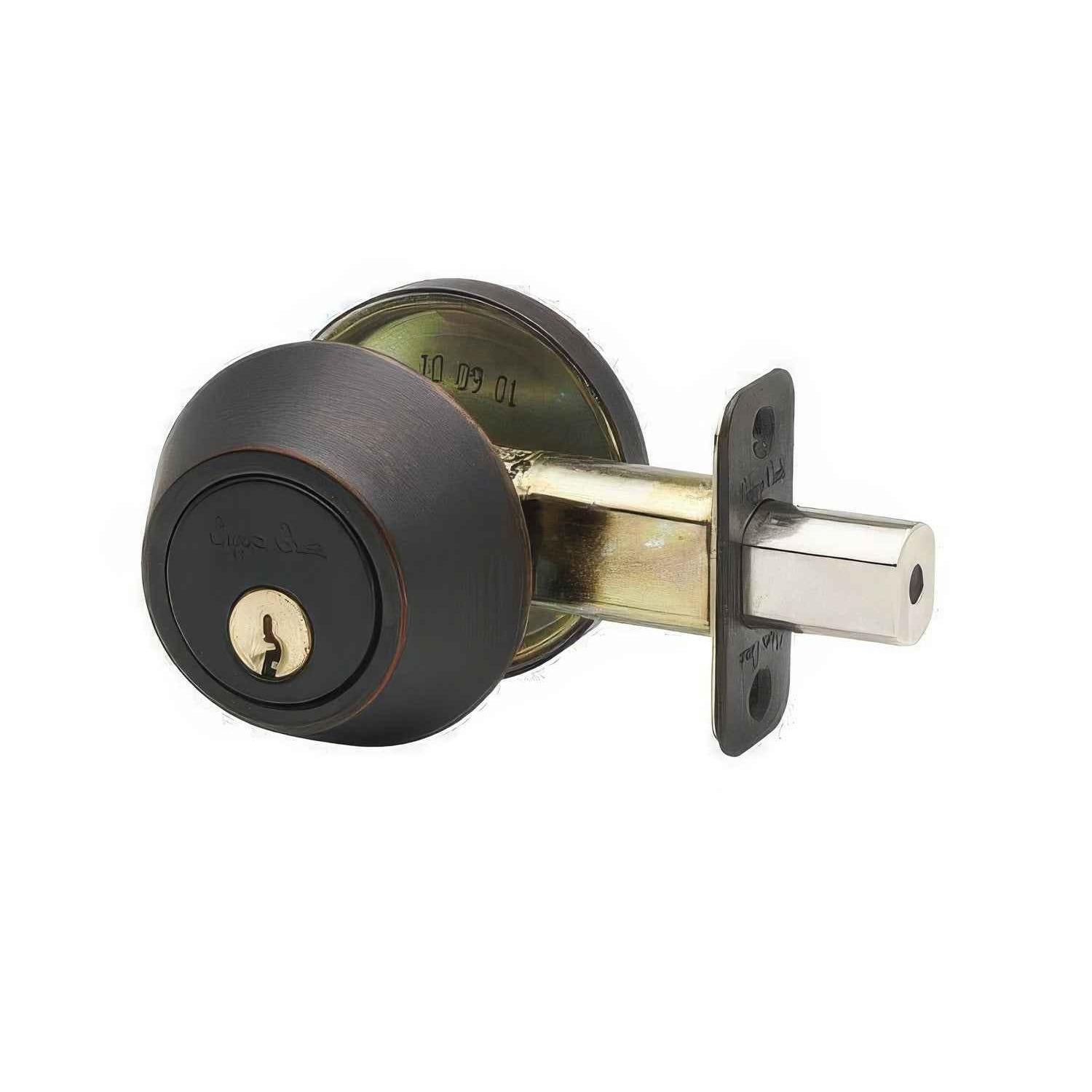

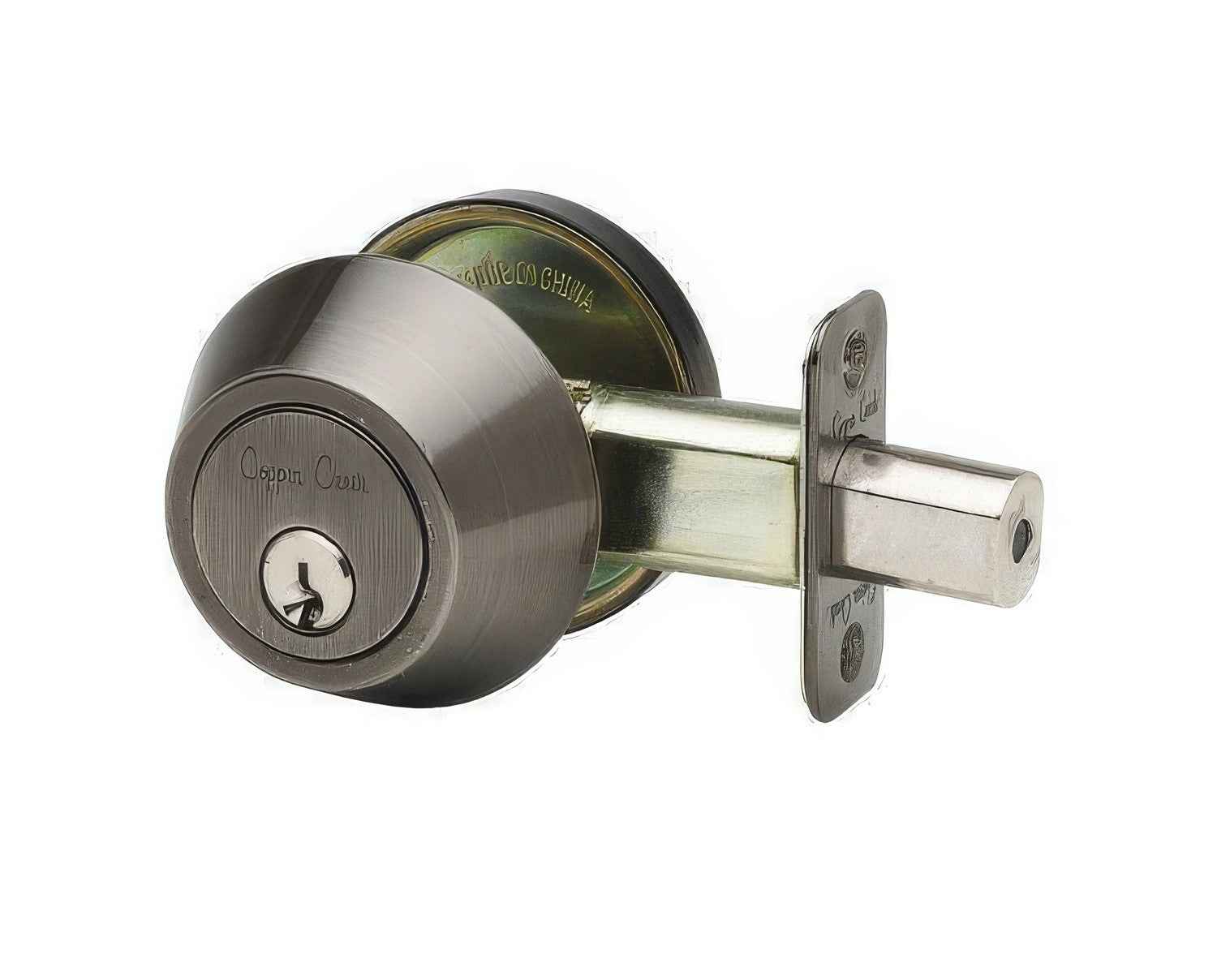

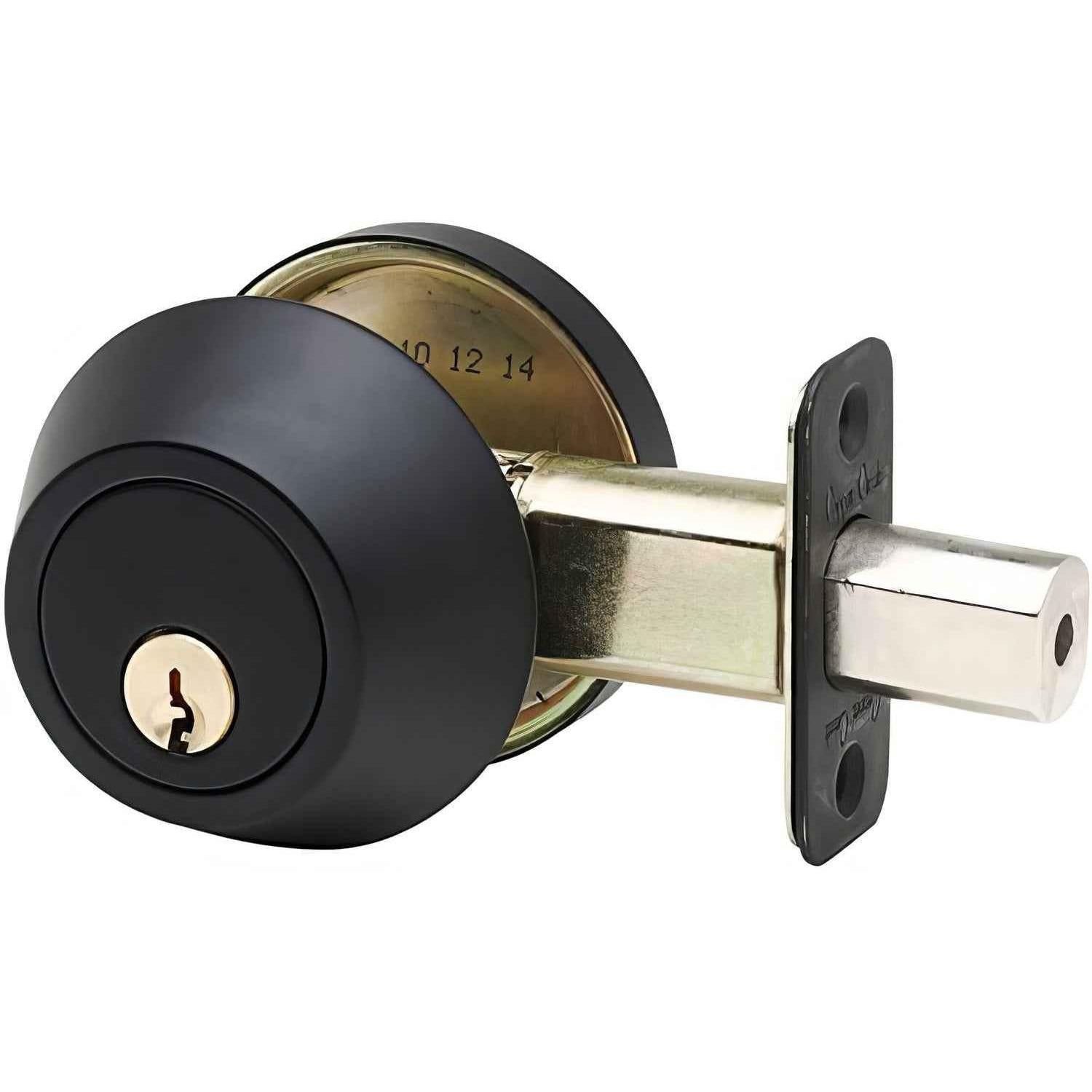

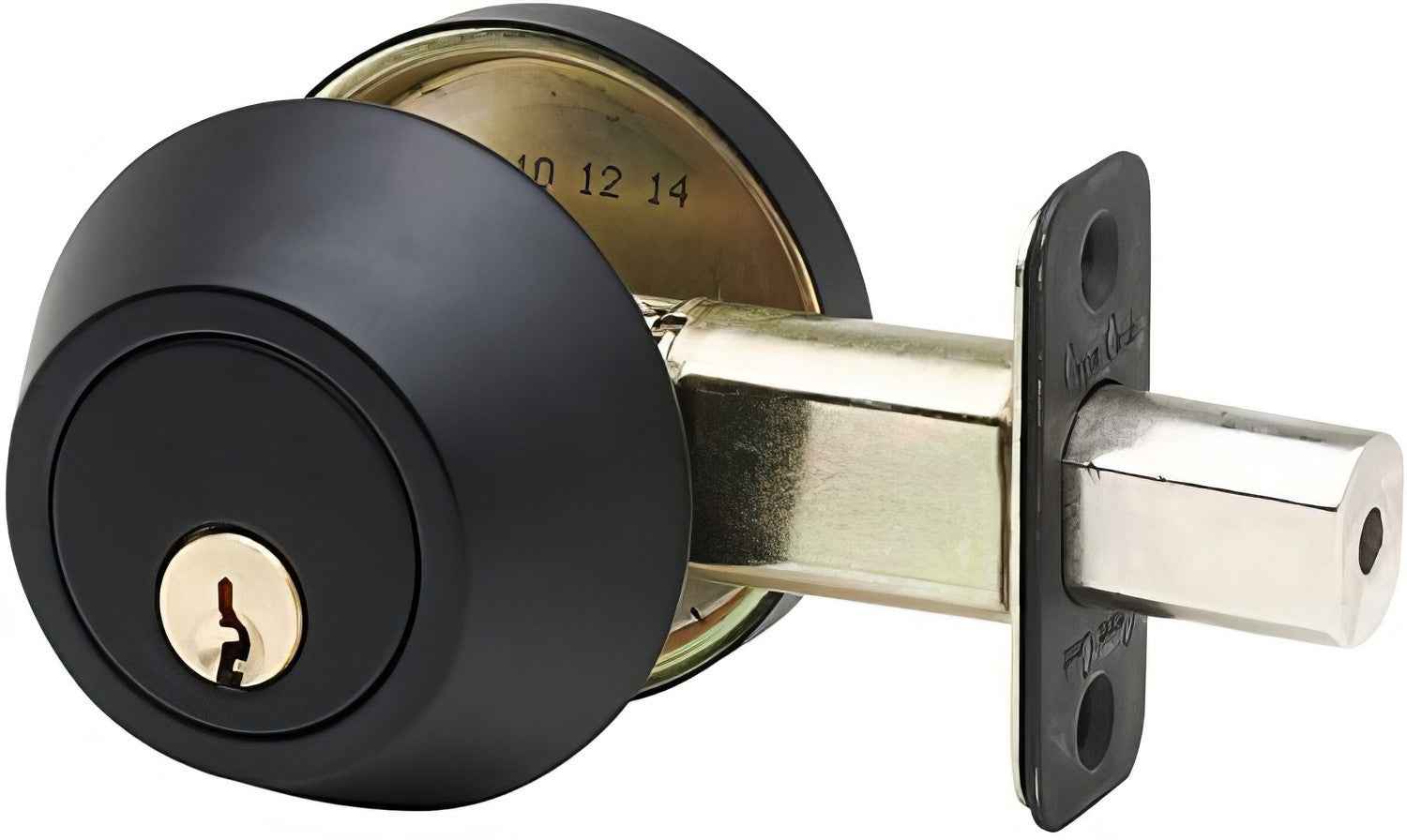

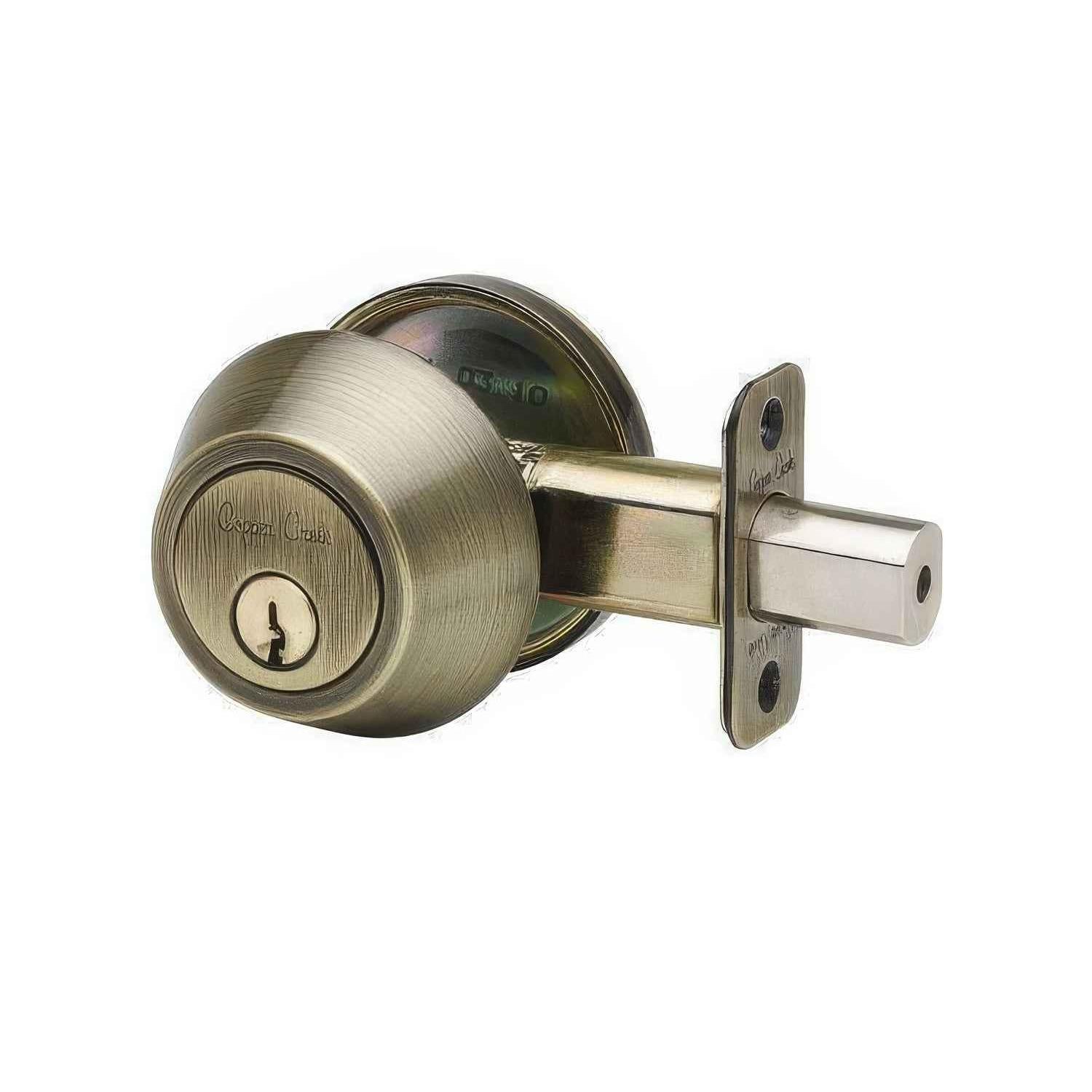

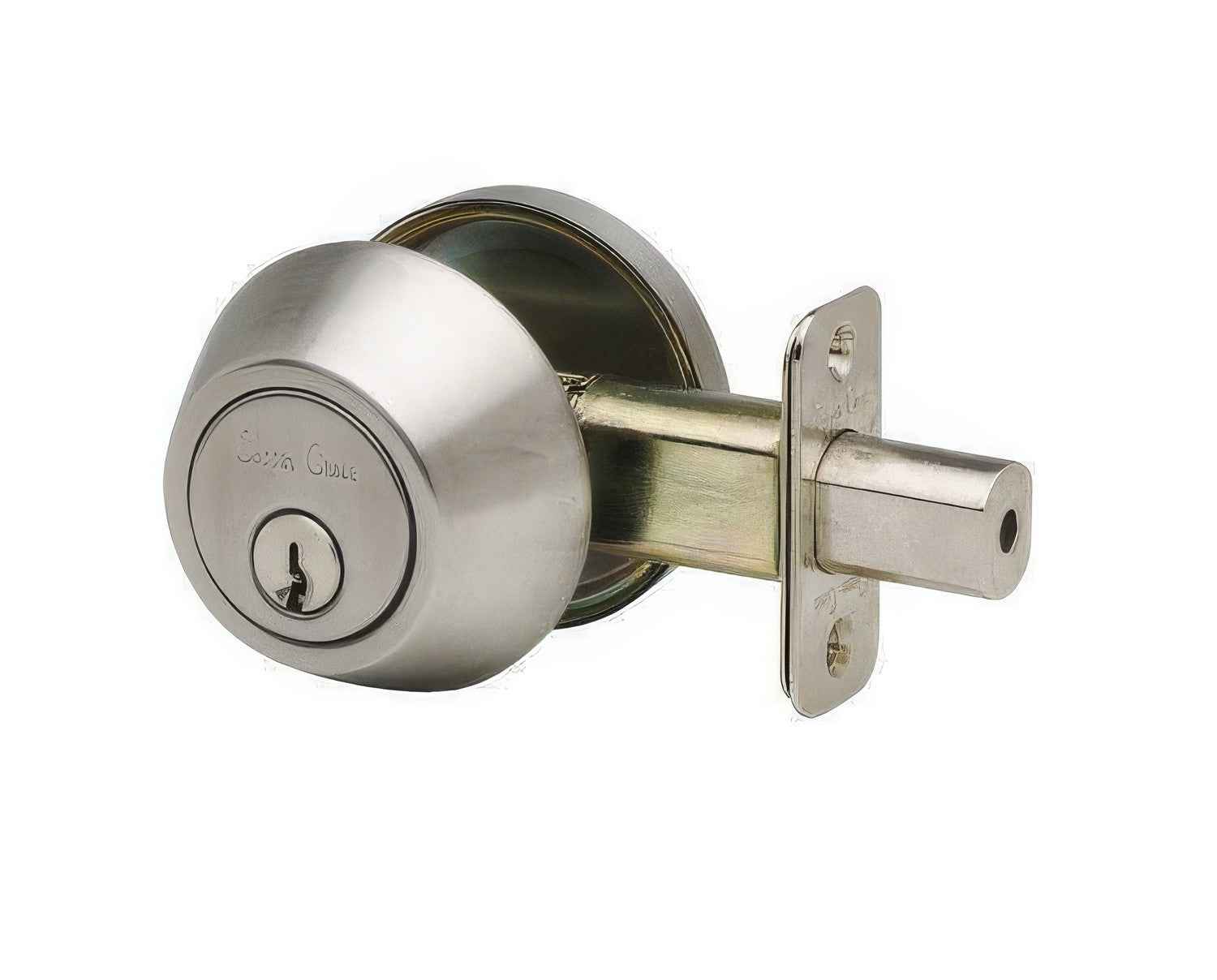

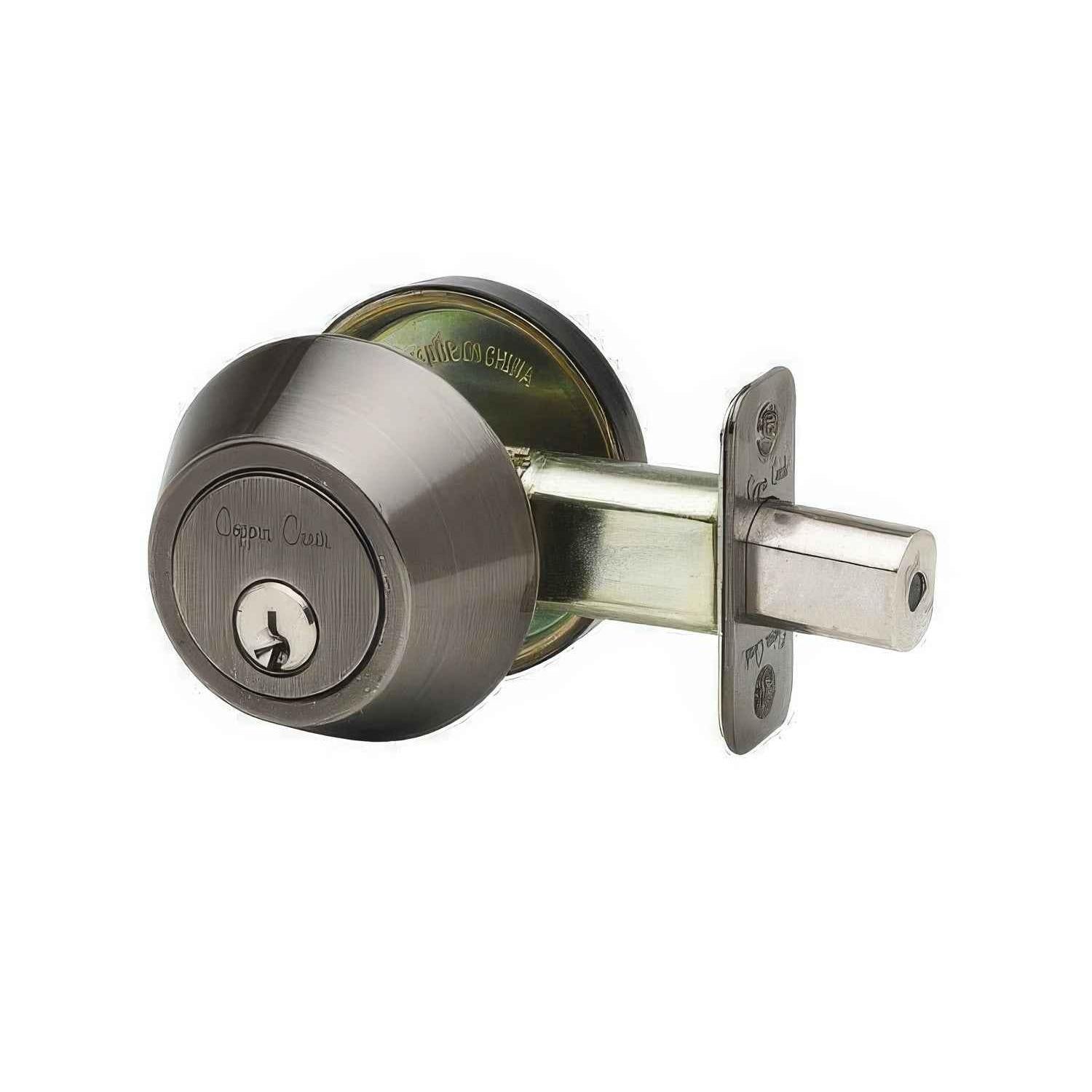

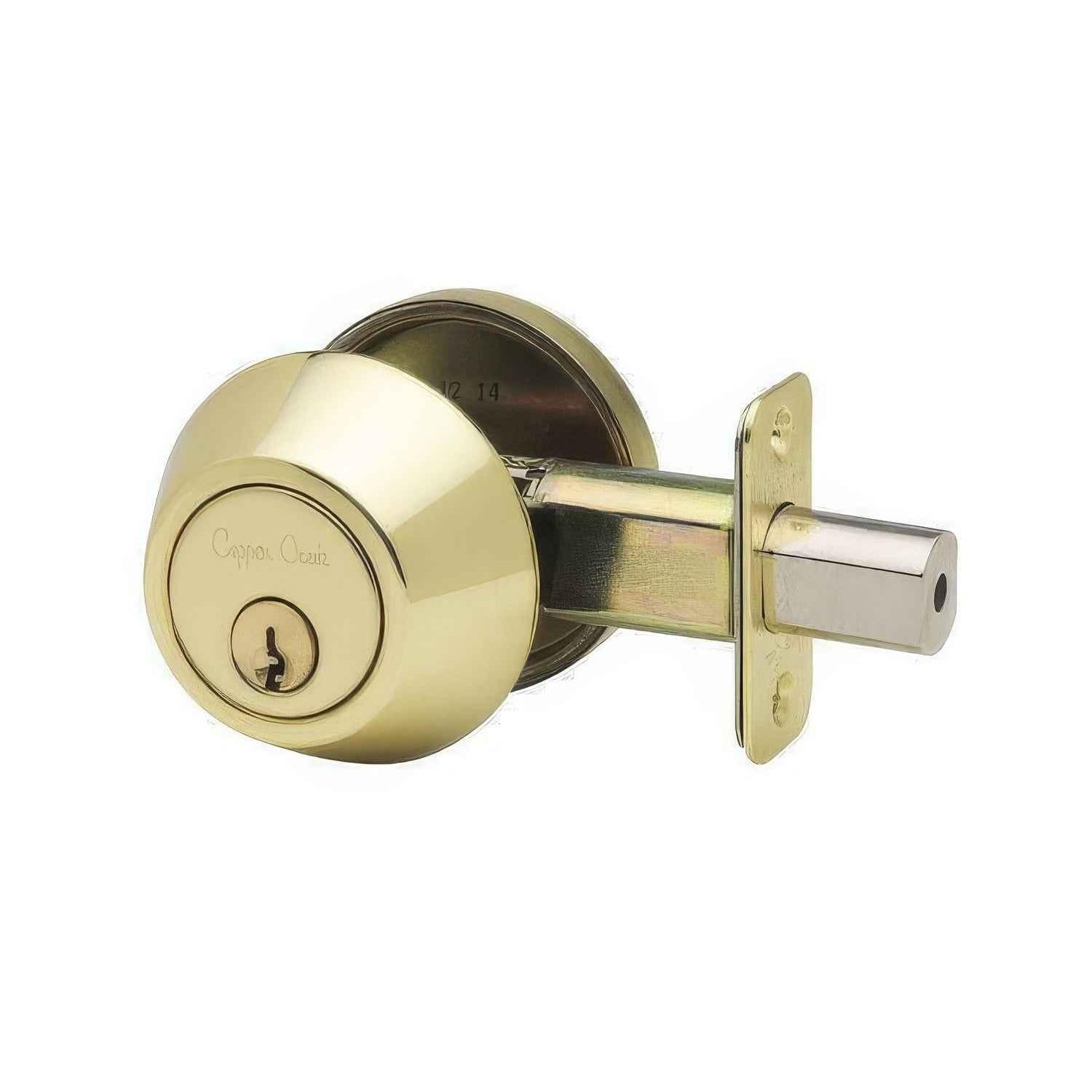

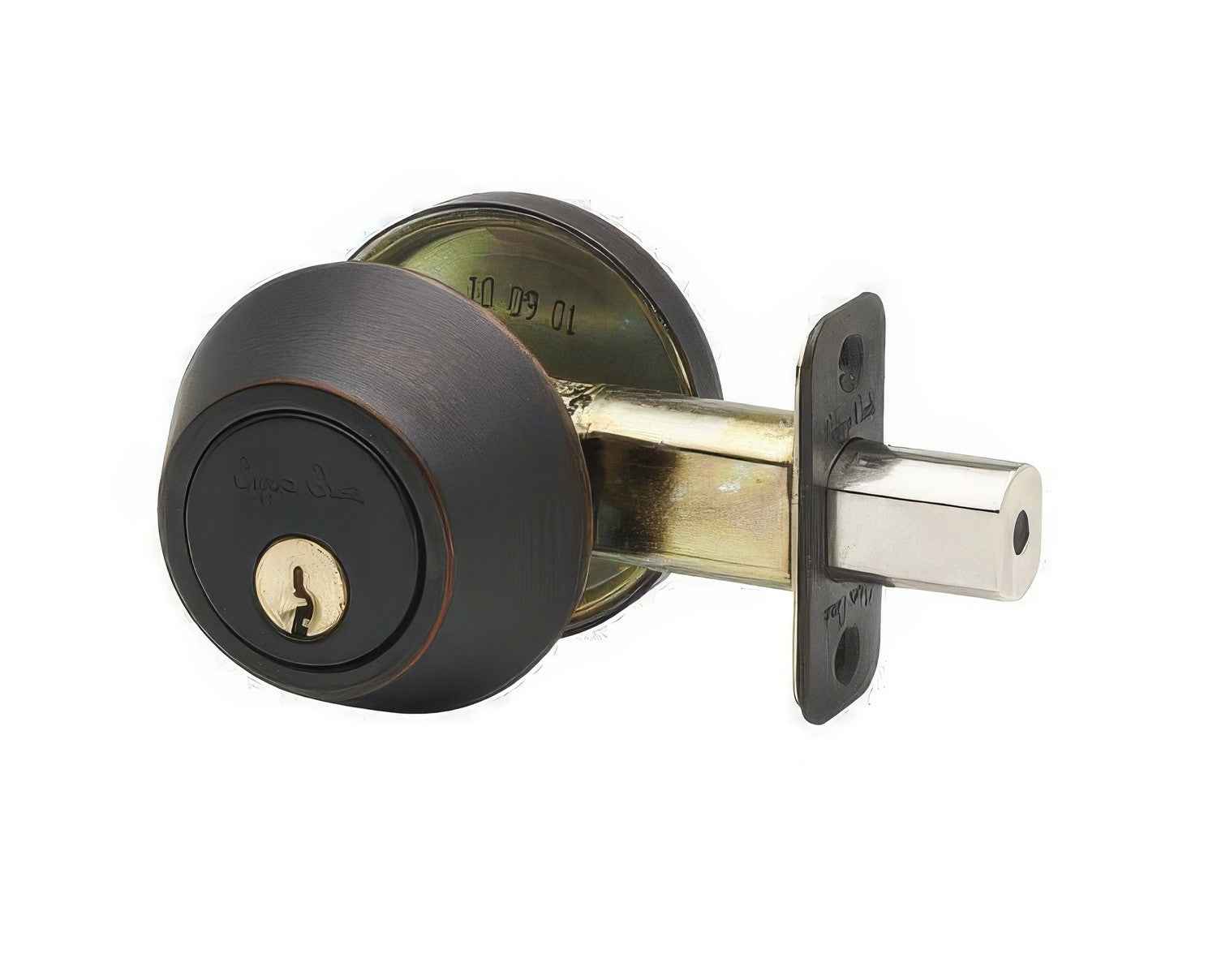

Copper Creek DB2410 Single Cylinder Deadbolt

The Copper Creek DB2410 is a standard-duty Grade 3 single-cylinder deadbolt for an exterior door.

An exterior key or the interior thumbturn throws and retracts the full 1″ deadbolt. The non-handed lock uses a solid-brass 5-pin KW1 cylinder protected by a cylinder guard.

Product Details

• Model: DB2410
• Function: Single Cylinder Deadbolt
• Operation: exterior key or interior thumbturn
• Material: zinc lock trim with solid-brass cylinder
• Performance: ANSI/BHMA Grade 3; 200,000 cycles
• Deadbolt throw: 1″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ standard; 2-3/4″ optional
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Standard latch faceplate: 1″ round corner
• Optional latch preparation: square corner or drive-in
• Cylinder: solid-brass 5-pin KW1 standard; C keyway optional

Compatibility: Confirm single-cylinder operation, door thickness, backset, latch faceplate, strike preparation, keyway, and keying requirements. A single-cylinder deadbolt requires an unobstructed interior thumbturn for normal operation.
