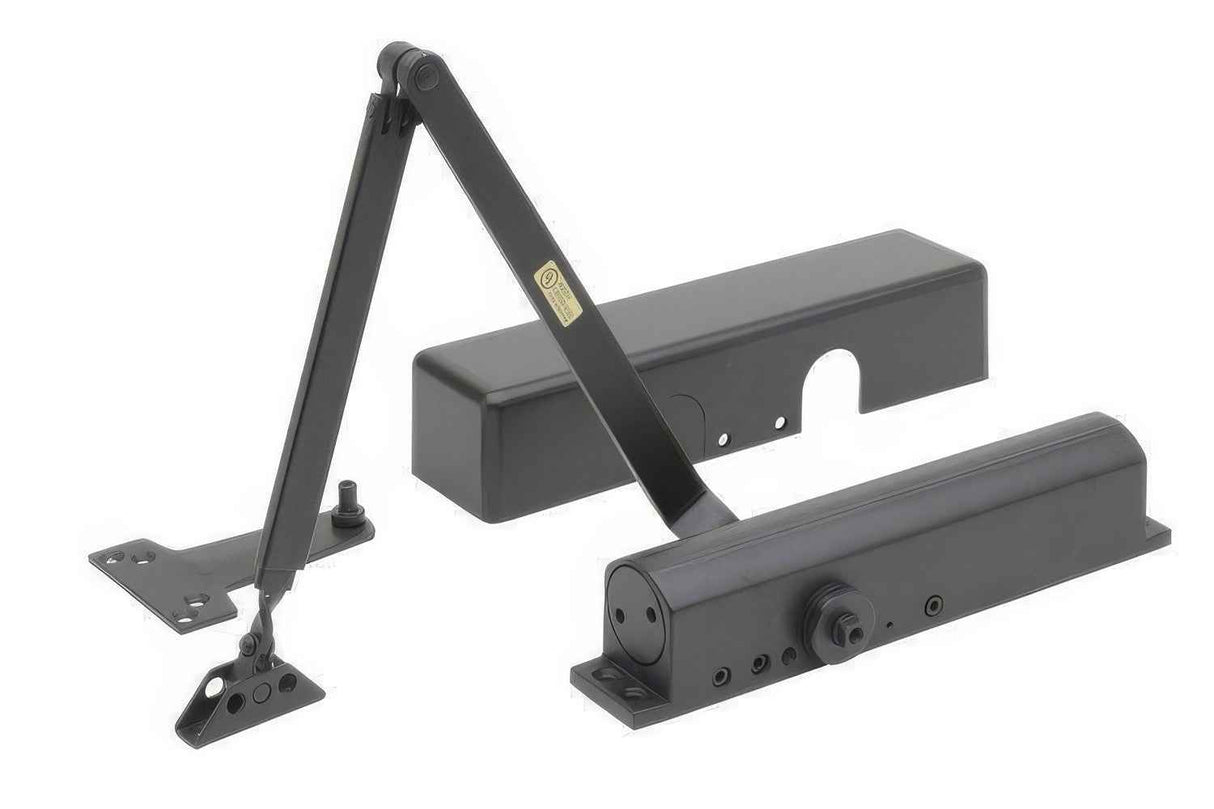

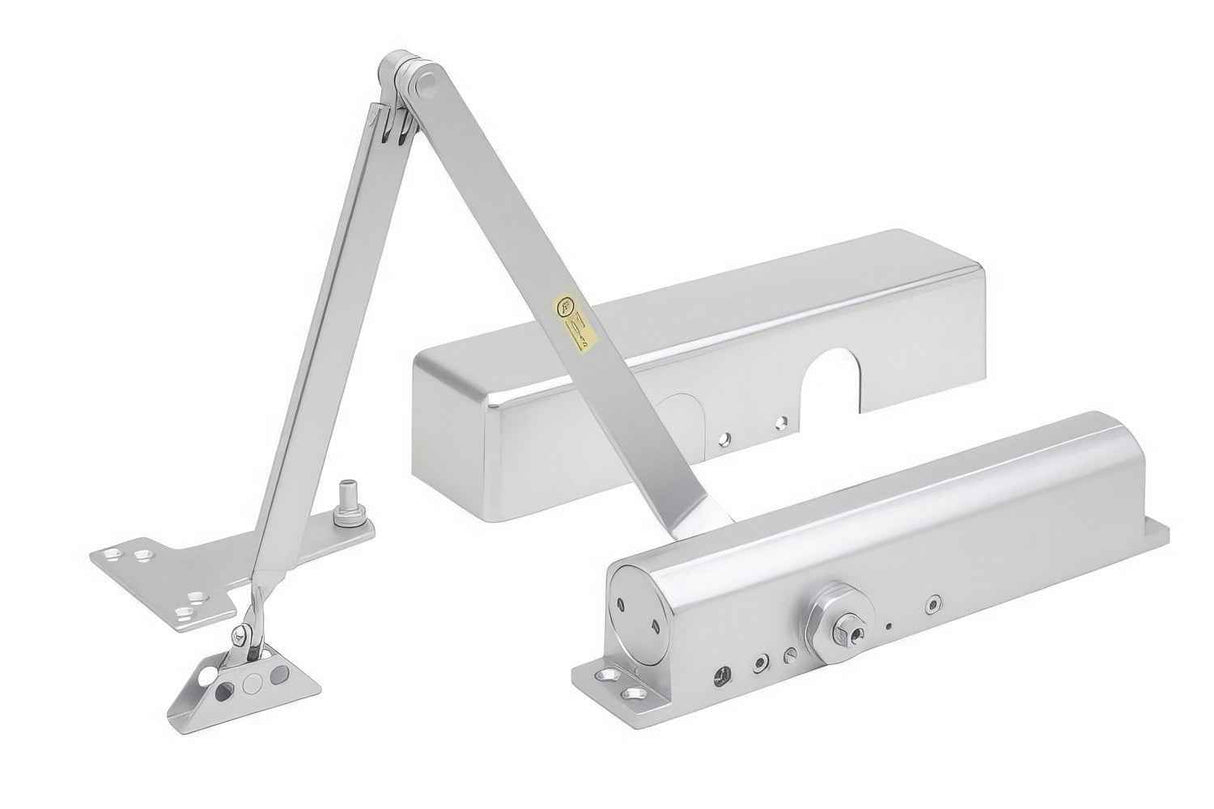

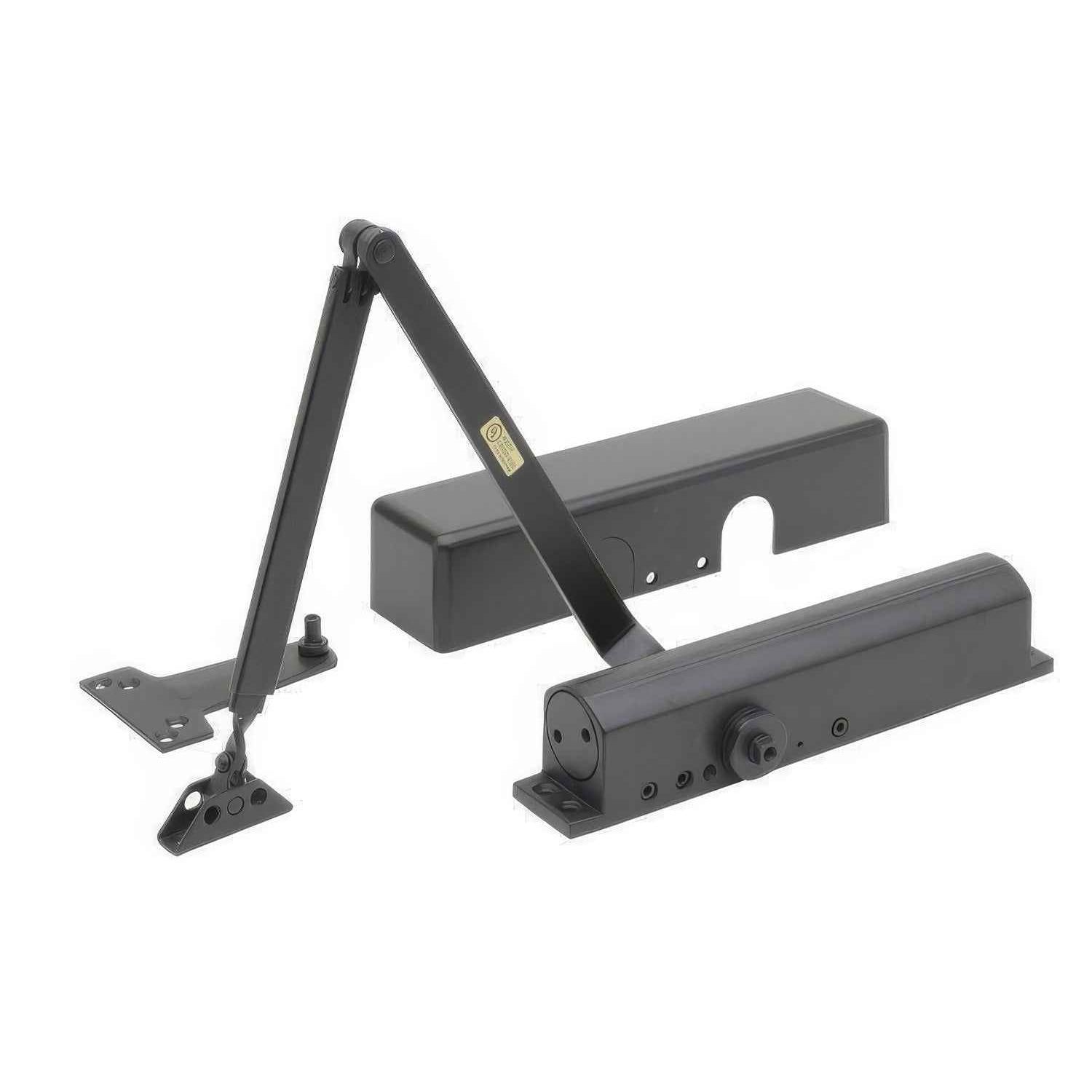

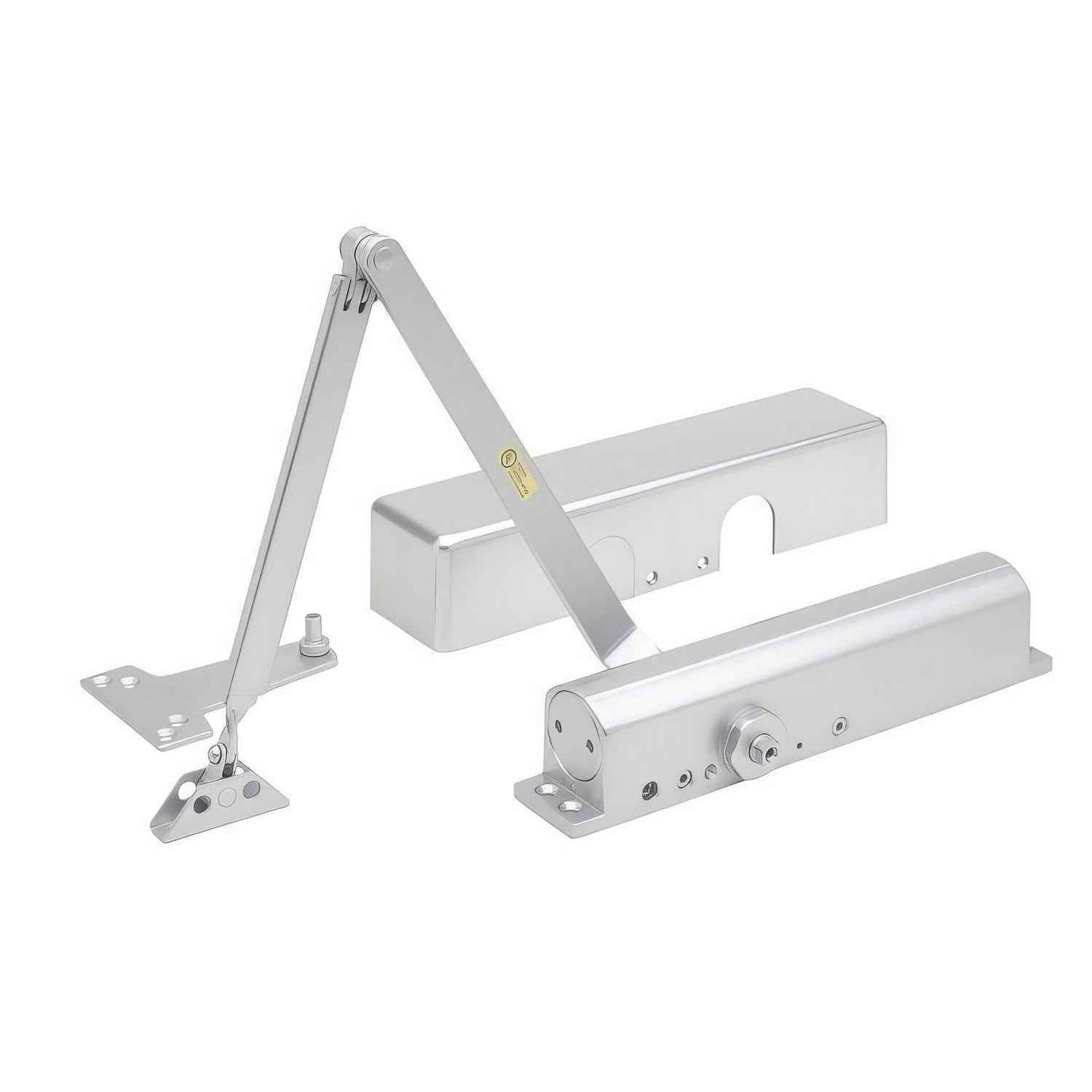

Copper Creek CL8600BF Grade 1 Heavy Duty Door Closer

The Copper Creek CL8600BF is a Grade 1 commercial door closer with a cast-aluminum body for controlled closing on demanding door openings.

The non-handed closer provides adjustable size 1–6 power for doors weighing up to 300 lb. Its 11-7/8″ body width, 2″ height, and 2-3/8″ projection help confirm fit before installation.

Product Details

• Model: CL8600BF
• Function: Commercial Door Closer
• Performance grade: ANSI/BHMA Grade 1
• Body construction: cast aluminum
• Closer size: adjustable 1–6
• Maximum door weight: 300 lb
• Body width: 11-7/8″
• Body height: 2″
• Projection: 2-3/8″
• Handing: non-handed
• Barrier-free: yes
• UL listed: yes

Compatibility: Confirm door weight, door width, mounting position, arm type, opening force, fire-door requirements, and available installation clearance before ordering.
