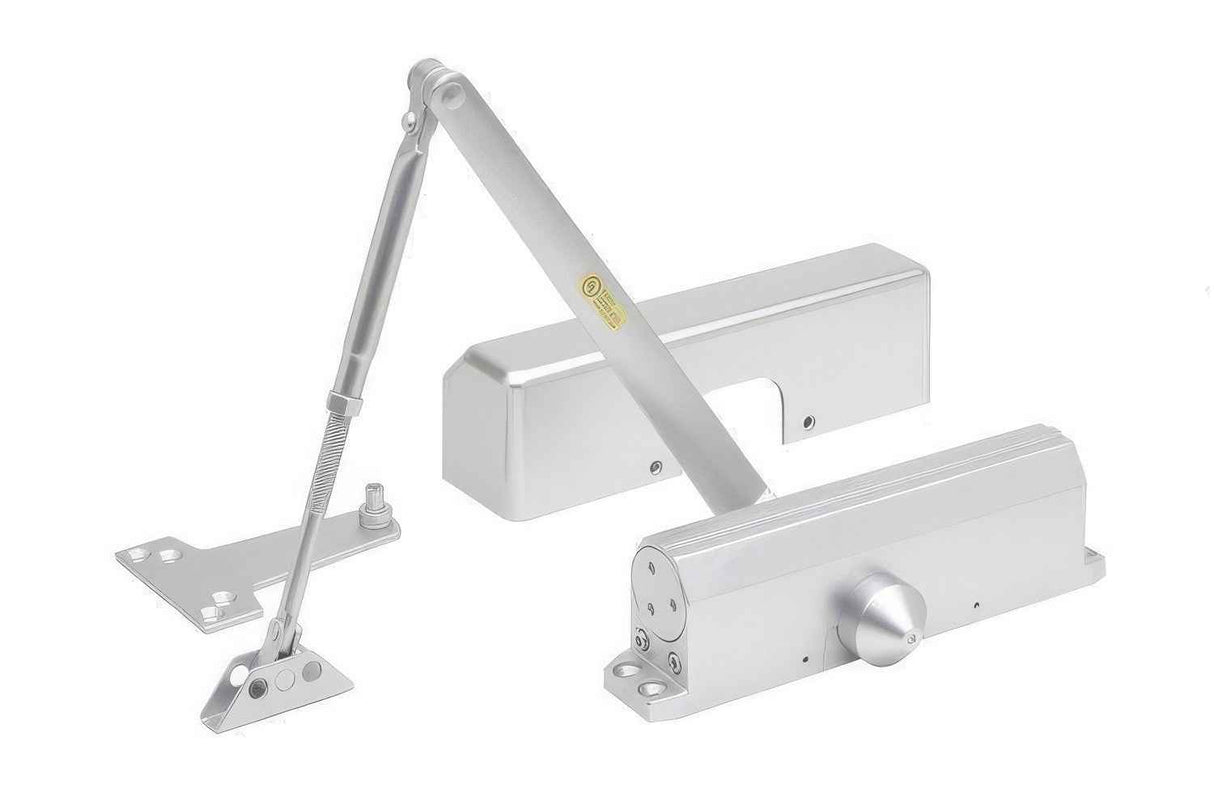

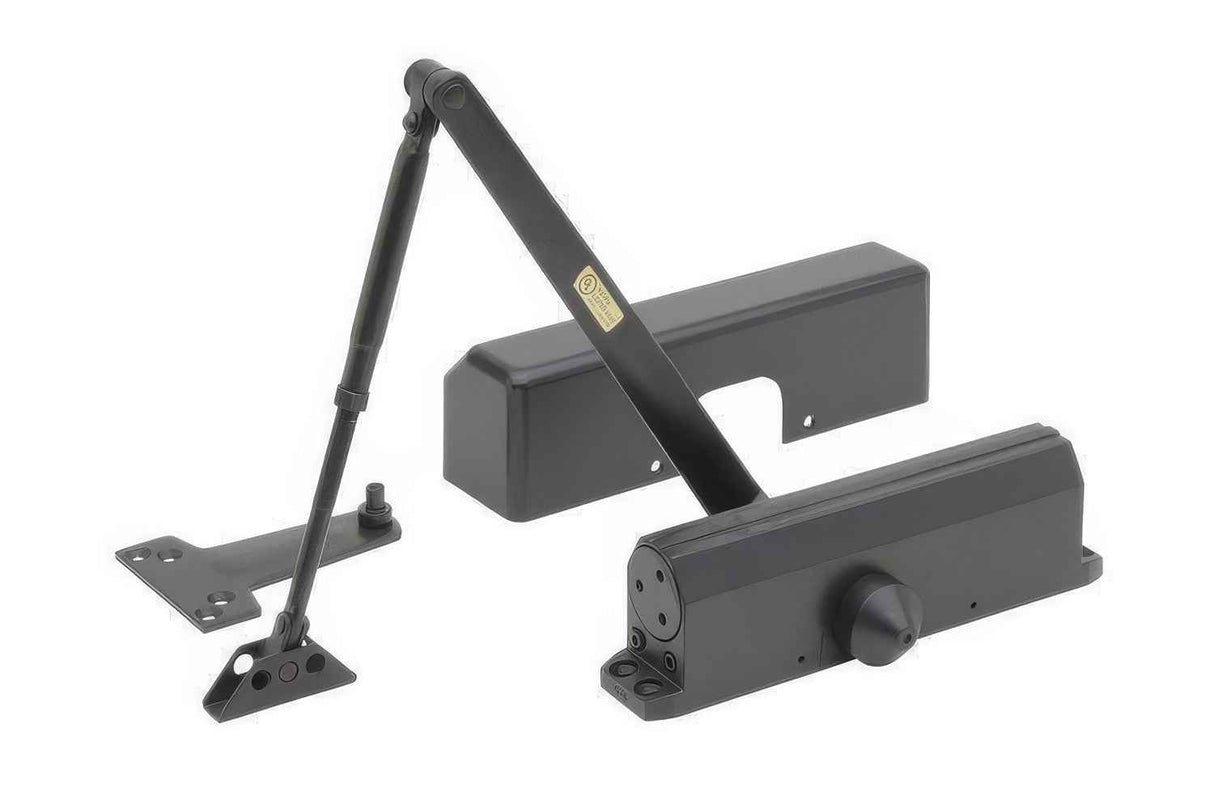

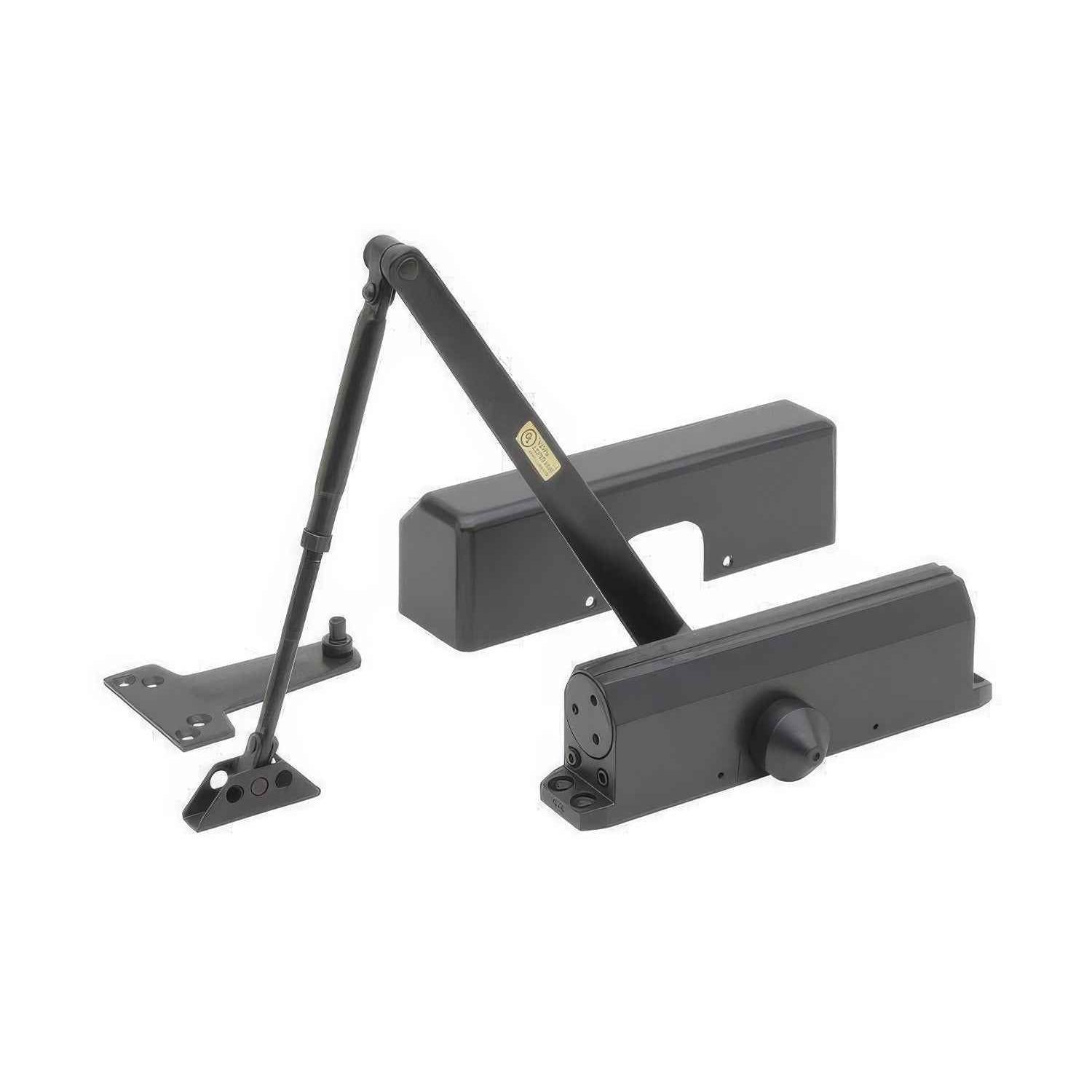

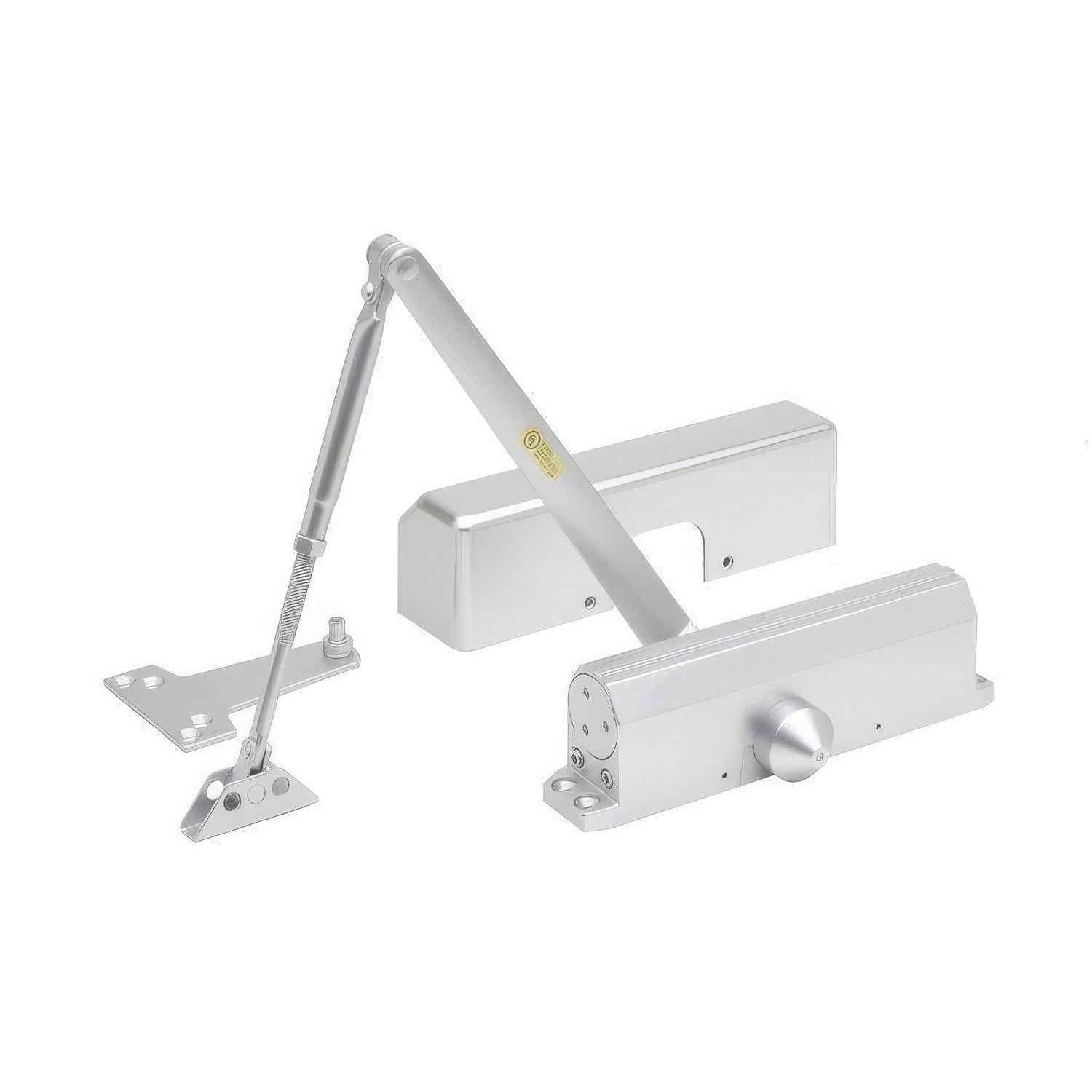

Copper Creek CL8400BF Grade 1 Door Closer

The Copper Creek CL8400BF is a Grade 1 standard-duty commercial door closer with a cast-aluminum body for controlled closing on compatible commercial doors.

Its adjustable size 1–6 power supports doors weighing up to 250 lb. The non-handed closer measures 9-3/4″ wide, 1-13/16″ high, and projects 2-3/4″, providing the key dimensions needed to confirm fit and mounting clearance.

Product Details

• Model: CL8400BF
• Function: Commercial Door Closer
• Performance grade: ANSI/BHMA Grade 1
• Body construction: cast aluminum
• Closer size: adjustable 1–6
• Maximum door weight: 250 lb
• Body width: 9-3/4″
• Body height: 1-13/16″
• Projection: 2-3/4″
• Handing: non-handed
• Barrier-free: yes
• UL listed: yes

Compatibility: Confirm door weight, door width, mounting position, arm type, opening force, fire-door requirements, and available installation clearance before ordering.

Additional Copper Creek Information

Bulldog CL8400BF Door Closer Installation Guide

Bulldog CL8400BF Door Closer Specifications

View Copper Creek Manufacturer Warranty

Shop All Copper Creek Products
