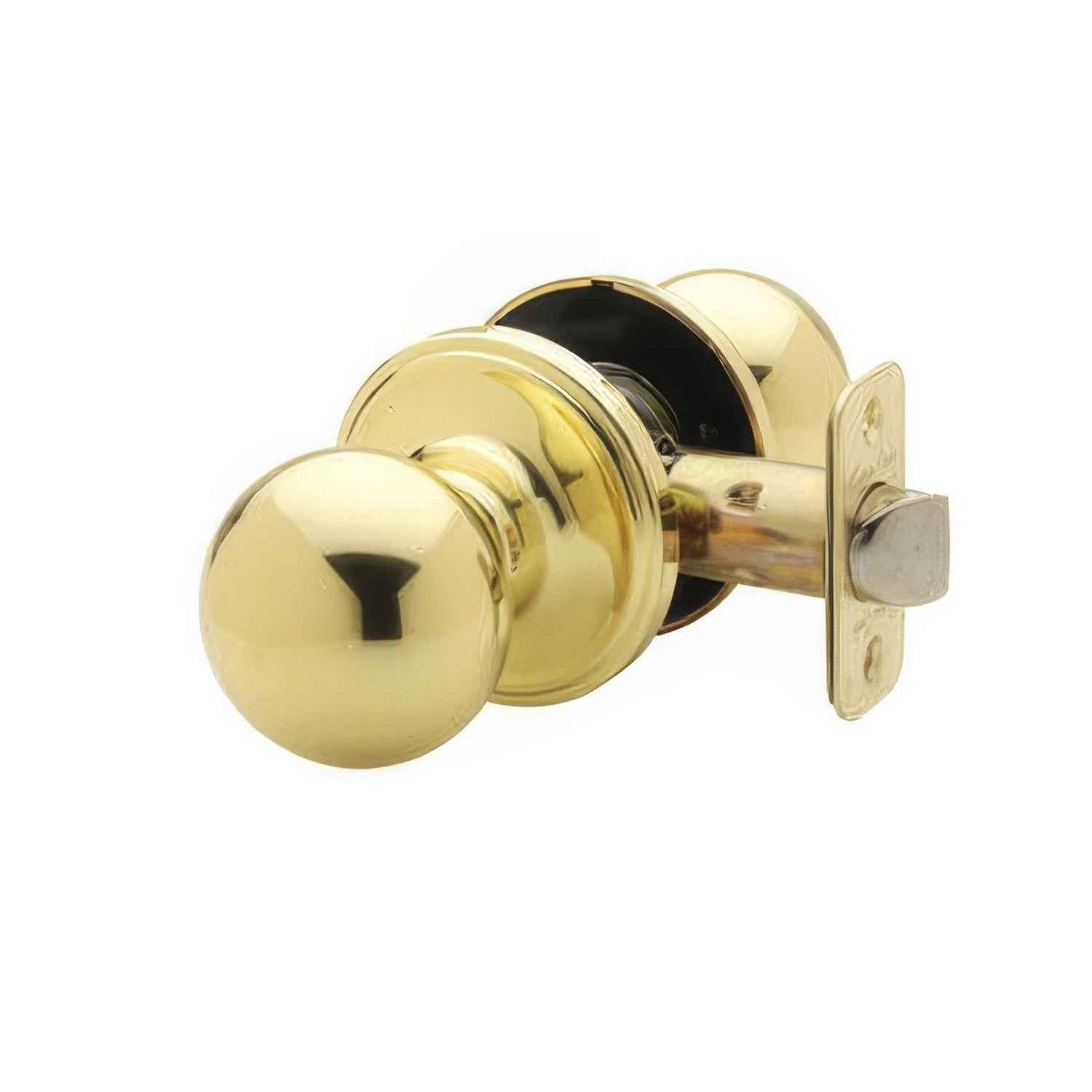

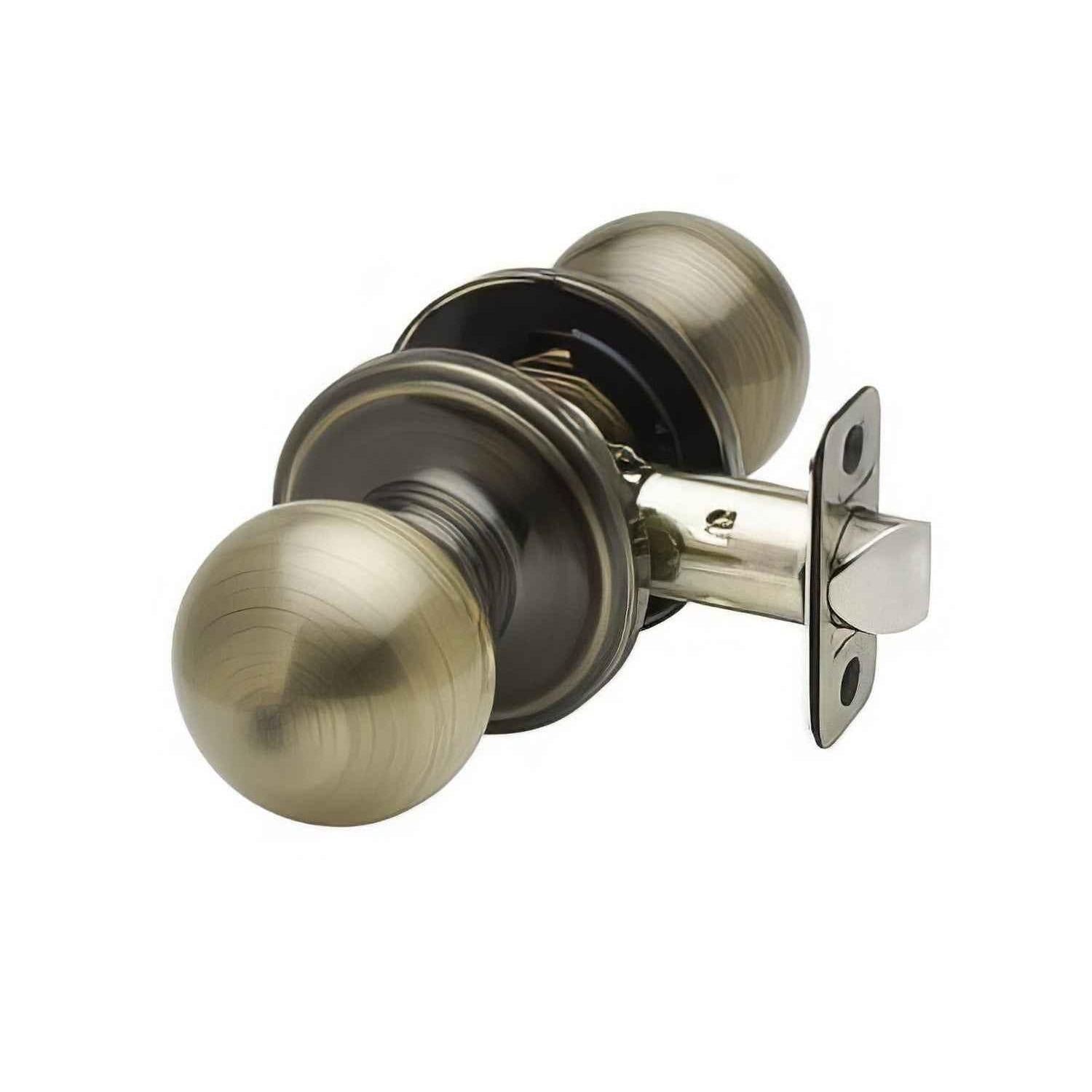

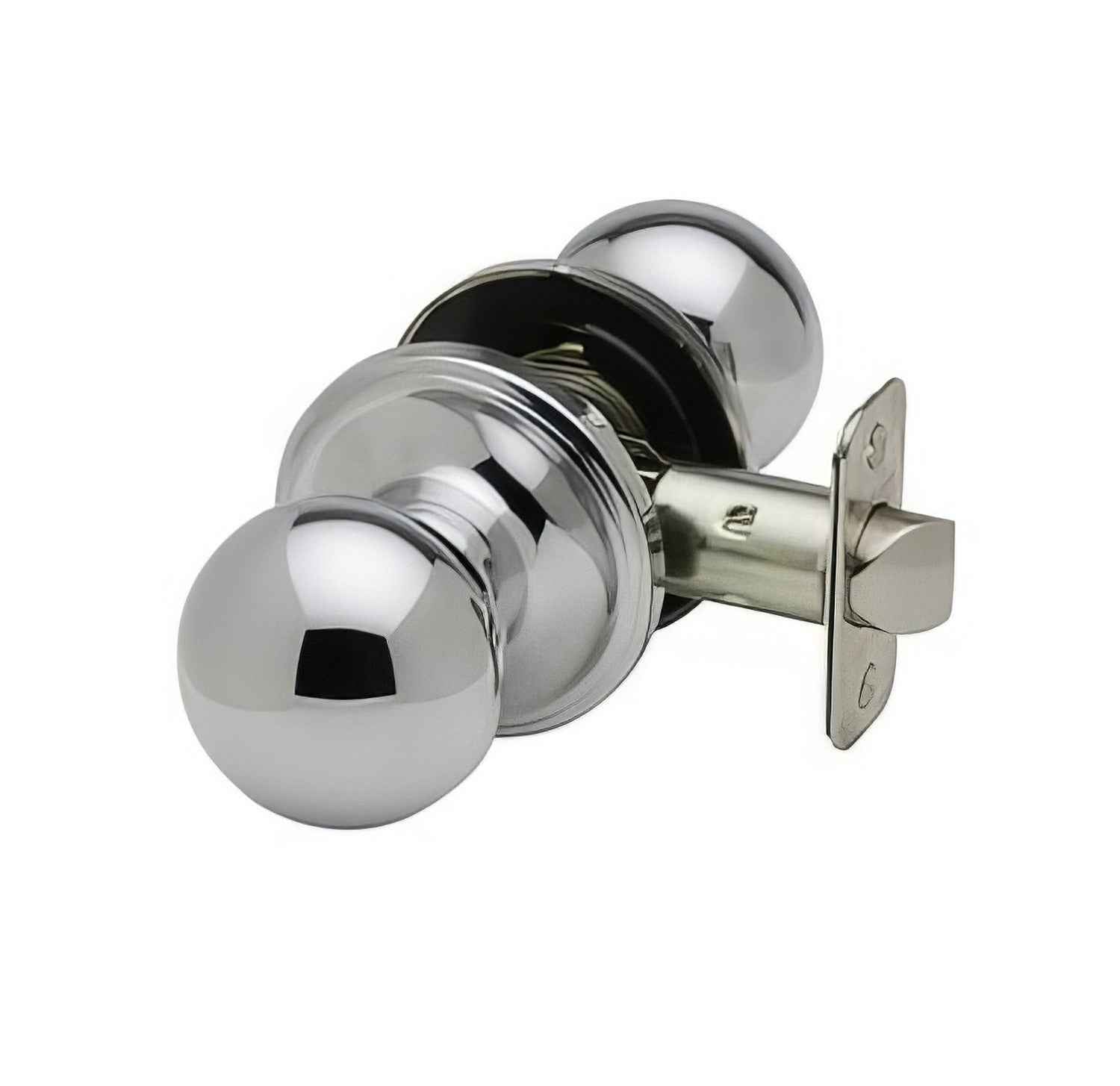

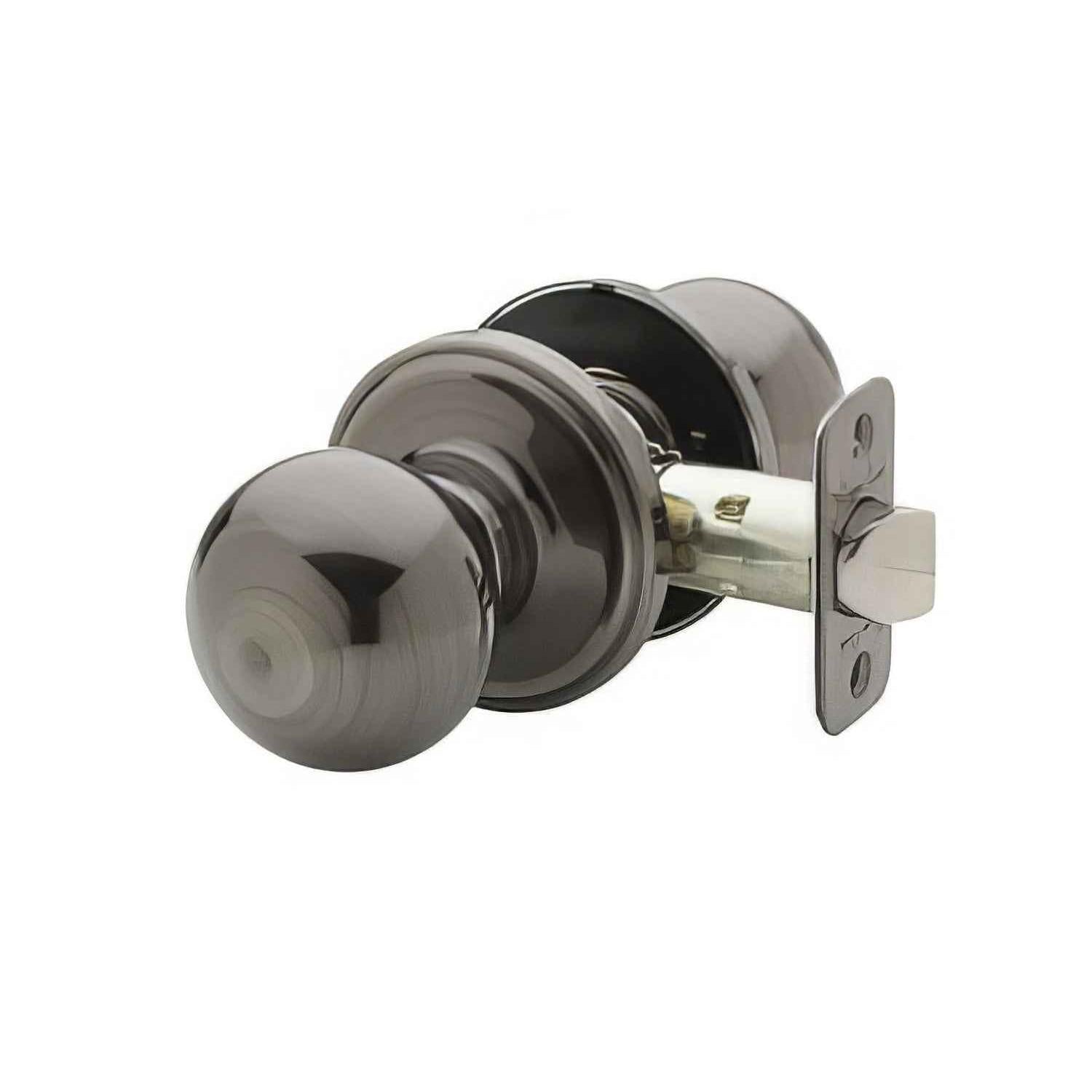

Copper Creek BK2020 Ball Style Passage Door Knob

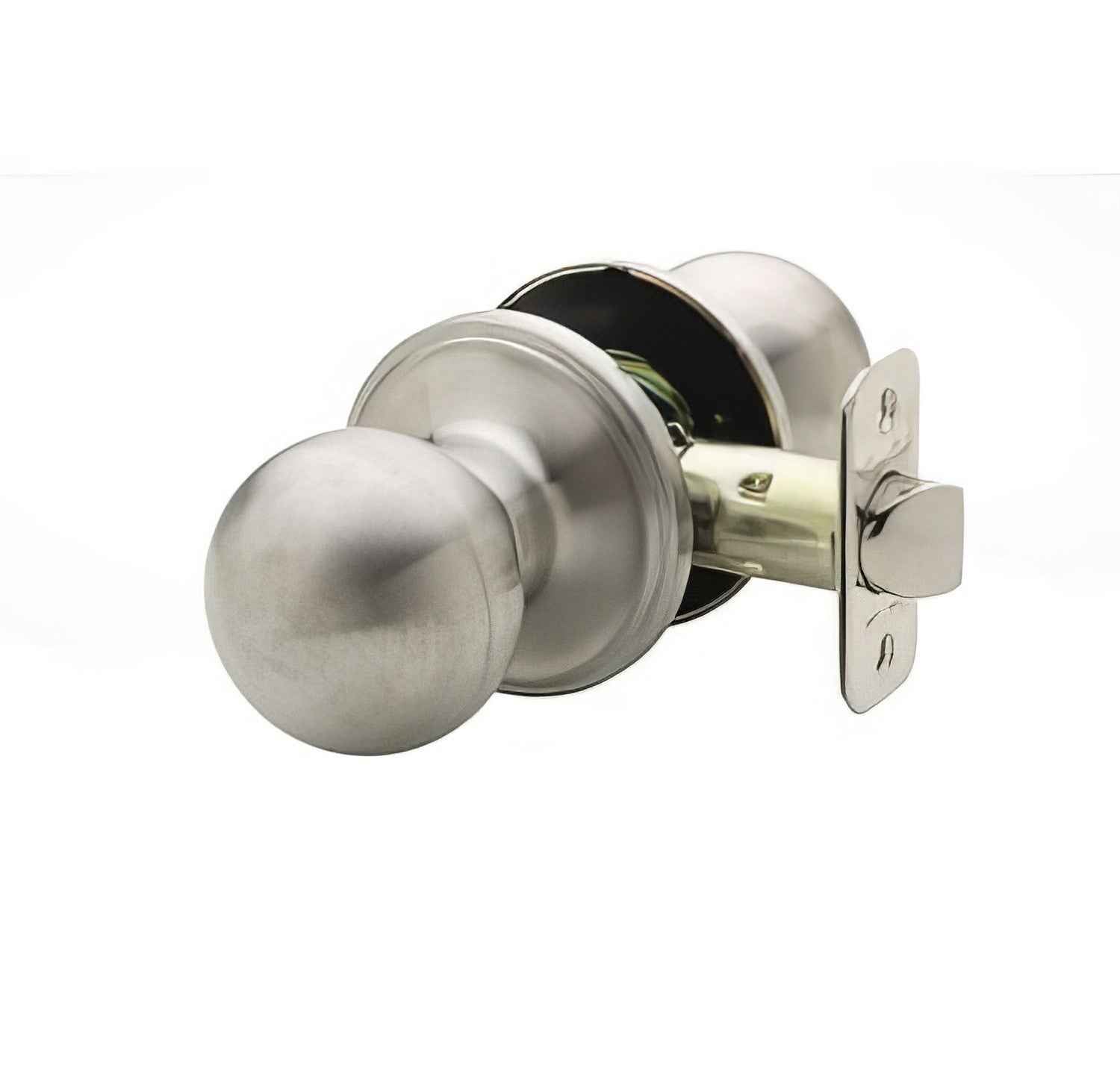

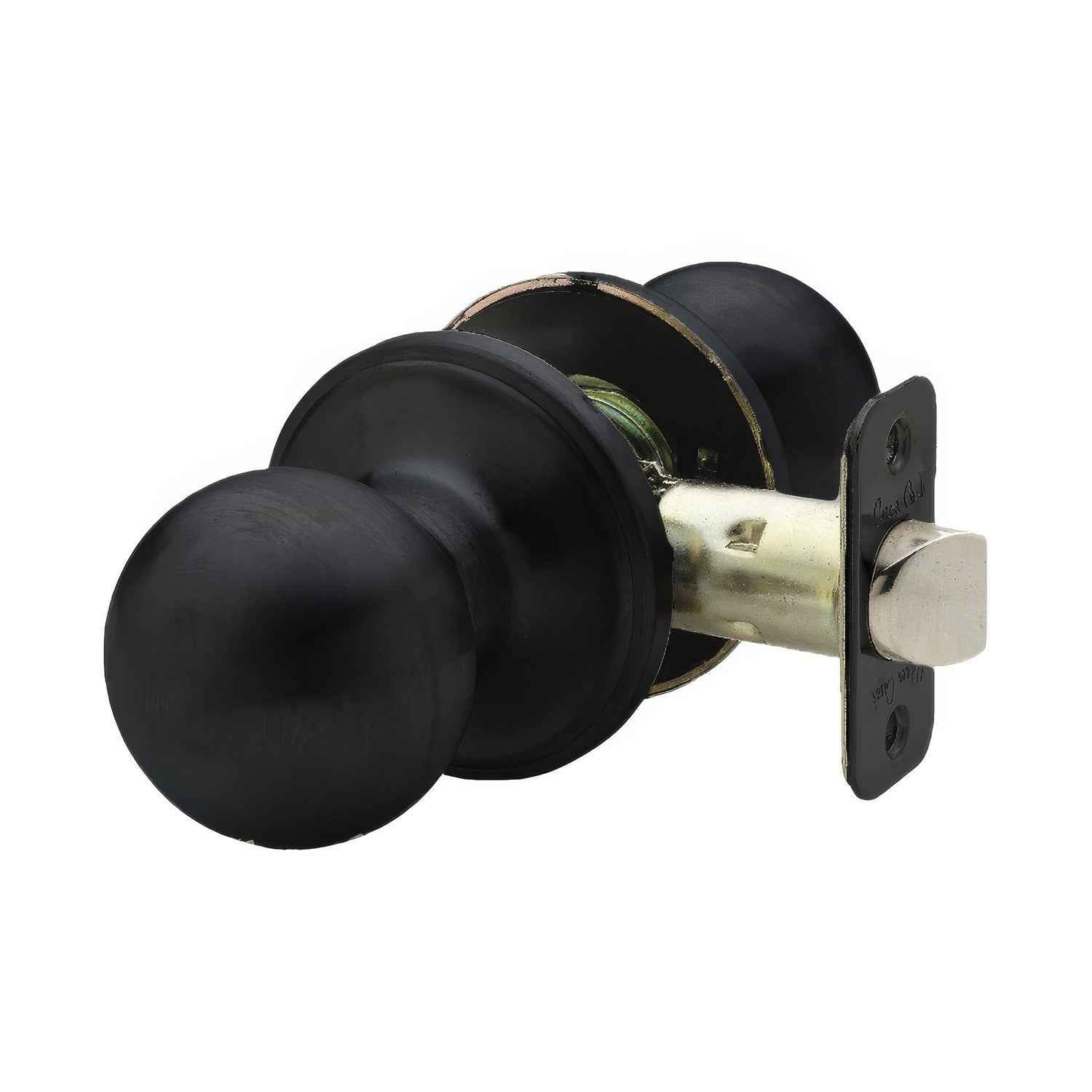

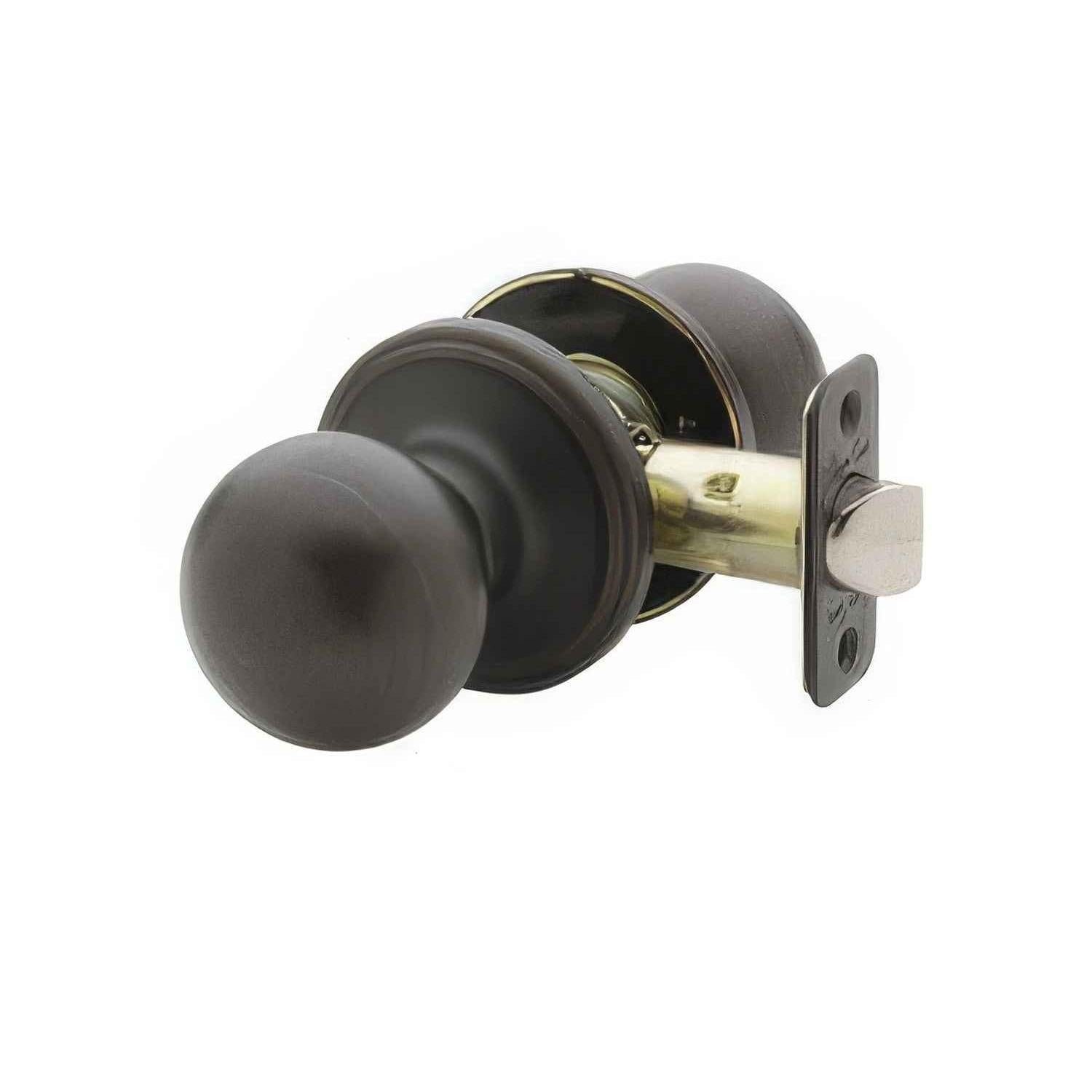

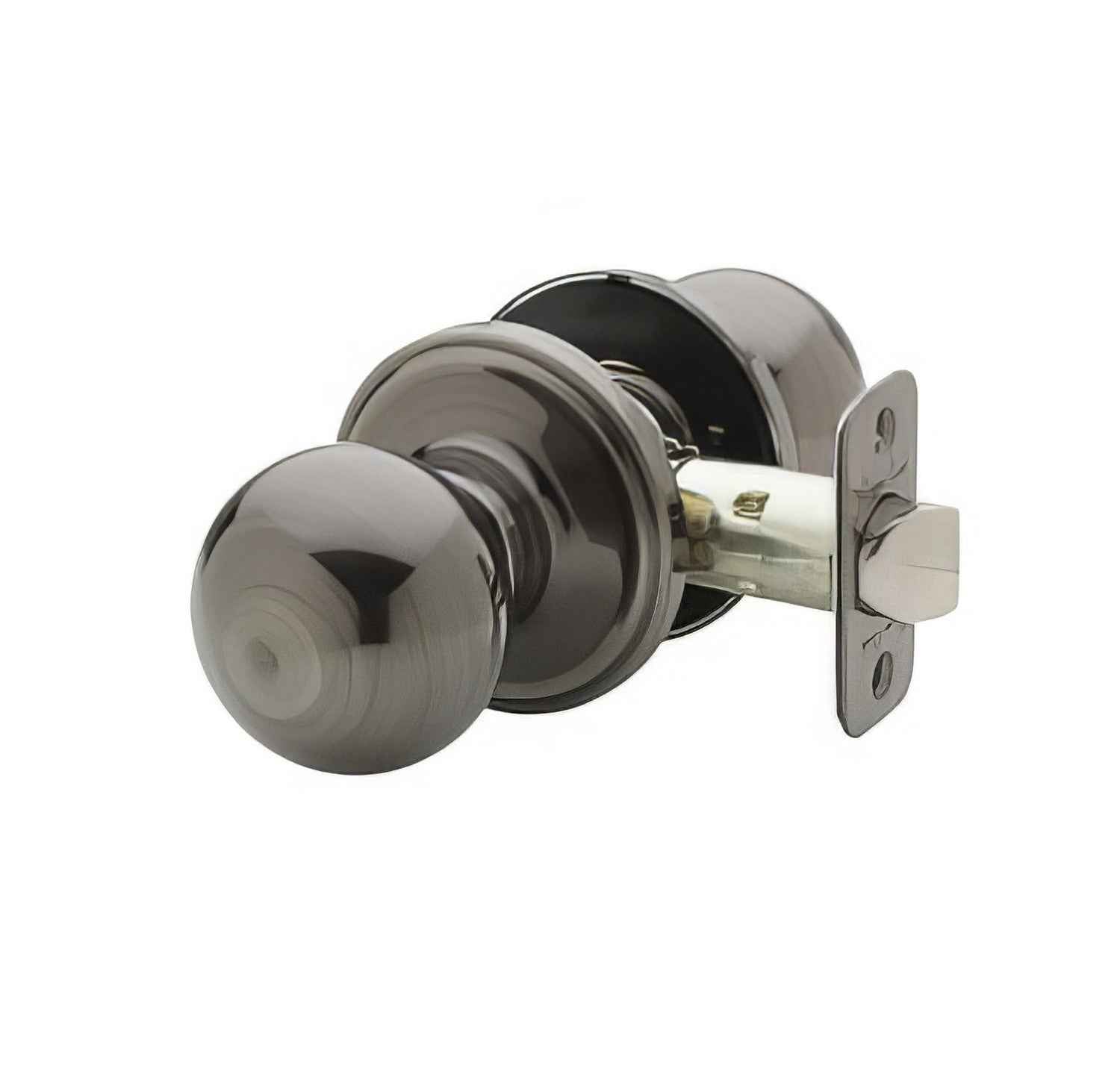

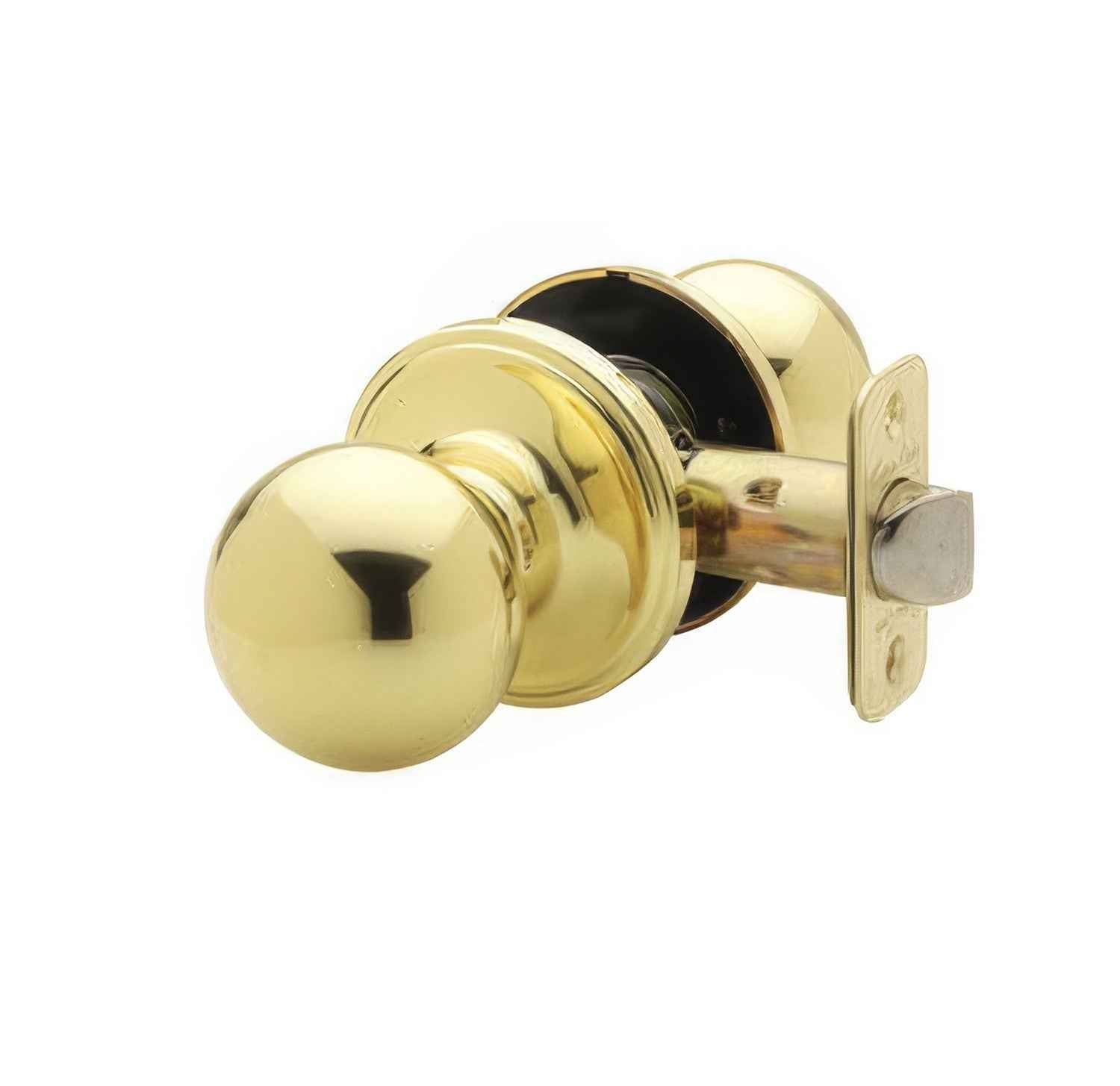

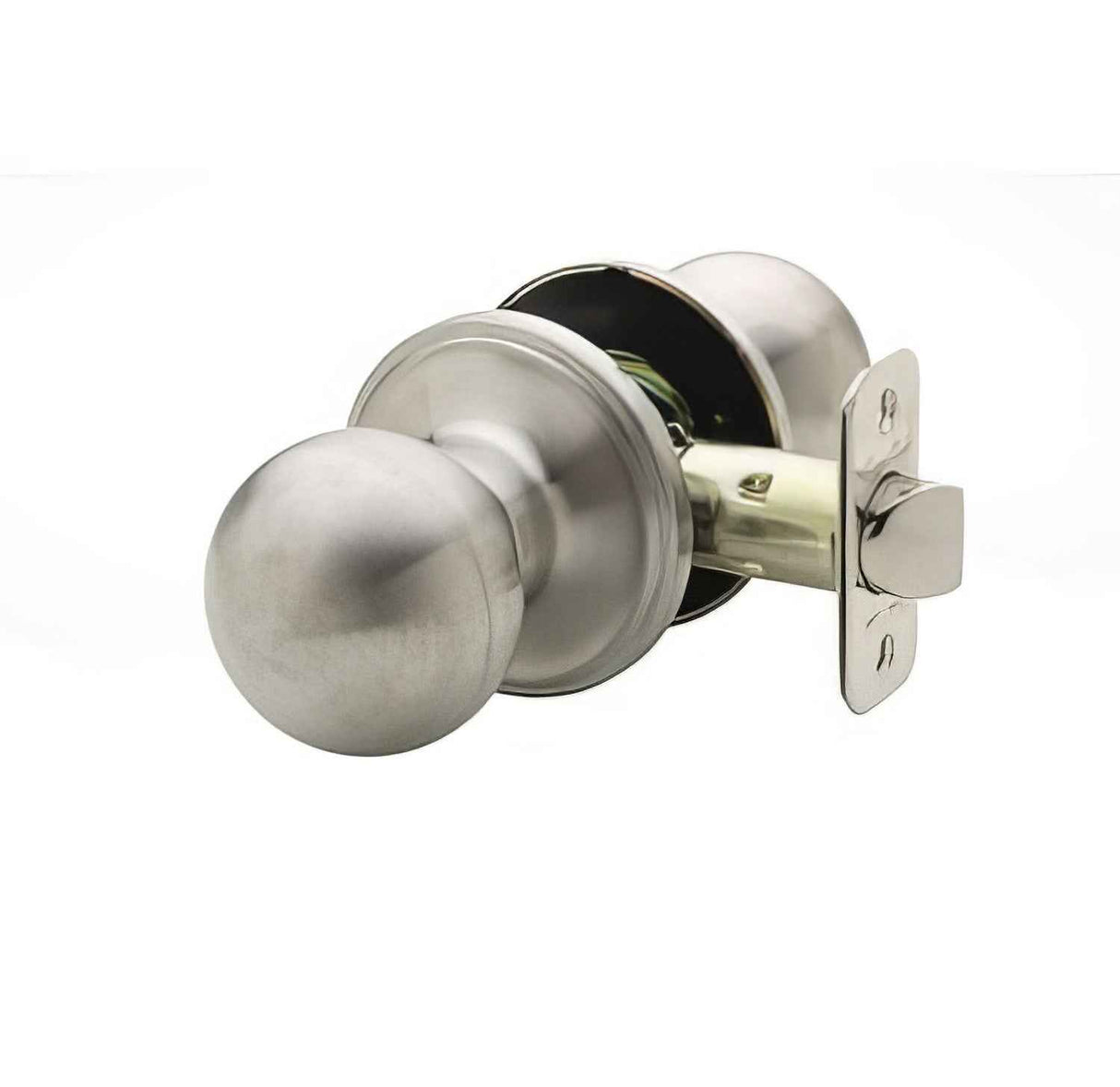

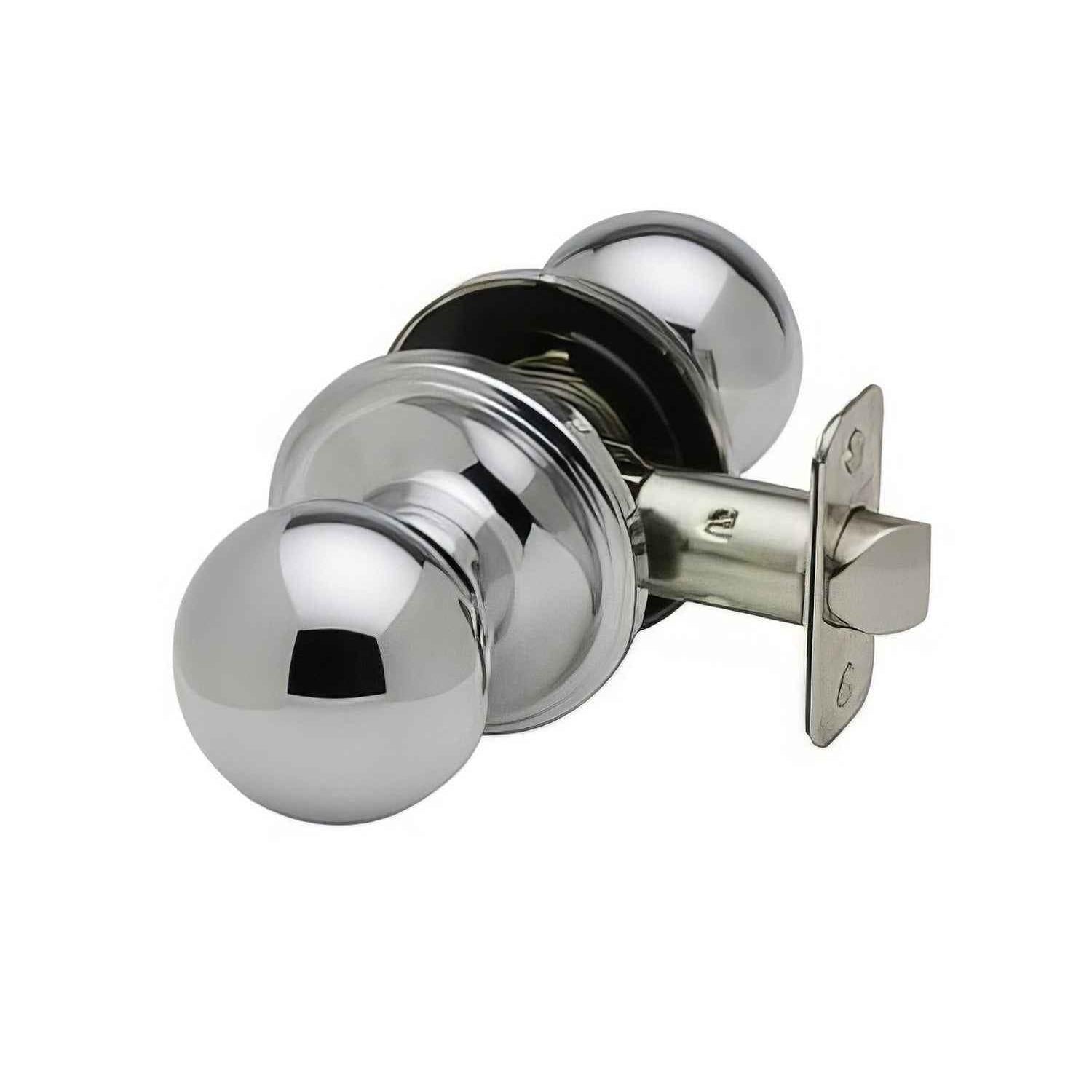

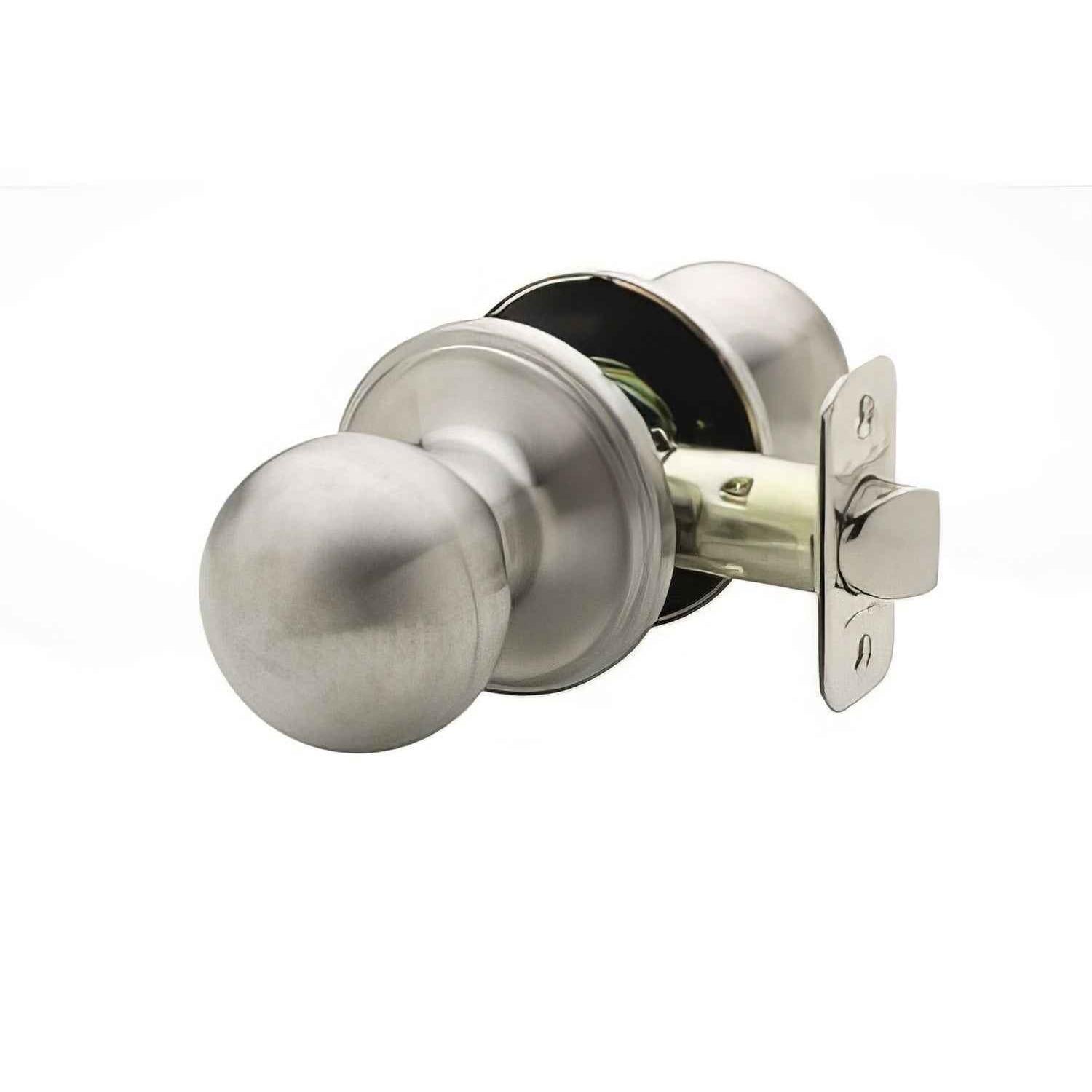

The Copper Creek BK2020 Ball is a Grade 3 residential passage door knob with a round ball knob and round rose.

Both knobs remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.

Product Details

• Model: BK2020
• Design: Ball
• Function: Residential Passage Door Knob
• Configuration: Complete passage lockset with interior and exterior knobs, adjustable latch, strike, and mounting hardware.
• Material: zinc
• Performance: ANSI/BHMA Grade 3
• Cycle rating: 200,000 cycles
• Rose: 2-5/8″ round rose
• Handing: Non-Handed / Reversible
• Door thickness: 1-3/8″ to 1-3/4″
• Adjustable backset: 2-3/8″ or 2-3/4″
• Cross bore: 2-1/8″
• Edge bore: 1″
• Standard latch faceplate: 1″ round corner
• Standard strike: 2-3/4″ full-lip round-corner strike

Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
