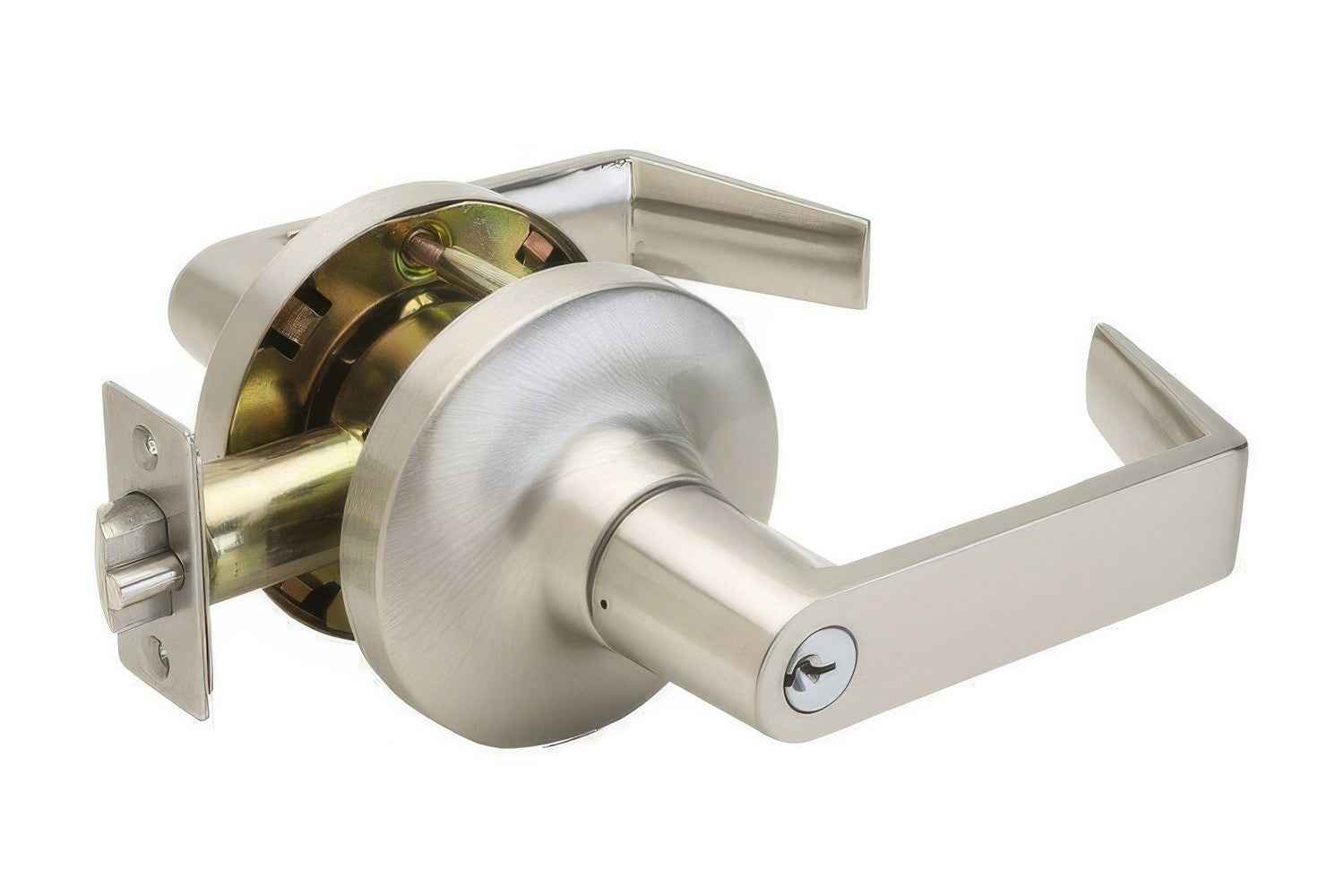

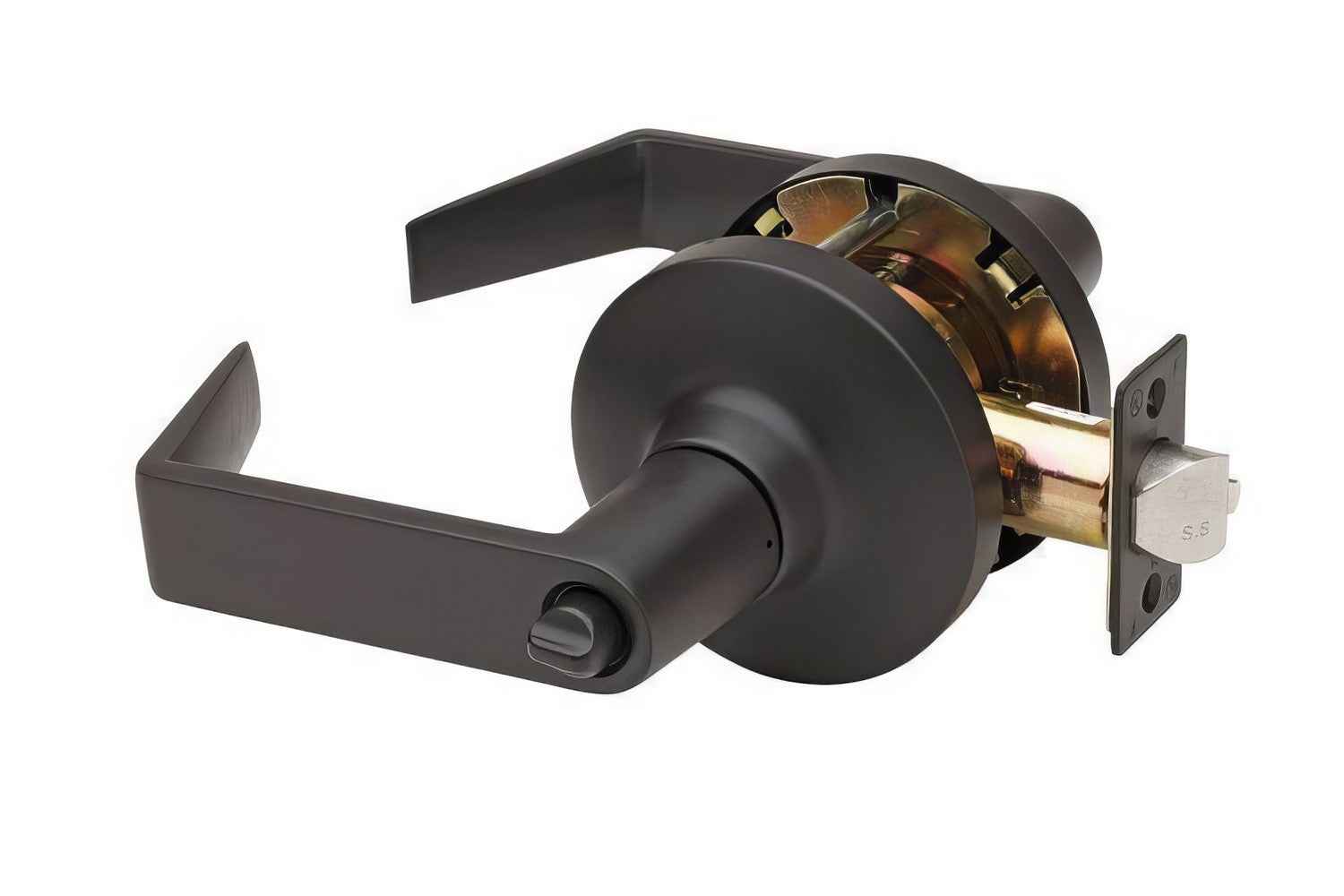

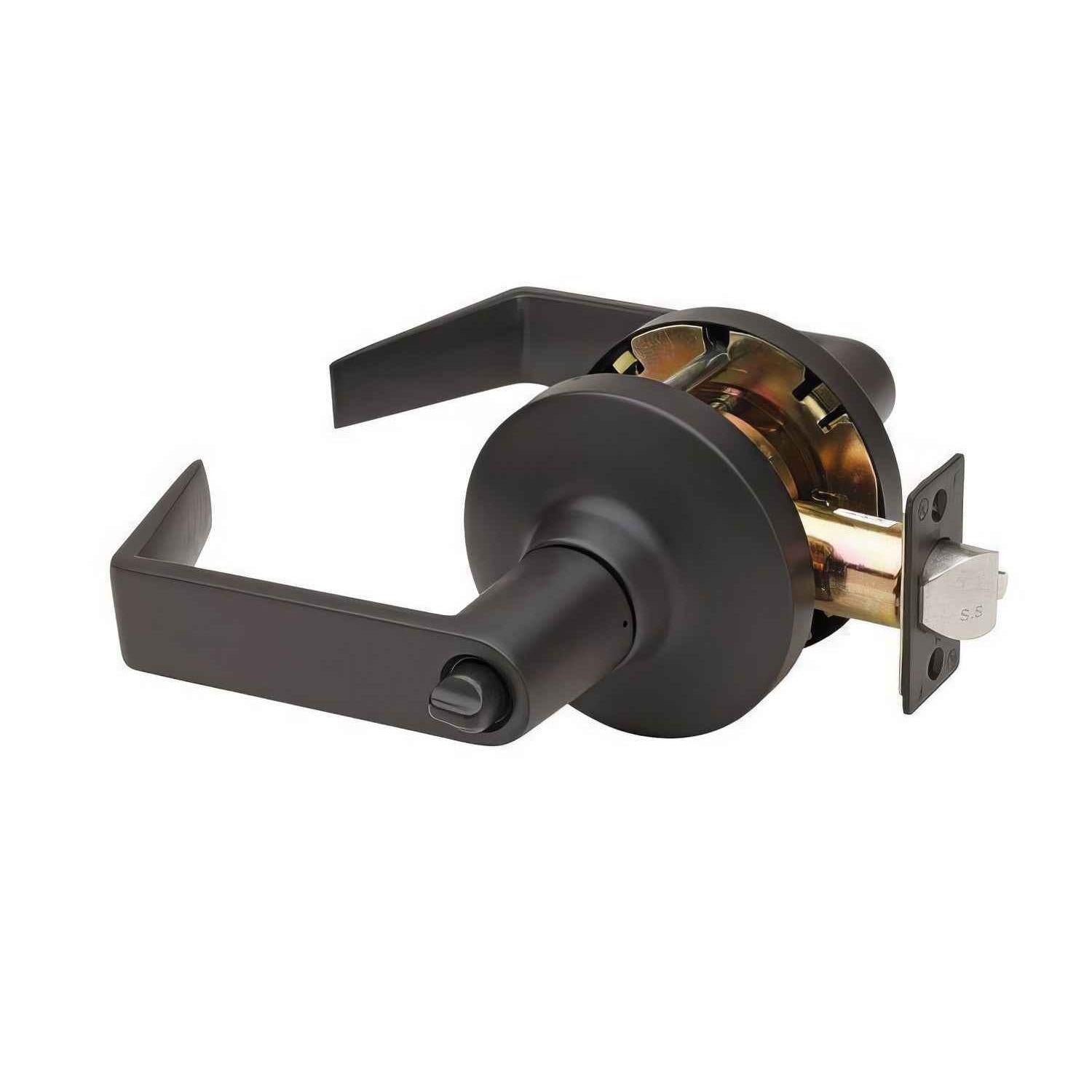

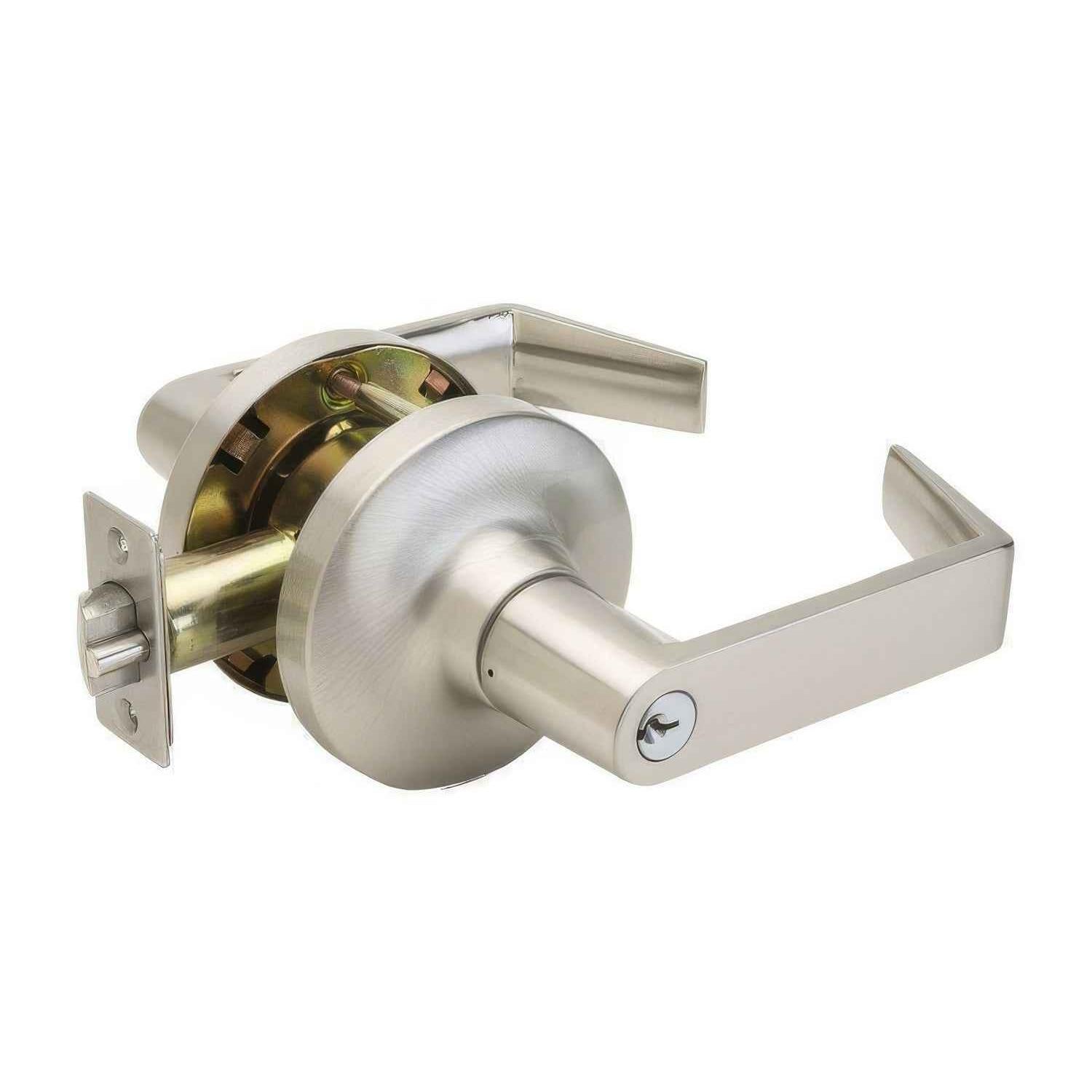

Copper Creek AL7250 Avery Heavy Duty Keyed Entry Storeroom Lever

The Copper Creek AL7250 Avery is a Grade 1 heavy-duty commercial storeroom door lever. The inside lever is always free for egress.

The non-handed 7200 Series lockset fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional. Its 3-1/2″ rose, 1-1/8″ square-corner wide faceplate, clutch mechanism, ADA compliance, and 3-hour UL listing support commercial installations. The inside lever is always free for egress. The outside lever remains locked and operates only while the key is inserted and turned.

Product Details

• Model: AL7250
• Collection: Avery
• Series: 7200
• Function: Commercial Storeroom Door Lever
• Performance grade: ANSI/BHMA Grade 1
• Material: zinc
• Rose diameter: 3-1/2″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/4″ standard; 2-3/8″ optional
• Latch faceplate: 1-1/8″ square-corner wide faceplate
• Strike: 4-7/8″ ASA strike standard
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Clutch: standard
• Fire rating: 3-hour UL listed
• ADA compliant: yes

Compatibility: Confirm the 7200 Series, storeroom function, door thickness, backset, faceplate, strike, keyway or keying requirements, and any fire-door labeling before ordering. Optional configurations must be specified correctly.
