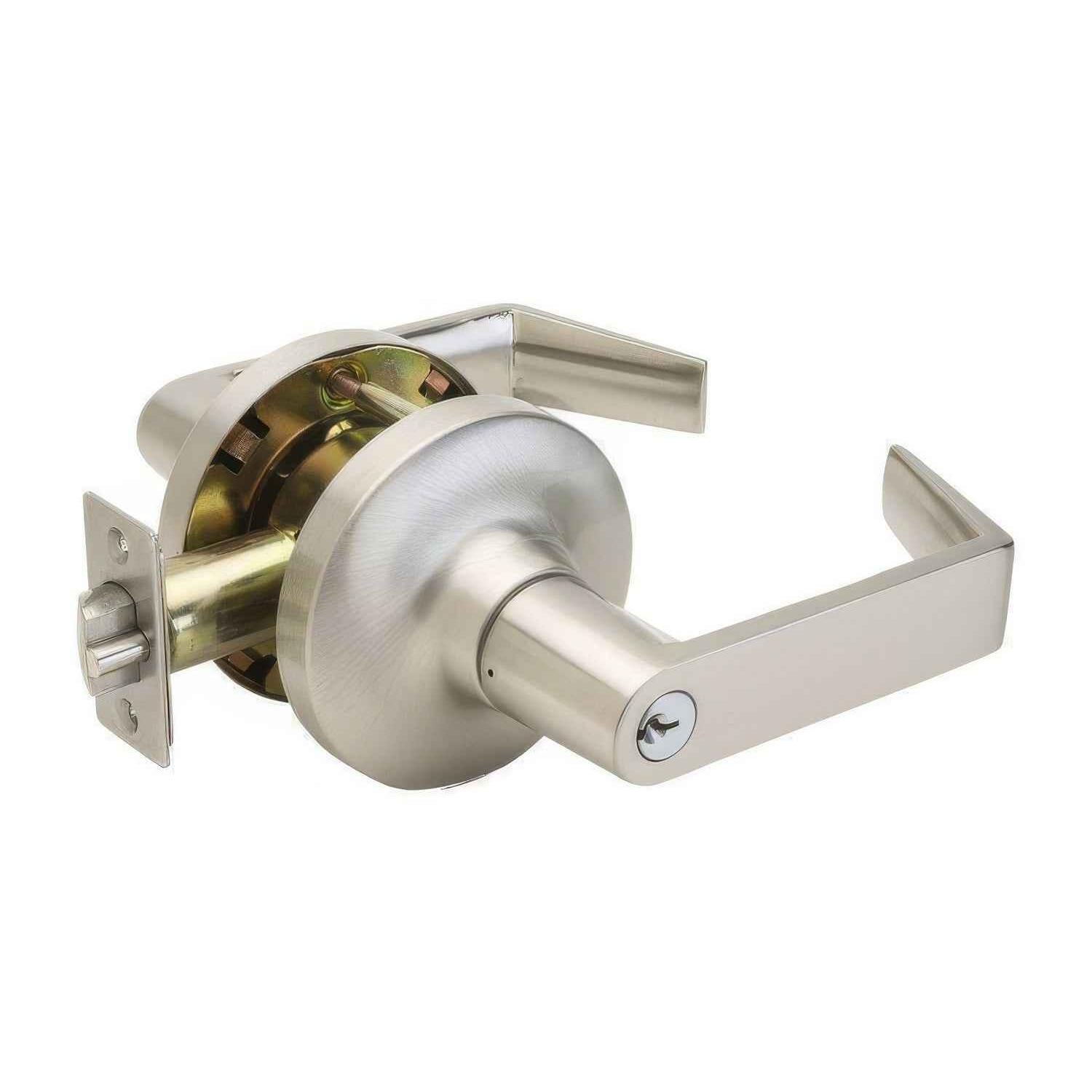

Copper Creek Avery Keyed Entry Door Lever AL7241

The Copper Creek AL7241 Avery is a Grade 1 heavy-duty commercial commercial keyed entry door lever built for the a key or the inside push button locks both levers.

The non-handed 7200 Series lockset fits 1-3/8″ to 1-3/4″ doors and uses a 2-3/4″ standard backset with 2-3/8″ optional. Its 3-1/2″ rose, 1-1/8″ square-corner wide faceplate, clutch mechanism, ADA compliance, and 3-hour UL listing support commercial installations. A key or the inside push button locks both levers. Turning the inside lever or using the key unlocks the set. Pushing and turning the inside button activates a storeroom mode.

Product Details

• Model: AL7241
• Collection: Avery
• Series: 7200
• Function: Commercial Keyed Entry Door Lever
• Performance grade: ANSI/BHMA Grade 1
• Material: zinc
• Rose diameter: 3-1/2″
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/4″ standard; 2-3/8″ optional
• Latch faceplate: 1-1/8″ square-corner wide faceplate
• Strike: 4-7/8″ ASA strike standard
• Cross bore: 2-1/8″
• Edge bore: 1″
• Handing: non-handed
• Clutch: standard
• Fire rating: 3-hour UL listed
• ADA compliant: yes

Compatibility: Confirm the 7200 Series, entry function, door thickness, backset, faceplate, strike, keyway or keying requirements, and any fire-door labeling before ordering. Optional configurations must be specified correctly.
