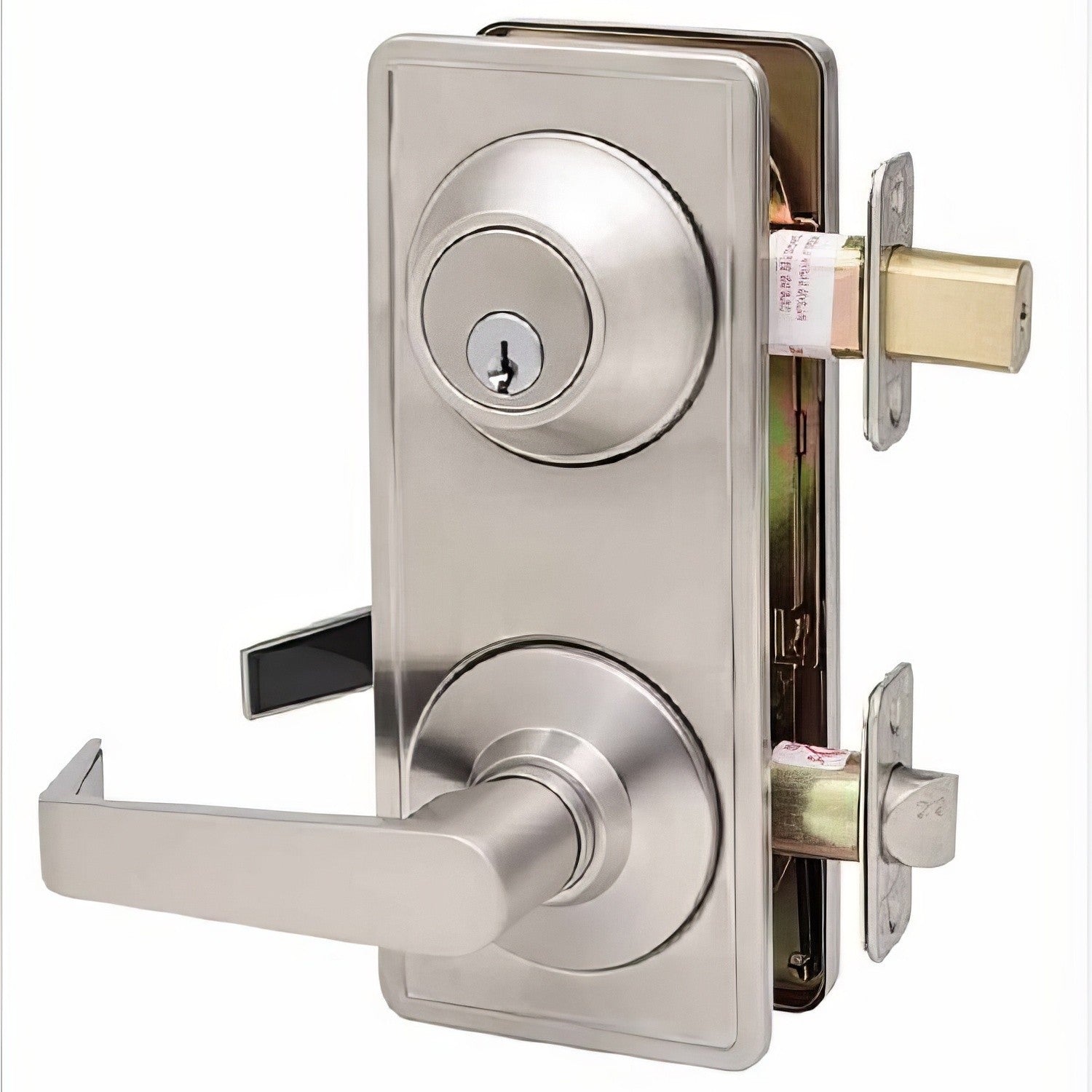

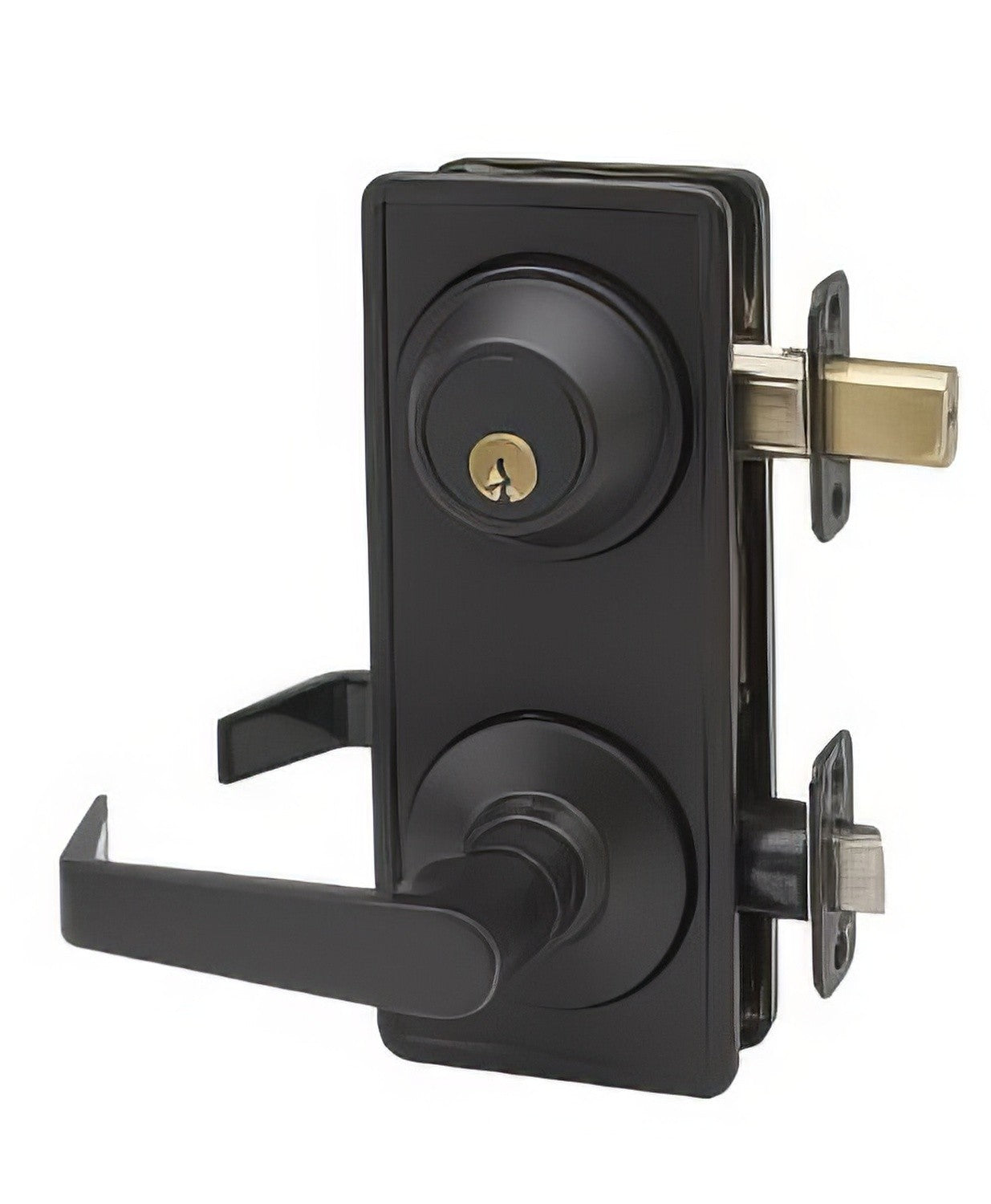

Copper Creek AL6920 Avery Lever Single Cylinder Interconnected Entry Set

The Copper Creek AL6920 Avery is a Grade 2 commercial interconnected entry lockset that combines a lever latch with a keyed single-cylinder deadbolt in one coordinated assembly.

The non-handed lockset fits 1-3/8″ to 1-3/4″ doors with 4″ center-to-center cross bores. It uses a 2-3/8″ standard backset with 2-3/4″ optional and is 3-hour UL listed and ADA compliant. Entry is controlled by the keyed deadbolt, while turning the inside lever retracts the latch and simultaneously unlocks the deadbolt for egress.

Product Details

• Model: AL6920
• Collection: Avery
• Function: Interconnected Entry Lockset
• Performance grade: ANSI/BHMA Grade 2
• Material: zinc
• Locking configuration: one-point interconnected entry
• Deadbolt: keyed single cylinder
• Door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ standard; 2-3/4″ optional
• Cross bores: 2-1/8″ at 4″ center to center
• Edge bore: 1″
• Handing: non-handed
• Fire rating: 3-hour UL listed
• ADA compliant: yes

Compatibility: Confirm the AL6920 interconnected entry function, one-point locking configuration, 4″ center-to-center preparation, backset, latch and strike configuration, keyway, door thickness, and fire-door requirements before ordering.
