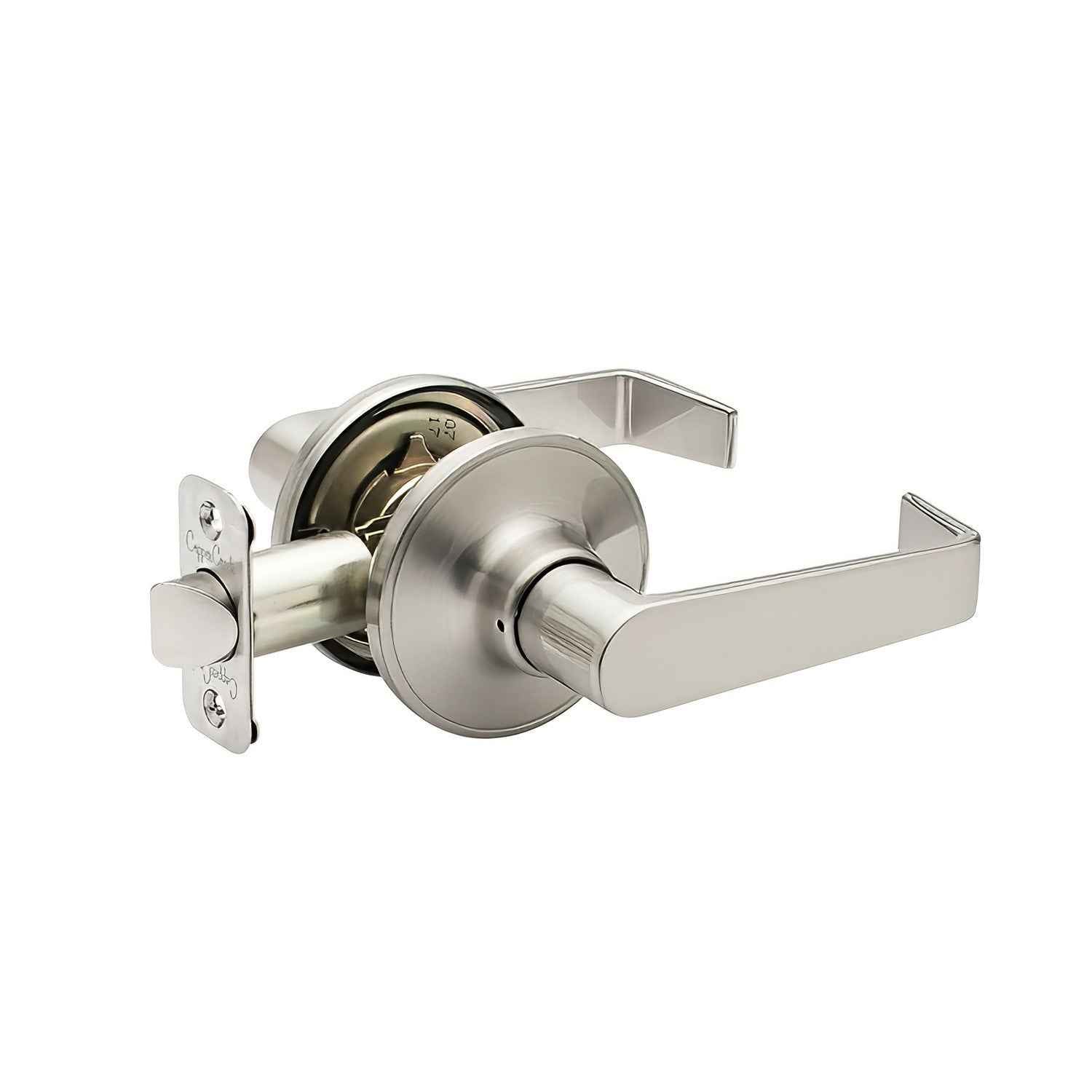

Copper Creek AL1220 Avery Passage Door Lever
Avery Satin Stainless Passage Door Lever
Copper Creek AL1220 Avery Passage Door Lever - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Copper Creek AL1220 Avery is a Grade 3 residential passage door lever with a straight contemporary lever and standard round rose.
Both levers remain free turning, with no locking operation. It is intended for interior doors that need latch operation without privacy or keyed locking.
Product Details
- Model: AL1220
- Design: Avery
- Function: Residential Passage Door Lever
- Configuration: Complete passage lockset with interior and exterior levers, adjustable latch, strike, and mounting hardware.
- Material: zinc
- Performance: ANSI/BHMA Grade 3
- Cycle rating: 200,000 cycles
- Rose: 2-9/16″ standard round rose
- Handing: Non-Handed / Reversible
- Door thickness: 1-3/8″ to 1-3/4″
- Adjustable backset: 2-3/8″ or 2-3/4″
- Cross bore: 2-1/8″
- Edge bore: 1″
- Standard latch faceplate: 1″ round corner
- Standard strike: 2-3/4″ full-lip round-corner strike
Compatibility: Confirm door thickness, 2-1/8″ cross-bore preparation, backset, latch faceplate, strike preparation, and the required lock function before ordering. Square-corner and drive-in latch formats are optional configurations and should not be assumed unless selected.
Additional Copper Creek Information
Copper Creek AL1220 Avery Passage Door Lever Installation Guide
Copper Creek AL1220 Avery Passage Door Lever Specifications
View Copper Creek Manufacturer Warranty
Shop All Copper Creek Products
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight1.5 lb
-
SKU
-
ADA CompliantYes
-
Brand
-
Function
-
Material
-
ANSI Rating
-
Backset2-3/4", 2-3/8"
-
BHMA Certification
-
Bore Hole
-
Collections
-
Country Of Origin
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Latch TypeRound Corner, Drive-In Latch
-
Door Thickness1-3/8" to 1-3/4"
-
Edge Bore
-
Lock Function
-
Shape
-
Style
-
Latch Faceplate
