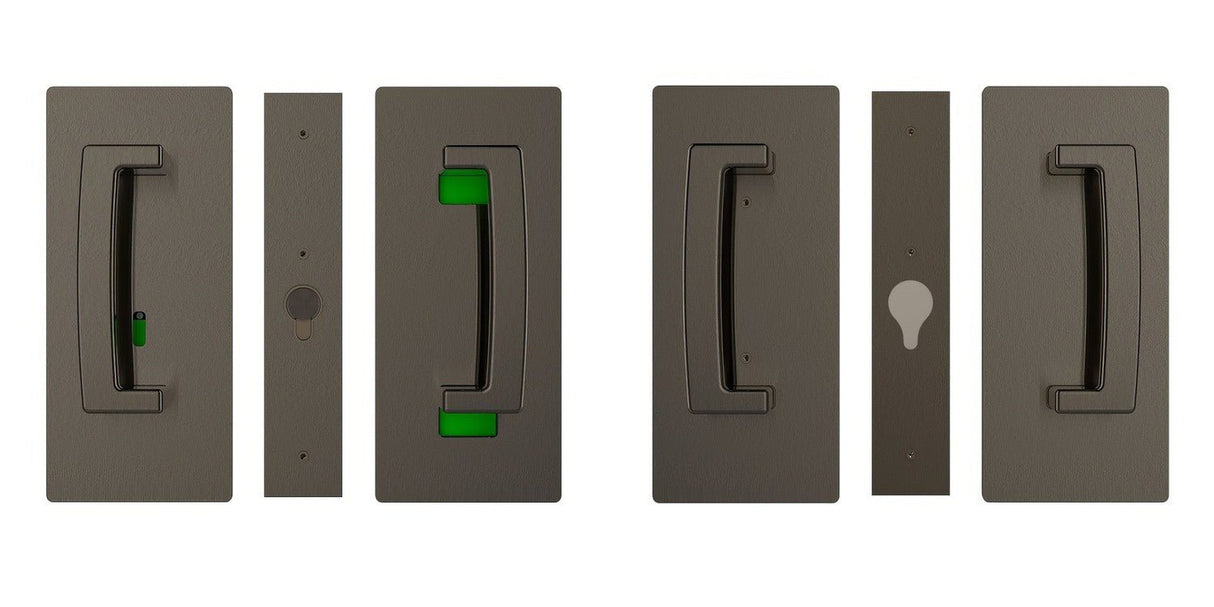

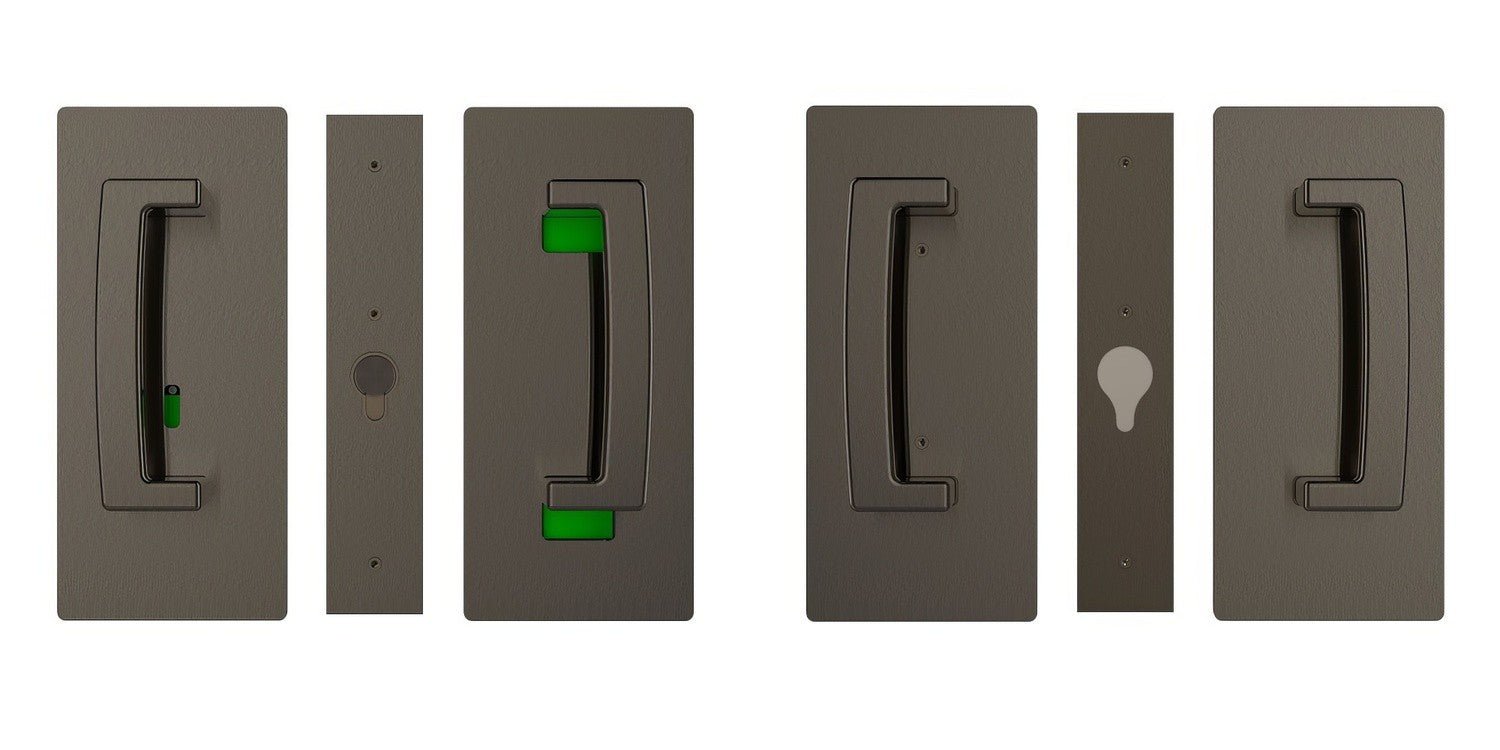

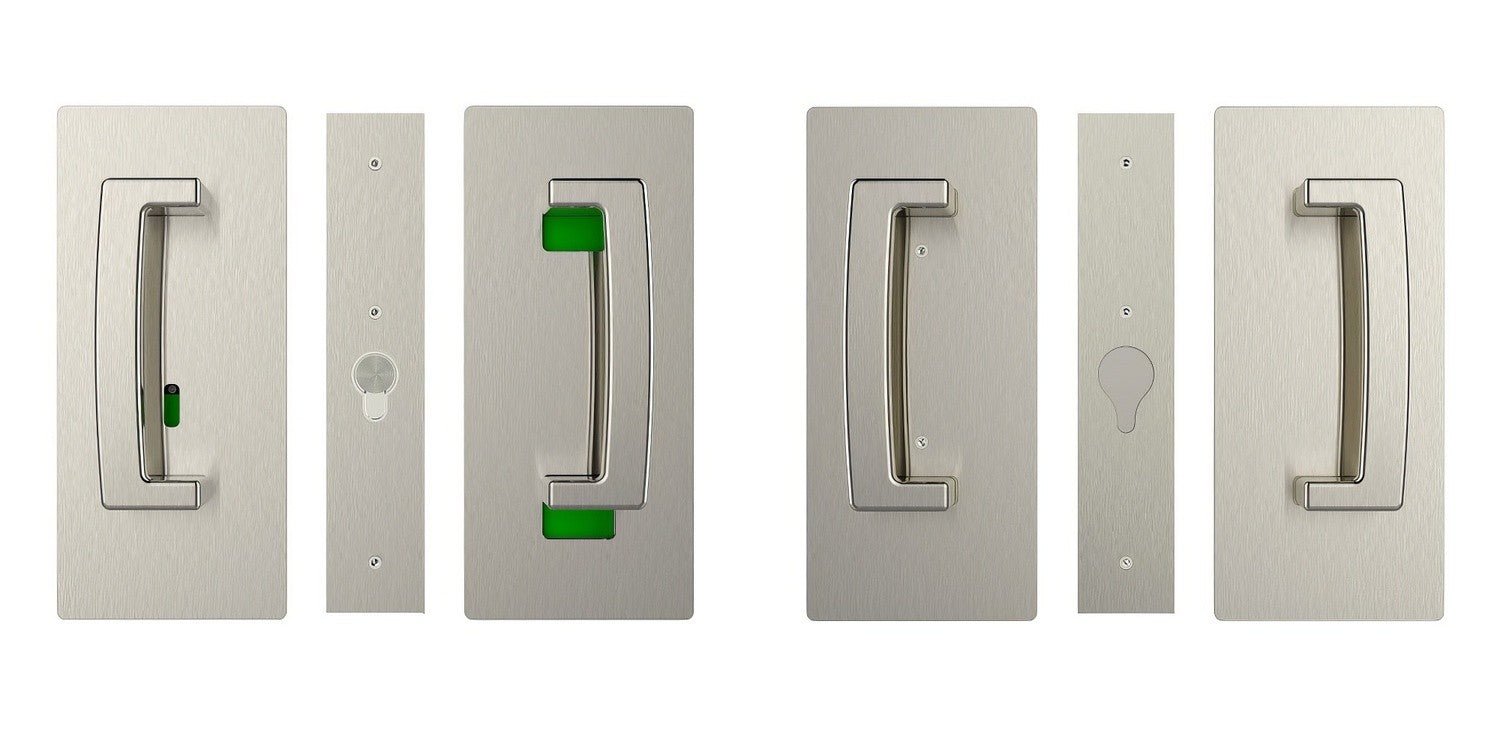

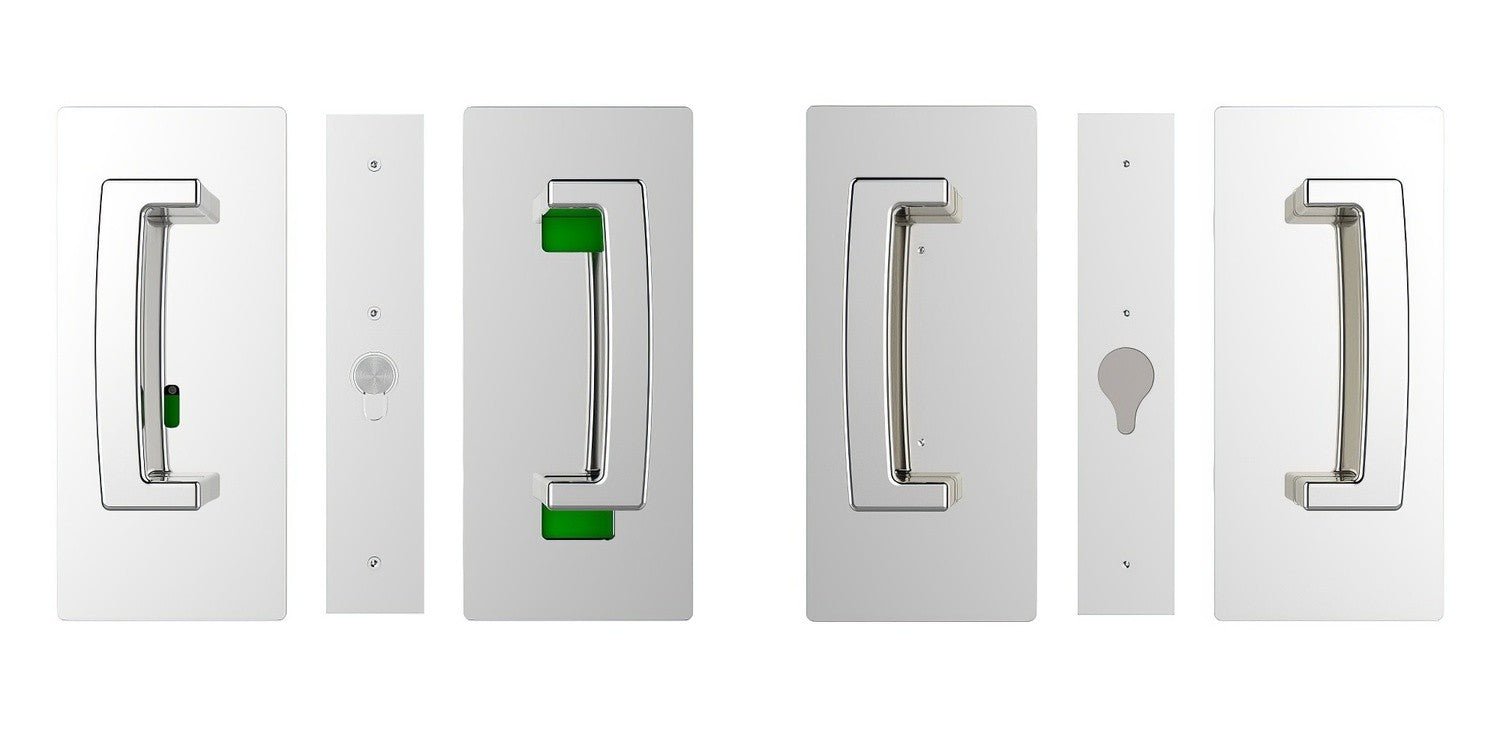

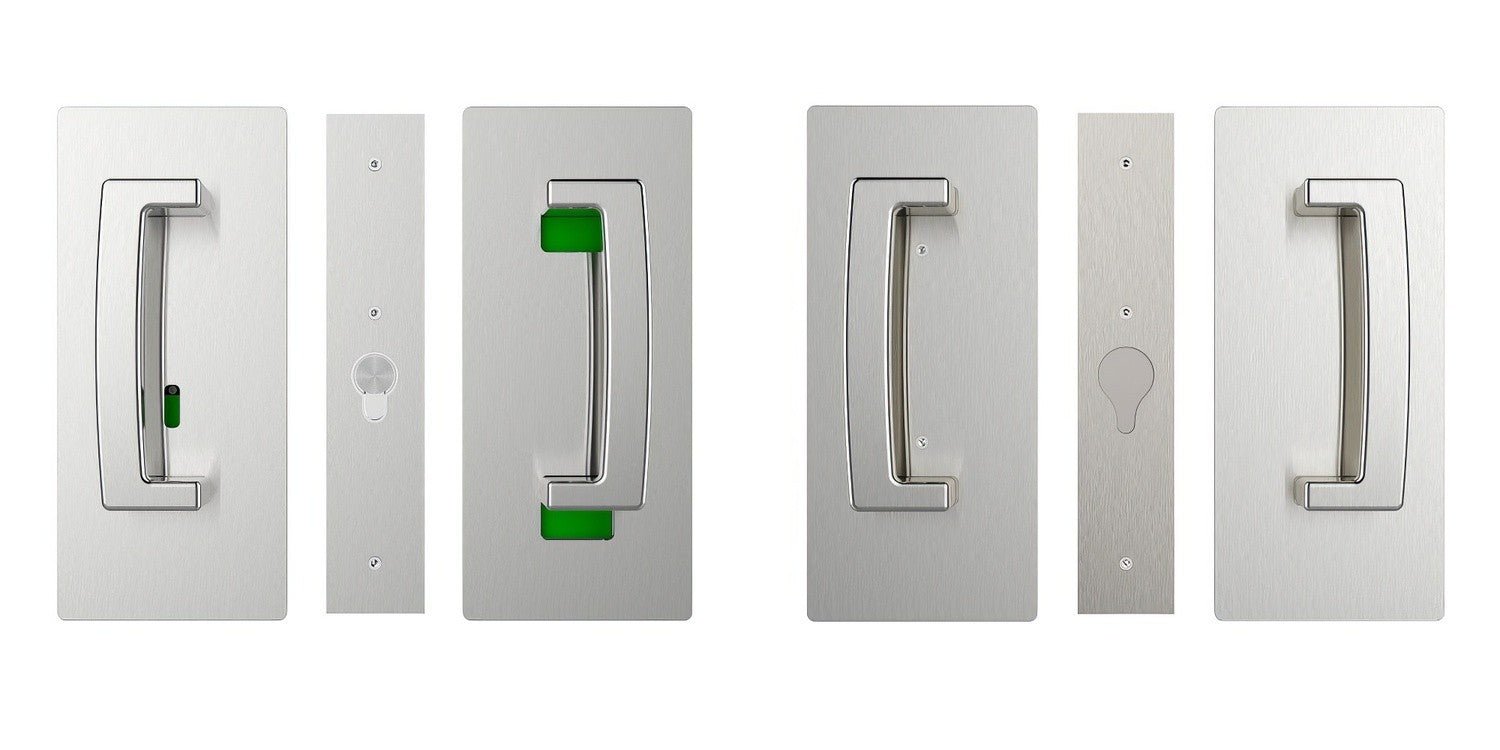

Cavilock CL406D043 1-3/4″ ADA Bi-Parting Privacy Pocket Door Lock Set with Emergency Release

The Cavilock CL406D043 1-3/4″ ADA Bi-Parting Privacy Pocket Door Lock Set with Emergency Release is an ada bi-parting privacy pocket door lock set with emergency release. It is designed for pocket-door applications in the verified configuration shown below.

Use the verified model, function, door thickness, handing, latch configuration, and dimensions to confirm the correct hardware before ordering.

Product Details

• Model: CL406D043
• Product Type: ADA Bi-Parting Privacy Pocket Door Lock Set with Emergency Release
• Function: ADA Bi-Parting Privacy Pocket Door Lock Set with Emergency Release
• Brand: Cavilock
• Series: CL400 ADA
• Application: Pocket Doors
• Door Thickness: 1-3/4″
• Handing: Reversible
• Configuration: Privacy / Emergency Release
• Latch Type: Magnetic Latching
• Number of Doors: 2
• ADA Compliant: Yes
• Height: 7″
• Width: 3-1/4″
• Handle Projection: 1-7/8″
• Material: Brass/Zinc

Additional Cavilock Information

CL406D043 Specification Sheet

CL406D043 Installation Guide

View Cavilock Manufacturer Warranty

Shop All Cavilock Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
