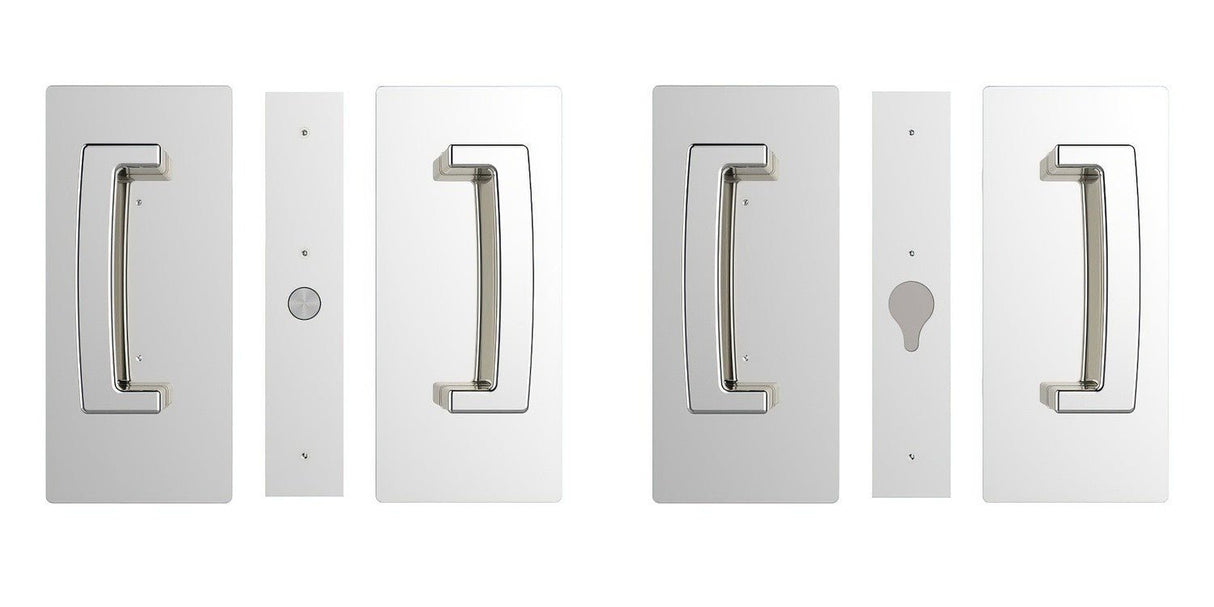

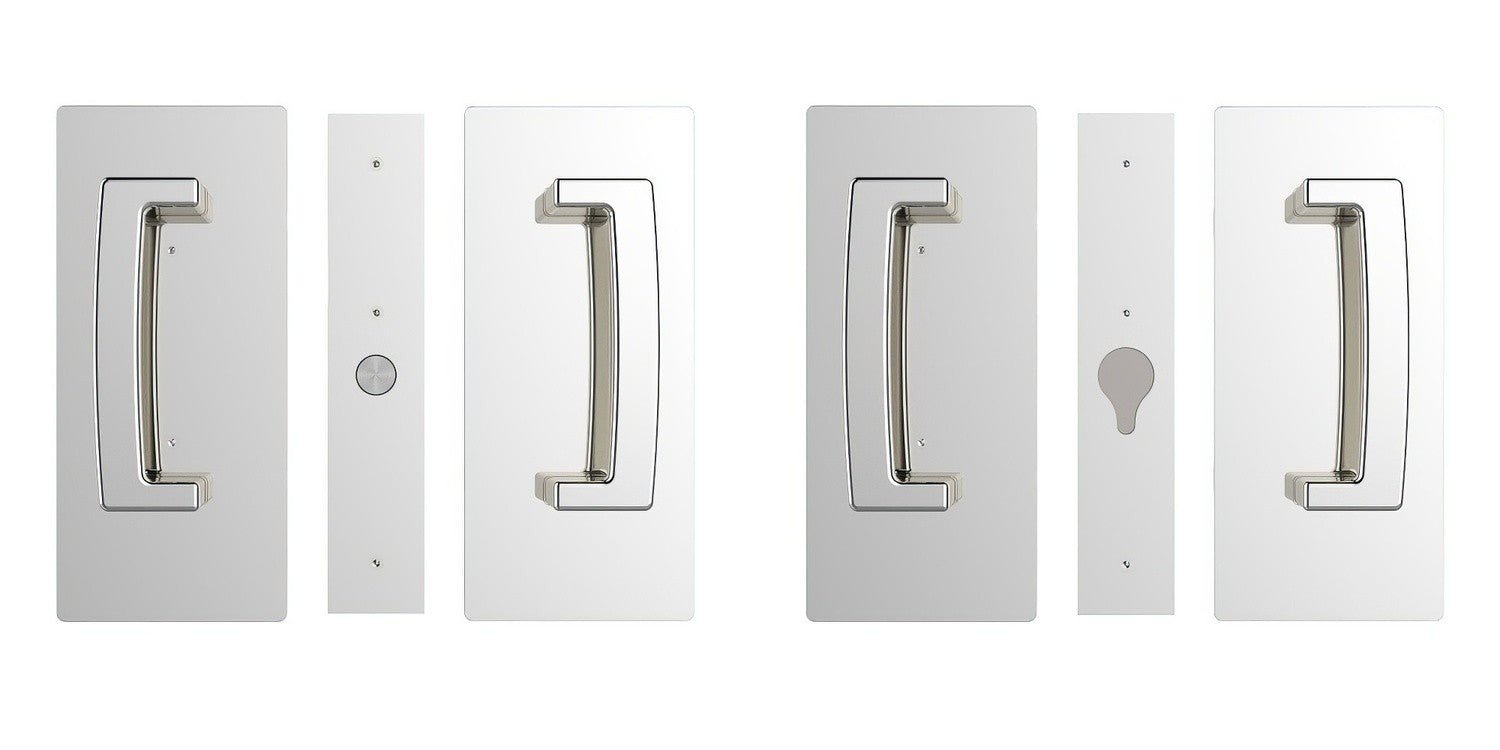

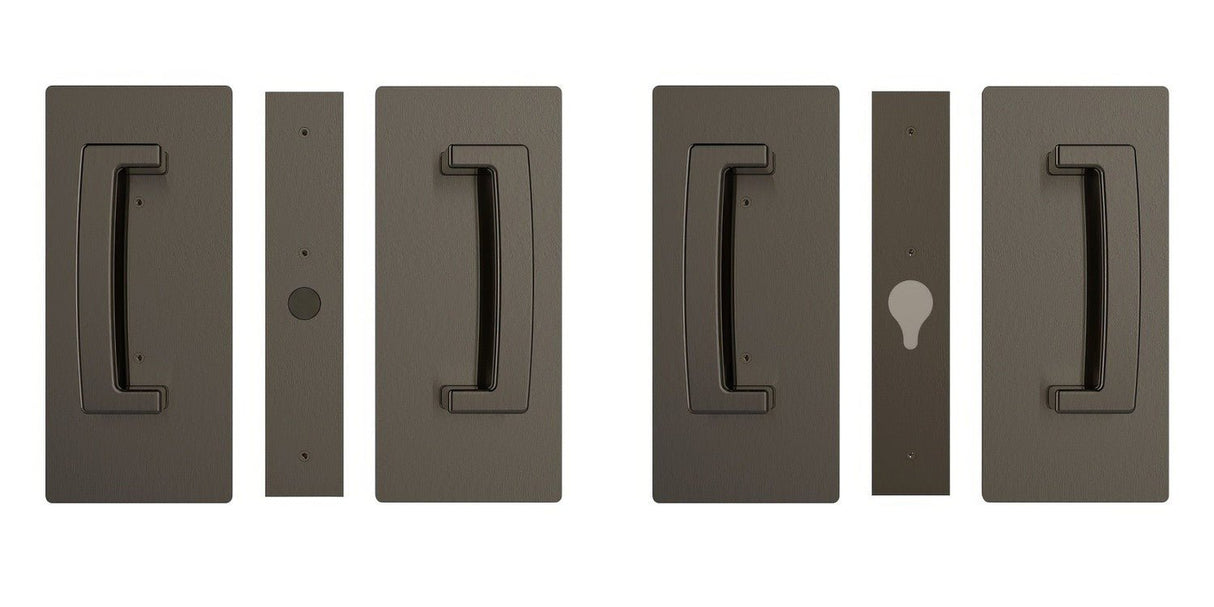

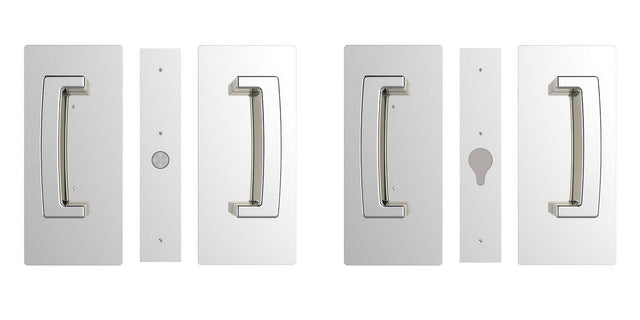

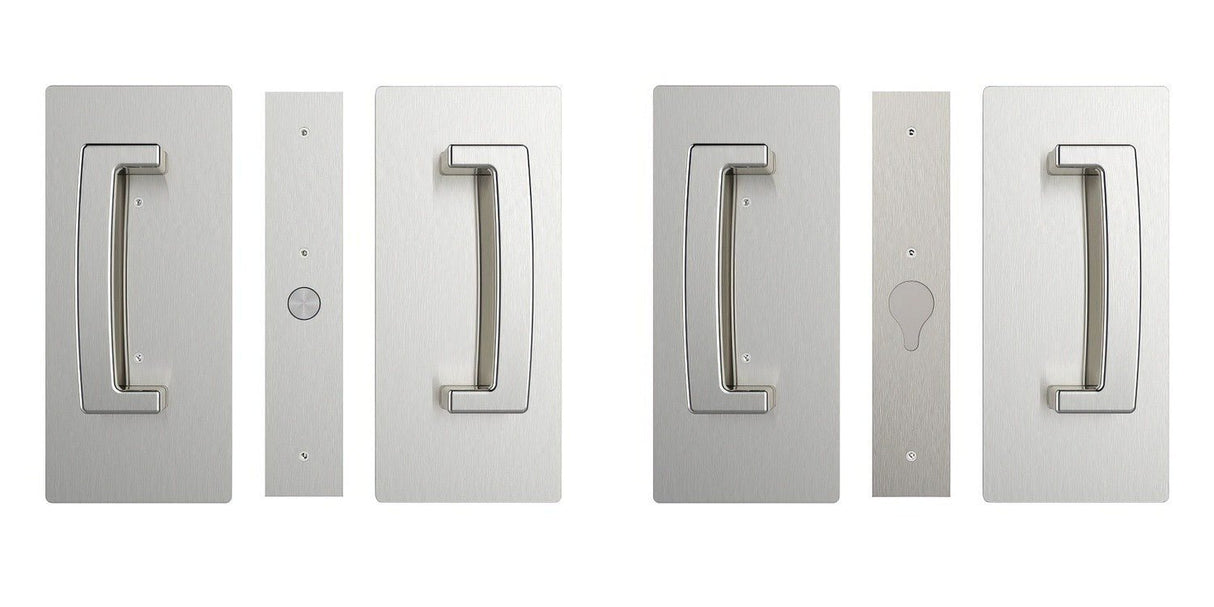

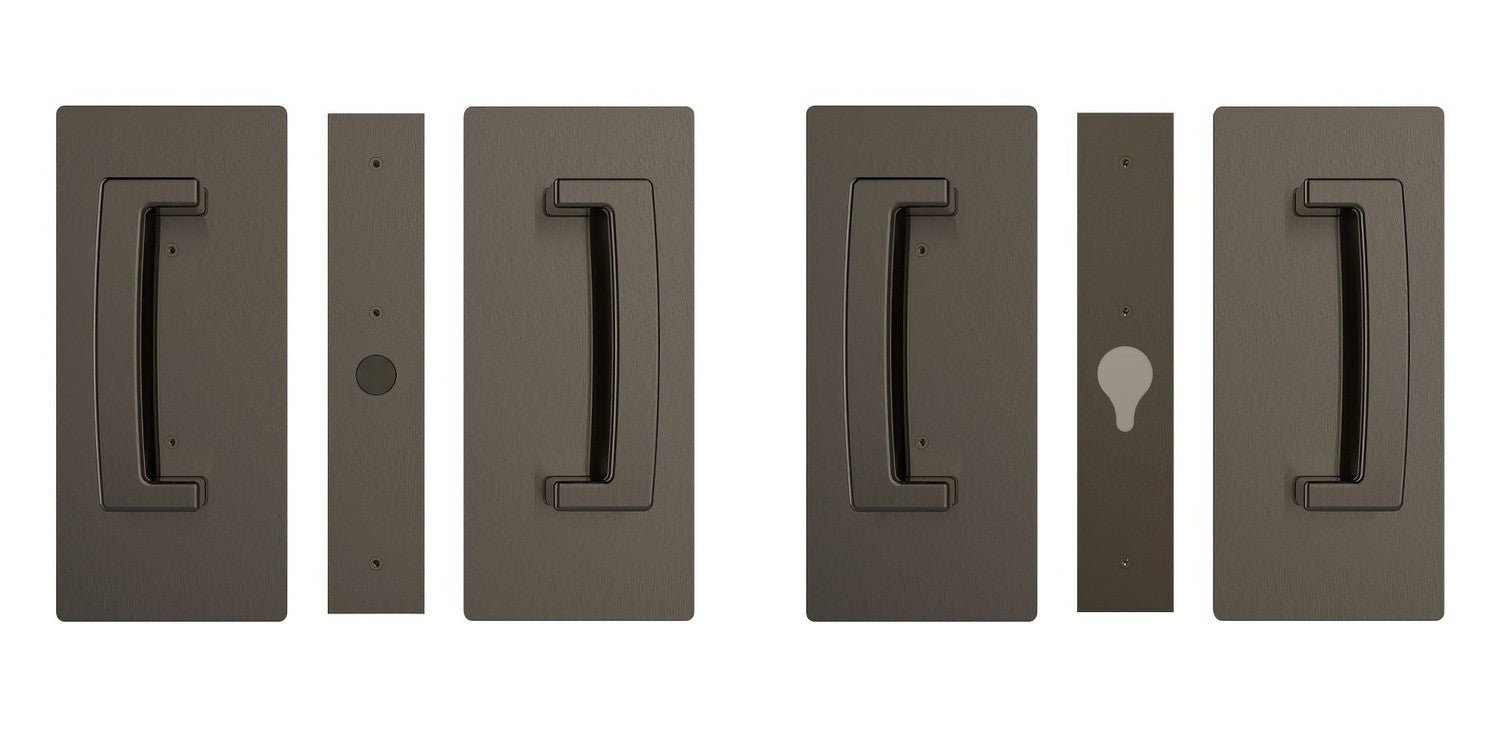

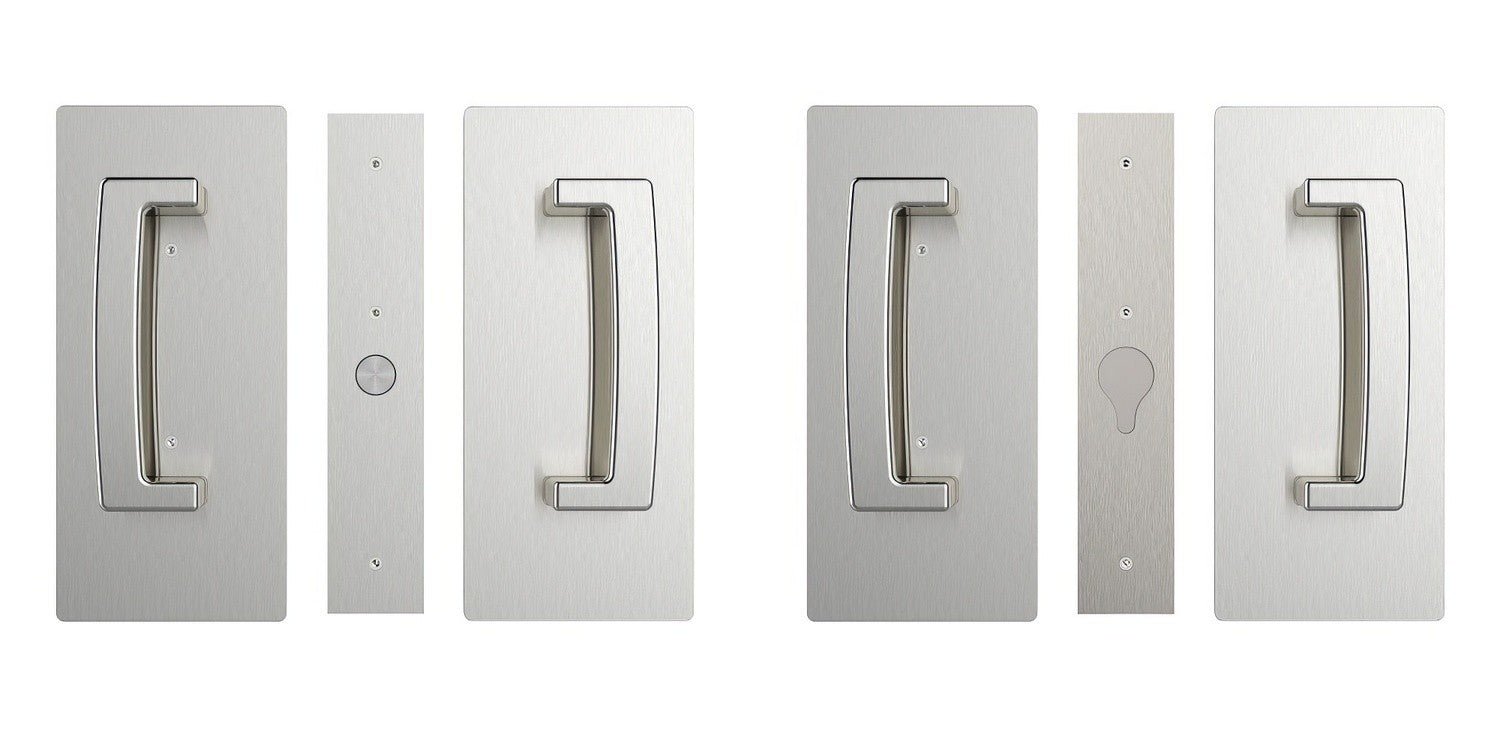

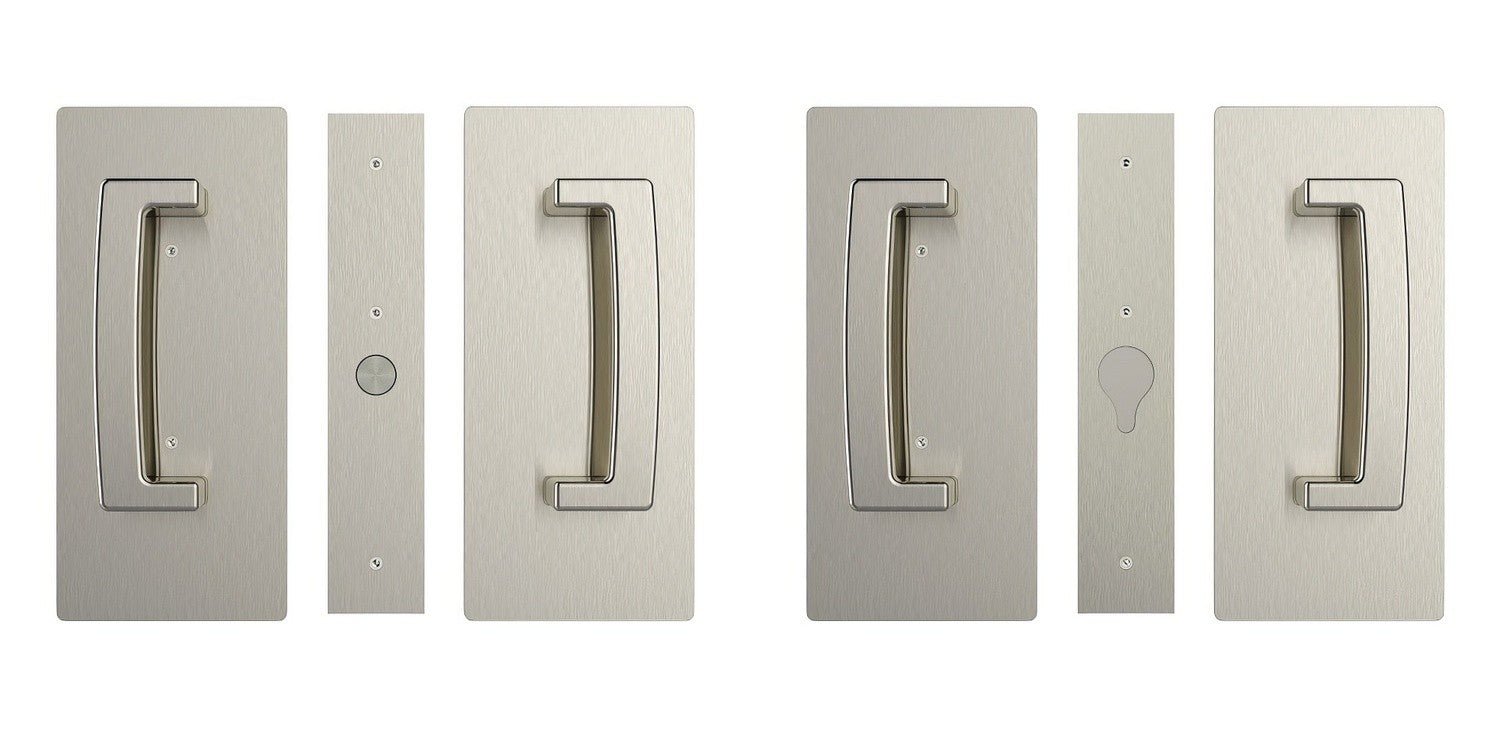

Cavilock CL406D029 1-3/4″ ADA Magnetic-Latching Bi-Parting Passage Pocket Door Set

The Cavilock CL406D029 1-3/4″ ADA Magnetic-Latching Bi-Parting Passage Pocket Door Set is an ada magnetic-latching bi-parting passage pocket door set. It is designed for pocket-door applications in the verified configuration shown below.

Use the verified model, function, door thickness, handing, latch configuration, and dimensions to confirm the correct hardware before ordering.

Product Details

• Model: CL406D029
• Product Type: ADA Magnetic-Latching Bi-Parting Passage Pocket Door Set
• Function: ADA Magnetic-Latching Bi-Parting Passage Pocket Door Set
• Brand: Cavilock
• Series: CL400 ADA
• Application: Pocket Doors
• Door Thickness: 1-3/4″
• Handing: Reversible
• Configuration: Bi-Parting Passage
• Latch Type: Magnetic Latching
• Number of Doors: 2
• ADA Compliant: Yes
• Height: 7″
• Width: 3-1/4″
• Handle Projection: 1-7/8″
• Material: Brass/Zinc
