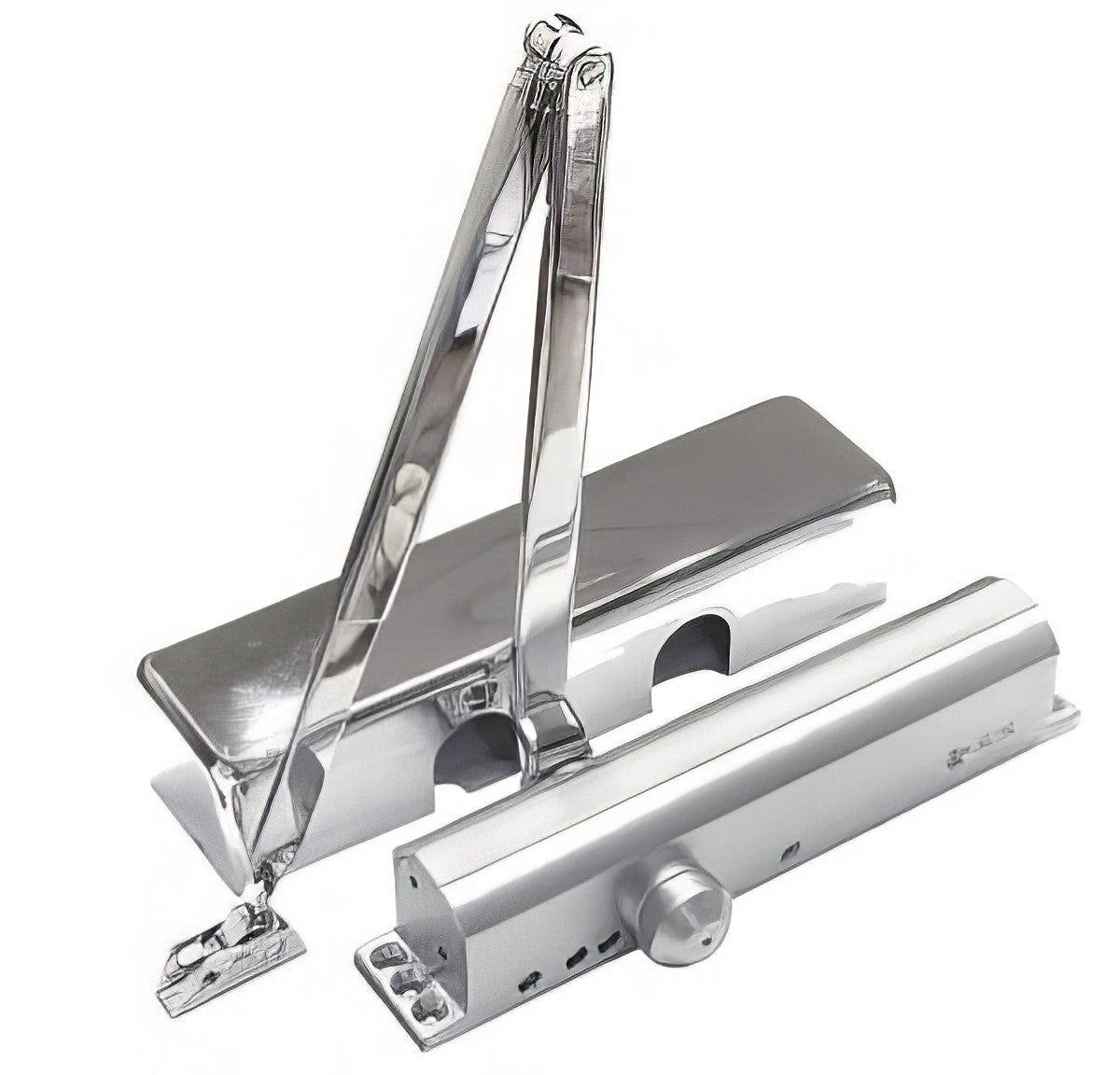

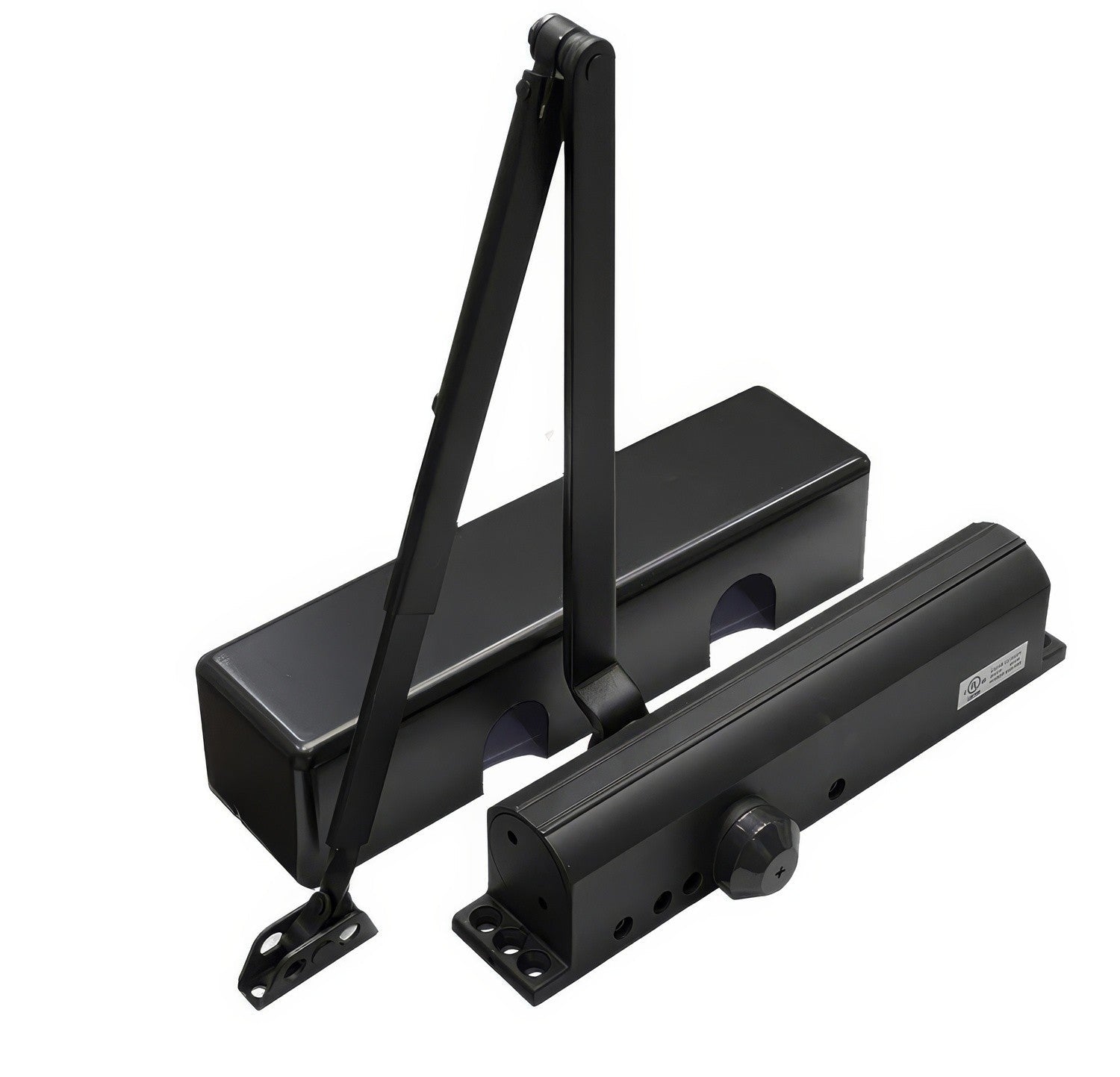

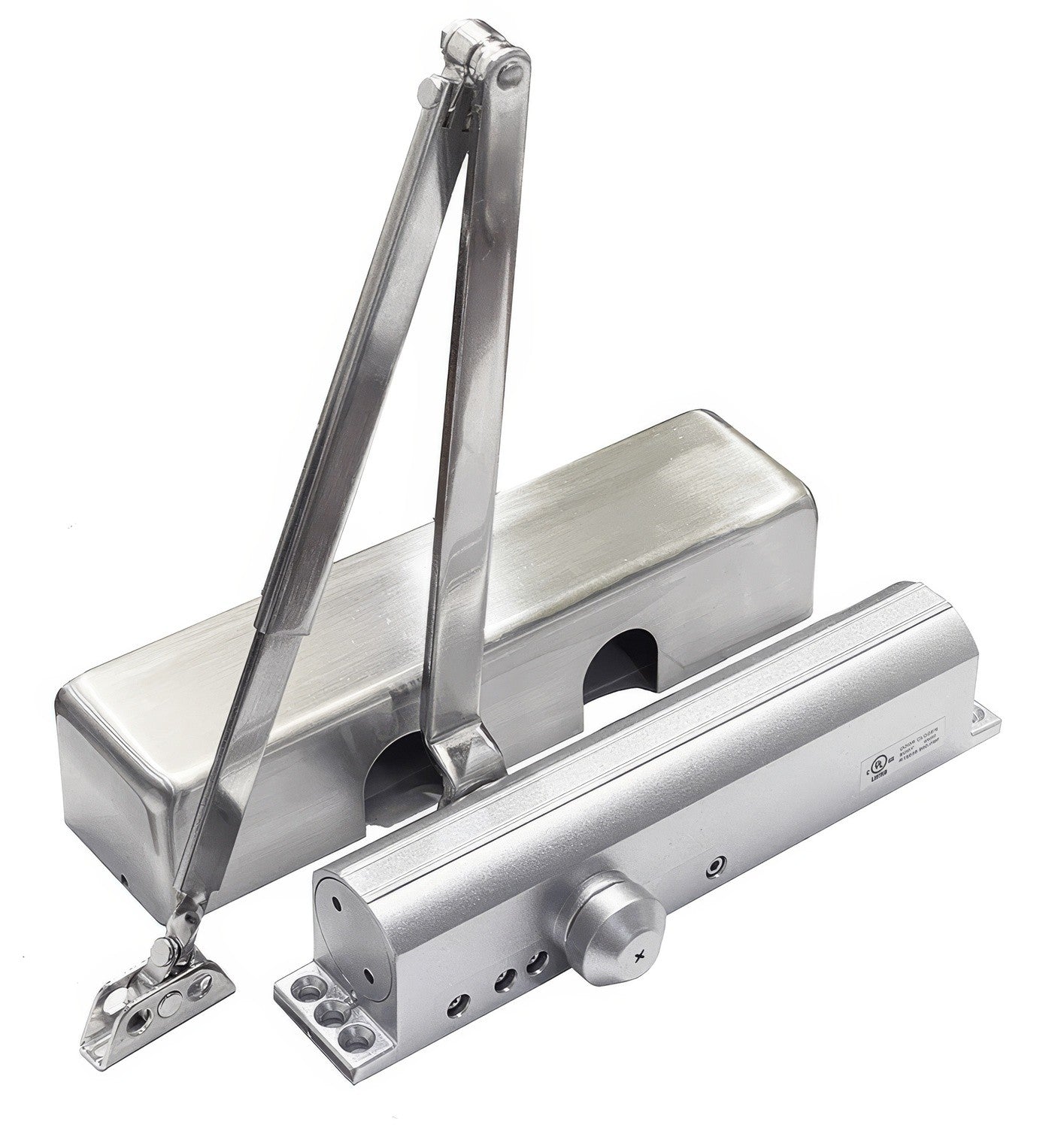

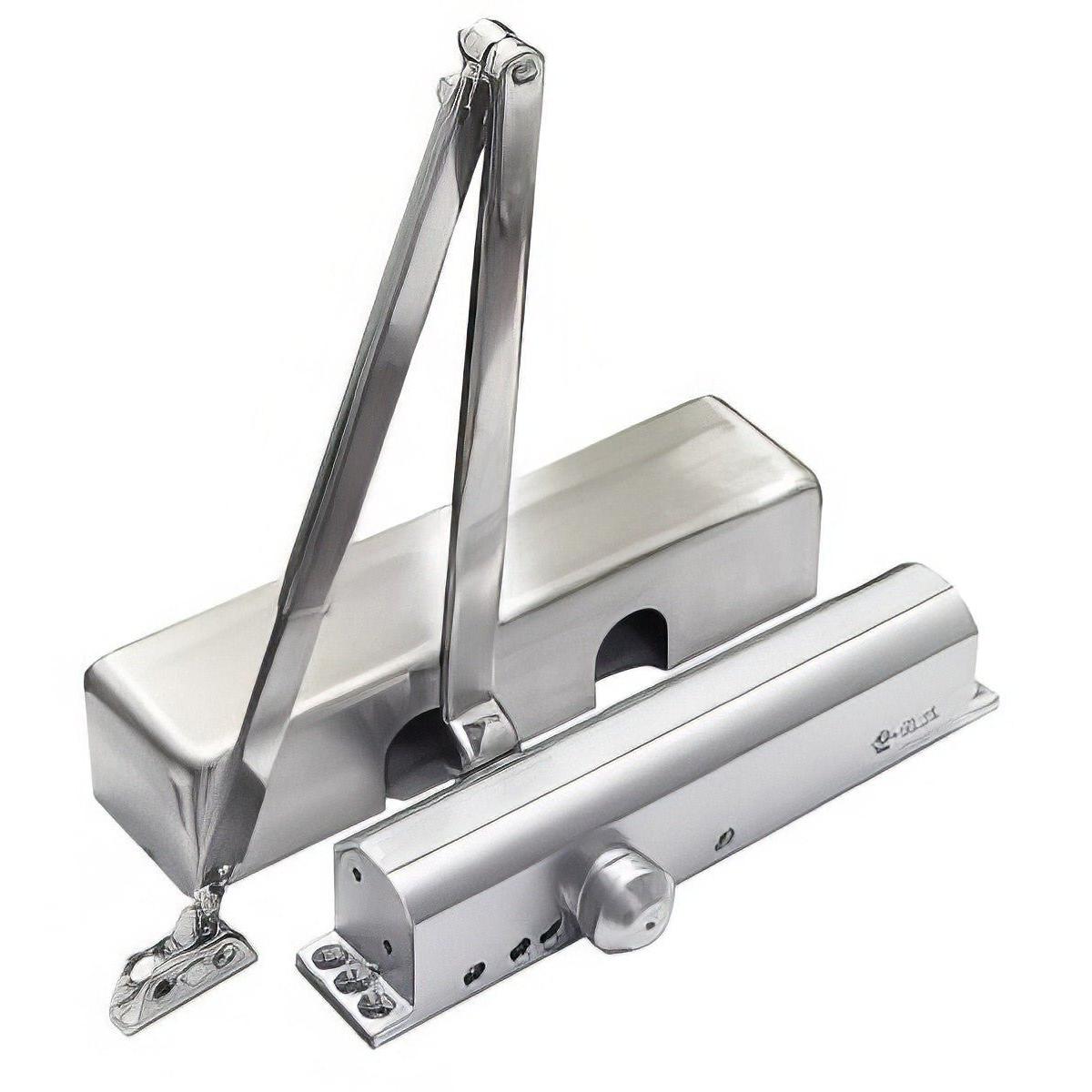

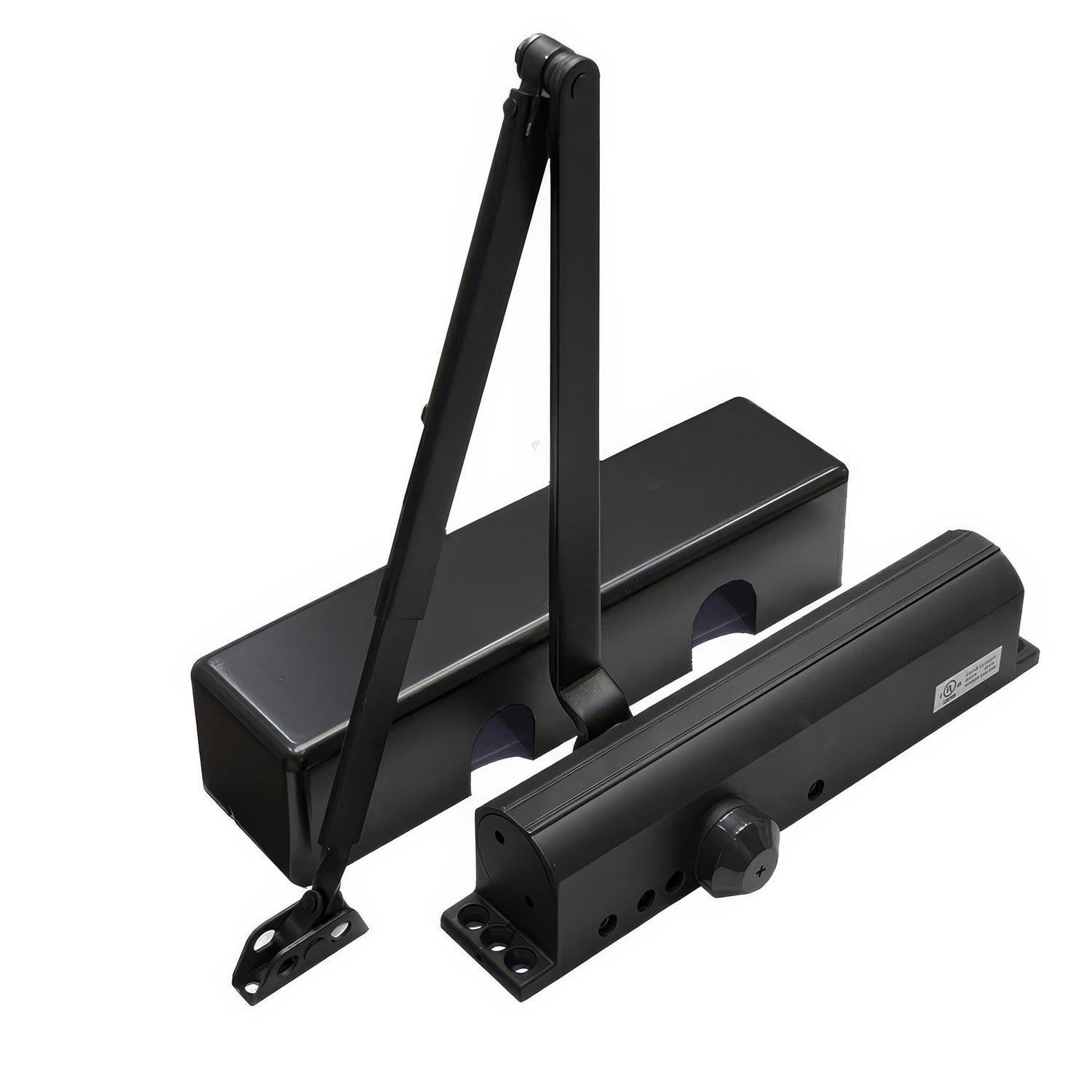

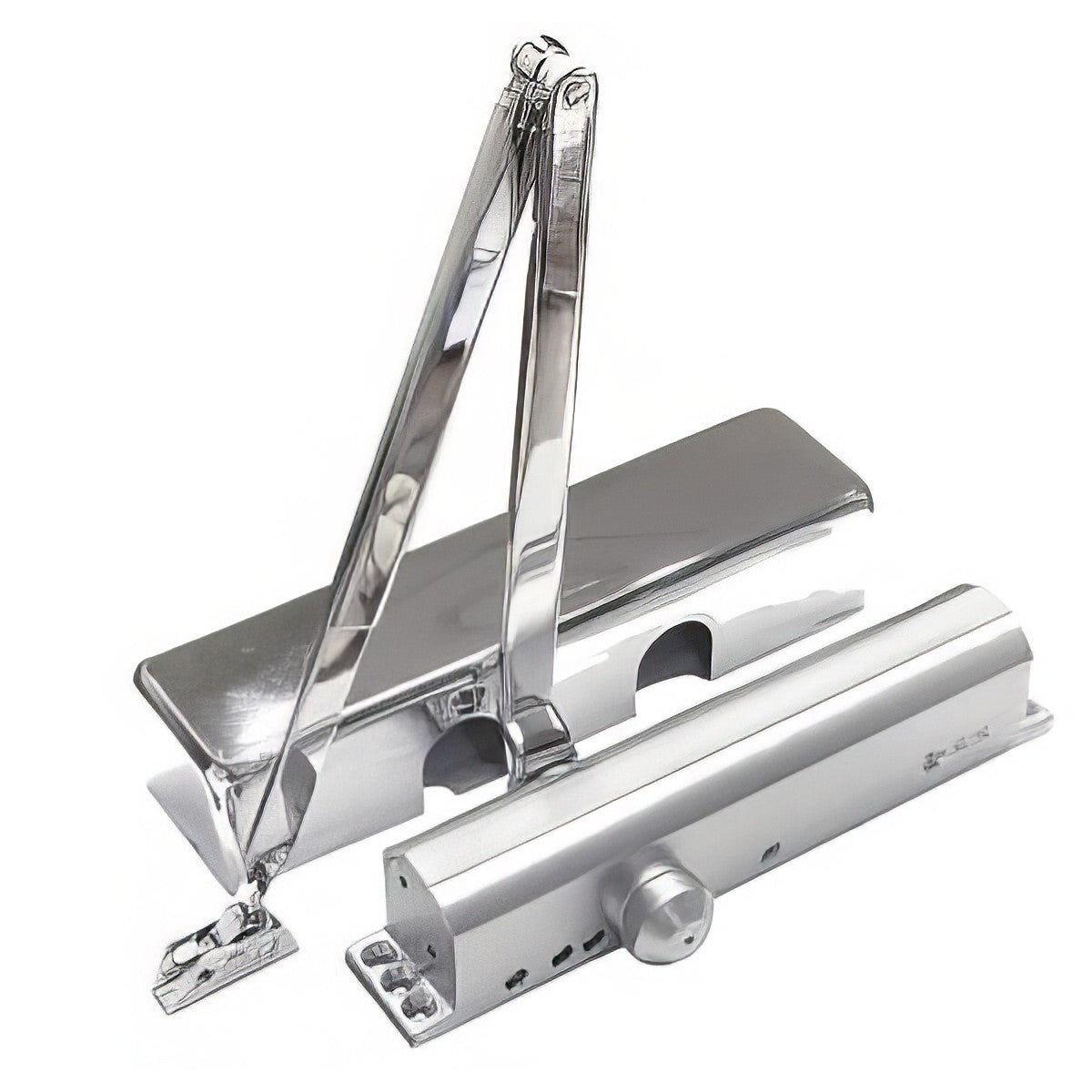

Better Home Products DC316BCDA Delayed Action Door Closer

The Better Home Products 300 Series Grade 1 Size 1–6 Delayed Action Door Closer is a door closer. Verified details include collection: Series 300; performance grade: 1.

• Heavy Duty Full Feature Commercial Door Closer for Commercial and Institutional Application
• Precision Heavy Duty Rack & Pinion Gear
• Needle Bearing
• Adjustable Power Size 1 thru 6
• Factory Preset Power Size 3
• ANSI 156.4 Grade 1. UL 10C
• 3 Hour Fire Rated
• Barrier Free. Lower Opening Resistance for the Handicapped or Elderly
• Full Plastic Cover Standard. SN & CH Finish Metal Cover Optional
• Packed With Full Set of Sex Bolts and Parallel Arm Bracket
• Adjustable Power Size 1 Thru 6 ( Preset Size 3)
• Barrier Free
• Lower Opening Resistance for the Handicapped or Elderly
• Full Plastic Cover Standard
• Packed With Full Set of Sex Bolts and Parallel Arm Bracket
• Universal Application. Non-Handed for Standard, Top Jamb or Parallel Arm Installation
• Standard Adjustable Back-Check Function (BC)
• Standard Adjustable Delayed Action Function (DA)
• Adjustable Closing and Latching Speed by Two Separate Regulating Valves
• Barrier Free
• Meets ADA Regulations
• For Use on Metal, Wood or Fiberglass Doors
• Door Weight Range from 30 - 260 Lbs
• Cross Reference: BHP 300, Cal Royal 900, Norton 8501, Yale 3501, Dorma 8600FC, LCN 1460FC
