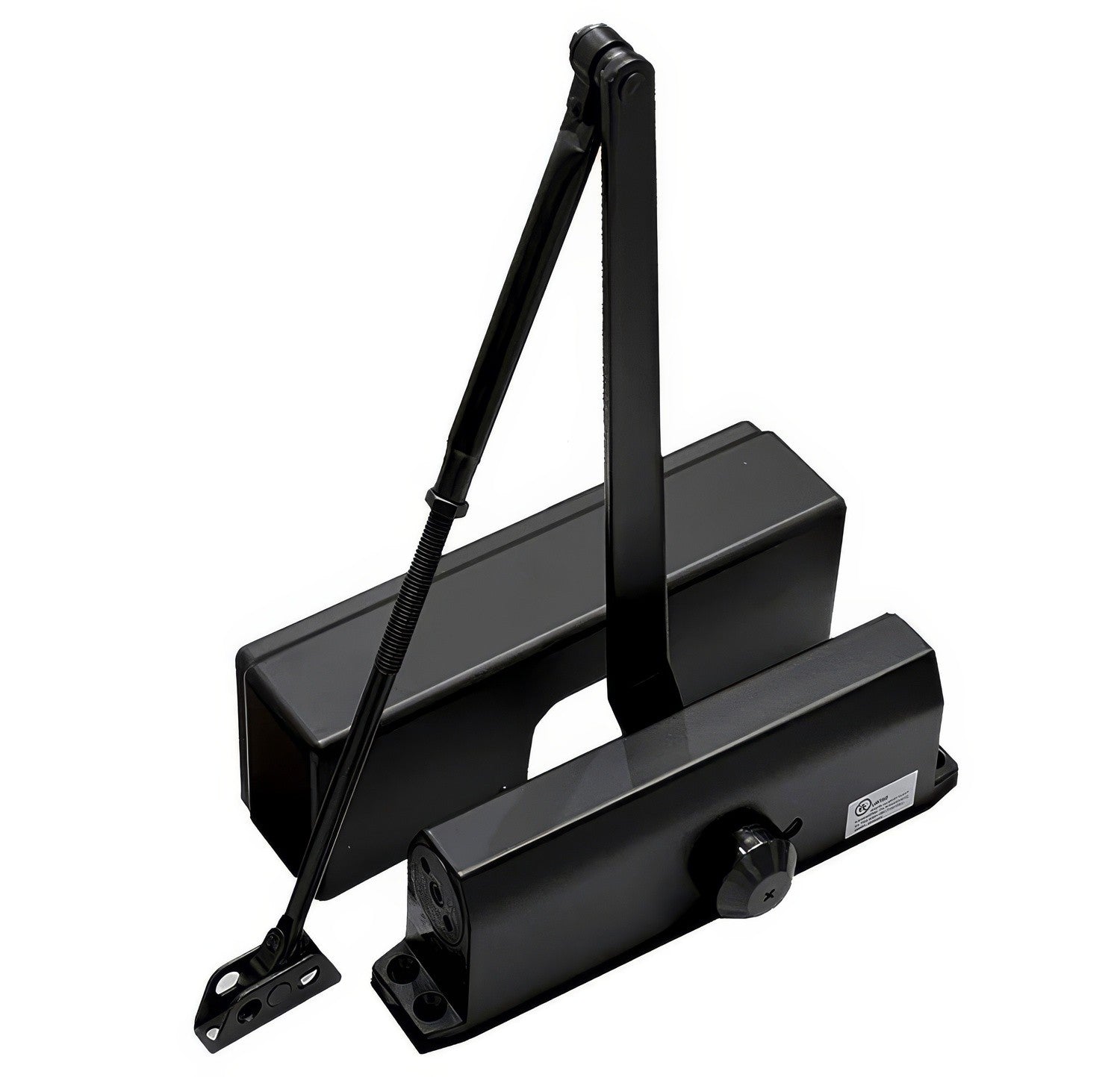

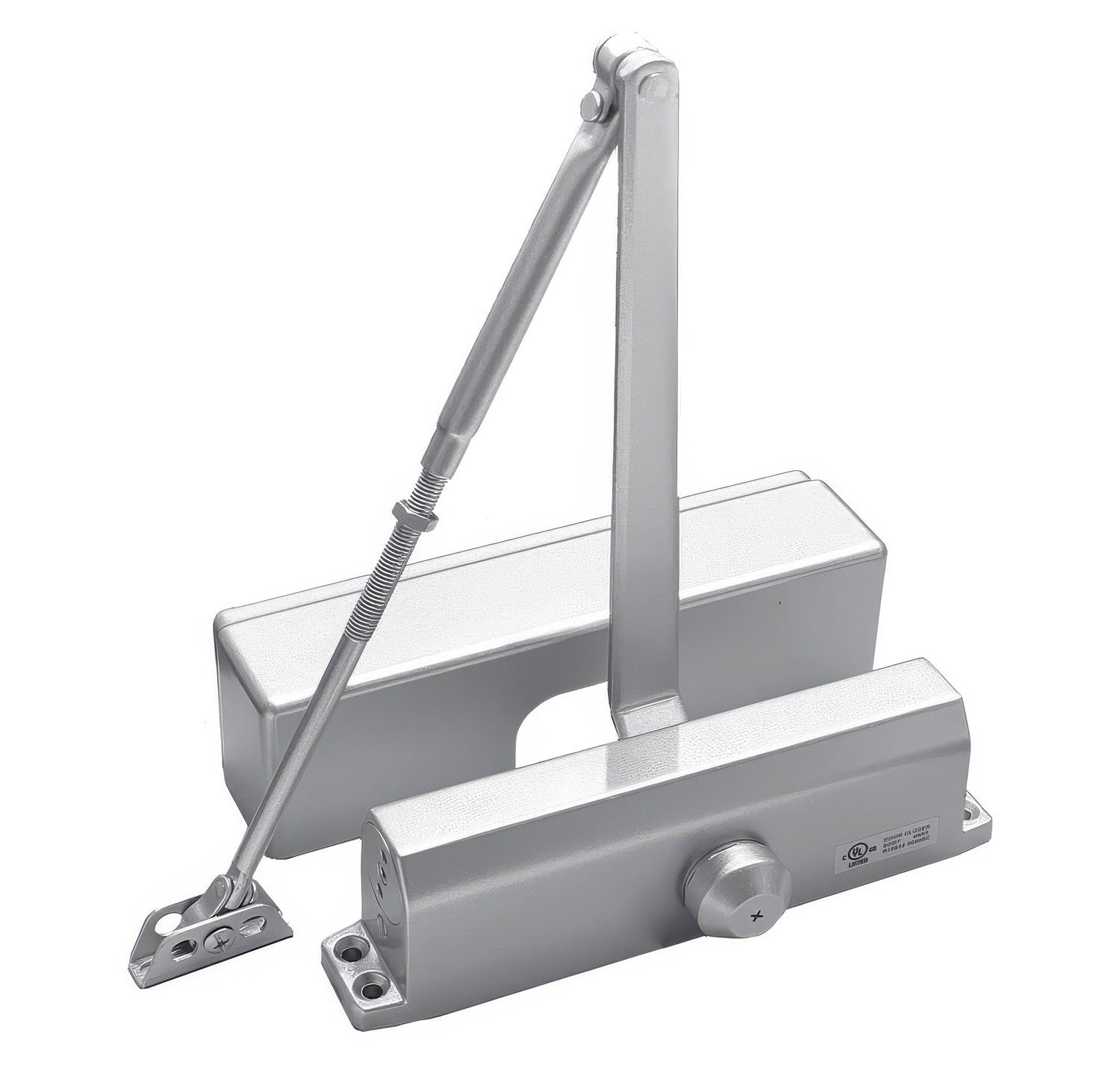

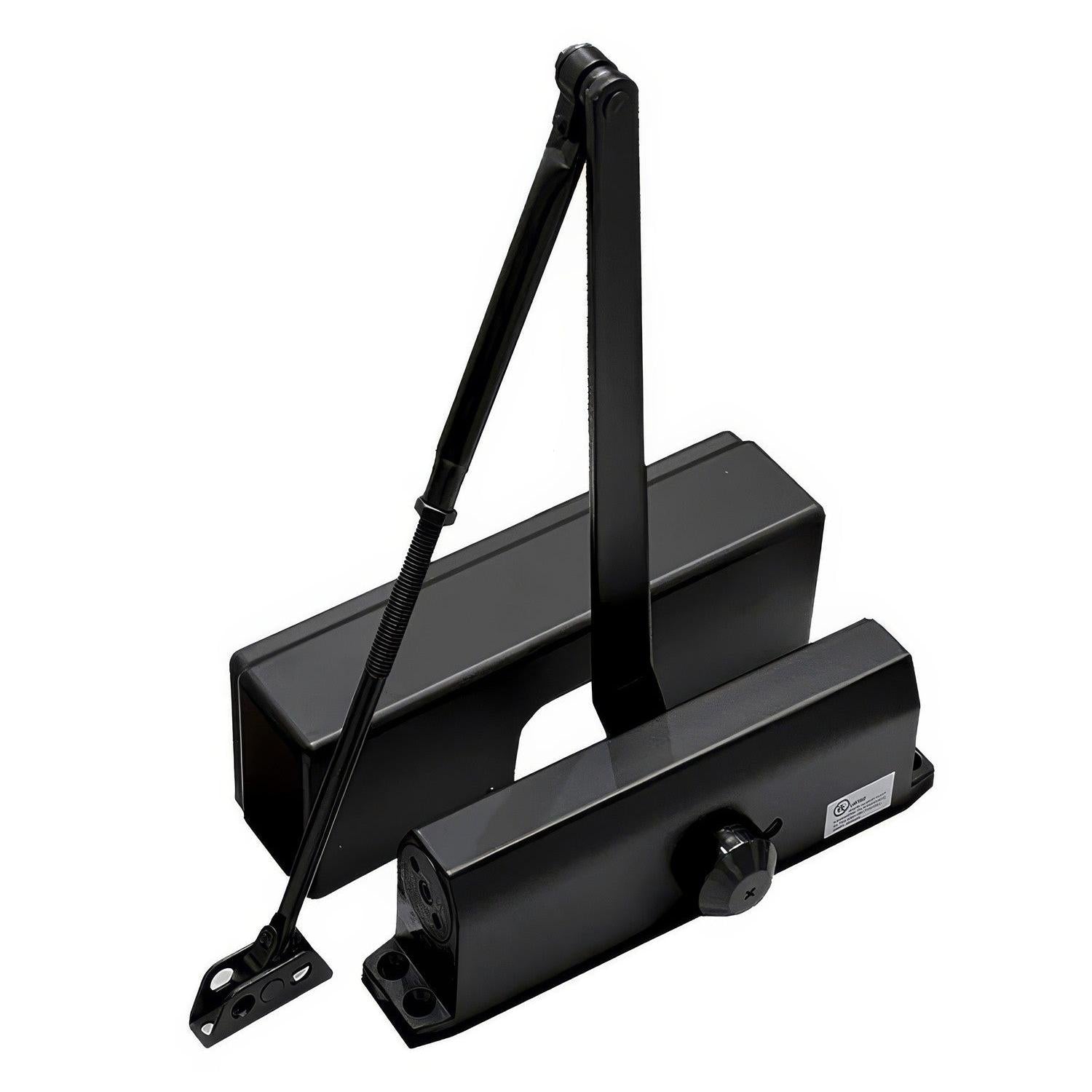

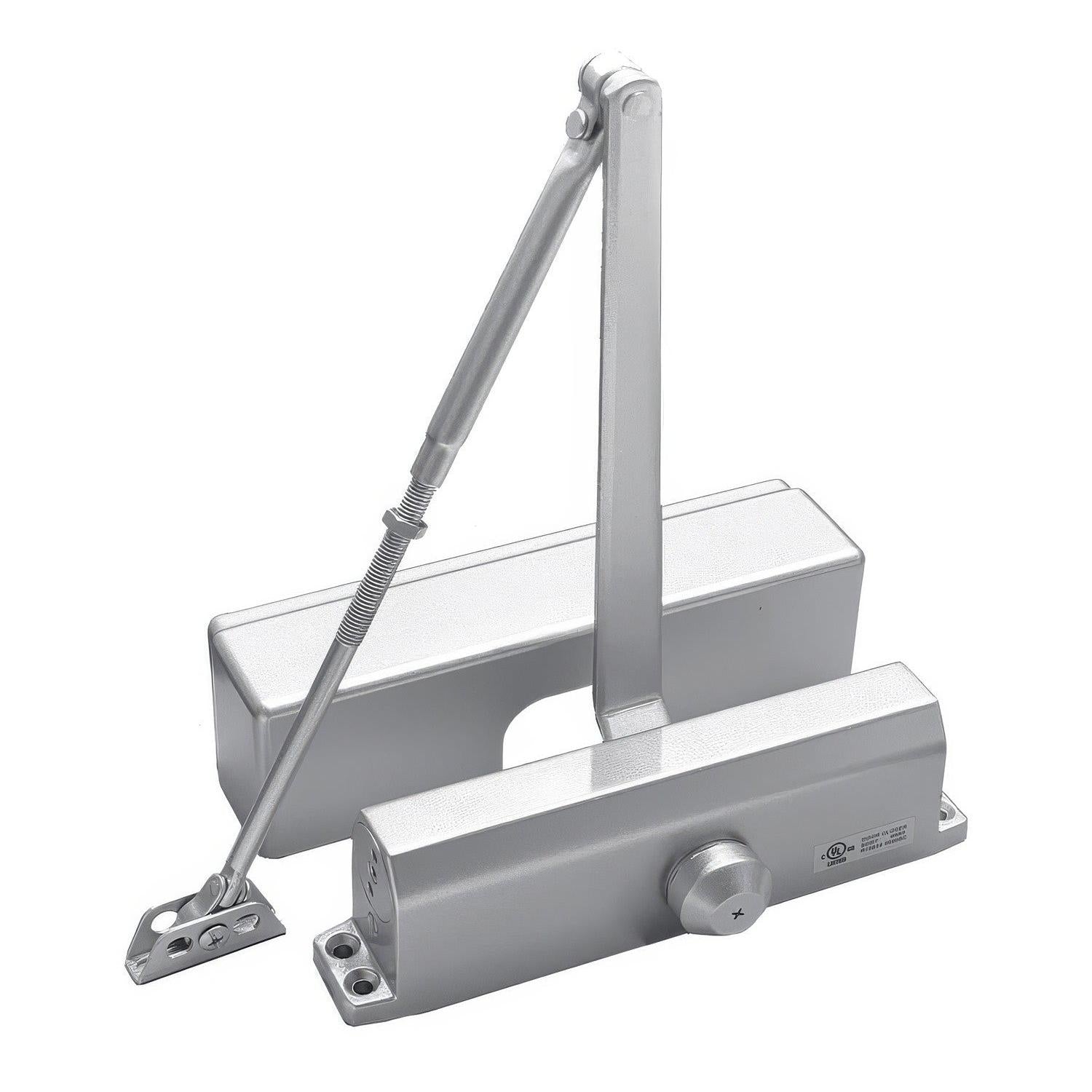

Better Home Products DC236BC Door Closer

BC ADJ Size 3-6 200 Series Door Closer

• Full Feature Mulit Size Commercial Door Closer
• ANSI 156.4 Grade 1
• UL 10C 3 Hour Fire Rated
• ADA Compliant
• Hardened Steel Rack and Pinion Mechanism
• High Tensile Precision Cast Aluminum Housing
• Needle Bearing
• Adjustable Power Size 3 Thru 6 ( Preset Size 1)
• Barrier Free (Power Size 1 thru 4 and 1 thru 6 models)
• Lower Opening Resistance for the Handicapped or Elderly
• Full Plastic Cover Standard
• Packed With Full Set of Sex Bolts and Parallel Arm Bracket
• Universal Application. Non-Handed for Standard, Top Jamb or Parallel Arm Installation
• Optional Delayed Action Function (DA)
• Adjustable Closing and Latching Speed by Two Separate Regulating Valves
• For Use on Metal, Wood or Fiberglass Doors

Product Specifications

• Function: Door Closer
• Parallel Arm Bracket & Sex Bolts Included
• 4 Valves for Closing speed, Latching speed, Back-Check Function, and a Power Adjustment Valve
• Sex Bolts and Parallel Arm Bracket Included
• Latching speed and Back-Check Function
• Door Weight 80-245 lbs
• Max Door Size 54 Inches
• Cross Reference: BHP 200, Cal Royal 300/500, Norton 1600, Yale 50, Sargent 1130, LCN 1070/1370

Additional Better Home Products Information

BHP 200 Series Door Closer Specifications

View Better Home Products Manufacturer Warranty

Shop All Better Home Products
