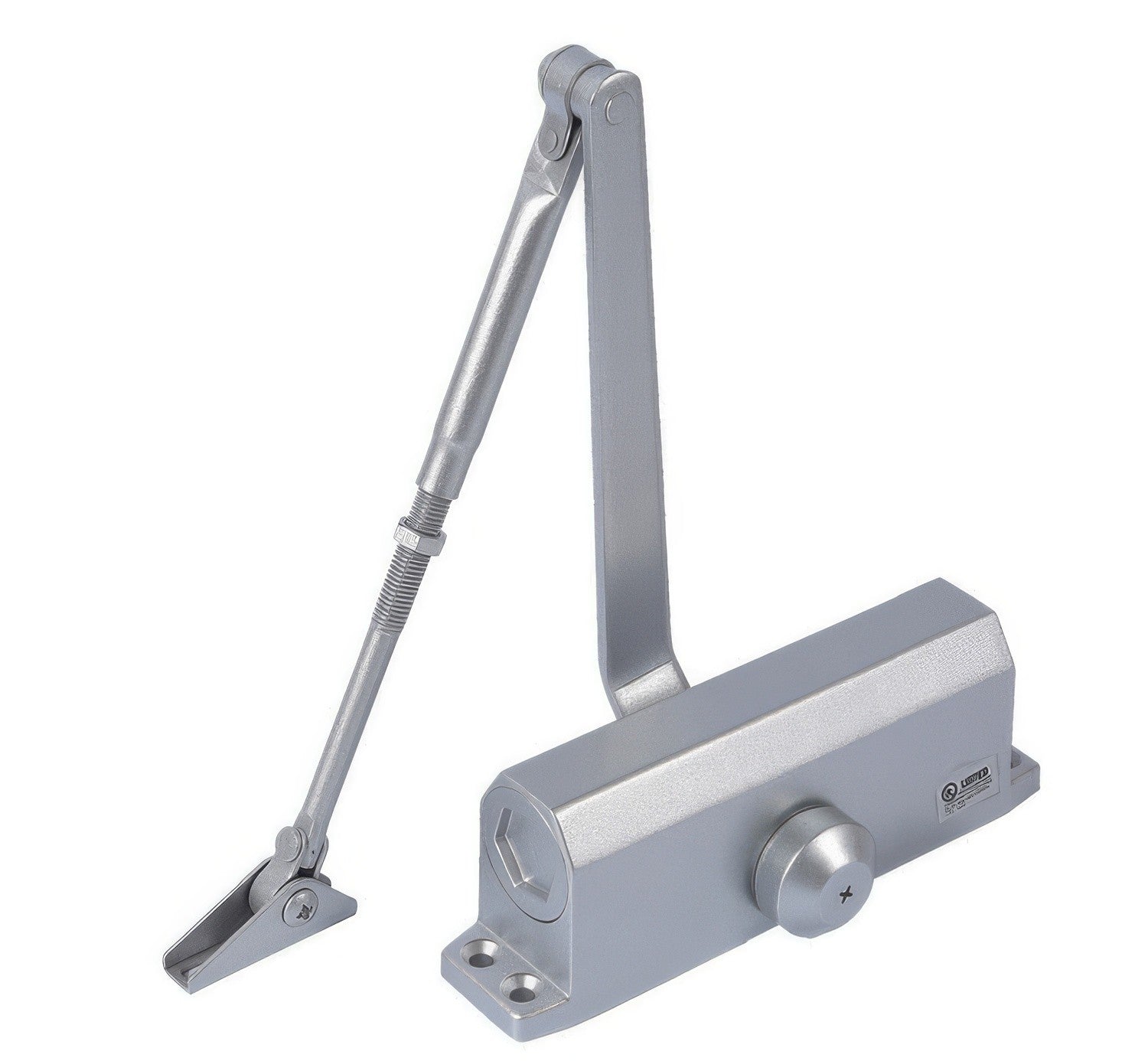

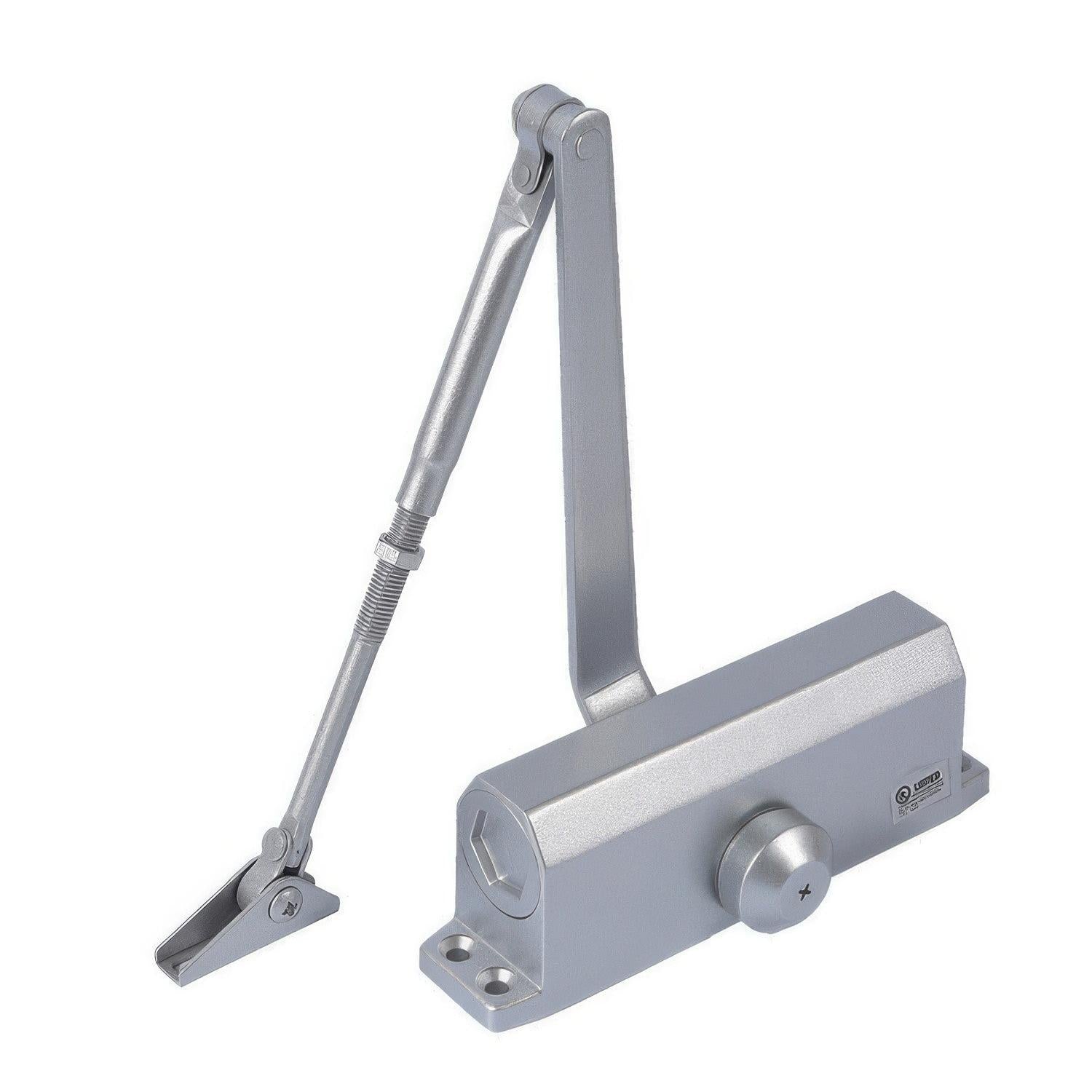

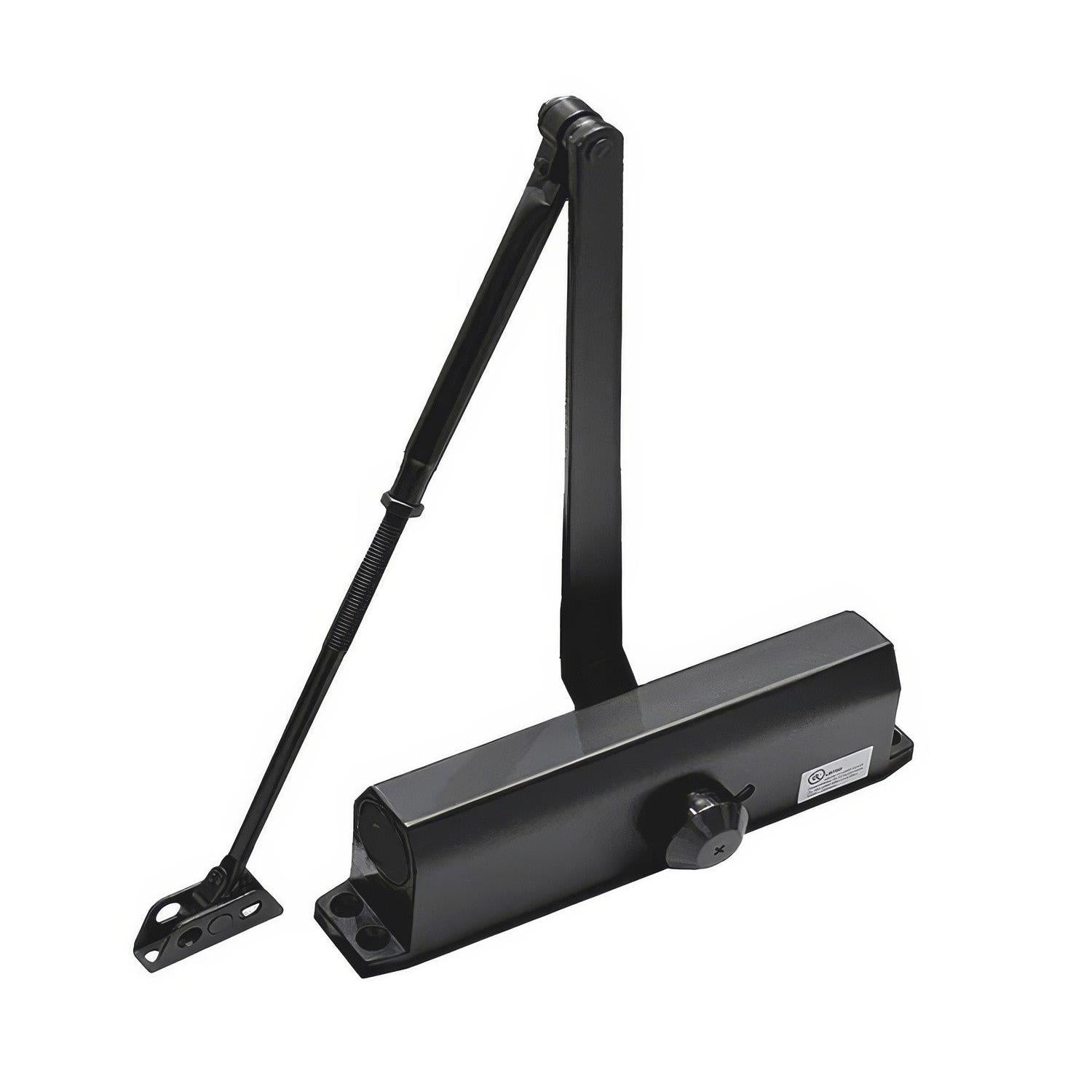

Better Home Products DC102BC Door Closer

BC Size 2 100 Series Door Closer

• ANSI 156.4 Grade 2
• UL 10C 3 Hour Fire Rated
• High Tensile Precision Cast Aluminum Housing
• Hardened Steel Rack and Pinion Mechanism
• Streamlined 9-1/16″ × 3/4″ Mounting Hole
• Fits New Construction Application and Retrofits Traditional Closer
• Metal Screws and Wood Screws Included
• Included. Sex Bolts Optional
• Packed With Parallel Arm Bracket
• Universal Application. Non-Handed for Standard, Top
  Jamb or Parallel Arm Installation
• Standard Adjustable Back-Check Function (BC)
• Adjustable Closing and Latching Speed by Two Separate
  Regulating Valves
• For Use on Metal, Wood or Fiberglass Doors

Product Specifications

• Function: Door Closer
• Parallel Arm Bracket Included
• 3 Valves for Closing speed
• Latching speed and Back-Check Function
• Door Weight 35-100 lbs
• Max Door Size 36 Inches
• Cross Reference: BHP 100, Cal Royal 400, Norton 1600, Yale 50, Droma TS77 & MA200, LCN 1050
