Baldwin SCRSD4 SC.RSD Rustic Square Keyed Entry Single Cylinder Deadbolt

SC.RSD Rustic Square Keyed Entry Single Cylinder Deadbolt

$114.80 USD $164.00

Shipping calculated at checkout.

Select Finish:

Product variants

Select Keying Option

Keyed Alike

Keyed Different

Select Cylinder

Standard C Keyway Cylinder

SmartKey Re-Key Technology Cylinder

Keying Option

The Baldwin SCRSD4 is a single-cylinder deadbolt designed for exterior doors requiring keyed access outside and interior thumbturn operation. The model and product title identify the exact configuration being offered.

Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.

Model: SCRSD4
Function: Single Cylinder Deadbolt
Material: Brass
Collection: Reserve
Series: Rustic Square
Backset: Adjustable 2-3/8 in to 2-3/4 in
Door Thickness: 1-3/4 in to 2-1/2 in
Cross Bore: 2-1/8 in
Edge Bore: 1 in
Latch Faceplate: Round Corner / Square Corner / Drive-In

Additional Baldwin Information

Baldwin Hardware SC.RSD Specification

Baldwin Hardware SC.RSD Installation Instruction

Baldwin Hardware SC.RSD Drilling Instructions

View Baldwin Manufacturer Warranty

Shop All Baldwin Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Weight

3.0 lb
SKU

SC.RSD
Brand

Baldwin
Function

Single Cylinder
Material

Brass
Product Class

Residential
Backset

Adjustable 2-3/8" or 2-3/4"
Cylinder

5-pin C Keyway, SmartKey 5 Pin (Optional)
Collections

Reserve
Configuration

Deadbolt
Keying Option

Keyed Alike, Keyed Different
Door Thickness

1-3/4" / 1-7/8" / 2" / 2-1/2" / 2-1/4" / 2-1/8" / 2-3/8"
Edge Bore

1"
Latch Faceplate

Round Corner, Square Corner, Drive-In
Series

Rustic Square
Cross Bore

2-1/8"
Projection

1-7/16"
Theme

Country / Rustic
Height

3.625"

Available in 2 Finish

This product is listed under the following manufacturer numbers.

SKU	Finish	Price

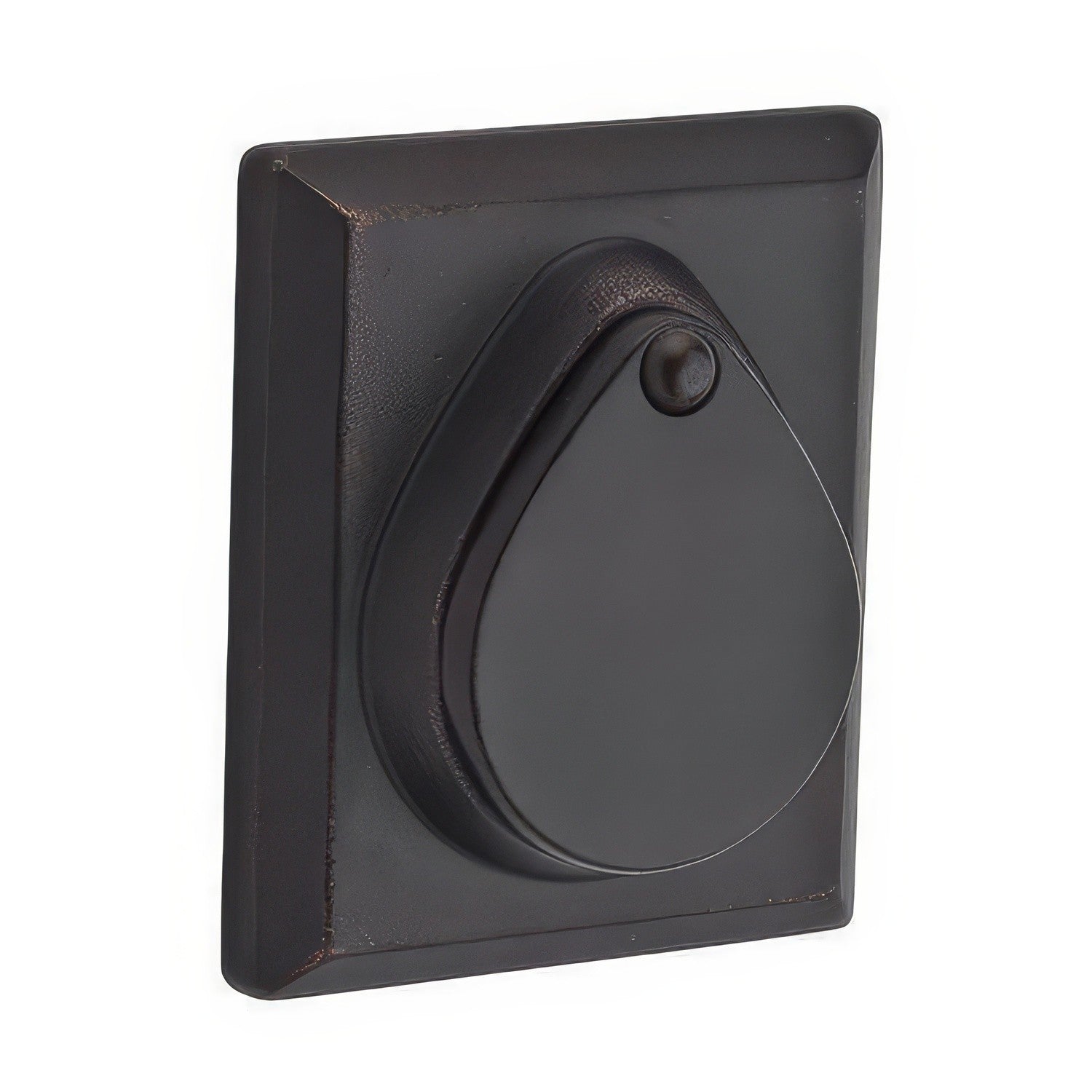

SCRSD481	Dark Bronze	$114.80 USD

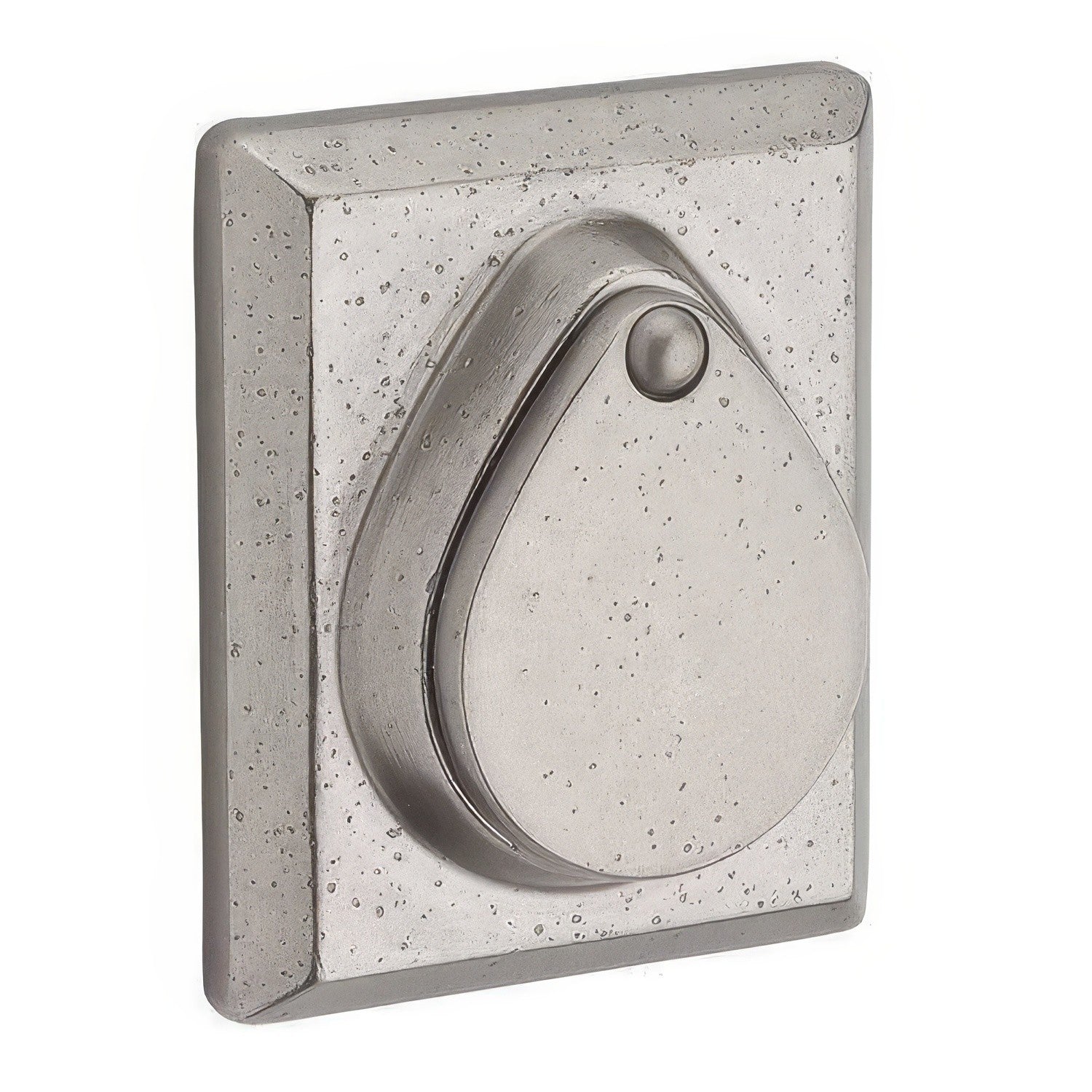

SCRSD492	White Bronze	$114.80 USD

Description

Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.
