Baldwin DC.CRD Contemporary Round Keyed Entry Double Cylinder Deadbolt

DC.CRD Contemporary Round Keyed Entry Double Cylinder Deadbolt

$107.80 USD $154.00

Shipping calculated at checkout.

Select Finish:

Product variants

Select Keying Option

Keyed Alike

Keyed Different

Select Cylinder

Standard C Keyway Cylinder

SmartKey Re-Key Technology Cylinder

Keying Option

The Baldwin DC.CRD is a double-cylinder deadbolt designed for exterior doors requiring keyed operation on both sides. The model and product title identify the exact configuration being offered.

Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.

Model: DC.CRD
Function: Double Cylinder Deadbolt
Material: Brass
Collection: Reserve
Series: Contemporary Round
Backset: Adjustable 2-3/8 in to 2-3/4 in
Door Thickness: 1-3/4 in to 2-1/2 in
Cross Bore: 2-1/8 in
Edge Bore: 1 in
Latch Faceplate: Round Corner / Square Corner / Drive-In

Additional Baldwin Information

Baldwin Hardware DC.CRD Specification

Baldwin Hardware DC.CRD Installation Instruction

Baldwin Hardware DC.CRD Drilling Instructions

View Baldwin Manufacturer Warranty

Shop All Baldwin Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Weight

3.0 lb
SKU

DC.CRD
Brand

Baldwin
Function

Double Cylinder
Material

Brass
Product Class

Residential
Backset

Adjustable 2-3/8" or 2-3/4"
Cylinder

5-pin C Keyway, SmartKey 5 Pin (Optional)
Collections

Reserve
Configuration

Deadbolt
Keying Option

Keyed Alike, Keyed Different
Door Thickness

1-3/4" / 1-7/8" / 2" / 2-1/2" / 2-1/4" / 2-1/8" / 2-3/8"
Edge Bore

1"
Latch Faceplate

Round Corner, Square Corner, Drive-In
Series

Contemporary Round
Cross Bore

2-1/8"
Projection

3/4"
Theme

Contemporary / Modern
Height

2.625"

Available in 3 Finish

This product is listed under the following manufacturer numbers.

SKU	Finish	Price

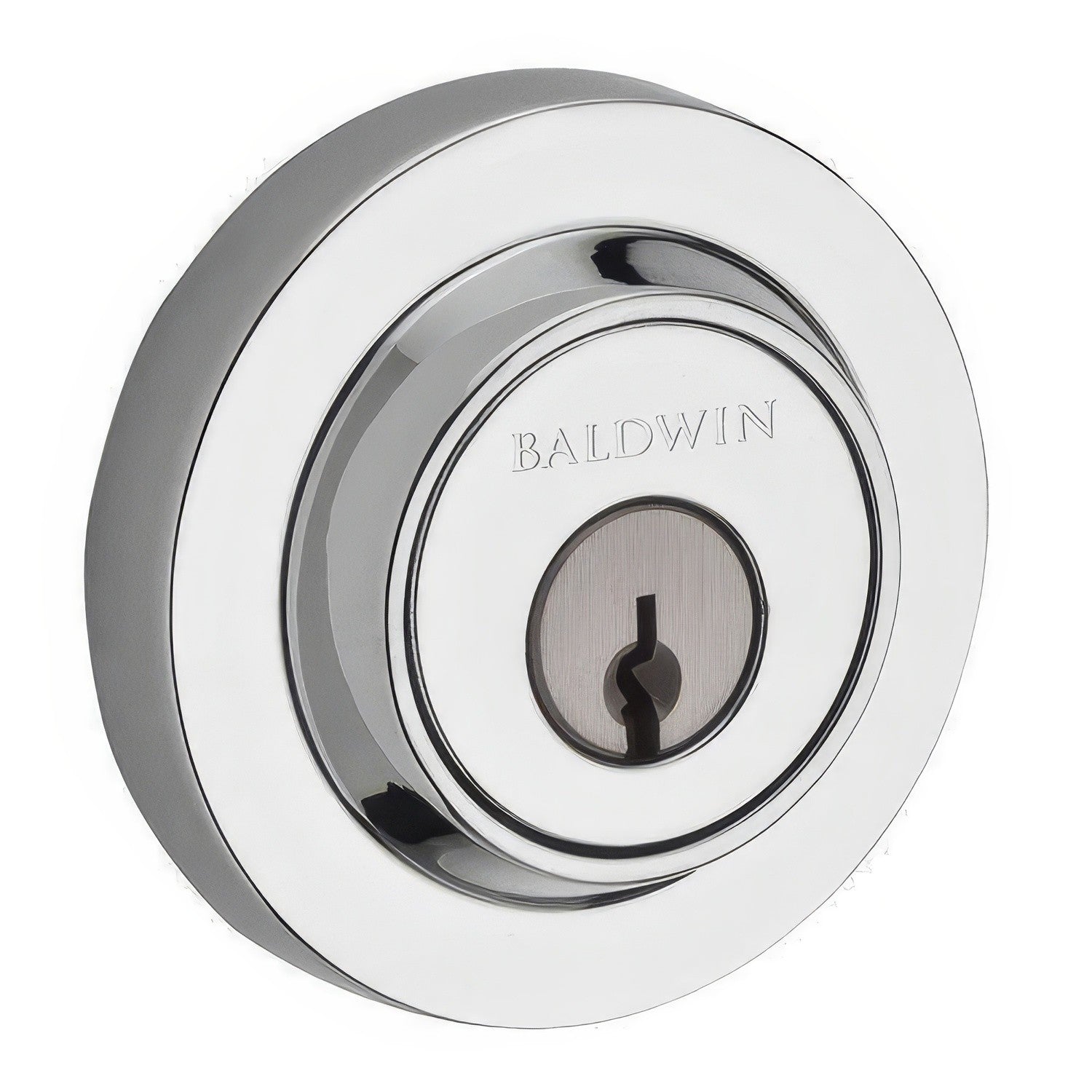

DCCRD260	Polished Chrome	$107.80 USD

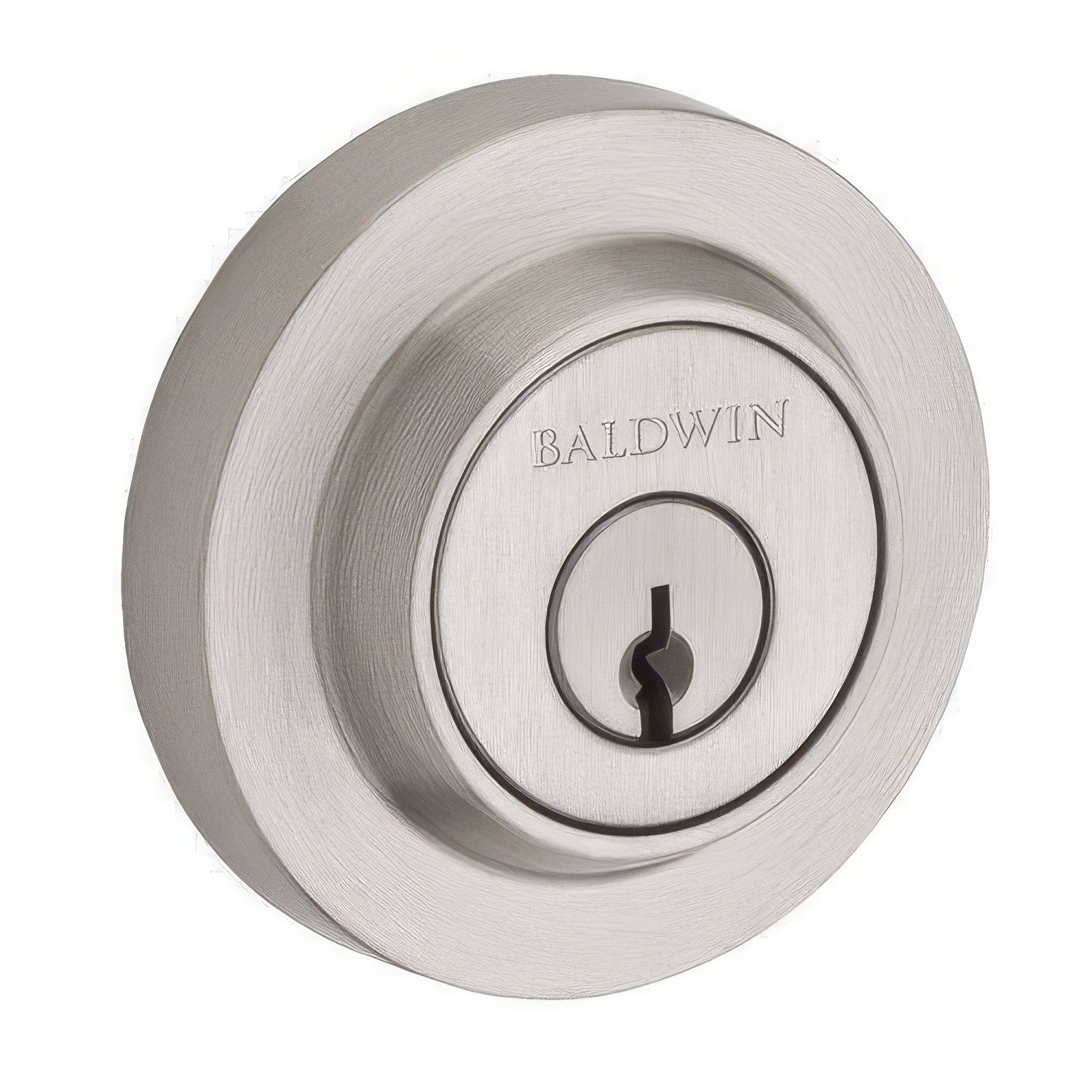

DCCRD150	Satin Nickel	$107.80 USD

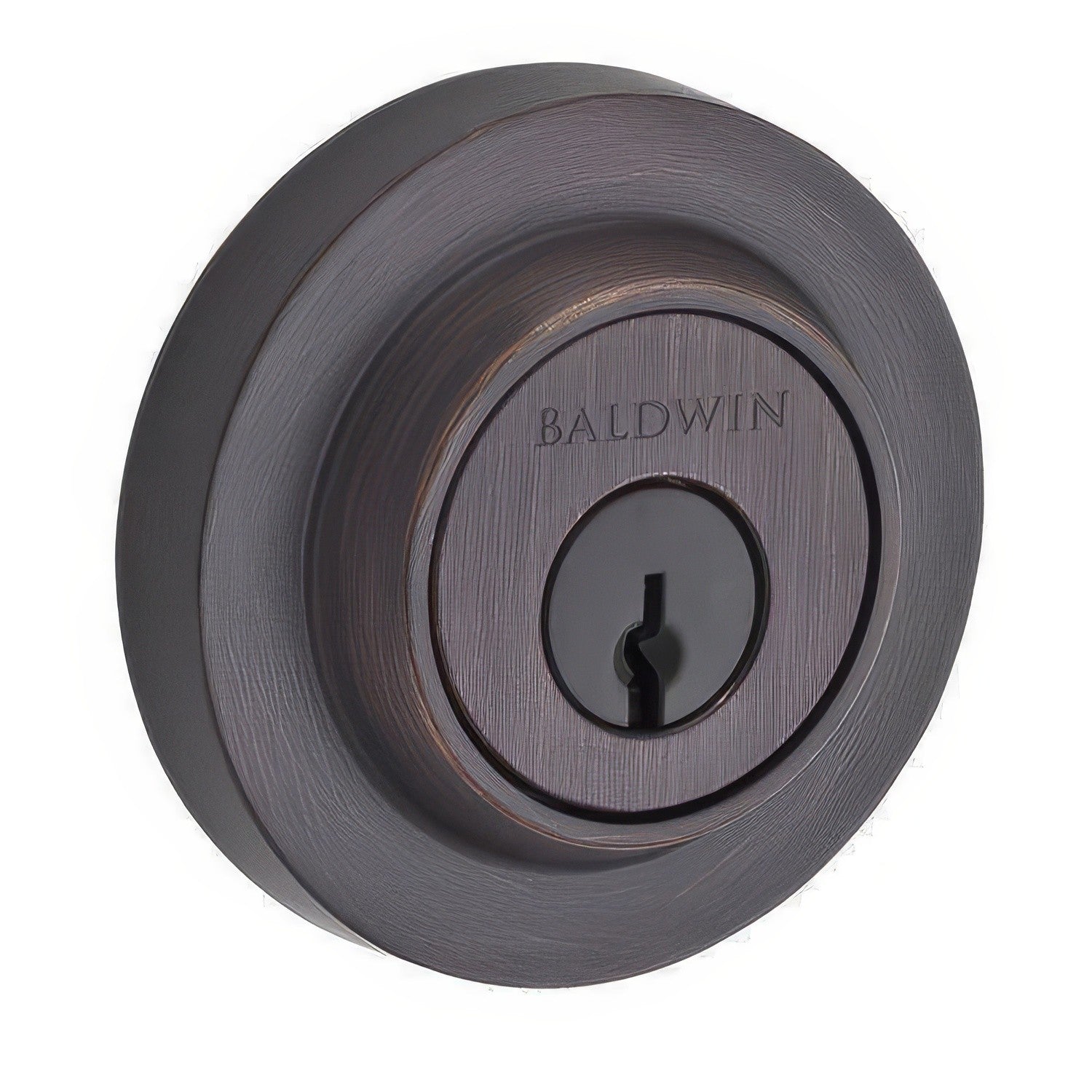

DCCRD112	Venetian Bronze	$107.80 USD

Description

The Baldwin DC.CRD is a double-cylinder deadbolt designed for exterior doors requiring keyed operation on both sides. The model and product title identify the exact configuration being offered.

Made from brass, this hardware is part of the Baldwin Reserve collection. Confirm handing, backset, door preparation, dimensions, and included components before ordering.
