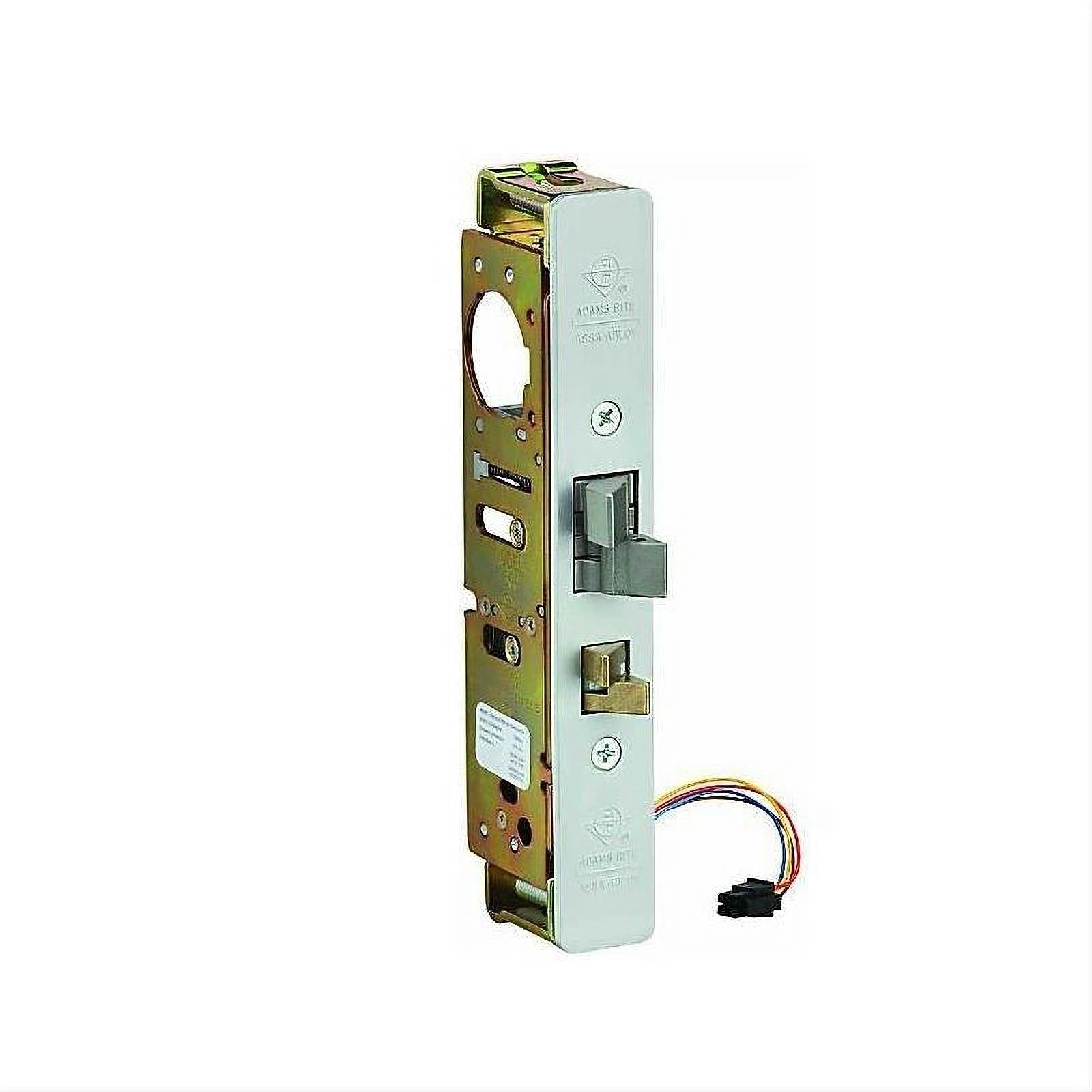

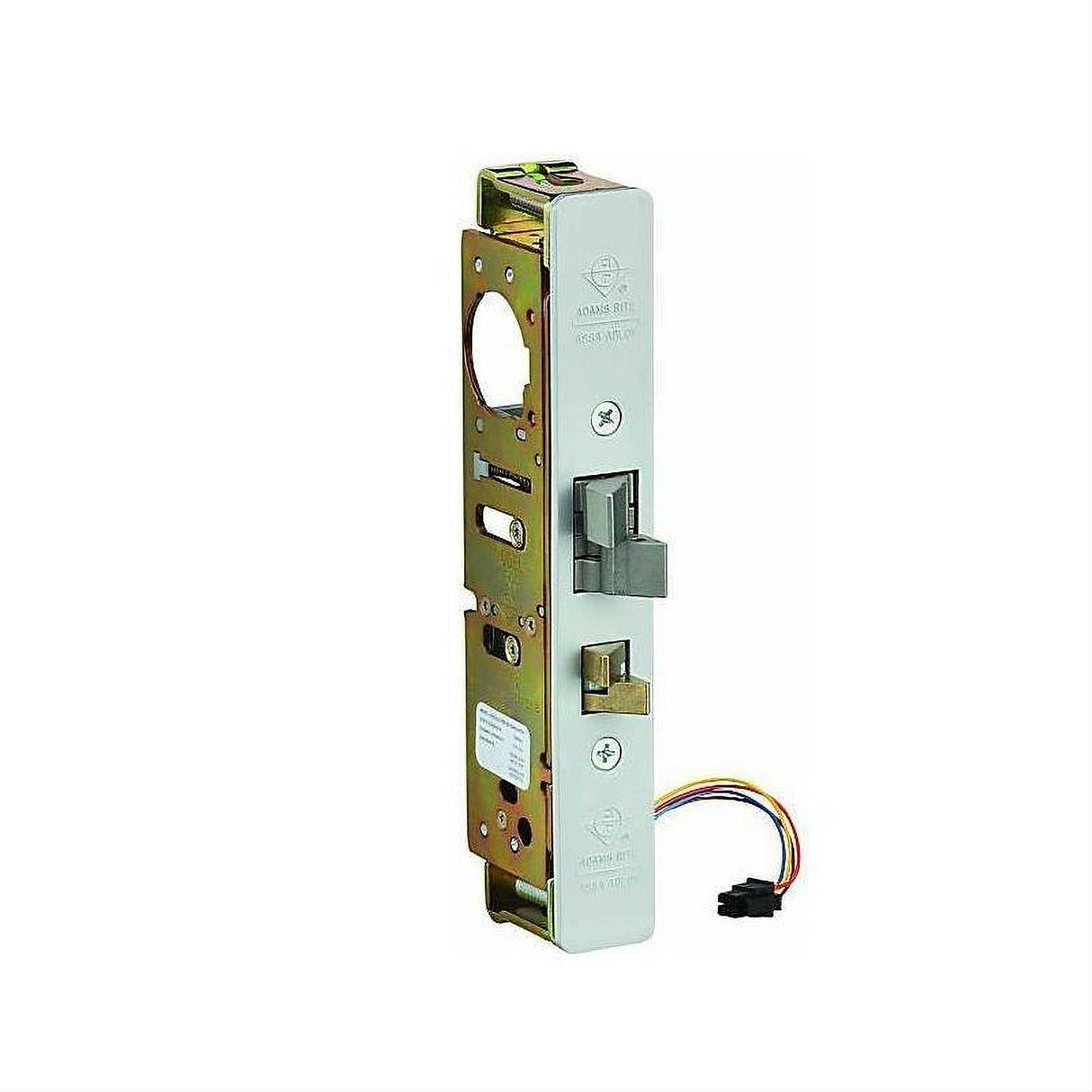

Adams Rite 430030201628 Steel Hawk Latch Electrified Lock for Flat Mortised Strike in Clear Anodized

The Adams Rite 430030201628 Steel Hawk Latch Electrified Lock for Flat Mortised Strike in Clear Anodized is a strike plate from Adams Rite.

Specifications

• Brand: Adams Rite
• Model: 430030201628
• Product Type: Strike Plate
• Function: Electrified Lock
• Material: Stainless Steel/Steel
• Clear Anodized Finish
• Aluminum construction
• Field-selectable voltage operation to match power source of 12 or 24 VAC/VDC
• Cylinder Backset: 1-1/8"
• Case is made of steel with corrosion-resistant plating that measures 15/16" x 5-13/16" x depth
• Grade 1 Standard
• 1-3/4" minimum door thickness required
• Supplied with universal cam plug 4581 to work with specified handles or paddle operators
• Interface with access control
• Electrically rated for continuous duty for timed applications
• Uses any standard mortise cylinder with MS cam
• Faceplate measures 1" x 6-7/8"
• Latchbolt is of stainless steel with 5/8" x 1" x 5/8" throw
