Ives SB453-8 Heavy Duty 8" UL Listed Surface Bolt

SB453-8 Heavy Duty Steel Top and Bottom Strike UL Listed Surface Bolt 8" Length with 1-13/16" Throw

  • $49.35
Accepted payments
OR

Ives SB453-8 Heavy Duty UL Listed Surface Bolt 8" Length with 1-13/16" Throw

  • UL Listed
  • Top & Bottom Strikes Included
  • Surface Bolt Has 1 3/16" Throw for Maximum Security
  • Strong Tension Springs Prevent Creep
  • Ideal for All Types of Doors
  • Units Packed with Standard Screws for Added Security
  • Units Packed with Both a Universal Top Strike and a Mortise Bottom Strike
  • Constructed of Heavy Duty Steel
  • Meets ANSI/BHMA a 15616 L84161
  • Bar: 3/4" Wide X 3/4" Thick
  • Overall Width: 2 1/32"
  • Overall Projection: 2 1/16"
  • Top Strike: 1 1/2" X 1 1/2" Angle X 3/16" Thick
  • Bottom Strike: 3 1/2" Long X 1 5/8" Wide X 1/8" Thick


Ives SB453-8 Specification Ives SB453-8 Specification

Ives WarrantyView Ives Manufacturer Warranty

IvesShop All Ives Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Available in 6 Finishes

Our SKU: IvesIves-SB453-8

This product is listed under the following manufacturer numbers

SKU Finish Price

SB45310B8TB

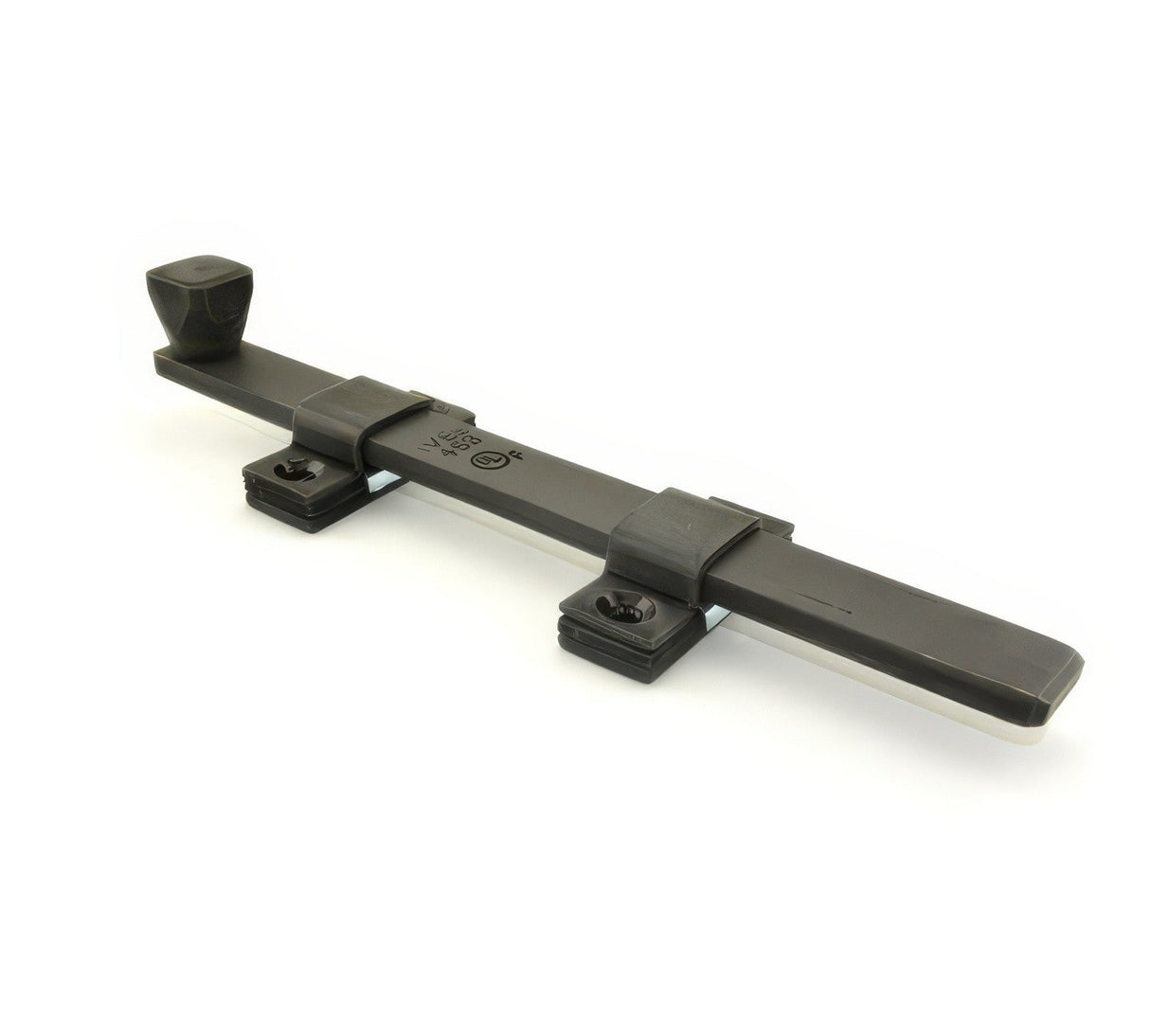

Oil Rubbed Bronze $49.17

SB453108TB

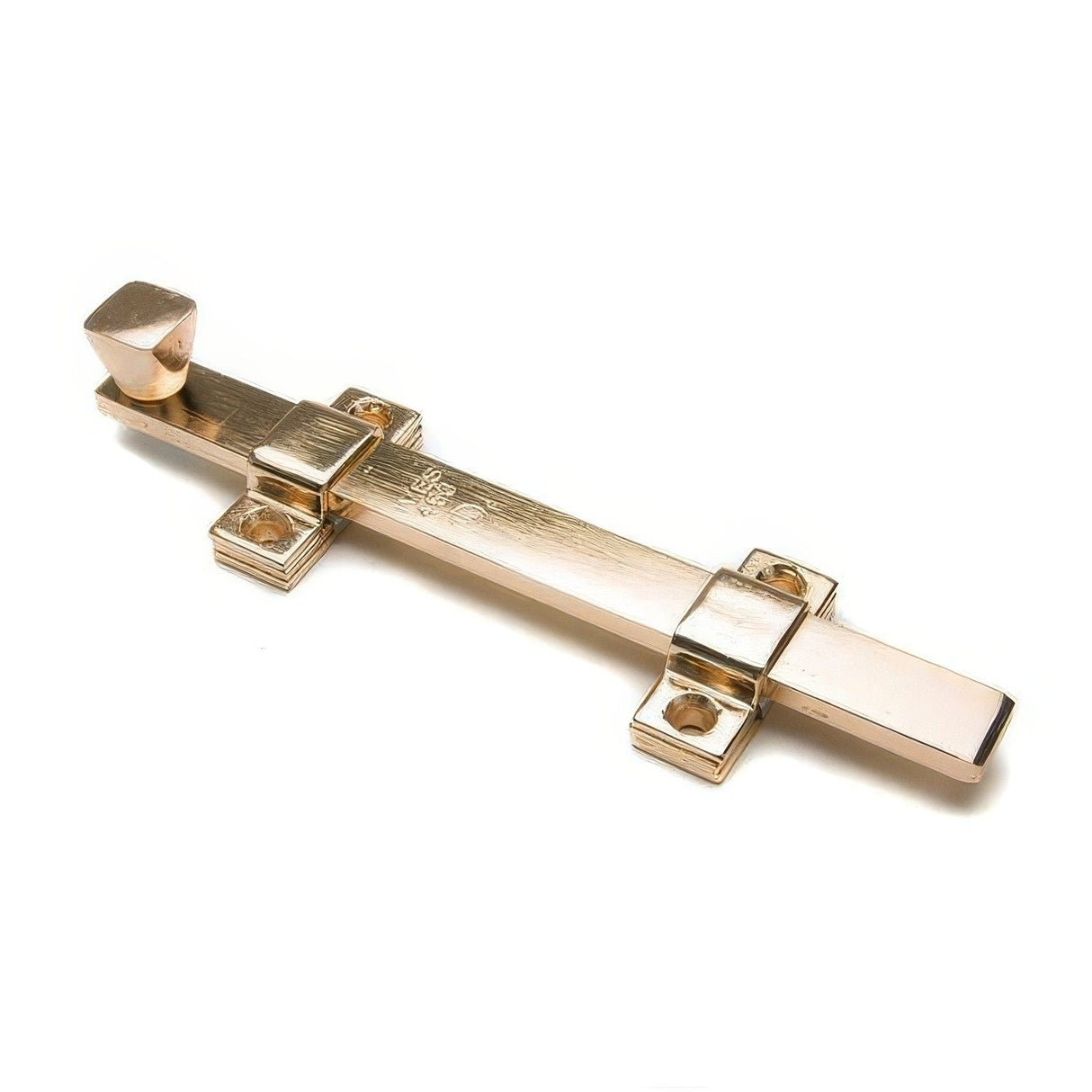

Satin Bronze $49.35

SB45326D8TB

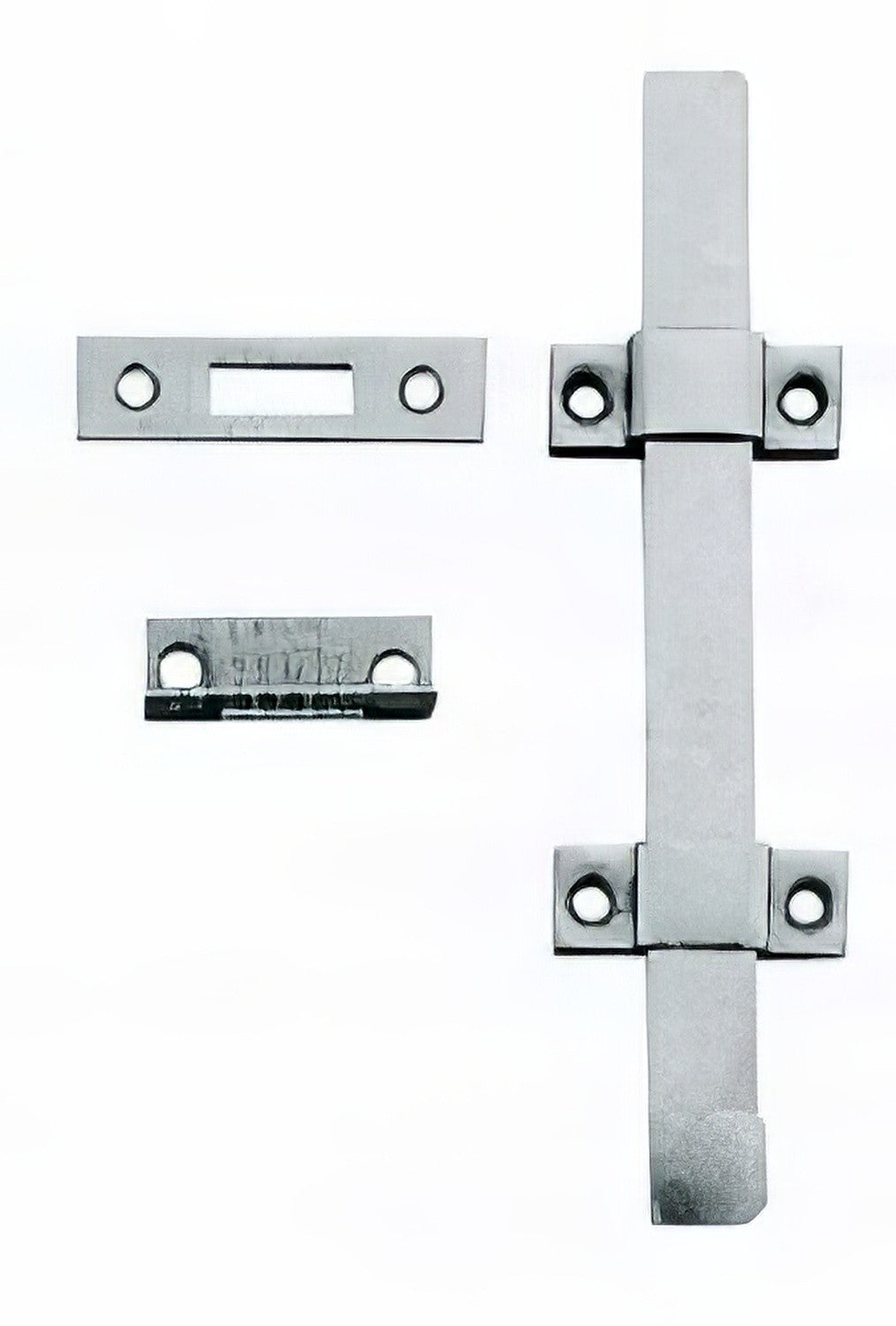

Satin Chrome $46.81

SB4532C8TB

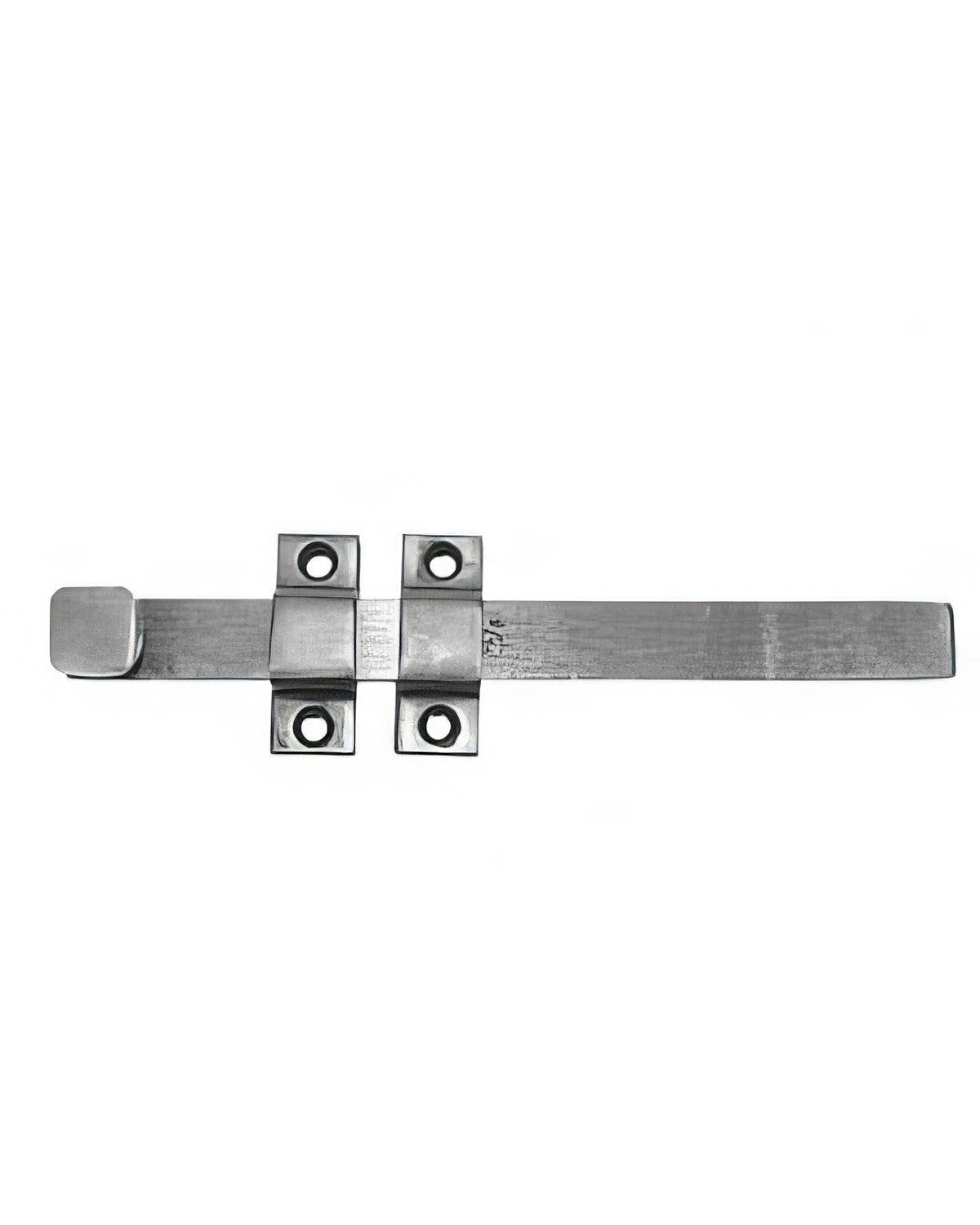

Zinc Plated $37.98

SB45348TB

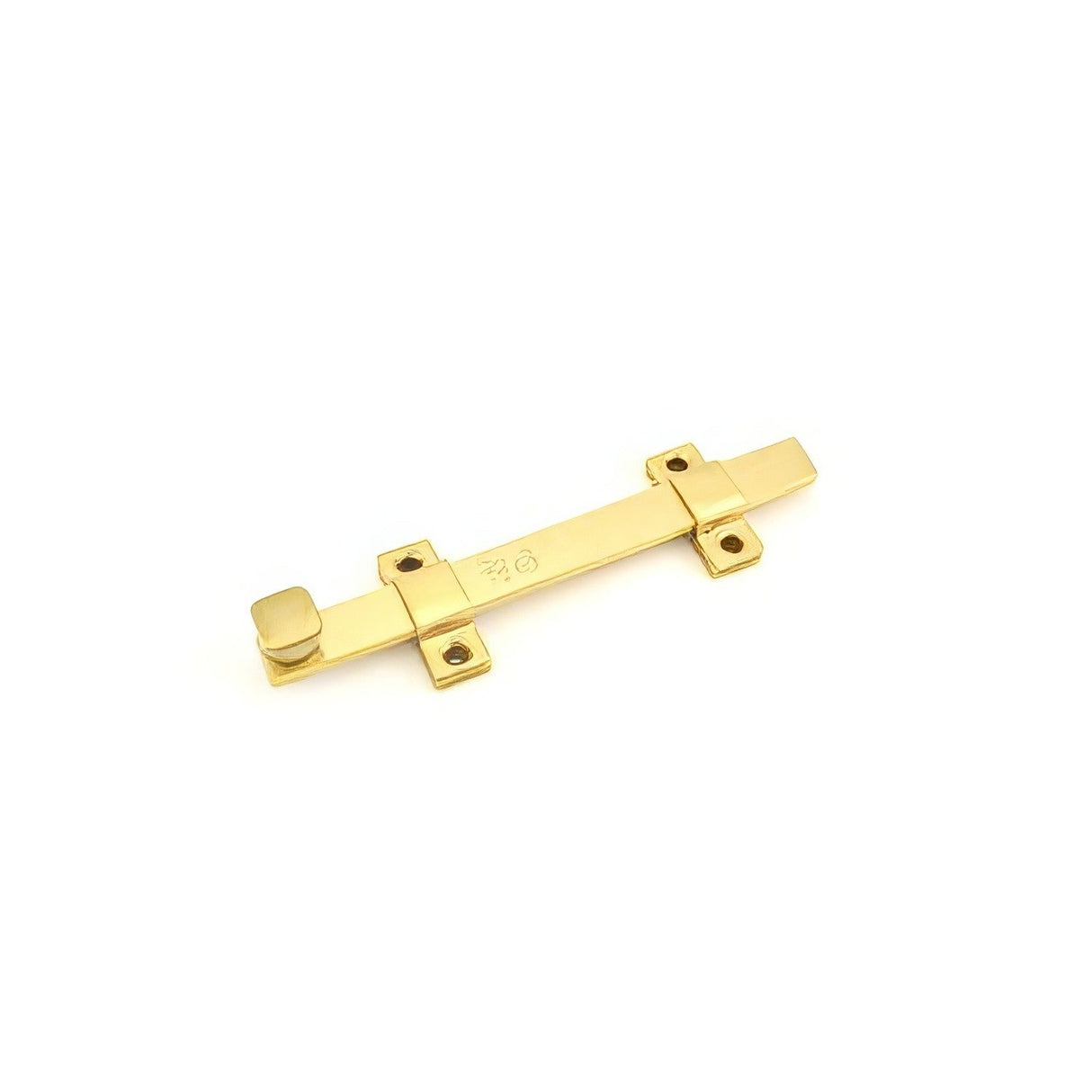

Satin Brass $40.95

SB45338TB

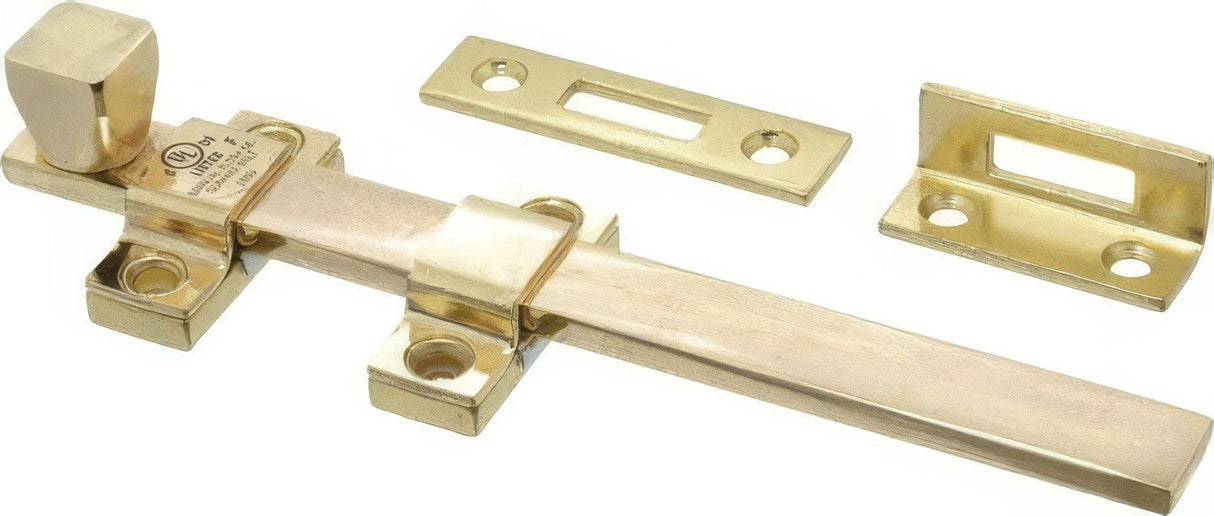

Polished Brass $40.95
