Von Duprin Vertical Rod Exit Devices

Shop Von Duprin vertical rod exit devices for compatible commercial door openings. Compare surface-mounted vertical rod (SVR) and concealed vertical rod (CVR) configurations, including selected fire-rated, electrified and wood-door models. Choose the device type to match the door preparation, then check the series, opening dimensions and outside operating function.

Selected listings include less-bottom-rod configurations and models with an auxiliary fire latch; verify the exact package and application before ordering. Explore Von Duprin 99 Series hardware, match exit device trim to your chosen device, or compare other latching arrangements in our Von Duprin exit devices collection. For repairs to an existing installation, browse Von Duprin replacement parts.

Choosing Von Duprin Vertical Rod Exit Devices

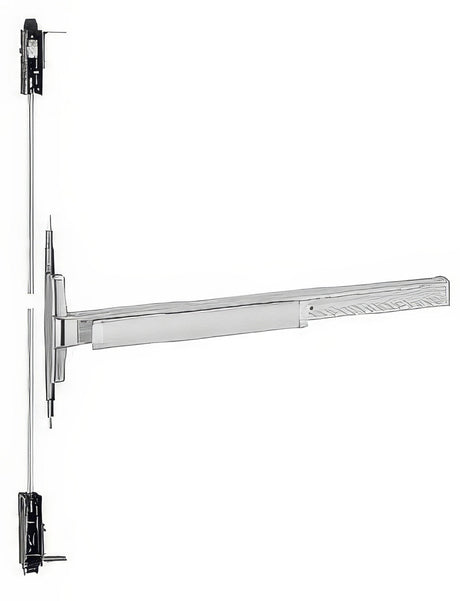

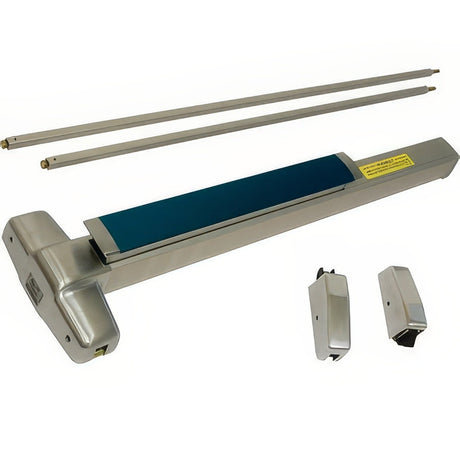

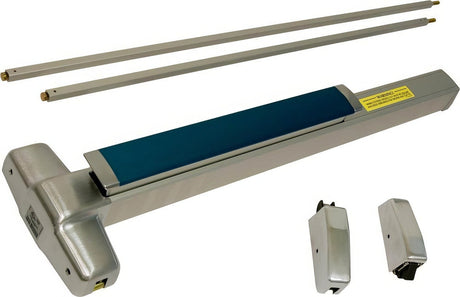

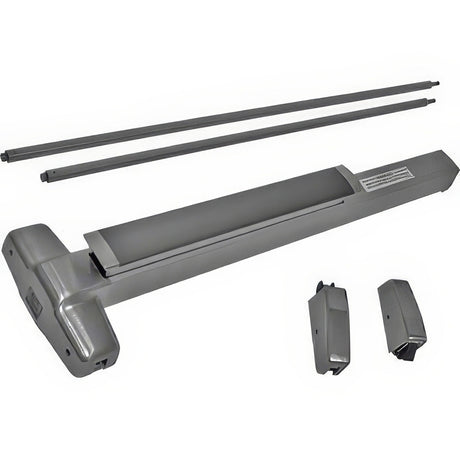

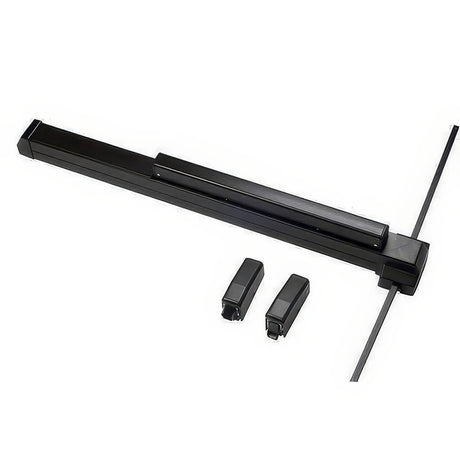

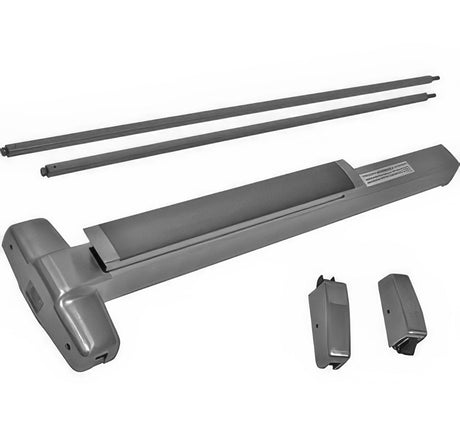

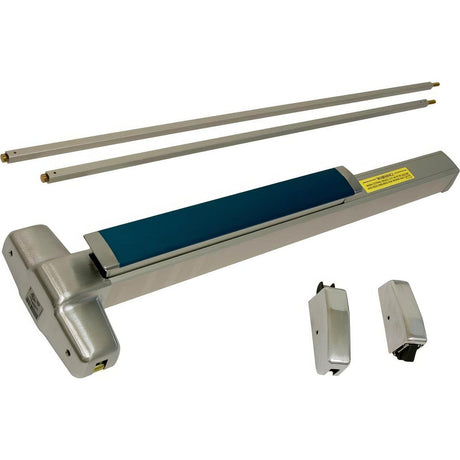

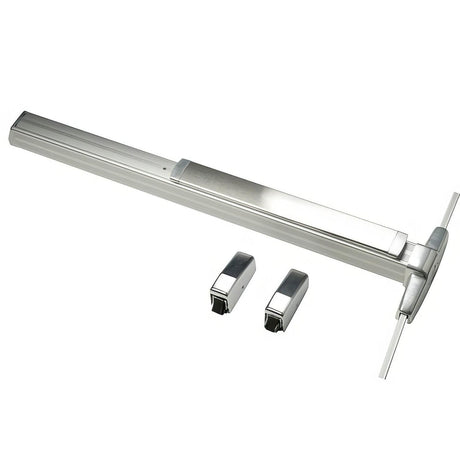

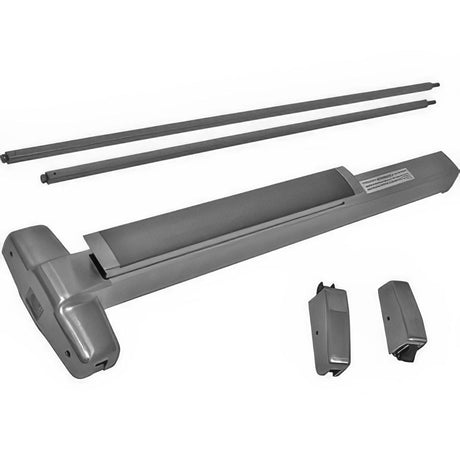

Von Duprin vertical rod exit devices connect the operating mechanism to latches positioned vertically on the door. The first selection is between surface-mounted vertical rod hardware and concealed vertical rod hardware. Surface-mounted rods are installed on the door face, while concealed rods are housed within the door. These formats require different preparation, so choose the arrangement specified for the opening. For a replacement, identify the installed device and its full model designation before comparing a new assembly.

Door height matters as well as door width. Check the supported opening height, device-length range and any required rod extensions against the manufacturer information for the selected model. Also confirm door thickness, material and available stile space. Selected concealed-rod listings are specifically identified for wood doors, making the door construction an essential part of the selection. Do not assume that two devices with similar push bars use the same rods, latch preparation or mounting details.

The collection includes models from several Von Duprin families, including surface and concealed configurations within the 98/99 range. Compare the exact series and latching format before choosing the operating-bar appearance or finish. For paired doors, review both leaves and the specified latching arrangement together. Keep the hardware schedule and opening measurements available while comparing listings so the required devices, strikes and other components are selected as a coordinated installation. The complete model number provides more useful ordering information than a series name alone.

Outside access depends on the compatible trim and operating function. Some listings include lever or thumbpiece trim, while exit-only configurations and separately sold trims have different package contents. Confirm the desired outside operation, handing where applicable and any required cylinder before placing the order. Selected electrified models add electrical and control requirements that must be reviewed for the exact configuration. Check what is included with each device rather than assuming that the exterior trim or supporting equipment is supplied.

Less-bottom-rod and auxiliary-fire-latch configurations need their own application check. Select the complete listed arrangement required for the opening; a model supplied without a bottom rod should not be treated as instructions to remove one from another device. Verify whether the project calls for panic hardware or fire exit hardware and review the exact product listing accordingly. For servicing, match replacement rods, latches and other components by device model. Once fit and function are confirmed, select the available finish and retain the ordering details for future maintenance.
