Hager Door Hinges

Choosing Hager Door Hinges

Hager hinges are available for a range of residential and commercial door applications, but the correct hinge starts with the physical opening. Confirm the door thickness, height, width, weight, frame preparation, and number of hinges required. Hinge height and width, leaf thickness, material, bearing type, and screw-hole pattern should match the door and frame rather than being selected by finish alone.

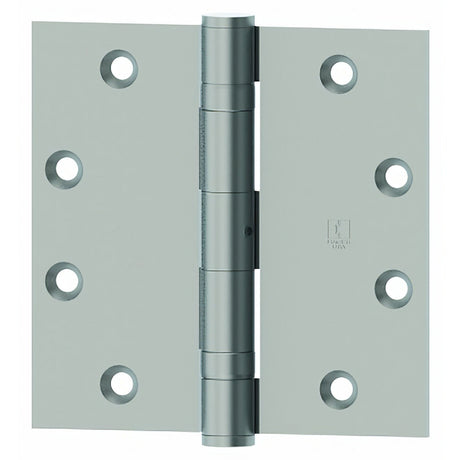

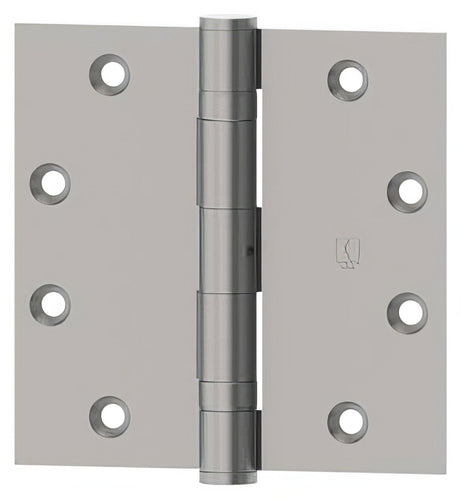

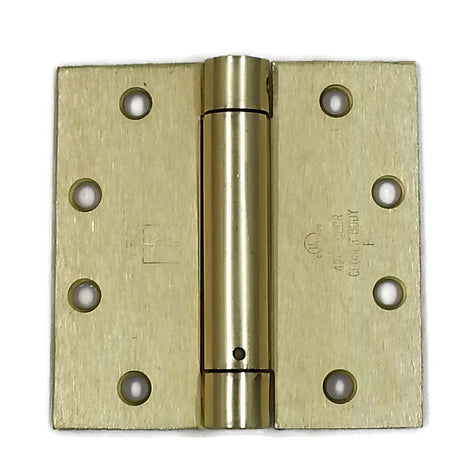

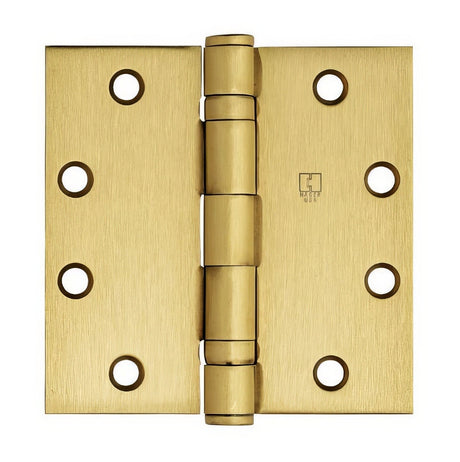

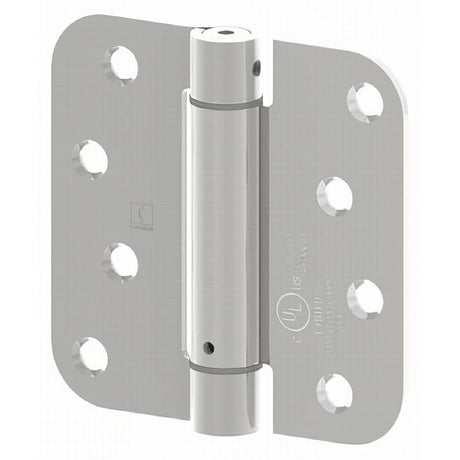

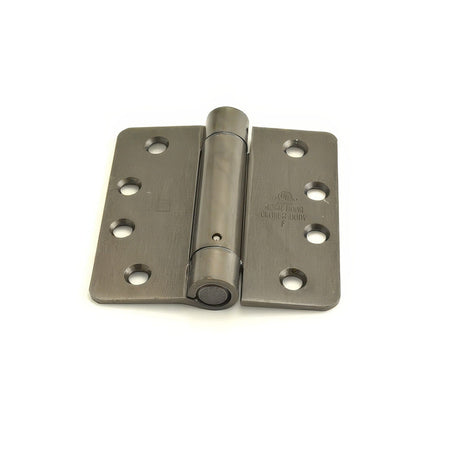

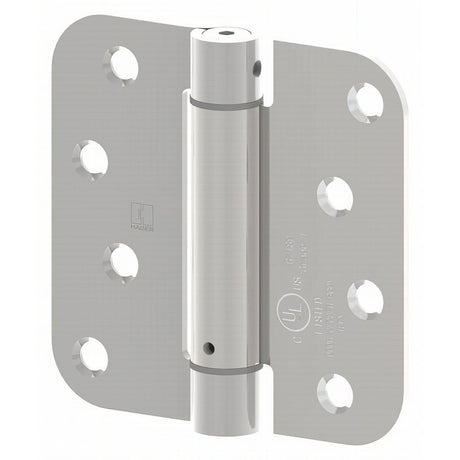

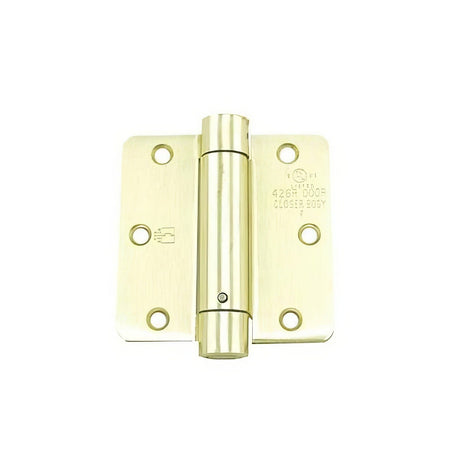

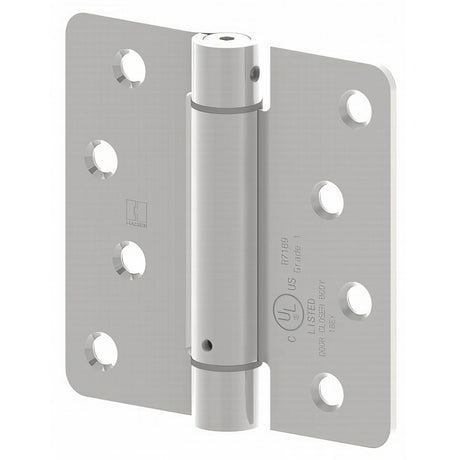

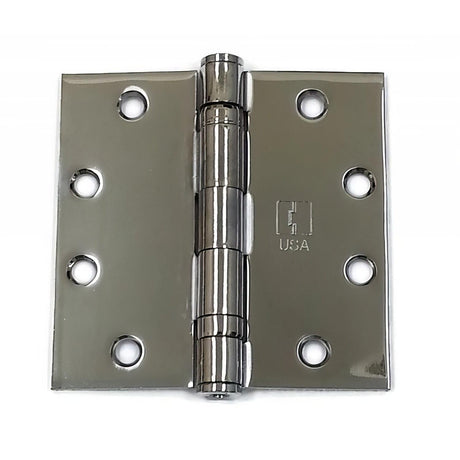

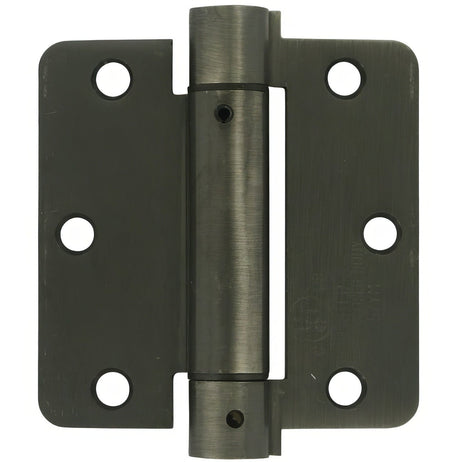

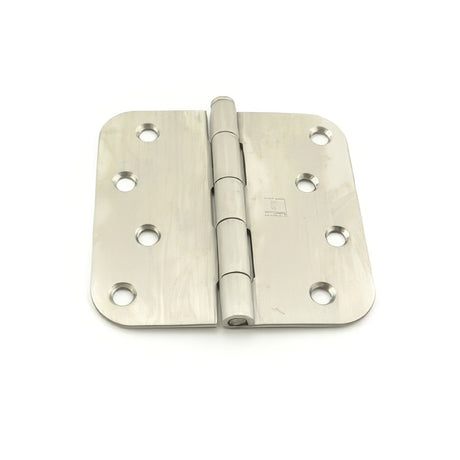

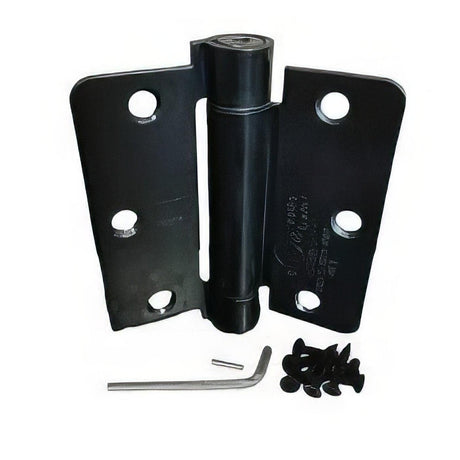

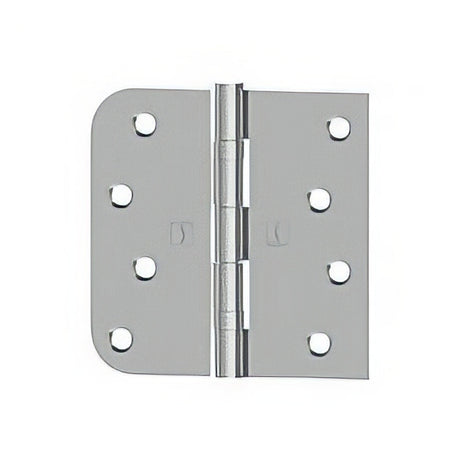

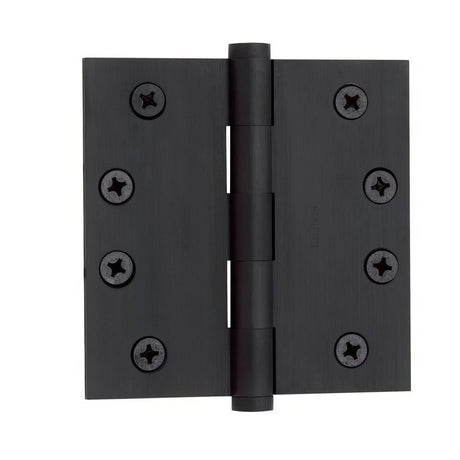

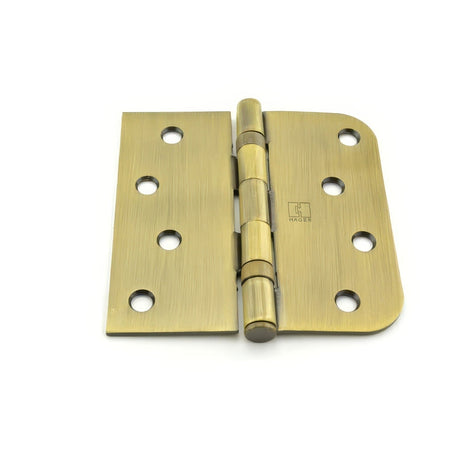

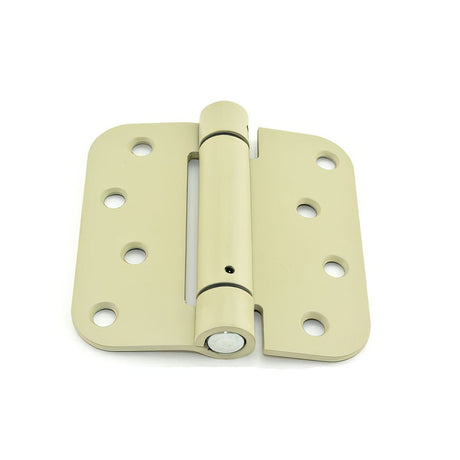

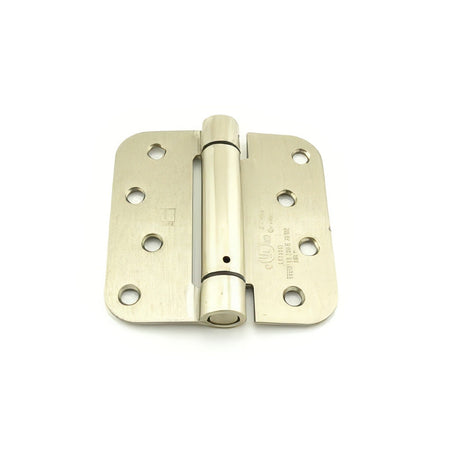

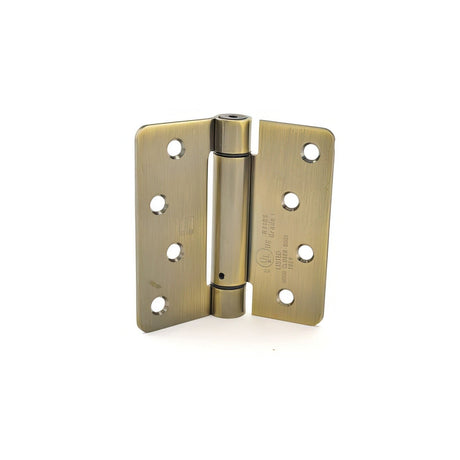

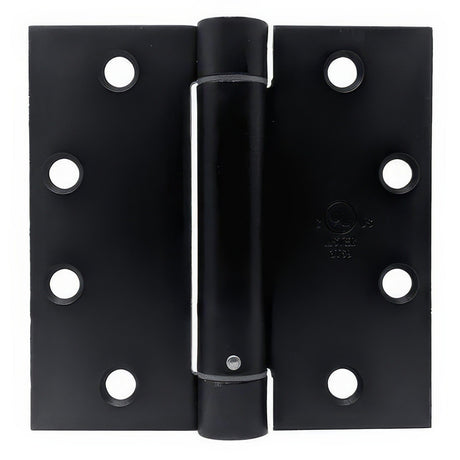

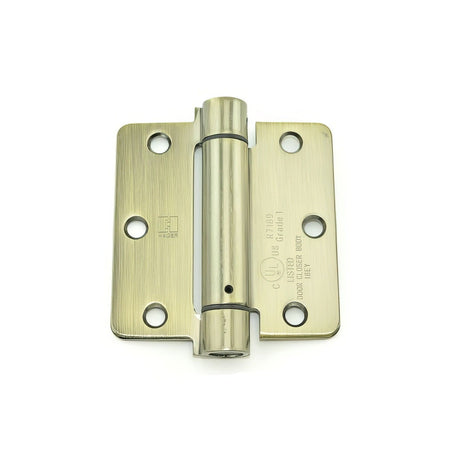

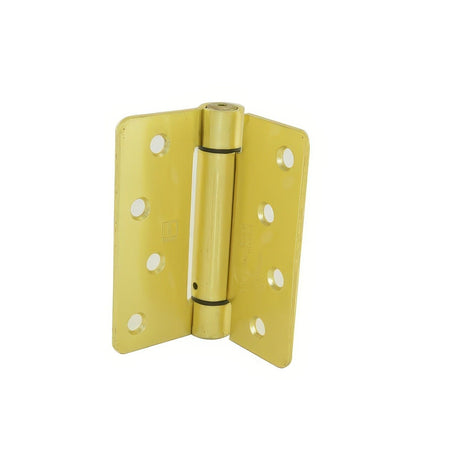

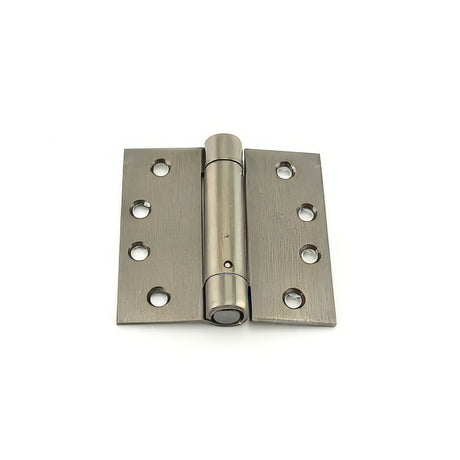

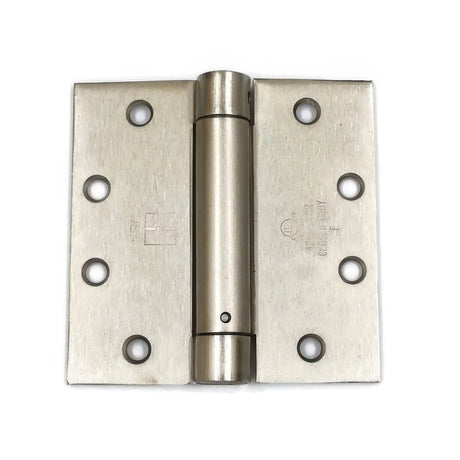

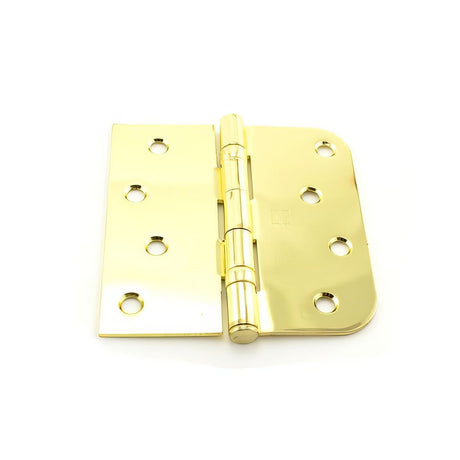

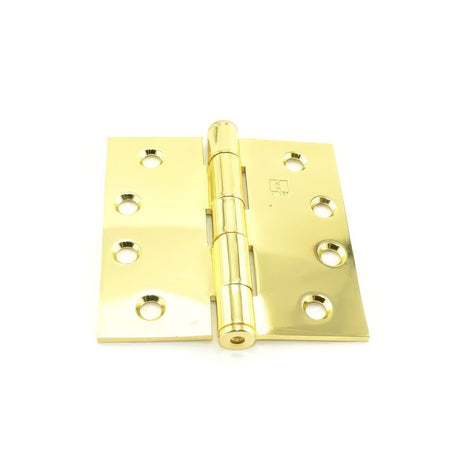

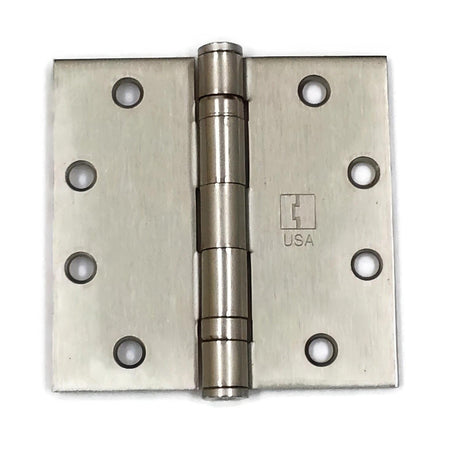

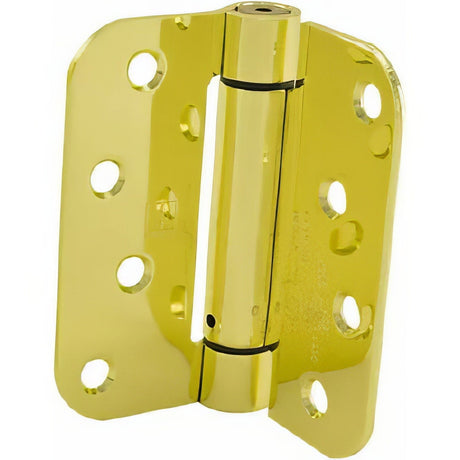

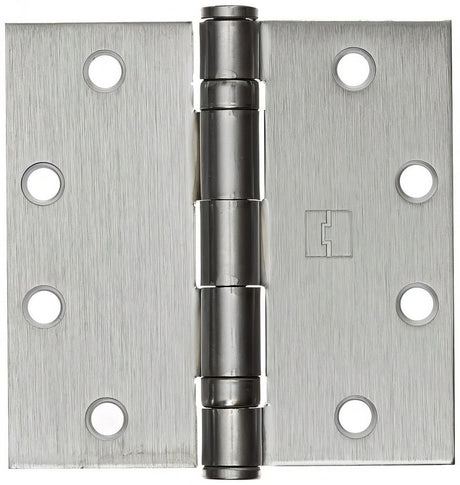

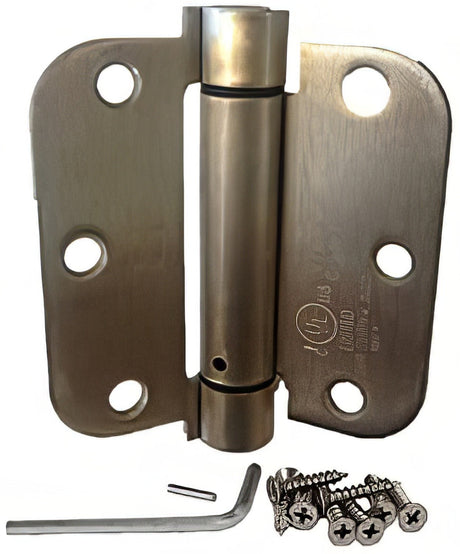

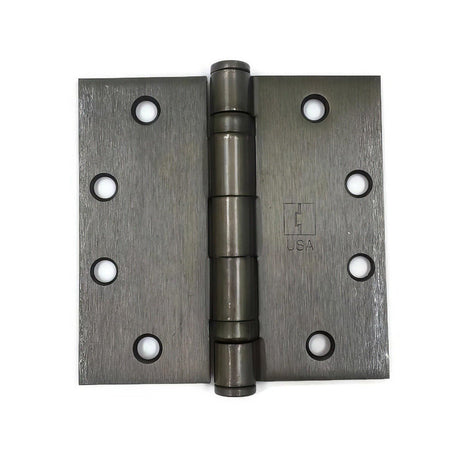

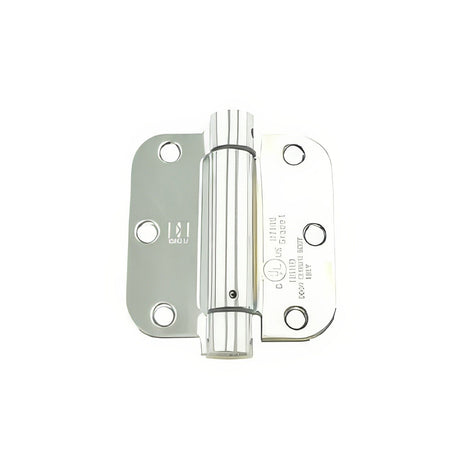

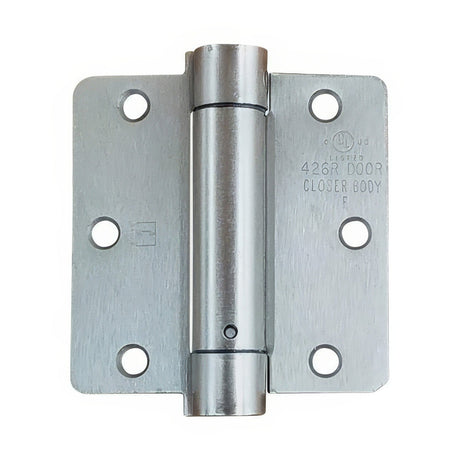

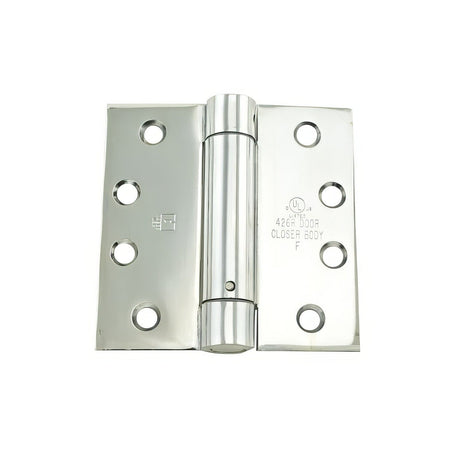

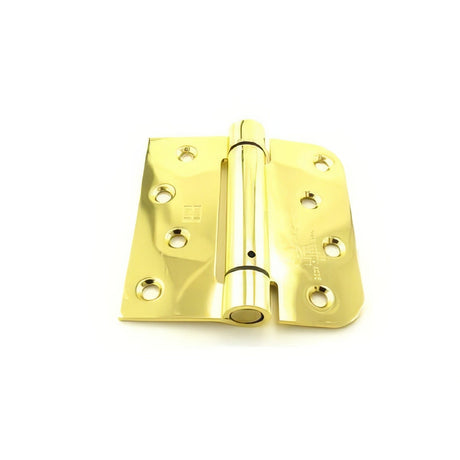

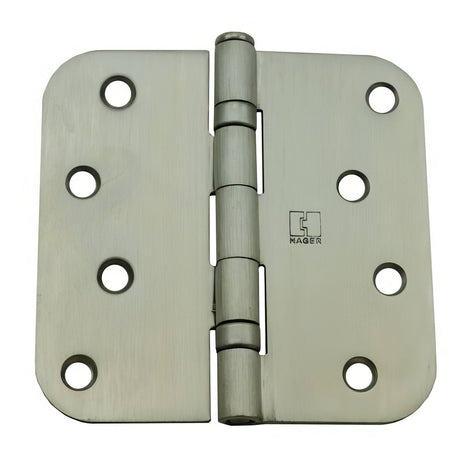

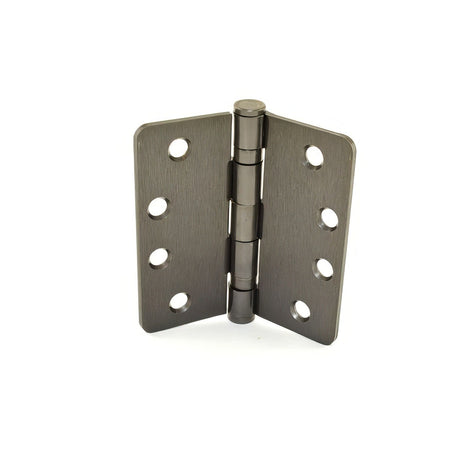

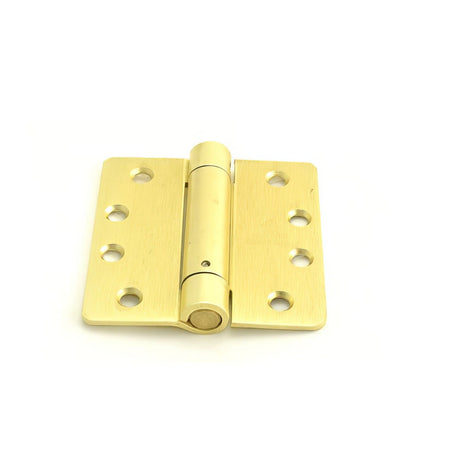

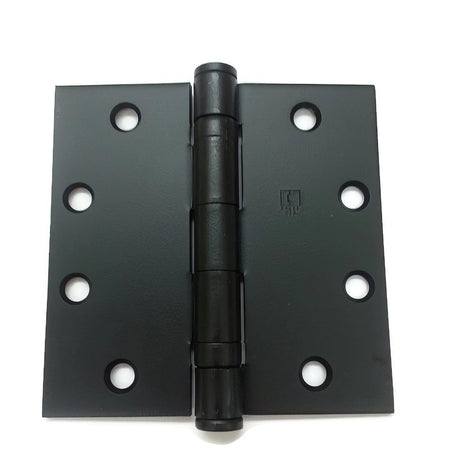

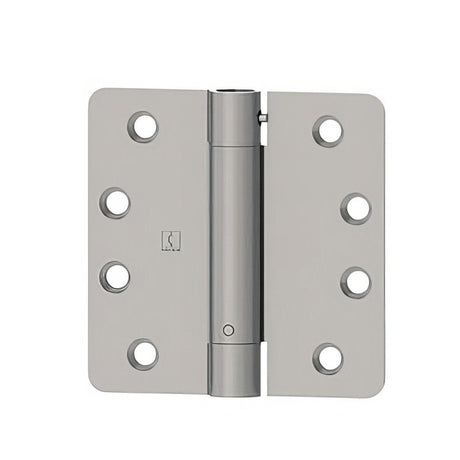

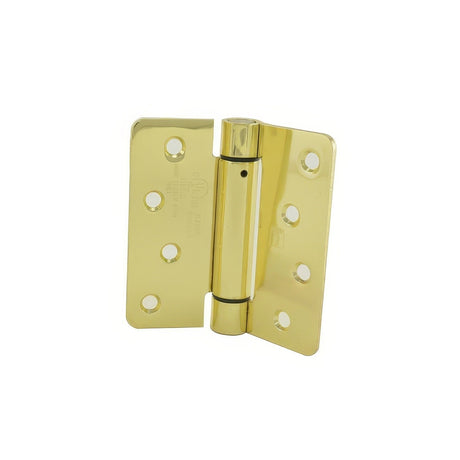

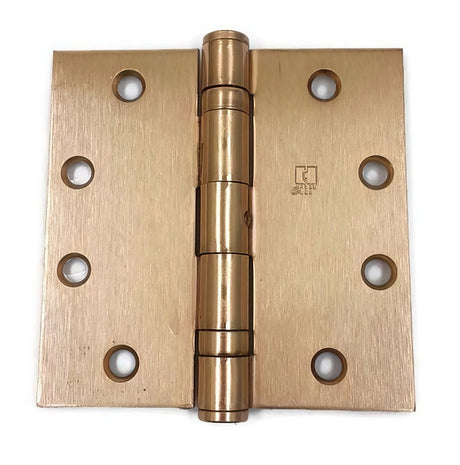

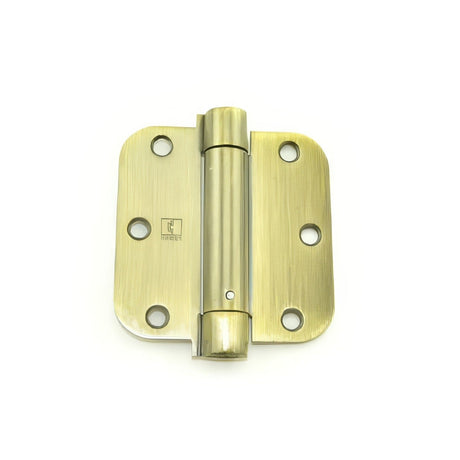

Plain-bearing hinges are commonly used on lighter or moderate-use openings, while bearing-equipped architectural hinges are often selected where door weight or traffic calls for smoother operation and greater durability. Spring hinges add a self-closing function and require proper adjustment for the door and application. Use the individual product specifications to compare construction and intended use instead of assuming all hinges of the same size perform the same way.

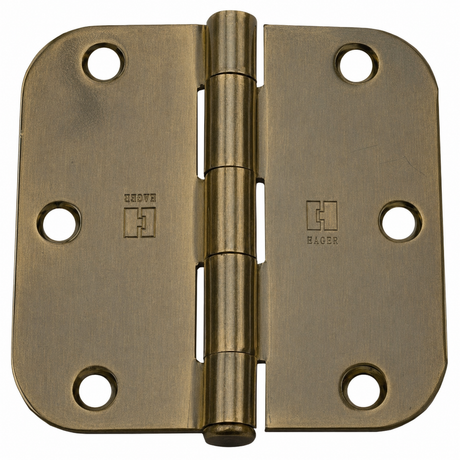

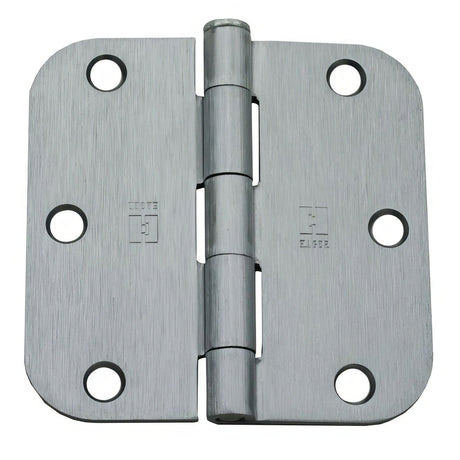

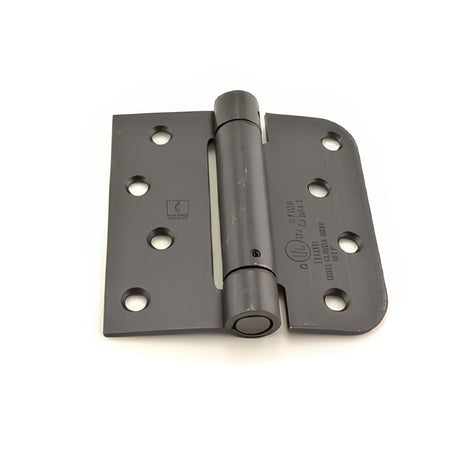

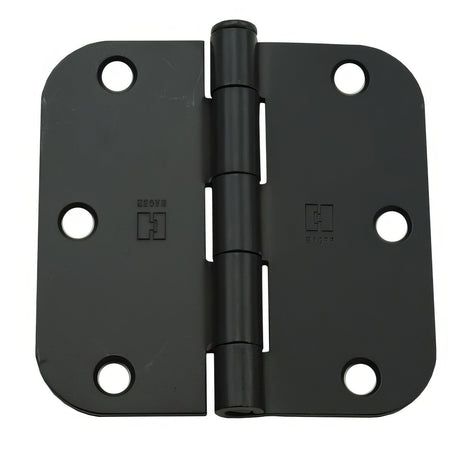

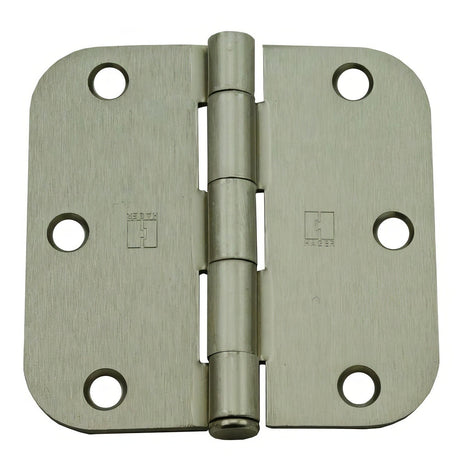

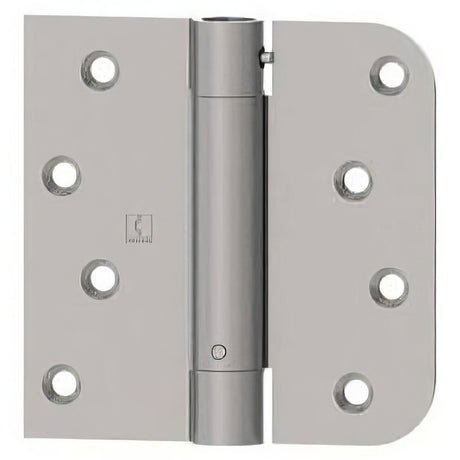

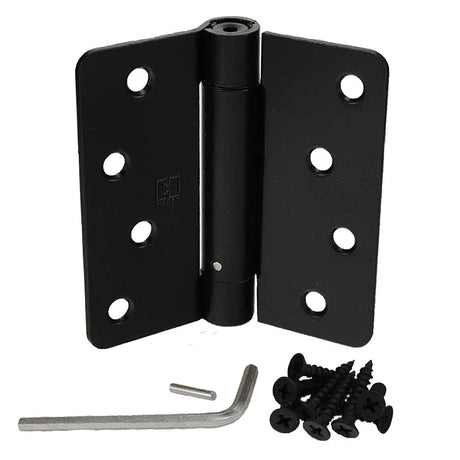

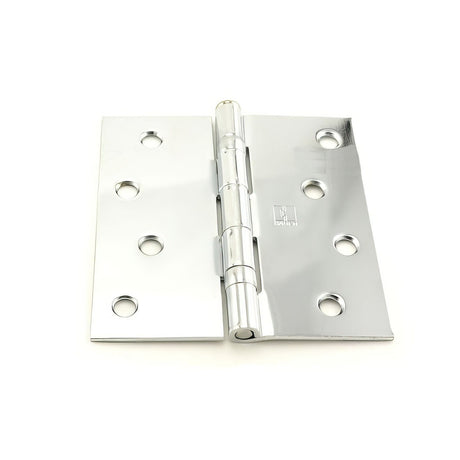

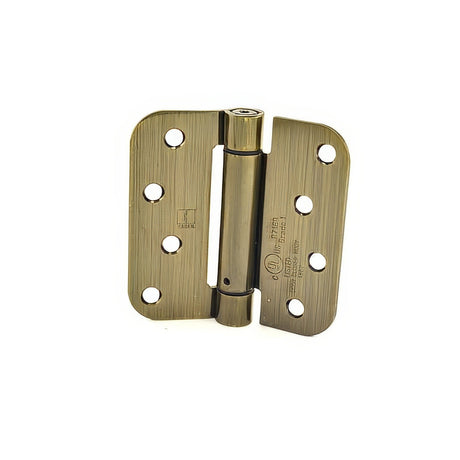

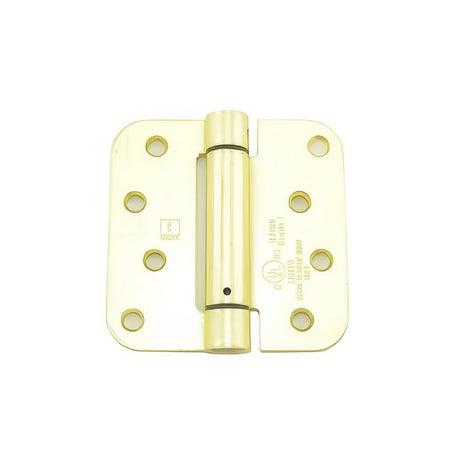

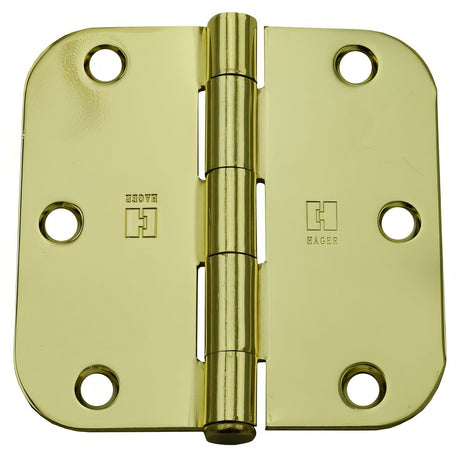

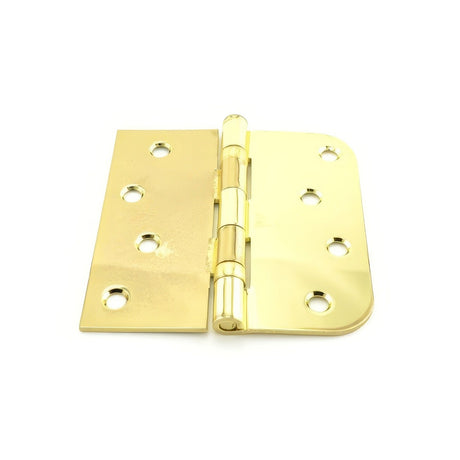

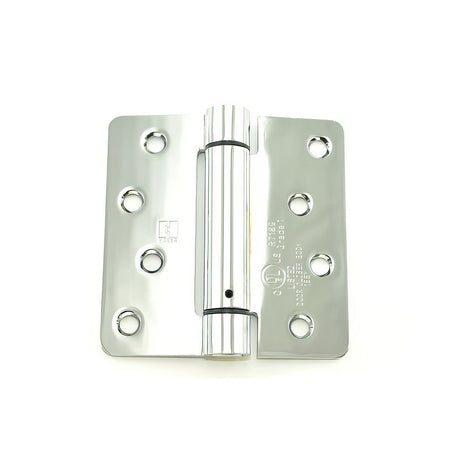

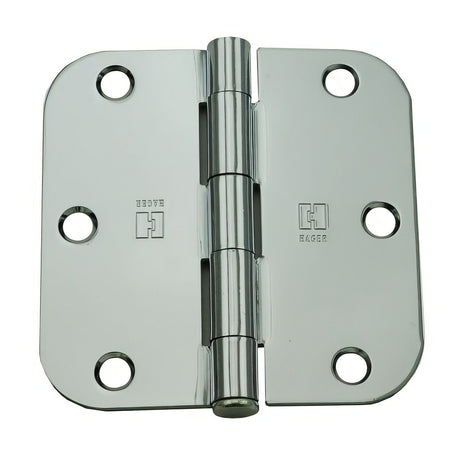

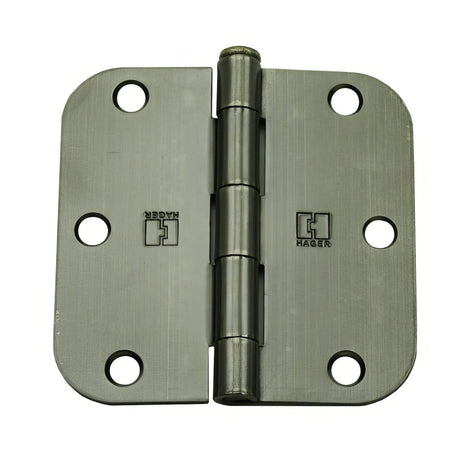

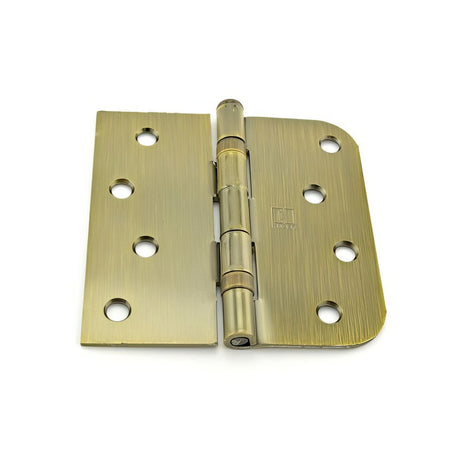

Corner preparation is especially important when replacing an existing hinge. Square-corner and radius-corner hinges fit different mortises, and radius sizes can vary. Matching the existing hinge height, width, corner shape, leaf thickness, and hole pattern can reduce the need to alter the door or frame. If the hinge is being replaced in an existing opening, measure the installed hinge before ordering.

Pin configuration can also matter. Non-removable-pin hinges are commonly considered for outswinging or security-sensitive openings where the hinge knuckle is exposed, while standard removable-pin hinges may be appropriate for other installations. Hinge material and finish should be selected for the environment and coordinated with the rest of the door hardware, especially on exterior or high-use openings.

For commercial, institutional, or rated openings, verify the project and manufacturer requirements for hinge size, quantity, material, bearing type, and listing or rating. A hinge that fits the mortise is not automatically appropriate for every door. Reviewing the exact Hager product specifications helps ensure the hinge matches both the physical preparation and the performance requirements of the opening.
