Baldwin SC.CHExCUR.L.TRR Chesapeake Single Cylinder Handleset
SC.CHExCUR.L.TRR Chesapeake Single Cylinder Handleset with Traditional Lever on Interior
Chesapeake Single Cylinder Handleset with Traditional Round Rose and Curve Lever on Interior
Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
- Solid forged brass construction built to last a lifetime.
- Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional (Contact Customer Service is SmartKey Cylinder is desired).
- Versatility and Easy Installation:
- Adjustable Latch for both 2-3/8" and 2-3/4" backset
- Round Corner, Square Corner and Drive-In Latch Plates
- Includes both Round Corner and Square Corner Strike Plates
- Guide Post for Easy Installation
- Accommodates door thickness 1-3/8" to 2".
- 2-1/8" cross bore and 1" edge bore for latch.
- Tested to exceed ANSI/BHMA Grade 2 security.
- Left Handing Configuration
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.

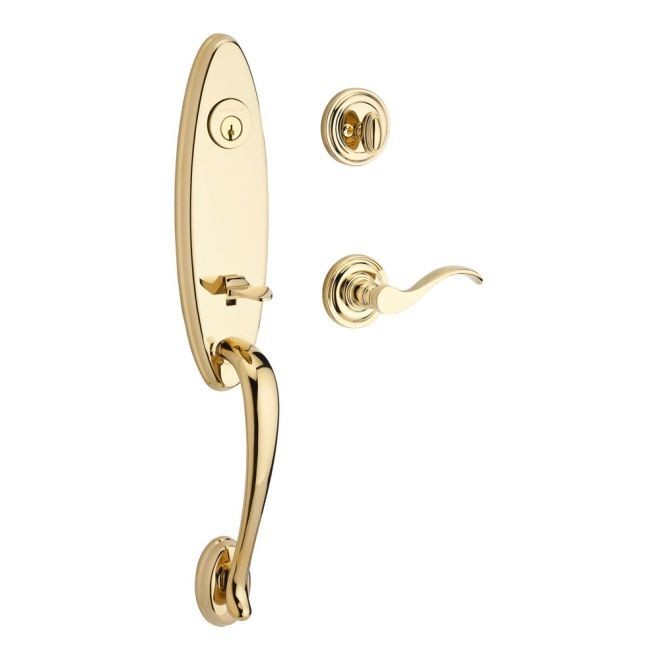

- Shown with Curve Lever and Traditional Round Rose. See Baldwin SC.CHE to completely customize this handleset with more finish and interior options.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Baldwin Reserve combines Baldwin's legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin's most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today's design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin's legacy of craftsmanship with a custom look for every architectural style.
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
FinishPolished Brass, Satin Nickel
Keying OptionKeyed Alike, Keyed Different i
Center to Center5.5
FunctionSingle Cylinder Handleset
ThemeTraditional / Classic
CylinderStandard C Keyway Cylinder, SmartKey Re-Key Technology Cylinder
Backset2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cylinder5-pin C Keyway
Door Thickness1-3/4", 1-7/8", 2"
Latch FaceplateDrive-In, Round Corner, Square Corner
