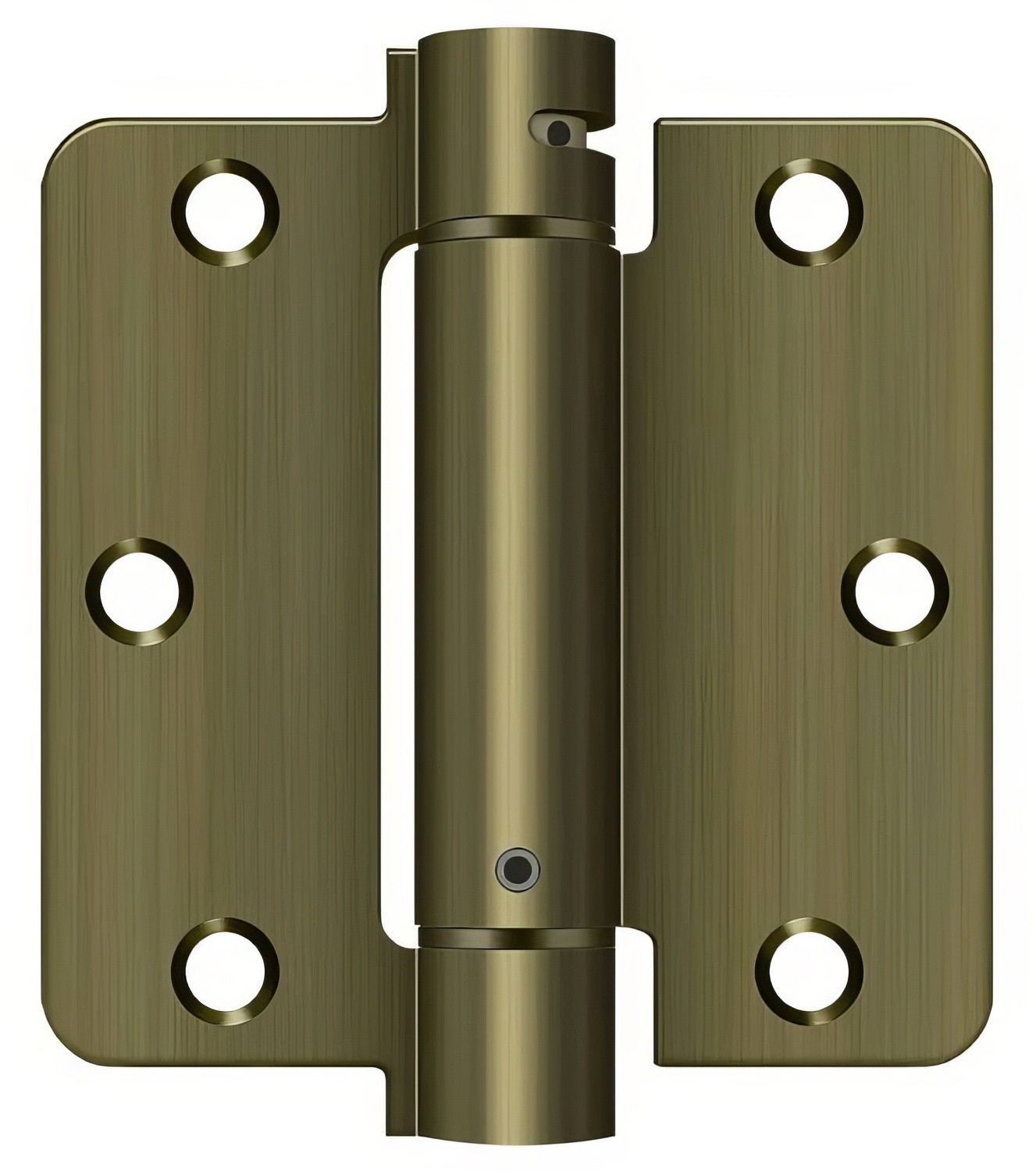

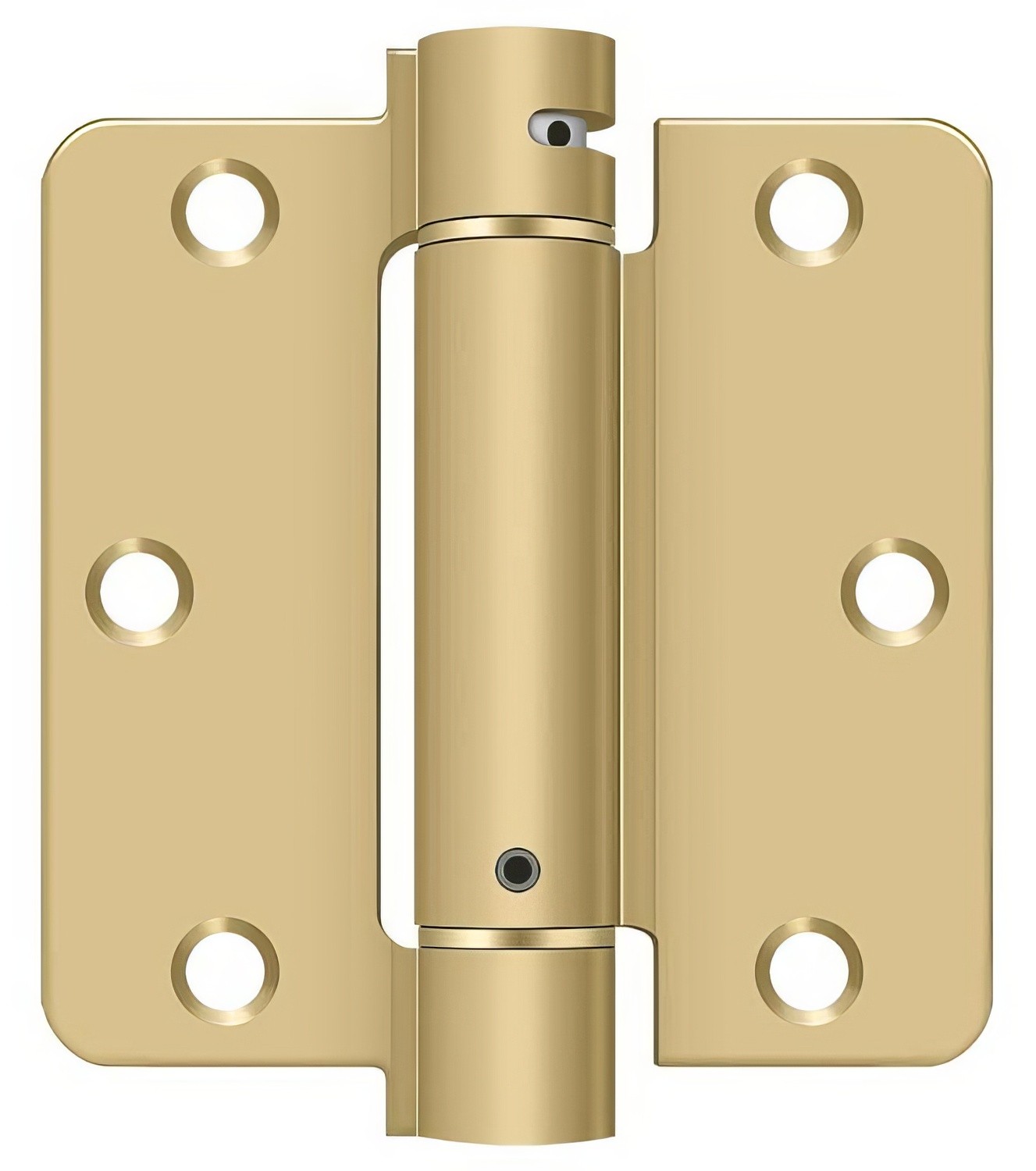

Deltana DSH35R4 3-1/2" x 3-1/2" NRP Spring Hinge with 1/4" Radius Corner - Sold Each
Deltana 3-1/2" x 3-1/2" NRP Spring Hinge with 1/4" Radius Corner - Sold Each
Deltana DSH35R4 Spring Hinges Collection Deltana 1/4" Radius Corner 3.5" X 3.5" Steel Spring Hinge Mortise Hinge
Nothing less than excellence can be expected from a Deltana spring hinge. Featuring an adjustable spring mechanism, these hinges offer discrete beauty to your home or business that can't be found with anyone else.
- Sold as Single Hinge
- Spring Hinge
- Residential Strength
- Removable Pin: No
- Wood Screws Included
- 1/4" Radius Corners
- Traditional / Classic Theme
- Arc Hole Pattern
Spring Hinge: These single action hinges are fitted with springs in the barrel to bring an open door back to a closed position automatically. Great where door space is at a premium and door closers are impractical. With double action hinges, the door is able to move in either direction.
Material - Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting: The standard corners for mortised door hinges are 1/4" radius, 5/8" radius and square corner. It is recommended that three hinges be used on doors up to and including 7.5 feet with one additional hinge for each additional 2.5 feet. Make sure you check your current hinges before making a purchase.
- 3.5 Inch Height
- 3.5 Inch Width
- Made from Steel
- Mount: Mortise
- Gauge: 0.097" (Thickness of Hinge Steel)
- 3 Knuckles
- 6 Screw holes
Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories the countrys largest selection of architectural, lighting, and door hardware in over nine fine finishes made from solid brass, zinc, aluminum, steel and stainless steel.
Additional Deltana Information
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
FinishAntique Brass, Antique Nickel, Oil Rubbed Bronze, Polished Brass, Polished Brass / Brushed Brass, Polished Chrome, Satin Brass, Satin Chrome, Satin Nickel
Dimensions3.5 x 3.5 inch
Hinge TypeButt Hinge, Spring Hinge
Number of Holes6
Number of Knuckles3
