Kwikset 687BWLIP Belleview SmartKey Single Cylinder Exterior Handleset
Belleview Single Cylinder SmartKey Handleset
Kwikset 687BWLIP Belleview SmartKey Single Cylinder Exterior Handleset - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Kwikset 687BW-LIP-S Belleview is a single cylinder exterior handleset designed for exterior entry door requiring the outside portion of a kwikset single-cylinder handleset.
Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch. Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately.
Product Details
- Manufacturer part number: 687BW-LIP-S
- Collection: Belleview
- Function: Single Cylinder Exterior Handleset
- Application: Exterior entry door requiring the outside portion of a Kwikset single-cylinder handleset
- Operation: Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch
- Package scope: Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately
- Keying technology: Kwikset SmartKey
- Handing: Left Hand / Right Hand / Reversible
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Door thickness: 1-3/4″
- Center to center: 9-11/16″
- Published grade: Grade 1
- Material: Zinc
- Style: Transitional
Compatibility: Pair with the compatible Kwikset interior pack and matching latch, strike, door thickness and preparation. Confirm the exact model, handing, door thickness and preparation before ordering.
Product Documents
Kwikset Belleview 687BW-LIP-S Installation Guide
Kwikset Belleview 687BW-LIP-S Specification Sheet
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
-
Weight2.8 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
CylinderSmart Key 5 Pin
-
Collections
-
Free ShippingYes
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Latch TypeRound Corner, Square Corner, Drive-In Latch
-
Door Thickness1-3/4"
-
Lock Function
-
Style
-
Latch Faceplate
-
Lock Style
-
Center To Center
-
Mount Type
Planning on spending more than $1,200? We may be able to quote even lower prices.
Contact us with the products and quantities you want to purchase.
Large order discounts are valid for the product quantities quoted.
Request a Quote
Fill out the form below and we'll get back to you with a custom quote within 24 hours.
Questions
Standard Shipping — Lower 48 States
- Orders $0.01–$99.99: $11.95
- Orders $100.00–$199.99: $13.95
- Orders $200.00–$298.99: $15.95
- Eligible orders $299.00 and above: Free standard ground shipping (exclusions apply)
Processing and carrier transit times are separate. Standard ground transit is typically 1–5 business days after shipment; supplier, stock availability and special-order lead times vary. We ship only to physical street addresses in the contiguous 48 U.S. states (no P.O. Boxes, Alaska, Hawaii, Puerto Rico, U.S. territories or military addresses).
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns
This product is designated Special Order / Non-Returnable. It is not eligible for an ordinary return. Any manufacturer-approved exception must be authorized in advance and may be subject to a 50% restocking fee.
Returns
- Eligible return requests must be submitted within 60 calendar days of delivery and approved before shipment.
- Returns are subject to a 15% restocking fee.
- Customers are generally responsible for return shipping.
Returns require authorization within 60 calendar days of delivery. Product-specific restrictions apply. Claims for damage, shortages, defective or incorrect merchandise must be reported within 5 days of delivery. Full refund and return policy · Full shipping policy.
Available in 4 Finish
This product is listed under the following manufacturer numbers.
| SKU | Finish | Price |
|---|---|---|

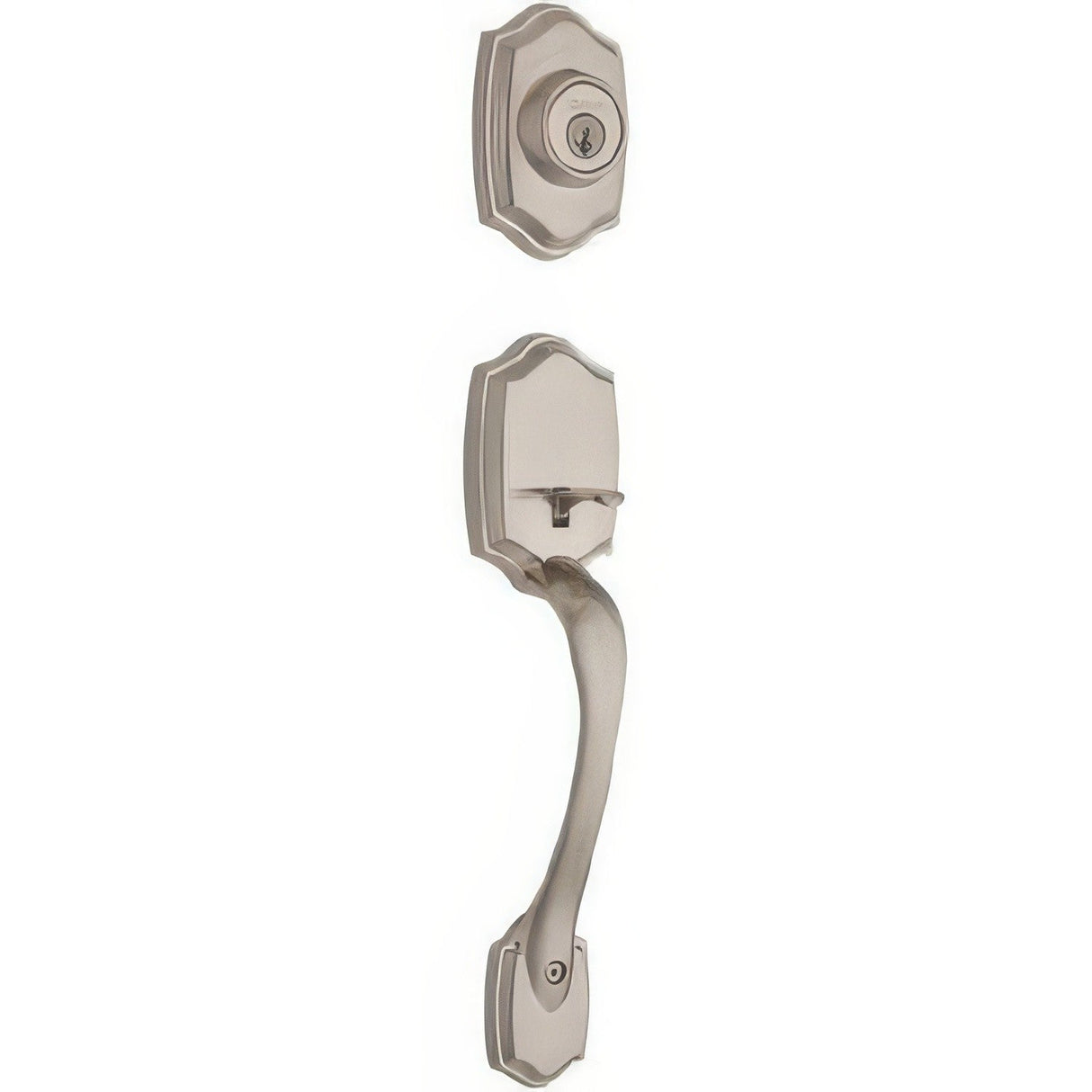

| 687BWLIP-15S.STRKP | Satin Nickel / Current SKU | $108.14 USD |

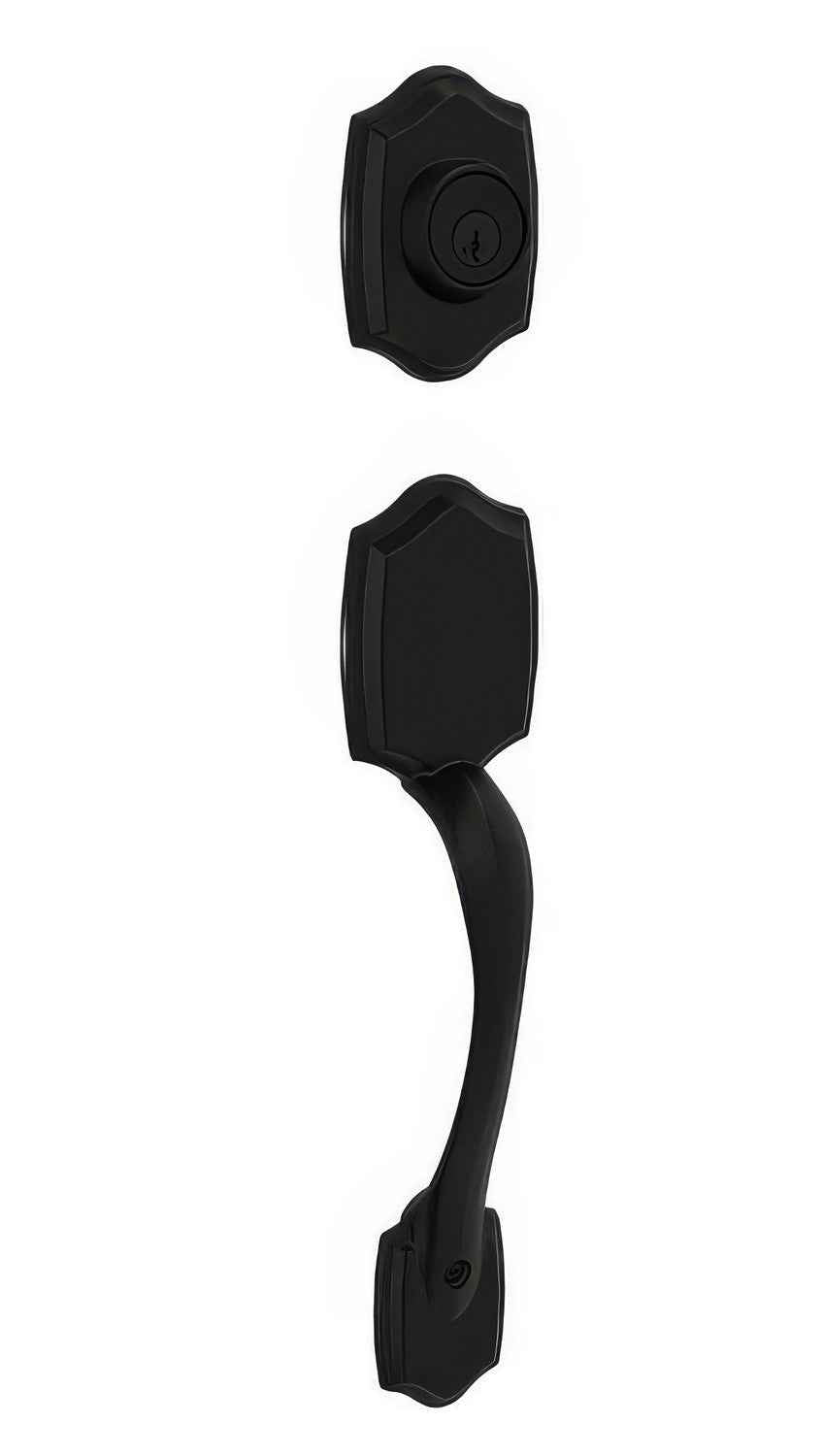

| 687BWLIP-514S.STRKP | Matte Black / Current SKU | $114.85 USD |

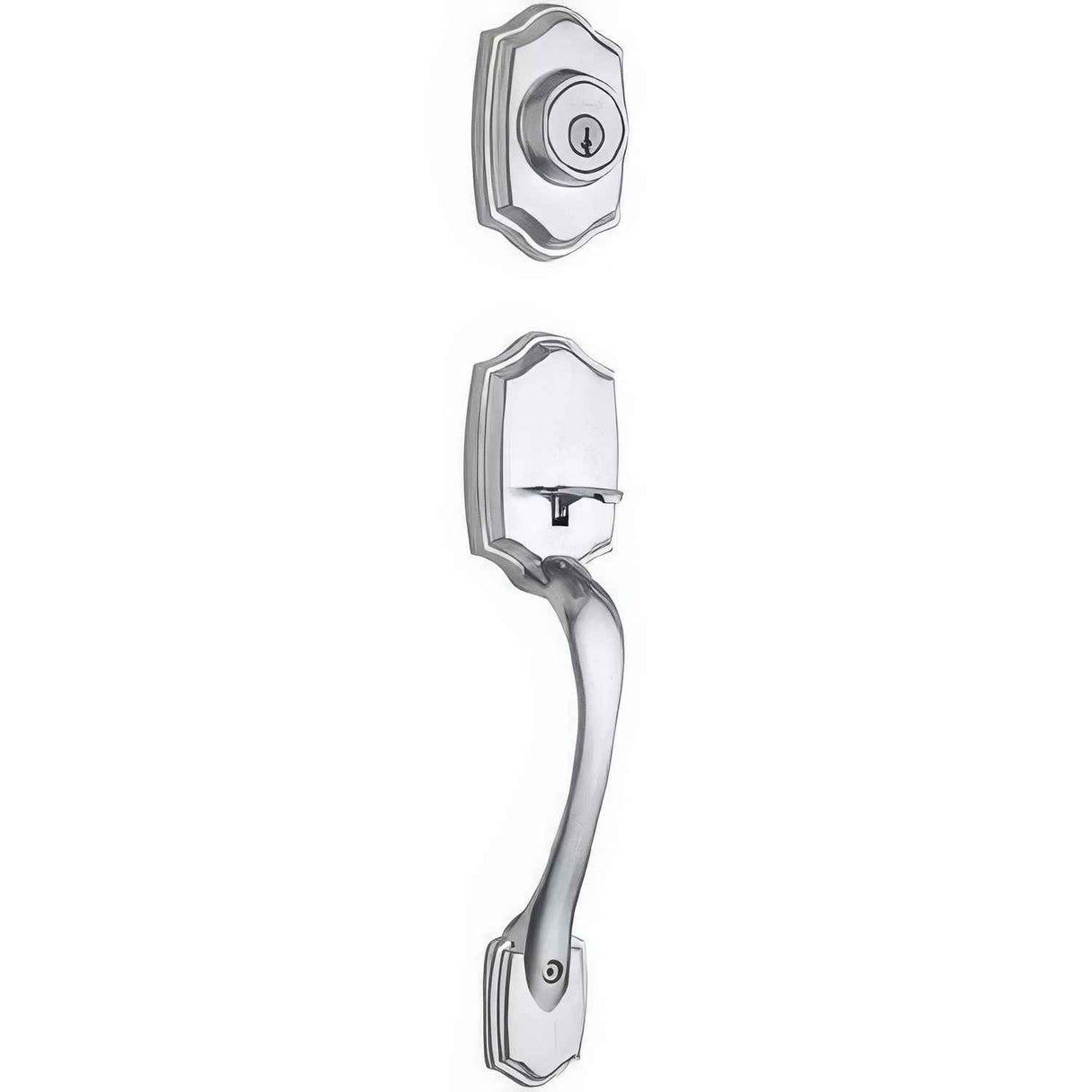

| 687BWLIP-26DS | Satin Chrome / Current SKU | $88.46 USD |
| 687BWLIP-26DS.DS | Satin Chrome / Original SKU | $88.46 USD |
Description
Description
The Kwikset 687BW-LIP-S Belleview is a single cylinder exterior handleset designed for exterior entry door requiring the outside portion of a kwikset single-cylinder handleset.
Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch. Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately.
Product Details
- Manufacturer part number: 687BW-LIP-S
- Collection: Belleview
- Function: Single Cylinder Exterior Handleset
- Application: Exterior entry door requiring the outside portion of a Kwikset single-cylinder handleset
- Operation: Provides keyed-one-side deadbolt operation from the exterior and an exterior thumbpiece for the latch
- Package scope: Exterior handleset and keyed exterior deadbolt trim; a compatible interior handleset pack is required separately
- Keying technology: Kwikset SmartKey
- Handing: Left Hand / Right Hand / Reversible
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Door thickness: 1-3/4″
- Center to center: 9-11/16″
- Published grade: Grade 1
- Material: Zinc
- Style: Transitional
Compatibility: Pair with the compatible Kwikset interior pack and matching latch, strike, door thickness and preparation. Confirm the exact model, handing, door thickness and preparation before ordering.
Product Documents
Kwikset Belleview 687BW-LIP-S Installation Guide
Kwikset Belleview 687BW-LIP-S Specification Sheet
Kwikset SmartKey Installation Guide
Additional Kwikset Information
View Kwikset Manufacturer Warranty
Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
Specifications
Specifications
-
Weight2.8 lb
-
SKU
-
Brand
-
Function
-
Material
-
Product Class
-
BacksetAdjustable 2-3/8" or 2-3/4"
-
BHMA Certification
-
CylinderSmart Key 5 Pin
-
Collections
-
FinishSatin Chrome, Satin Nickel, Matte Black
-

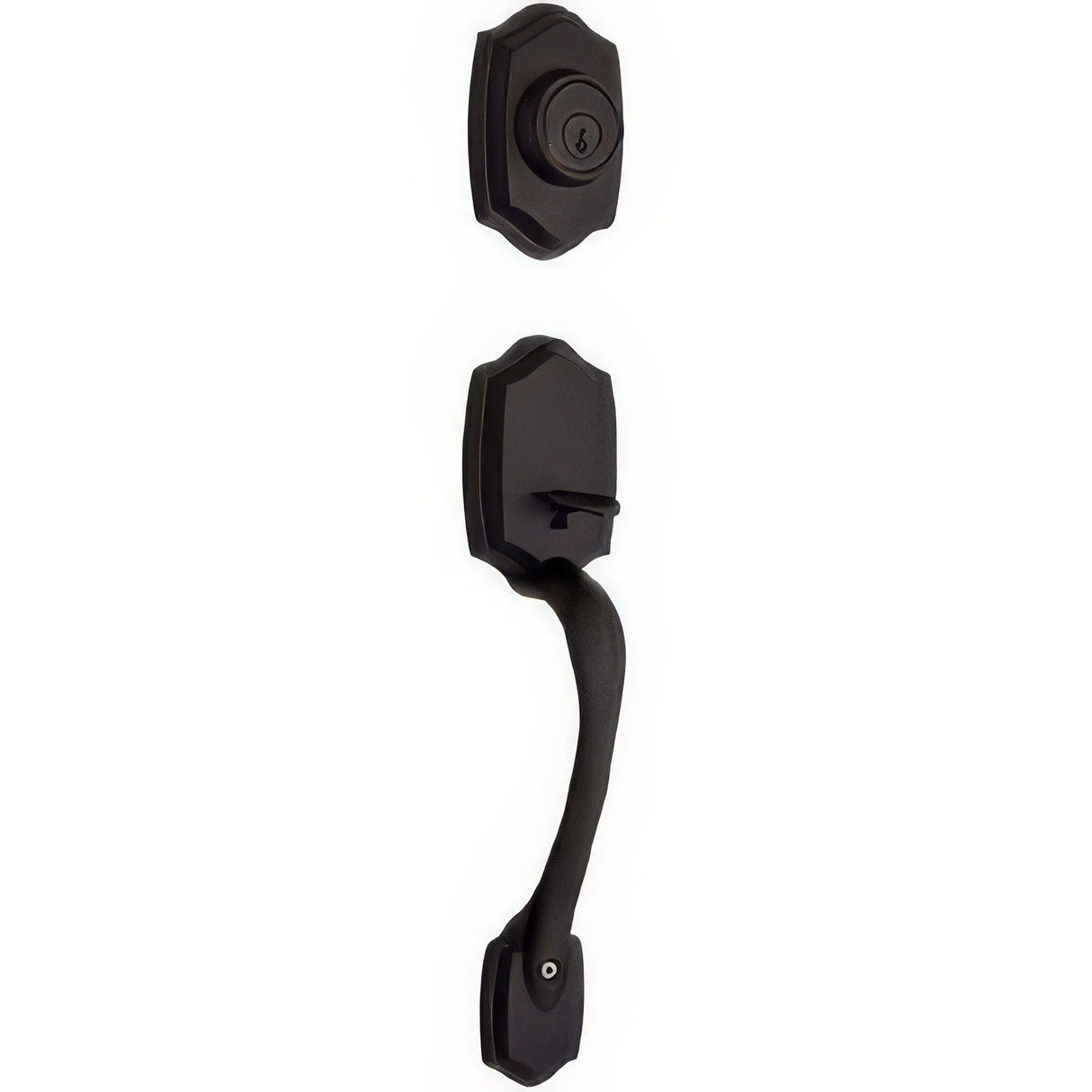

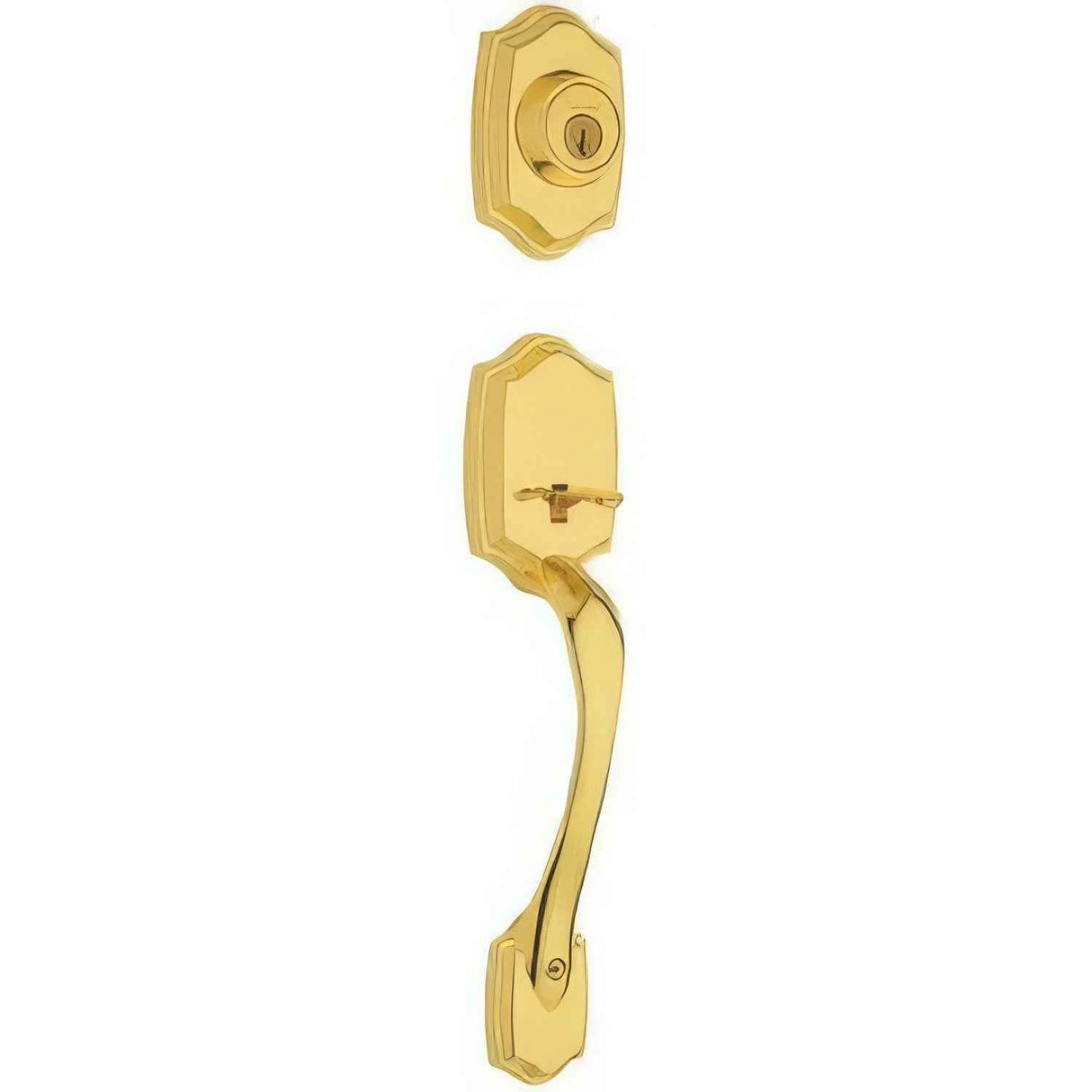

FinishSatin Nickel / Current SKU, Matte Black / Current SKU, Satin Chrome / Current SKU, Satin Chrome / Original SKU, Discontinued - Antique Brass / Current SKU, Discontinued - Polished Brass / Current SKU, Discontinued - Satin Nickel / Current SKU, Discontinued - Venetian Bronze / Current SKU, Discontinued - Matte Black / Current SKU
-
Free ShippingYes
-
Function
-
HandingLeft Hand, Right Hand, Reversible
-
Handle Style
-
Keying OptionI can Re-Key this SmartKey item myself, Keyed Alike, Keyed Different
-
Latch typeRound Corner, Square Corner, Drive-In Latch
-
Material
-
Door Thinkness1-3/4"
-
Lock Function
-
Style
-
Latch Faceplate
-
Look Style
-
Center To Center
-
Mount Type
